Bullet Connectors

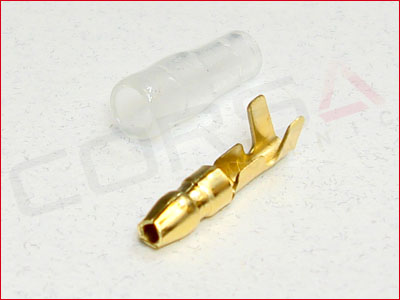

BC35-1P
3.5mm Bullet Plug kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC35-1S, 2x fit in BC35-2S
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC35-1S, 2x fit in BC35-2S
- Hero B-41 (terminal), B-3 (cover)
BC35-1S
3.5mm Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC35-1P
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC35-1P
- Hero B-42 (terminal), B-4 (cover)
BC35-2S
3.5mm Double Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: Accepts 2x BC35-1P
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: Accepts 2x BC35-1P
BC40-1P-A
4mm Bullet Plug kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S
- Hero B-1 (terminal), B-66 (cover)
- KET ST750036-1, -2, ST750318-1, -2
- KUM MT041-01200
- TE 170002-4, -5 (loose: 170020-2, -3)
- Yazaki 7113-1020, 7113-1021

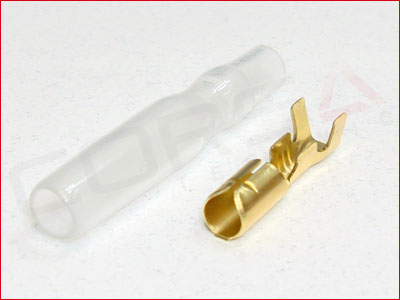

BC40-1P-B
4mm Sealed Bullet Plug kit
Kit Contents: 1 terminal and 1 sleeve per kit
OEM P/N: 7120-8013
Mating Part: BC40-1S-B
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.
Kit Contents: 1 terminal and 1 sleeve per kit
OEM P/N: 7120-8013
Mating Part: BC40-1S-B
- KET ST750036-1, -2, ST750318-1, -2
- KUM MT041-01200
- TE 170002-4, -5 (loose: 170020-2, -3)
- Yazaki 7113-1020, 7113-1021
BC40-1S-A
4mm Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC40-1P-A
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: BC40-1P-A
- Hero B-2 (terminal), B-67 (cover)
- KET ST730018-1, ST730343-2, ST730317-1, -2
- KUM MT045-01200
- Sumitomo 1800-2089
- TE 170003-4, -5 (loose 170021-2, -3)
- Yazaki 7115-1050
BC40-1S-B
4mm Sealed Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator per kit
OEM P/N: 7120-1151
Mating Part: BC40-1P-B
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.
Kit Contents: 1 terminal and 1 insulator per kit
OEM P/N: 7120-1151
Mating Part: BC40-1P-B
- KET ST730018-1, ST730343-2, ST730317-1, -2
- KUM MT045-01200
- Sumitomo 1800-2089
- TE 170003-4, -5 (loose 170021-2, -3)
- Yazaki 7115-1050
BC40-2S
4.0mm Double Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: Accepts 2x BC40-1P-A
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: Accepts 2x BC40-1P-A
BC40-3S
4.0mm Triple Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: Accepts 3x BC40-1P-A
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator per kit
Mating Part: Accepts 3x BC40-1P-A
