Home ▹ Connectors ▹ By Application/Use ▹ Motorcycle/Sport-Bike ▹ 1-Way

1-Way

1-Way Kit
187.FN-1S-A
1-Way Kit
OEM P/N: 1-170823-3
187.FN-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 1-170823-3
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.20 - 1.25 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.28
6-19$0.27
20-49$0.25
50-99$0.24
100+$0.22
Quantity:  Kit

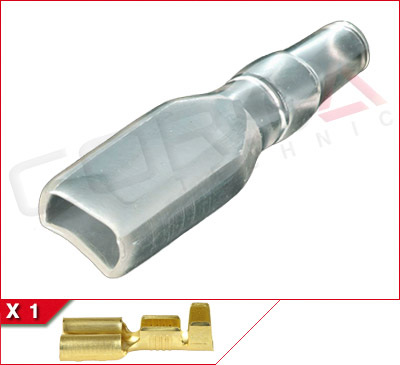

1-Way Kit
205.FN-1S-A
1-Way Kit
OEM P/N: 4-170823-1
205.FN-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 4-170823-1
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:5.2mm (.205)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.48
6-19$0.45
20-49$0.41
50-99$0.38
100+$0.34
Quantity:  Kit

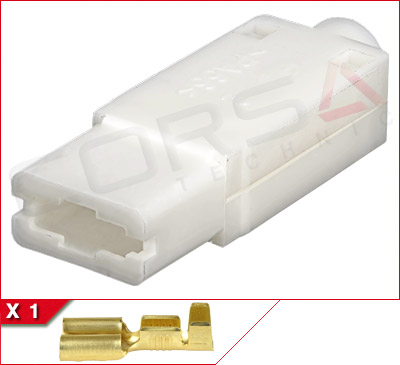

1-Way Kit
205.FN-1S-B
1-Way Kit
205.FN-1S-B  1-Way Kit
Kit Contents: Housing, 1 socket contact

Series: FASTON Series
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:5.2mm (.205)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.85
6-19$0.79
20-49$0.72
50-99$0.68
100+$0.59
Quantity:  Kit

1-Way Kit
250.ARM-1P
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

250.ARM-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

Mating Part: 250.ARM-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (male half)
  • KTM 000700000BN
QtyPrice
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-499$0.76
500+$0.71
Quantity:  Kit

1-Way Kit
250.ARM-1S
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
250.ARM-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
Mating Part: 250.ARM-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (female half)
  • KTM 000700000CH
QtyPrice
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-249$0.76
250-499$0.71
500+$0.67
Quantity:  Kit

1-Way Kit
250.FLAG-1S-A
1-Way Kit
OEM P/N: 170891-1
250.FLAG-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 170891-1
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.31 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.63
6-19$0.60
20-49$0.57
50-99$0.54
100-999$0.50
1000+$0.47
Quantity:  Kit

1-Way Kit

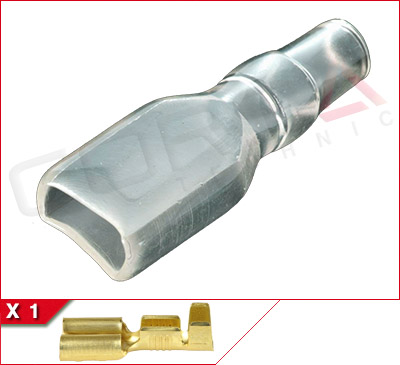

250.FN-1S-A
1-Way Kit
OEM P/N: 170823-2
250.FN-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 170823-2
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.54
6-19$0.51
20-49$0.49
50-99$0.46
100-249$0.43
250-499$0.41
500-999$0.38
1000+$0.35
Quantity:  Kit

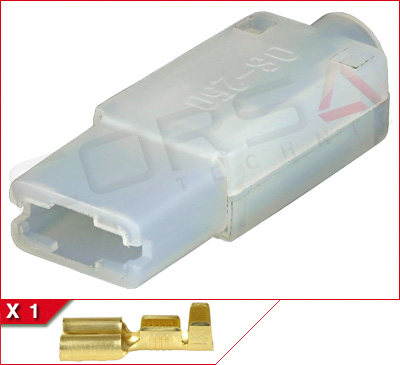

1-Way Kit
250.FN-1S-B
1-Way Kit
OEM P/N: OS-250
(Sumitomo: 6910-0425)
250.FN-1S-B  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Richco
Series: FASTON Series
OEM P/N: OS-250
(Sumitomo: 6910-0425)
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 105 °C
  • Flammability Rating:UL94 V-2
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.97
6-19$0.90
20-49$0.82
50-99$0.78
100+$0.68
Quantity:  Kit

1-Way Kit
250.HL-1P
1-Way Kit
250.HL-1P  1-Way Kit
Kit Contents: Housing, 1 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-1S

AMP/TESumitomoYazaki
172127-16070-16217122-2810
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.95
6-19$0.88
20-49$0.81
50-99$0.76
100+$0.67
Quantity:  Kit

1-Way Kit
250.HL-1S
1-Way Kit
250.HL-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-1P

AMP/TESumitomoYazaki
172128-16070-16117123-2810
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.95
6-19$0.88
20-49$0.81
50-99$0.76
100+$0.67
Quantity:  Kit

1-Way Plug Kit
305.TL-1P
1-Way Plug Kit
305.TL-1P  1-Way Plug Kit
Kit Contents: Housing, 1x pin contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-1S


spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-57 (male half)
  • Yazaki 7122-3010
QtyPrice
1-5$1.49
6-19$1.42
20-49$1.34
50-99$1.27
100-249$1.19
250-499$1.12
500+$1.04
Quantity:  Kit

1-Way Receptacle Kit
305.TL-1S
1-Way Receptacle Kit
305.TL-1S  1-Way Receptacle Kit
Kit Contents: Housing, 1x socket contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-57 (female half)
  • KUM PH235-01010
  • Yazaki 7123-3010
QtyPrice
1-5$1.49
6-19$1.42
20-49$1.34
50-99$1.27
100-249$1.19
250-499$1.12
500+$1.04
Quantity:  Kit

3.5mm Bullet Plug kit
BC35-1P
3.5mm Bullet Plug kit
BC35-1P  3.5mm Bullet Plug kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC35-1S, 2x fit in BC35-2S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-41 (terminal), B-3 (cover)
  • Honda 070MZ-0020100 (terminal)
QtyPrice
1-49$0.29
50-99$0.26
100-249$0.23
250-499$0.20
500-999$0.17
1000+$0.14
Quantity:  Kit

3.5mm Bullet Receptacle kit
BC35-1S
3.5mm Bullet Receptacle kit
BC35-1S  3.5mm Bullet Receptacle kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC35-1P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-42 (terminal), B-4 (cover)
  • Honda 070MZ-0020200 (terminal, SKT1), 070MZ-0020300 (terminal, SKT2)
QtyPrice
1-49$0.32
50-99$0.29
100-249$0.26
250-499$0.22
500-999$0.19
1000+$0.16
Quantity:  Kit

4mm Bullet Plug kit
BC40-1P-A
4mm Bullet Plug kit
BC40-1P-A  4mm Bullet Plug kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-1 (terminal), B-66 (cover)
  • KET ST750036-1, -2, ST750318-1, -2
  • KUM MT041-01200
  • TE 170002-4, -5 (loose: 170020-2, -3)
  • Yazaki 7113-1020, 7113-1021
QtyPrice
1-49$0.29
50-99$0.26
100-249$0.23
250-499$0.20
500-999$0.17
1000+$0.14
Quantity:  Kit

4mm Sealed Bullet Plug kit
BC40-1P-B
4mm Sealed Bullet Plug kit
OEM P/N: 7120-8013
BC40-1P-B  4mm Sealed Bullet Plug kit
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 sleeve

OEM P/N: 7120-8013
Mating Part: BC40-1S-B, BC40-1S-B2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST750036-1, -2, ST750318-1, -2
  • KUM MT041-01200
  • TE 170002-4, -5 (loose: 170020-2, -3)
  • Yazaki 7113-1020, 7113-1021
QtyPrice
1-49$0.42
50-99$0.38
100-249$0.34
250-499$0.29
500-999$0.25
1000+$0.21
Quantity:  Kit

4mm Sealed Bullet Plug kit
BC40-1P-C
4mm Sealed Bullet Plug kit
OEM P/N: 7230-5873
BC40-1P-C  4mm Sealed Bullet Plug kit
Waterproof with .5-1.25 mm² AV wire.

Kit Contents: 1 terminal and 1 sleeve

OEM P/N: 7230-5873
Mating Part: BC40-1S-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda 32825-SA5-300 (cover), 07692-0010100 (terminal)
QtyPrice
1-49$0.58
50-99$0.52
100-249$0.46
250-499$0.41
500-999$0.35
1000+$0.29
Quantity:  Kit

4mm Bullet Receptacle kit
BC40-1S-A
4mm Bullet Receptacle kit
BC40-1S-A  4mm Bullet Receptacle kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC40-1P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-2 (terminal), B-67 (cover)
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice
1-49$0.32
50-99$0.29
100-249$0.26
250-499$0.22
500-999$0.19
1000+$0.16
Quantity:  Kit

4mm Sealed Bullet Receptacle kit
BC40-1S-B
4mm Sealed Bullet Receptacle kit
OEM P/N: 7120-1151
BC40-1S-B  4mm Sealed Bullet Receptacle kit
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7120-1151
Mating Part: BC40-1P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice
1-49$0.42
50-99$0.38
100-249$0.34
250-499$0.29
500-999$0.25
1000+$0.21
Quantity:  Kit

4mm Sealed Bullet Receptacle kit (Double wire type)
BC40-1S-B2
4mm Sealed Bullet Receptacle kit (Double wire type)
OEM P/N: 7120-1152
BC40-1S-B2  4mm Sealed Bullet Receptacle kit (Double wire type)
Waterproof with double .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7120-1152
Mating Part: BC40-1P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice
1-49$1.19
50-99$1.13
100-249$1.07
250-499$0.95
500+$0.83
Quantity:  Kit

1-Way Kit
HW-1P
1-Way Kit
OEM P/N: 6181-0227
HW-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0227
Mating Part: HW-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.54
6-19$2.41
20-49$2.29
50-99$2.16
100+$2.03
Quantity:  Kit

1-Way Kit
HX040-1S-1
1-Way Kit
OEM P/N: 6189-0940
HX040-1S-1  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, front lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6189-0940
Part Name: HX4-DC1FAY-B
Mating Part: HX040-1P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$2.91
6-19$2.76
20-49$2.62
50-99$2.47
100+$2.33
Quantity:  Kit

1-Way Kit
HX090-1S
1-Way Kit
OEM P/N: 6189-0591
HX090-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0591
Mating Part: 6181-0803

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$3.52
6-19$3.34
20-49$3.17
50-99$2.99
100-249$2.82
250+$2.64
Quantity:  Kit

1-Way Kit
MP150U-1P
1-Way Kit
OEM P/N: 12047683
MP150U-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: OEM Delphi
Series: Metri-Pack 150 Unsealed series
OEM P/N: 12047683
Mating Part: MP150U-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 0.80 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Row Spacing:7.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:14A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100+$0.95
Quantity:  Kit

1-Way Kit
MT-1P
1-Way Kit
OEM P/N: 6187-1171 (alt pn with mounting clamp 6187-1561)
MT-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-1171 (alt pn with mounting clamp 6187-1561)
Part Name: 0901MASSY
Mating Part: MT-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRS-104N
QtyPrice
1-5$2.55
6-19$2.37
20-49$2.17
50-99$2.04
100+$1.78
Quantity:  Kit

1-Way Kit
MT-1S
1-Way Kit
OEM P/N: 6180-1181
MT-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-1181
Mating Part: MT-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRS-105N
  • KTM 000700000GD
QtyPrice
1-5$1.12
6-19$1.06
20-49$1.01
50-99$0.95
100-249$0.90
250+$0.84
Quantity:  Kit

1-Way Kit
MTU.SL-1P
1-Way Kit
OEM P/N: 6242-1011, 6243-1011 (w/clamp)
MTU.SL-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
OEM P/N: 6242-1011, 6243-1011 (w/clamp)
Mating Part: MTU.SL-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.48
6-19$1.38
20-49$1.26
50-99$1.18
100+$1.04
Quantity:  Kit

1-Way Kit
MTU.SL-1S
1-Way Kit
MTU.SL-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Semi-Locking, 090 Unsealed
Mating Part: MTU.SL-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.45
6-19$1.35
20-49$1.23
50-99$1.16
100+$1.01
Quantity:  Kit

1-Way Kit
RFW-1S
1-Way Kit
OEM P/N: FW-C-1F-B (alt p/n: P010463, 12444-5201-2)
RFW-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-1F-B (alt p/n: P010463, 12444-5201-2)
Mating Part: RFW-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:14A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.52
6-19$2.39
20-49$2.27
50-99$2.14
100-499$2.02
500+$1.89
Quantity:  Kit

1-Way Kit
SS15-1P
1-Way Kit
OEM P/N: 282103-1
SS15-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal

Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282103-1
Mating Part: SS15-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 2.50 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:14A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.99
6-19$0.94
20-49$0.89
50-99$0.84
100+$0.79
Quantity:  Kit

1-Way Kit
SS15-1S
1-Way Kit
OEM P/N: 282079-2
SS15-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282079-2
Mating Part: SS15-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 2.50 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:14A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ducati oil pressure switch (harness side)
spacer
  • Mopar 68122929AA repair kit connector
QtyPrice
1-5$1.30
6-19$1.24
20-49$1.17
50-99$1.10
100+$1.04
Quantity:  Kit

1-Way Kit

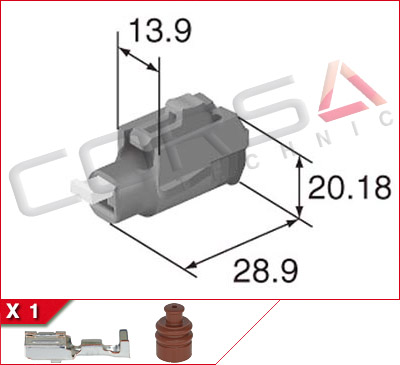

TS187-1S-2
1-Way Kit
OEM P/N: 6189-0413
TS187-1S-2  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: TS 187 Sealed Series
OEM P/N: 6189-0413
Part Name: 11400W8A01F-B
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-11400
QtyPrice
1-5$3.88
6-19$3.69
20-49$3.49
50-99$3.30
100+$3.10
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
