Home ▹ Connectors ▹ By Application/Use ▹ Motorcycle/Sport-Bike ▹ 10-Way

10-Way

10-Way Kit

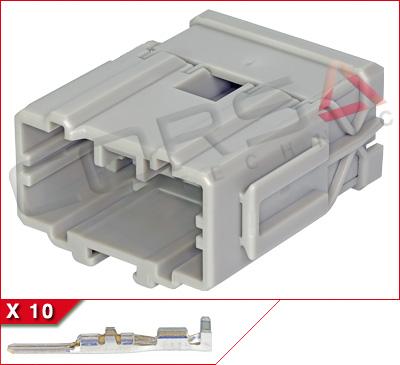

HD090-10P
10-Way Kit
OEM P/N: 6098-0250
HD090-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0250
Mating Part: HD090-10S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$2.98
6-19$2.77
20-49$2.53
50-99$2.38
100+$2.09
Quantity:  Kit

10-Way Kit

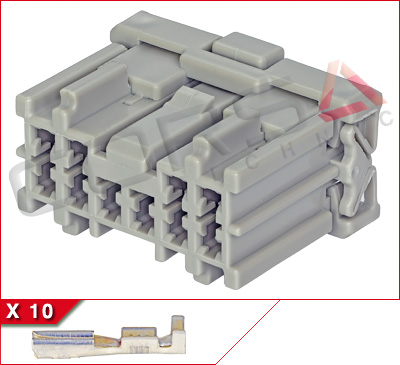

HD090-10S
10-Way Kit
OEM P/N: 6098-0249
HD090-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0249
Mating Part: HD090-10P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$2.90
6-19$2.70
20-49$2.46
50-99$2.32
100+$2.03
Quantity:  Kit

10-Way Kit

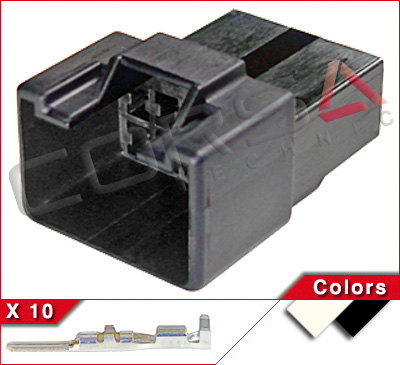

HMU-10P
10-Way Kit
OEM P/N: 6090-1056
HMU-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1056
Mating Part: HMU-10S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$5.32
6-19$4.95
20-49$4.52
50-99$4.26
100+$3.72
Quantity:  Kit

10-Way Kit

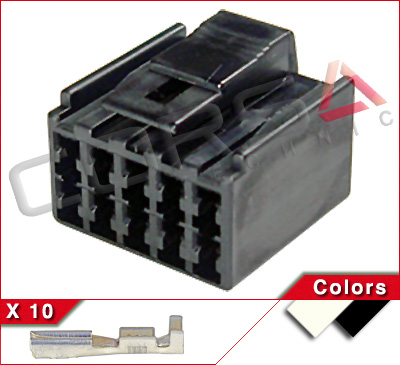

HMU-10S
10-Way Kit
OEM P/N: 6090-1220
HMU-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1220
Mating Part: HMU-10P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.32
6-19$3.09
20-49$2.82
50-99$2.66
100-499$2.32
500+$2.16
Quantity:  Kit

10-Way (8+2) Hybrid Kit
HX.HYB-10P
10-Way (8+2) Hybrid Kit
OEM P/N: 6181-0381
HX.HYB-10P  10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 pin terminals and seals, 2x 187 pin terminals and seals, front lock

Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6181-0381
Mating Part: HX.HYB-10S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$8.84
6-19$8.40
20-49$7.96
50-99$7.51
100+$7.07
Quantity:  Kit

10-Way (8+2) Hybrid Kit
HX.HYB-10S
10-Way (8+2) Hybrid Kit
OEM P/N: 6189-0555
HX.HYB-10S  10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 socket terminals and seals, 2x 187 socket terminals and seals, front lock

Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6189-0555
Mating Part: HX.HYB-10P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$9.03
6-19$8.58
20-49$8.13
50-99$7.68
100+$7.22
Quantity:  Kit

10-Way Kit
MTU.IL-10P
10-Way Kit
OEM P/N: 6240-1101, 7122-1300
MTU.IL-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1101, 7122-1300
Mating Part: MTU.IL-10S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10375
QtyPrice
1-5$3.63
6-19$3.38
20-49$3.09
50-99$2.90
100+$2.54
Quantity:  Kit

10-Way Kit
MTU.IL-10S
10-Way Kit
OEM P/N: 6240-5101, 7123-1300
MTU.IL-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5101, 7123-1300
Mating Part: MTU.IL-10P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10322
QtyPrice
1-5$3.36
6-19$3.12
20-49$2.86
50-99$2.69
100+$2.35
Quantity:  Kit

10-Way Kit
TS025-10P
10-Way Kit
OEM P/N: 6188-0696
TS025-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts for 24-20 awg wire, 10 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-0696
Part Name: 12379WQA10M-B
Mating Part: TS025-10S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Toyota 90980-12379
QtyPrice
1-5$3.83
6-19$3.64
20-49$3.45
50-99$3.26
100+$3.06
Quantity:  Kit

10-Way Kit

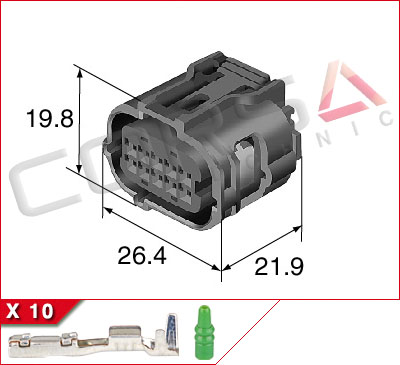

TS025-10S
10-Way Kit
OEM P/N: 6189-1134
TS025-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1134
Part Name: 12380WQA10F-B
Mating Part: TS025-10P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Toyota 90980-12380
QtyPrice
1-5$4.13
6-19$3.92
20-49$3.72
50-99$3.51
100+$3.30
Quantity:  Kit

10-Way Kit

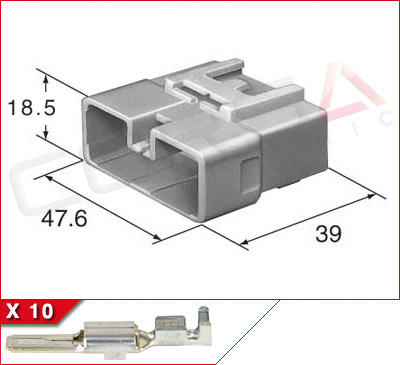

TS187U-10P
10-Way Kit
OEM P/N: 6098-0154
TS187U-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-0154
Part Name: TS187AY10M
Mating Part: TS187U-10S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:6.8mm
  • Row Spacing:6.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Toyota 90980-10861
QtyPrice
1-5$6.08
6-19$5.78
20-49$5.47
50-99$5.17
100+$4.86
Quantity:  Kit

10-Way Kit

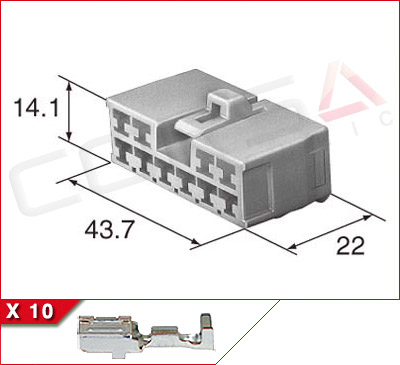

TS187U-10S
10-Way Kit
OEM P/N: 6098-0156
TS187U-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-0156
Part Name: TS187AY10F
Mating Part: TS187U-10P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:6.8mm
  • Row Spacing:6.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
  • Toyota 90980-10862
QtyPrice
1-5$6.19
6-19$5.88
20-49$5.57
50-99$5.26
100+$4.95
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
