Home ▹ Connectors ▹ By Application/Use ▹ Motorcycle/Sport-Bike ▹ 2-Way

2-Way

99 Items.  Showing Items 1 thru 50.
 1  2   Next »   Show All

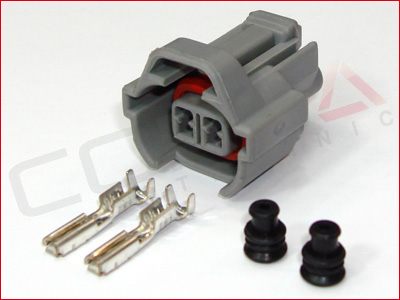

2-Way Kit
090II-2S-1
2-Way Kit
OEM P/N: 7283-7023-10
View Item
090II-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7023-10
Mating Part: 090II-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Suzuki
  • GSXR-600 camshaft sensor on 01-05 (harness side, grey)
  • GSXR-750 camshaft sensor on 98-05 (harness side, grey)
  • GSXR-1000 camshaft sensor on 01-06 (harness side, grey)
  • Hayabusa camshaft sensor on 99-07 (harness side, grey)
  • TL1000S camshaft sensor on 99-01 (harness side, grey)
spacer
  • Toyota 90980-10947
QtyPrice (USD)
1-5$3.26
6-19$3.10
20-49$2.93
50-99$2.77
100+$2.61
Quantity:  Kit

2-Way Kit
090II-2S-7
2-Way Kit
OEM P/N: 7283-7027-40
View Item
090II-2S-7  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7027-40
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Intake air temp sensor 89424-24010, 89424-60010 used on many Toyota models. (harness side)
spacer
  • Toyota 90980-11025
QtyPrice (USD)
1-5$4.46
6-19$4.24
20-49$4.01
50-99$3.79
100+$3.57
Quantity:  Kit

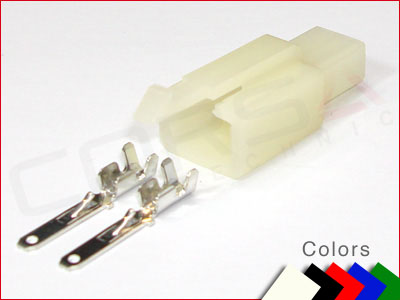

2-Way Kit
250.ARM-2P-1
2-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2128-30 (PA66), 7122-2228-30 (PP)
Natural | 6111-2567 (PA66), 6070-2381 (PP) | 7122-2128 (PA66), 7122-2228 (PP)
View Item
250.ARM-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2128-30 (PA66), 7122-2228-30 (PP)
Natural | 6111-2567 (PA66), 6070-2381 (PP) | 7122-2128 (PA66), 7122-2228 (PP)
Mating Part: 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100-249$0.95
250-499$0.89
500-999$0.83
1000+$0.77
Quantity:  Kit

2-Way Kit (Reversed keying)
250.ARM-2P-2
2-Way Kit (Reversed keying)
View Item
250.ARM-2P-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2S-2
Note: This is a reversed keying version of the regular 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.ARM-2S-1
2-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2128-30 (PA66), 7123-2228-30 (PP)
Natural | 6111-2568 (PA66), 6070-2391 (PP) | 7123-2128 (PA66), 7123-2228 (PP)
View Item
250.ARM-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2128-30 (PA66), 7123-2228-30 (PP)
Natural | 6111-2568 (PA66), 6070-2391 (PP) | 7123-2128 (PA66), 7123-2228 (PP)
Mating Part: 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100-249$0.95
250-499$0.89
500-999$0.83
1000+$0.77
Quantity:  Kit

2-Way Kit (Reversed keying)
250.ARM-2S-2
2-Way Kit (Reversed keying)
View Item
250.ARM-2S-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2P-2
Note: This is a reversed keying version of the regular 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.HL-2P
2-Way Kit
View Item
250.HL-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-2S

AMP/TESumitomoYazaki
172129-16070-26217122-2820
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.HL-2S
2-Way Kit
View Item
250.HL-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-2P

AMP/TESumitomoYazaki
172130-16070-26117123-2820
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.LOC-2P
2-Way Kit
View Item
250.LOC-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-2S
P/N:
Natural, 6120-3523 (PP)
Black, ()

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.20
6-19$1.14
20-49$1.08
50-99$1.02
100-249$0.96
250-499$0.90
500+$0.84
Quantity:  Kit

2-Way Kit
250.LOC-2P-CLIP
2-Way Kit
OEM P/N: 6010-2802
View Item
250.LOC-2P-CLIP  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: OEM Sumitomo
Series: 250 Lock series
OEM P/N: 6010-2802
Part Name: 2PL-M-PP FIX-B
Mating Part: 250.LOC-2S
Bottom of connector features a bracket mount.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PP
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-20 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.07
6-19$1.93
20-49$1.76
50-99$1.66
100+$1.45
Quantity:  Kit

2-Way Kit
250.LOC-2S
2-Way Kit
View Item
250.LOC-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-2P, 250.LOC-2P-CLIP
P/N:
Natural, 6110-4623 (PP)
Black, ()

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Panel Mount
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.20
6-19$1.14
20-49$1.08
50-99$1.02
100-249$0.96
250-499$0.90
500+$0.84
Quantity:  Kit

2-Way Plug Kit
305.TL-2P-1
2-Way Plug Kit
View Item
305.TL-2P-1  2-Way Plug Kit
Kit Contents: Housing, 2x pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-58 (male half)
  • KUM PH231-02020
  • Yazaki 7122-3020
QtyPrice (USD)
1-5$1.78
6-19$1.69
20-49$1.60
50-99$1.51
100-249$1.42
250-499$1.33
500-999$1.25
1000+$1.16
Quantity:  Kit

2-Way Plug Kit
305.TL-2P-2
2-Way Plug Kit
View Item
305.TL-2P-2  2-Way Plug Kit
Kit Contents: Housing, 2x pin contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2S-2

  • See related terminal for crimp specs
spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Sumitomo 6410-5526
QtyPrice (USD)
1-5$1.90
6-19$1.77
20-49$1.61
50-99$1.52
100+$1.33
Quantity:  Kit

2-Way Receptacle Kit
305.TL-2S-1
2-Way Receptacle Kit
View Item
305.TL-2S-1  2-Way Receptacle Kit
Kit Contents: Housing, 2x socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2P-1

  • See related terminal for crimp specs
spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-58 (female half)
  • Yazaki 7123-3020
QtyPrice (USD)
1-5$1.78
6-19$1.66
20-49$1.51
50-99$1.42
100+$1.25
Quantity:  Kit

2-Way Receptacle Kit
305.TL-2S-2
2-Way Receptacle Kit
View Item
305.TL-2S-2  2-Way Receptacle Kit
Kit Contents: Housing, 2x socket contacts

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-2P-2

  • See related terminal for crimp specs
spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Sumitomo 6410-5326
QtyPrice (USD)
1-5$1.90
6-19$1.80
20-49$1.71
50-99$1.61
100-249$1.52
250-499$1.42
500+$1.33
Quantity:  Kit

3.5mm Double Bullet Receptacle kit
BC35-2S
3.5mm Double Bullet Receptacle kit
View Item
BC35-2S  3.5mm Double Bullet Receptacle kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: Accepts 2x BC35-1P
For .85-1.25 mm² - 18-16 AWG wire

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.59
50-99$0.53
100-249$0.47
250-499$0.41
500-999$0.35
1000+$0.29
Quantity:  Kit

4.0mm Double Bullet Receptacle kit
BC40-2S
4.0mm Double Bullet Receptacle kit
View Item
BC40-2S  4.0mm Double Bullet Receptacle kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: Accepts 2x BC40-1P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.60
50-99$0.54
100-249$0.48
250-499$0.42
500-999$0.36
1000+$0.30
Quantity:  Kit

2-Way Kit
DL090-2S-2
2-Way Kit
OEM P/N: 6195-0043 w/o bottom tabs (alt p/n: 6195-0041 with injector anti-rotation tabs on bottom)
View Item
DL090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0043 w/o bottom tabs (alt p/n: 6195-0041 with injector anti-rotation tabs on bottom)
Part Name: W-DL09INJ2AY-GR
Mating Part: DL090-2P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.64
6-19$5.36
20-49$5.08
50-99$4.79
100+$4.51
Quantity:  Kit

2-Way Kit
EPC15-2S-1
2-Way Kit
OEM P/N: E-3979
View Item
EPC15-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-3979
Keying: A
Mating Part: N/A, Device only

NOTE: Not compatible with ignition coils that have a step inside the connector. Incompatible ignition coils include Denso P/N: 129700-xxxx,etc. The correct connector for these is the RFW-2S


spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE/PA+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • 2-pin COP pencil ignition coils
spacer
  • Ford 3U2Z-14S411-SLB, WPT-986 (Tin plated terminals) pigtail connector
  • Ford 1F1T-14A464-AB
QtyPrice (USD)
1-5$3.49
6-19$3.32
20-49$3.14
50-99$2.97
100-249$2.79
250-499$2.62
500+$2.44
Quantity:  Kit

2-Way Kit
EPC15-2S-2
2-Way Kit
OEM P/N: E-2157-000
View Item
EPC15-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-2157-000
Keying: A
Mating Part: EPC15-2P-2-CLIP

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE/PA+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • EV6, EV14 Uscar injector connector
spacer
  • Ford 6U2Z-14S411-GA, WPT-871 (Gold plated terminals) pigtail connector
  • Ford XW43-14A464-AAA (Black, w/o CPA, E-2157-000)
  • Ford 97BG-14A464-SBA (Yellow, w/o CPA, E-2157-002)
  • Ford 98AG-14A464-SBA (Gray, w/o CPA, E-2157-003)
QtyPrice (USD)
1-5$3.47
6-19$3.30
20-49$3.12
50-99$2.95
100-249$2.78
250-499$2.60
500-999$2.43
1000+$2.26
Quantity:  Kit

2-Way Kit
EPC15-2S-4
2-Way Kit
OEM P/N: E-4995 w/cpa
View Item
EPC15-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-4995 w/cpa
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE/PA+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 3U2Z-14S411-EKB, WPT-948 (Tin greased terminals) pigtail connector
  • Ford 1L2T-14A464-AA (w/CPA)
  • Ford 1L2T-14A464-BA (w/o CPA)
QtyPrice (USD)
1-5$3.27
6-19$3.11
20-49$2.94
50-99$2.78
100+$2.62
Quantity:  Kit

2-Way Kit
EPC15-2S-5
2-Way Kit
OEM P/N: E-3550
View Item
EPC15-2S-5  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-3550
Keying: A
Mating Part: EPC15-2P-2-CLIP

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE/PA+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford XR3T-14A464-AA
QtyPrice (USD)
1-5$3.89
6-19$3.70
20-49$3.50
50-99$3.31
100+$3.11
Quantity:  Kit

2-Way Kit
FMT-2P
2-Way Kit
OEM P/N: FT0251, Q010837, 12445-4102
View Item
FMT-2P  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire

Mfr: OEM Furukawa
Series: FMT Series
OEM P/N: FT0251, Q010837, 12445-4102
Part Name: FMT-C-2M

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No

QtyPrice (USD)
1-5$3.48
6-19$3.31
20-49$3.13
50-99$2.96
100+$2.78
Quantity:  Kit

2-Way Kit
HB050-2P
2-Way Kit
OEM P/N: Orange: 6098-2541
Gray: 6098-2802
Black: 6098-2801
Blue: 6098-2542
Natural: 6098-2540
View Item
HB050-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo
Series: HB 050 Unsealed Series
OEM P/N: Orange: 6098-2541
Gray: 6098-2802
Black: 6098-2801
Blue: 6098-2542
Natural: 6098-2540
Part Name: HB050-2M-x
Mating Part: HB050-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:3.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Turn signals on some Kawasaki motorcycles
QtyPrice (USD)
1-5$1.98
6-19$1.88
20-49$1.78
50-99$1.68
100-249$1.58
250-499$1.48
500+$1.39
Quantity:  Kit

2-Way Kit
HB050-2S
2-Way Kit
OEM P/N: Orange: 6098-2544
Natural: 6098-2543
Blue: 6098-2545
Black: 6098-2803
Gray: 6098-3702
View Item
HB050-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo
Series: HB 050 Unsealed Series
OEM P/N: Orange: 6098-2544
Natural: 6098-2543
Blue: 6098-2545
Black: 6098-2803
Gray: 6098-3702
Part Name: HB050-2F-x
Mating Part: HB050-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:3.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Turn signals on some Kawasaki motorcycles
QtyPrice (USD)
1-5$1.82
6-19$1.73
20-49$1.64
50-99$1.55
100-249$1.46
250-499$1.36
500+$1.27
Quantity:  Kit

2-Way Kit
HC050-2P
2-Way Kit
OEM P/N: Orange: 6098-3857
Blue: 6098-3856
Natural: 6098-3750
Gray: 6098-4432
Black: 6098-4433
View Item
HC050-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-3857
Blue: 6098-3856
Natural: 6098-3750
Gray: 6098-4432
Black: 6098-4433
Part Name: HC050-2M-x
Mating Part: HC050-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Turn signals on some Honda motorcycles
QtyPrice (USD)
1-5$1.91
6-19$1.78
20-49$1.62
50-99$1.53
100+$1.34
Quantity:  Kit

2-Way Kit
HC050-2S
2-Way Kit
OEM P/N: Orange: 6098-3853
Blue: 6098-3852
Natural: 6098-3753
Gray: 6098-4436
Black: 6098-4437
View Item
HC050-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-3853
Blue: 6098-3852
Natural: 6098-3753
Gray: 6098-4436
Black: 6098-4437
Part Name: HC050-2F-x
Mating Part: HC050-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Turn signals on some Honda motorcycles
QtyPrice (USD)
1-5$1.79
6-19$1.66
20-49$1.52
50-99$1.43
100+$1.25
Quantity:  Kit

2-Way Kit

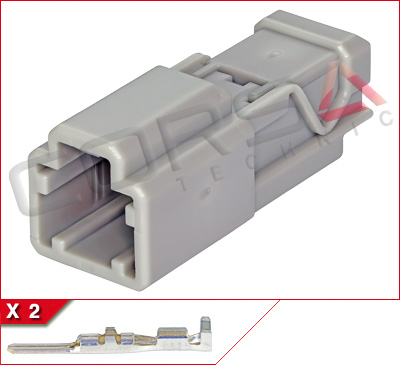

HD090-2P
2-Way Kit
OEM P/N: 6098-0240
View Item
HD090-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0240
Mating Part: HD090-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$1.99
6-19$1.85
20-49$1.69
50-99$1.59
100+$1.39
Quantity:  Kit

2-Way Kit

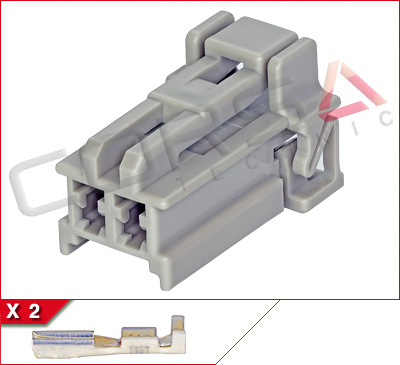

HD090-2S
2-Way Kit
OEM P/N: 6098-0239
View Item
HD090-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0239
Mating Part: HD090-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$1.93
6-19$1.79
20-49$1.64
50-99$1.54
100+$1.35
Quantity:  Kit

2-Way Kit
HM-2P
2-Way Kit
OEM P/N: 6187-2801
View Item
HM-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-2801
Part Name: HM090-02MASSY
Mating Part: HM-2S
Bottom of connector features a bracket mount

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRSH-106
  • Honda 07VPZ-002040A
  • KTM 000700000CK
QtyPrice (USD)
1-5$2.95
6-19$2.80
20-49$2.66
50-99$2.51
100-249$2.36
250-499$2.21
500-999$2.07
1000+$1.92
Quantity:  Kit

2-Way Kit
HM-2S
2-Way Kit
OEM P/N: 6180-2451
View Item

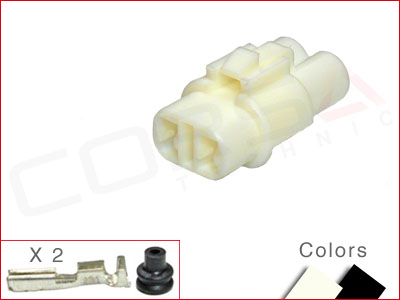

HM-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-2451
Mating Part: HM-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRSH-107
  • Honda 07VPZ-002010A
  • KTM 000700000FE
QtyPrice (USD)
1-5$1.83
6-19$1.74
20-49$1.65
50-99$1.56
100-249$1.46
250-499$1.37
500-999$1.28
1000+$1.19
Quantity:  Kit

2-Way Kit
HM250-2S
2-Way Kit
OEM P/N: 6091-0004
View Item
HM250-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Sumitomo
Series: HM 250 Unsealed
OEM P/N: 6091-0004
Part Name: HMN-2F-NY
Mating Part: N/A, device only

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Pitch:9.0mm
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:18A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$3.88
6-19$3.69
20-49$3.49
50-99$3.30
100+$3.10
Quantity:  Kit

2-Way Kit

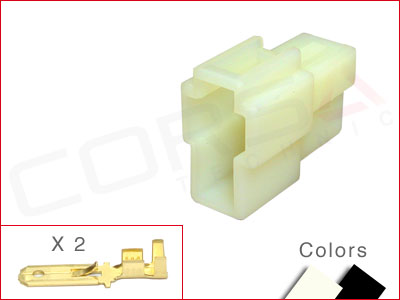

HMU-2P
2-Way Kit
OEM P/N: 6090-1031
View Item

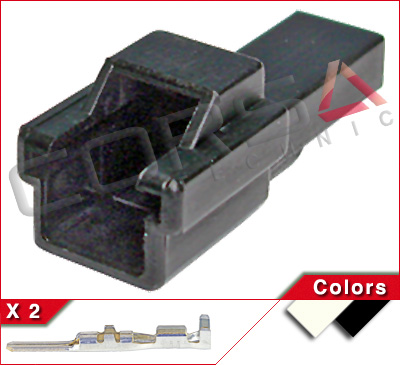

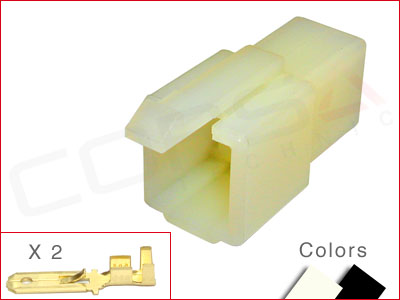

HMU-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1031
Mating Part: HMU-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$1.30
6-19$1.24
20-49$1.17
50-99$1.10
100-249$1.04
250-499$0.98
500-999$0.91
1000+$0.85
Quantity:  Kit

2-Way Kit

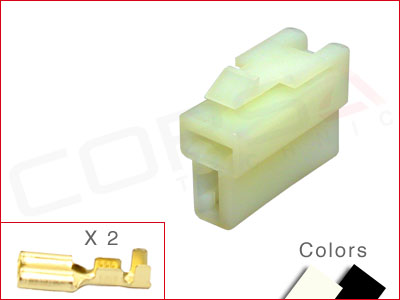

HMU-2S
2-Way Kit
OEM P/N: 6090-1001
View Item

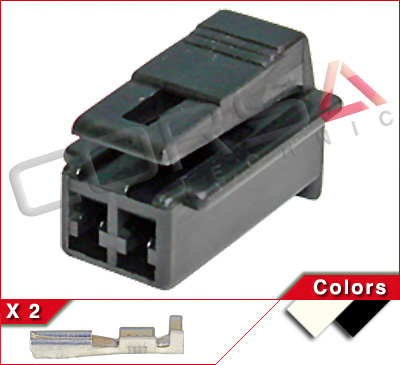

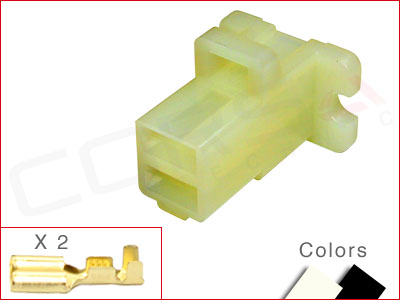

HMU-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1001
Mating Part: HMU-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$1.30
6-19$1.24
20-49$1.17
50-99$1.10
100-249$1.04
250-499$0.98
500-999$0.91
1000+$0.85
Quantity:  Kit

2-Way Kit
HS-2P
2-Way Kit
OEM P/N: 7282-2090-30
View Item

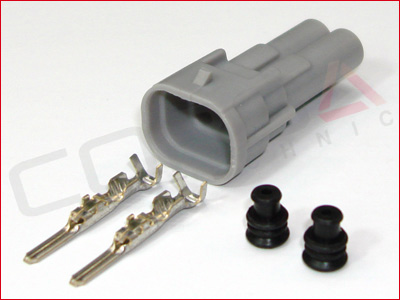

HS-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7282-2090-30
Mating Part: HS-2S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.24
6-19$3.08
20-49$2.92
50-99$2.75
100+$2.59
Quantity:  Kit

2-Way Kit
HS-2S
2-Way Kit
OEM P/N: 7283-2090-30
View Item

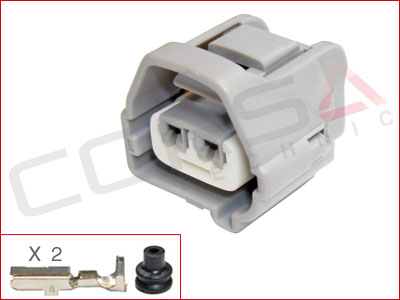

HS-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7283-2090-30
Mating Part: HS-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.26
6-19$3.10
20-49$2.93
50-99$2.77
100+$2.61
Quantity:  Kit

2-Way Kit

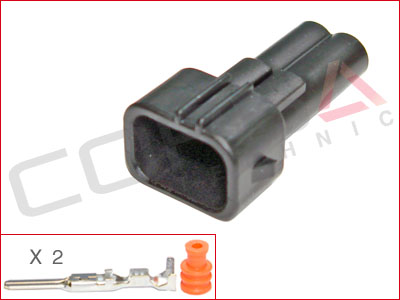

HW-2P-1
2-Way Kit
OEM P/N: 6181-0070
View Item

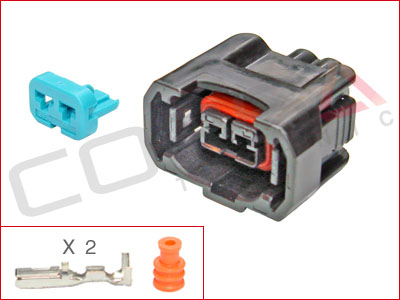

HW-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0070
Mating Part: HW-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.70
6-19$2.57
20-49$2.43
50-99$2.29
100-249$2.16
250-499$2.03
500+$1.89
Quantity:  Kit

2-Way Kit
HW-2S-1
2-Way Kit
OEM P/N: 6189-0129
View Item

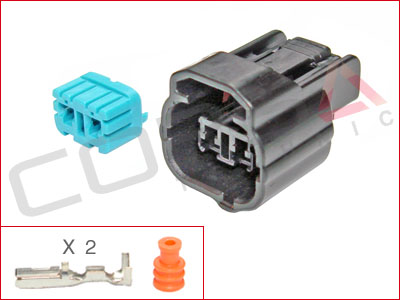

HW-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0129
Mating Part: HW-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.89
6-19$2.75
20-49$2.60
50-99$2.46
100-499$2.31
250-499$2.17
500+$2.02
Quantity:  Kit

2-Way Kit
HX040-2S-1
2-Way Kit
OEM P/N: 6189-0890
View Item

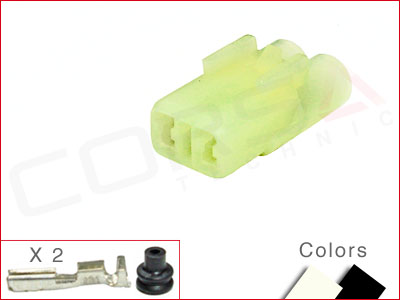

HX040-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6189-0890
Mating Part: HX040-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.79
6-19$2.65
20-49$2.51
50-99$2.37
100-249$2.23
250-499$2.09
500-999$1.95
1000+$1.81
Quantity:  Kit

2-Way Kit
HX060-2P
2-Way Kit
OEM P/N: 6181-6851
View Item

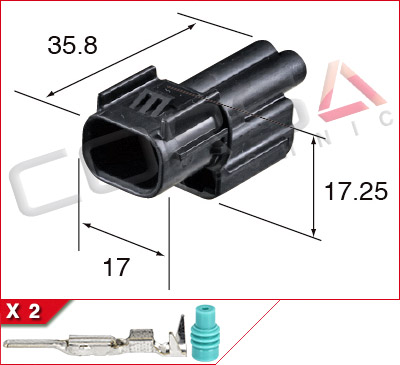

HX060-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6851
Part Name: HX06-2M-B
Mating Part: HX060-2S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$3.03
6-19$2.88
20-49$2.73
50-99$2.58
100+$2.42
Quantity:  Kit

2-Way Kit
HX060-2S
2-Way Kit
OEM P/N: 6189-7408
View Item

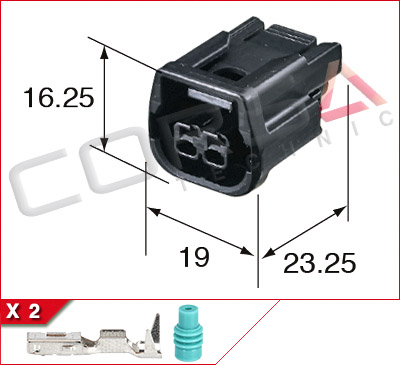

HX060-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7408
Part Name: HX06-2F-B
Mating Part: HX060-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.77
6-19$2.63
20-49$2.49
50-99$2.35
100-249$2.22
250-499$2.08
500+$1.94
Quantity:  Kit

2-Way Kit
HX090-2P-3
2-Way Kit
View Item
HX090-2P-3  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-2S-3

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • NH-1 Honda injector connector
  • Used on many Honda injectors; motorcycle and cars
  • Suzuki GSXR injector connector
QtyPrice (USD)
1-5$2.73
6-19$2.59
20-49$2.46
50-99$2.32
100+$2.18
Quantity:  Kit

2-Way Kit
HX090-2S-1
2-Way Kit
OEM P/N: 6189-0552
View Item
HX090-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: Aftermarket Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0552
Part Name: HX9-PCS2FAY-B1
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KTM 000700000DW
QtyPrice (USD)
1-5$3.77
6-19$3.58
20-49$3.39
50-99$3.20
100+$3.02
Quantity:  Kit

2-Way Kit
HX090-2S-2
2-Way Kit
OEM P/N: 6189-0593
View Item
HX090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0593
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.42
6-19$4.20
20-49$3.98
50-99$3.76
100+$3.54
Quantity:  Kit

2-Way Kit
HX090-2S-3
2-Way Kit
OEM P/N: 6189-0553
View Item
HX090-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: Aftermarket Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0553
Mating Part: HX090-2P-3

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • NH-1 Honda injector connector
  • Used on many Honda injectors; motorcycle and cars
  • Suzuki GSXR injector connector
spacer
  • KTM 000700000CL
QtyPrice (USD)
1-5$3.56
6-19$3.38
20-49$3.20
50-99$3.03
100+$2.85
Quantity:  Kit

2-way Kit
JPT-2P
2-way Kit
OEM P/N: 106462-1
View Item
JPT-2P  2-way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 106462-1
Part Name: 2P.FASTIN-ON HSG
Mating Part: JPT-2S-B, JPT-2S-C

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.11
6-19$2.95
20-49$2.80
50-99$2.64
100-249$2.49
250-499$2.33
500+$2.18
Quantity:  Kit

2-way Kit
JPT-2S-B
2-way Kit
OEM P/N: 282189-1
View Item
JPT-2S-B  2-way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282189-1
Part Name: SPLASH PROOF CONN. W.S.L.
Mating Part: JPT-2P
With secondary locking device

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • EV1/Jetronic type injectors
spacer
  • Ford AU2Z-14S411-BEA, WPT-1107 (Silver plated terminals) pigtail connector
QtyPrice (USD)
1-5$3.02
6-19$2.87
20-49$2.72
50-99$2.57
100-249$2.42
250-499$2.27
500+$2.11
Quantity:  Kit

2-way Kit
JPT-2S-C
2-way Kit
OEM P/N: 963040-3, supersedes 962069-3
View Item
JPT-2S-C  2-way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 963040-3, supersedes 962069-3
Part Name: 2P JUN-TIMER GEH
Mating Part: JPT-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • EV1/Jetronic type injectors
spacer
  • Mopar 68032285AA repair kit connector
QtyPrice (USD)
1-5$2.82
6-19$2.68
20-49$2.54
50-99$2.40
100-249$2.26
250-499$2.11
500+$1.97
Quantity:  Kit

2-Way Kit
JWPF-2P
2-Way Kit
OEM P/N: 02T-JWPF-VSLE-S
View Item
JWPF-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts for 26-22 AWG wire

Mfr: OEM JST
Series: JWPF Series
OEM P/N: 02T-JWPF-VSLE-S
Mating Part: JWPF-2S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.35 mm2
  • Number of Rows:1
  • Pitch:2.0mm
  • Row Spacing:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-55 - 85 °C
  • Protection Rating:IPX7
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Ducati and KTM turn signals, etc.
spacer
  • KTM 000700000CX
QtyPrice (USD)
1-5$1.70
6-19$1.61
20-49$1.53
50-99$1.44
100-249$1.36
250-999$1.27
1000+$1.19
Quantity:  Kit

2-Way Kit
JWPF-2S
2-Way Kit
OEM P/N: 02R-JWPF-VSLE-S (White)
02R-JWPF-VRLE-S (Red)
View Item
JWPF-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 26-22 AWG wire

Mfr: OEM JST
Series: JWPF Series
OEM P/N: 02R-JWPF-VSLE-S (White)
02R-JWPF-VRLE-S (Red)

Mating Part: JWPF-2P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.35 mm2
  • Number of Rows:1
  • Pitch:2.0mm
  • Row Spacing:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-55 - 85 °C
  • Protection Rating:IPX7
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Ducati and KTM turn signals, etc
spacer
  • KTM 000700000CW
QtyPrice (USD)
1-5$0.98
6-19$0.91
20-49$0.83
50-99$0.78
100+$0.73
Quantity:  Kit

99 Items.  Showing Items 1 thru 50.
 1  2   Next »   Show All

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
