3-Way
Furukawa
| Manufacturers | |||
|---|---|---|---|
|
|
HU-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: Aftermarket Furukawa
Series: HU Series
OEM P/N: PK605-03027
Part Name: HU03F-B SA'Y
Mating Part: PK601-03027
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: Aftermarket Furukawa
Series: HU Series
OEM P/N: PK605-03027
Part Name: HU03F-B SA'Y
Mating Part: PK601-03027
Series Catalog (HU-CAT.pdf)General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KTM 000700000DX

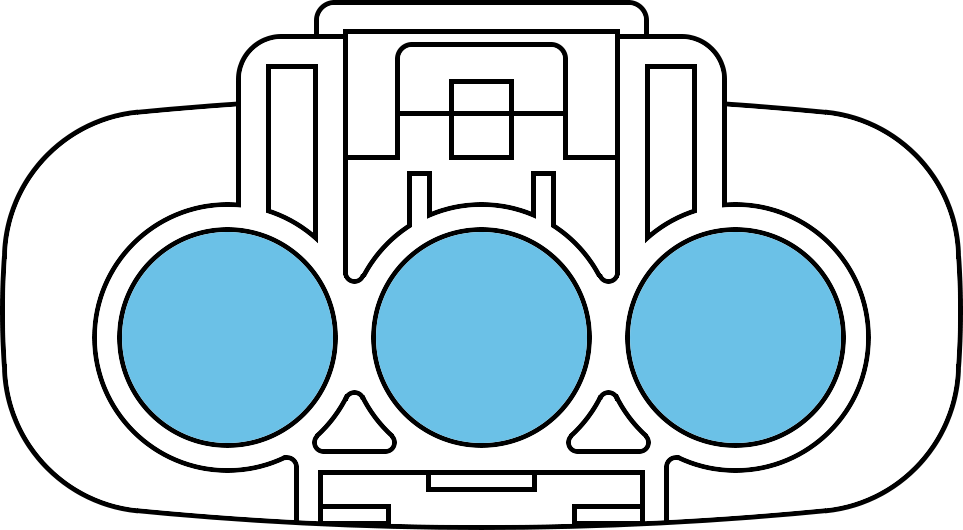

QLW-3S-1
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Furukawa
Series: QLW Series
OEM P/N: QLW-A-B3F-B (alt p/n: Q011789, 13412-3203-2, FT0056)
Mating Part: N/A
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Furukawa
Series: QLW Series
OEM P/N: QLW-A-B3F-B (alt p/n: Q011789, 13412-3203-2, FT0056)
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:6.3mm (.250)
- Wire Size:2.00 - 8.00 mm2
- Number of Rows:1
- Pitch:10.45mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:34A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Various regulator, rectifier
QLW-3S-2
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Furukawa
Series: QLW Series
OEM P/N: QLW-A-3F-GR (alt p/n: Q011781)
Mating Part: N/A
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Furukawa
Series: QLW Series
OEM P/N: QLW-A-3F-GR (alt p/n: Q011781)
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:6.3mm (.250)
- Wire Size:2.00 - 8.00 mm2
- Number of Rows:1
- Pitch:10.45mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:34A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Various regulator, rectifier
