TS312-2S-2

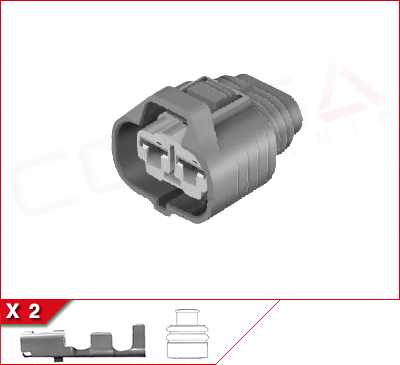

2-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr:OEM Sumitomo
Series:TS 312 Sealed Series
OEM P/N:6189-0856
Part Name:12068WAA02F-GR
Mating Part:N/A, device only

Documents

Specifications

General

Sealing:Single Wire Sealed
Number of Ways:2
Contact Size:8.0mm (.312)
Wire Size:0.50 - 8.00 mm²
Number of Rows:1
Pitch:12.3mm
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Seal Material:Silicone Rubber
Mounting Style:Free hanging
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:42A
Voltage Rating:14V DC

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Cross Reference List

Toyota 90980-12068

You may be interested in these related items:
	TS312-SKT TS 312 Sealed Series Socket Contact
	SUMI.312-PG SL, TS 312 Sealed Series Plug
	SUMI.312-SL SL, TS 312 Sealed Series Seals
