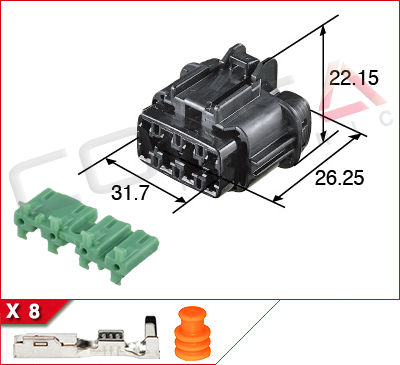

RS.T1-8S-2

8-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 8 socket contacts, 8 seals, front lock

Mfr:Furukawa, Sumitomo
Series:Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1

	Furukawa	Sumitomo
Housing	PB295-08820 RS08FB-PR	6185-5179 (ss: 6185-1177) RS08FB-HG-NL
Retainer	PB464-08880 F/H RS08NP-LG	6918-1780 RS08MF-F/H-G
Terminals	-	RS-SKT
Wire Seals	-	RS-SL
Available stock: Aftermarket OEM

Documents

Specifications

General

Sealing:Single Wire Sealed
Number of Ways:8
Contact Size:2.3mm (.090)
Wire Size:0.30 - 2.00 mm²
Number of Rows:2
Pitch:5.6mm
Row Spacing:7.9mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Mounting Style:Free hanging
TPA:Yes, separate/loose item
CPA:No

Electrical

Current Rating^[1]:19A
Voltage Rating:14V DC

Environmental

Temp Range^[2]:-40 - 120 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Cross Reference List

Nissan/Bosch J-48817-171 pigtail connector
Nissan service part 24008-9DN4E connector
