NH025-PIN1

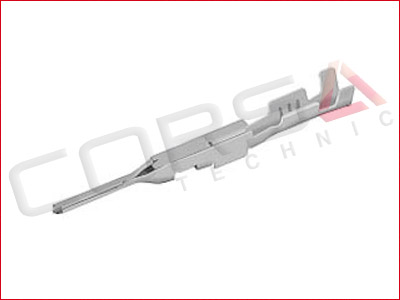

NH Pin Contact

Images shown may represent a range of products or be for illustration purposes only.

Mfr:Sumitomo
Series:NH Series

	Wire Size	Part Number
NH025-PIN1	.22-.5 mm² (24-20 AWG)	8230-5379 (ss: 8230-4877)
NH025-PIN2	.75 mm² (18 AWG)	8230-5380 (ss: 8230-4876)
Available stock: Aftermarket OEM

Documents

Specifications

General

Sealing:Unsealed
Contact Size:0.64mm (.025)
Wire Size:0.22 - 0.75 mm²

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Lance Type:Housing Lance

Electrical

Current Rating^[1]:7A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Cross Reference List

Nissan/Bosch J-48817-217 (PIN1) repair wire terminal
