Name: NH025-4S
Brand: Sumitomo
Price: 2.88 USD
Availability: InStock

Check Out

Connectors By Application/Use By # Of Ways By Manufacturer Anderson Power Products Binder Bosch Delphi (Aptiv) Denso Deutsch EPC FCI (Delphi/Aptiv) Federal Mogul FEP Ford Furukawa Hirschmann JAE JST KOSTAL KUM LEMO Molex Nippon Tanshi Sumiko Tec Sumitomo 250 Armlock-Housing Lance 250 Armlock-Terminal Lance 250 ET Type 250 Fuse Series 250 Lock Type 250 LT Type 250 Special Type 250 Waterproof Connector 305 Terminal Lance Series 305 Waterproof Connector 58 M Unsealed Series 58 S Unsealed Series 58 W Sealed Series 62 C-Type Series 62 E-Type Series 62 Z-Type Series 91 A-Type Series 91 Hybrid Series 91 NS-Type Series DL 040 Sealed Series DL 090 Sealed Series HB 050 Unsealed Series HC 050 Unsealed Series HD 090 Unsealed Series HD 090+187 Hybrid Unsealed Series HD 250 Unsealed Series HD 250+305 Hybrid Unsealed Series HE 040 Unsealed Series HE 050 Unsealed Series HE 050+187 Hybrid Unsealed Series HE 090 Unsealed Series HE 090+187 Hybrid Unsealed Series HM 110 Sealed Series HM 250 Unsealed HM Sealed Series HM Unsealed - Splice Series HM Unsealed Series HV/HVG Sealed Series HW Sealed Series HX 040 Sealed Joint Connector Series HX 040 Sealed Series HX 060 Sealed Series HX 090 Sealed Series HX 110 Sealed Series HX 187 Sealed Series HX Sealed Hybrid Series ISO 19689 OBDII LPSCT Series Mini Fuse Series MN-FPC Series MR-FPC Series MT Sealed Series MT Unsealed Interlocking Series MT Unsealed Semi-Locking Series MTW Series NH Series RS Series - Standard Type 1 (old 91 series) RS Series - Standard Type 2 (old 91 series) RS Series - Type E-RS (old 91 series) SL 060 Sealed Series SL 090 Sealed Series SL 312 Sealed Series SMDC Series TL Sealed Series TS 025 Sealed Series TS 025 Unsealed Series TS 040 Sealed Series TS 050 Unsealed Series TS 050+090 Hybrid Unsealed Series TS 060 Unsealed Series TS 090 Sealed Series TS 090 Unsealed Series TS 090+187 Hybrid Sealed Series TS 090+187 Hybrid Unsealed Series TS 187 Sealed Series TS 187 Unsealed Series TS 187+312 Hybrid Sealed Series TS 312 Sealed Series U Series W 025 Sealed Series YMC 025 Sealed Series Tokai Rika Tyco/AMP (TE Connectivity) VW Yazaki Terminals-Seals-Plugs Clips/Clamps/Ties Tooling Harness Protection Splicing & Termination Cable & Wire Sensors

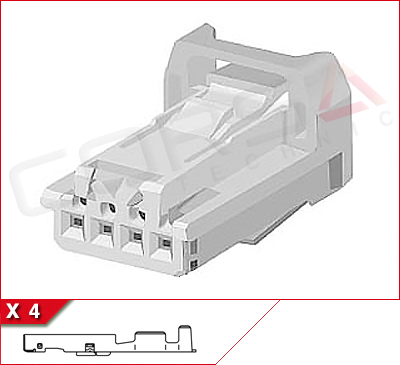

NH025-4S

4-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 4 socket contacts for 24-20 awg wire

Mfr:Sumitomo
Series:NH Series
OEM P/N:6098-5267
Part Name:TH04FW-NH
Mating Part:6098-5310

Documents

Specifications

General

Sealing:Unsealed
Number of Ways:4
Contact Size:0.64mm (.025)
Wire Size:0.22 - 0.75 mm²
Number of Rows:1
Pitch:2.2mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Mounting Style:Free hanging
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:7A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Cross Reference List

Nissan/Bosch J-48817-126 pigtail connector
Nissan service part 24008-9DM5E connector
