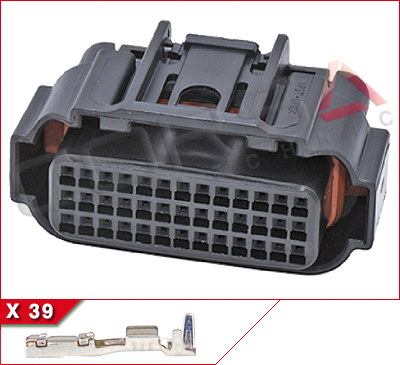

YMC-39S

39-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 39 socket contacts

Mfr:Aftermarket Sumitomo
Series:YMC 025 Sealed Series
OEM P/N:6189-7929
Part Name:YMC-WQA39F-B
Mating Part:N/A, device only

Specifications

General

Sealing:Matte Sealed
Number of Ways:39
Contact Size:0.64mm (.025)
Wire Size:0.30 - 0.85 mm²
Number of Rows:3
Pitch:2.5mm
Row Spacing:3.6mm
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT+GF15
Seal Material:Silicone Rubber
Mounting Style:Free hanging
TPA:No
CPA:No

Electrical

Current Rating^[1]:7A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
