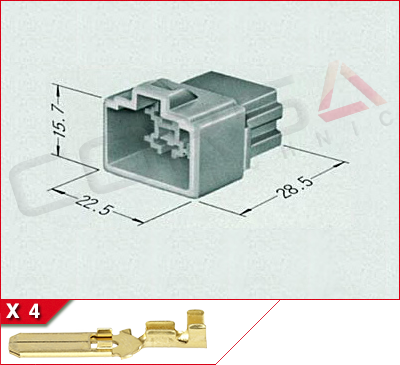

250.ET-4P

4-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 4 pin contacts

Mfr:Aftermarket Sumitomo
Series:250 ET Type
OEM P/N:6070-4471
Part Name:ET04-1W
Mating Part:250.ET-4S

Documents

Drawing (S-5822_7.pdf)

Specifications

General

Sealing:Unsealed
Number of Ways:4
Contact Size:6.3mm (.250)
Wire Size:0.30 - 3.00 mm²
Number of Rows:2
Pitch:9.0mm
Row Spacing:5.5mm
Numbered Cavities:No

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PA66
Mounting Style:Free hanging
TPA:No
CPA:No

Electrical

Current Rating^[1]:20A

Environmental

Temp Range^[2]:-40 - 120 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
