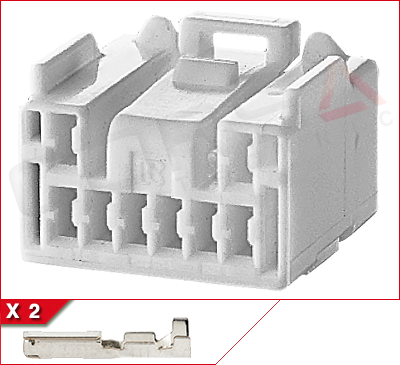

050U-8S

8-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 8 socket contacts for 22-20 AWG wire

Mfr:OEM Tokai Rika
Series:050 Unsealed
OEM P/N:4F0800-0000
Mating Part:4G0800, 4G5890, 4B1010, 4M5860, 4C1318

Documents

Specifications

General

Sealing:Unsealed
Number of Ways:8
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.50 mm²
Number of Rows:2
Pitch:2.5mm
Row Spacing:5.0mm
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PA12
Mounting Style:Free hanging
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:3A

Environmental

Temp Range^[2]:-40 - 85 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Cross Reference List

Sumitomo 1300-4922
Toyota 90980-11533
Yazaki 7283-7682
