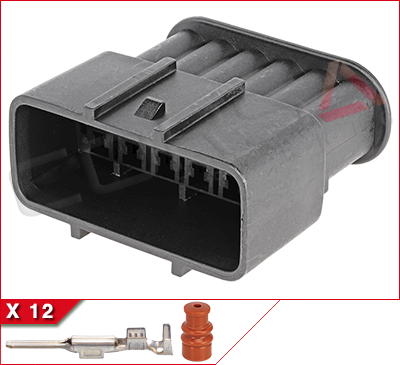

TS090-12P

12-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 12 pin contacts, 12 seals

Mfr:Aftermarket, Sumitomo does not make an actual part.
Series:TS 090 Sealed Series
Mating Part:6189-0228, 6189-0541, 6189-0620, 6189-0690, 90980-11664

Documents

See related terminal for crimp specs
Series Catalog (TS090-CAT_4-2024.pdf)

Specifications

General

Sealing:Single Wire Sealed
Number of Ways:12
Contact Size:2.3mm (.090)
Wire Size:0.30 - 2.00 mm²
Number of Rows:2
Pitch:6.0mm
Row Spacing:6.0mm
Numbered Cavities:No

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Mounting Style:Free hanging
TPA:No
CPA:No

Electrical

Current Rating^[1]:22A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
