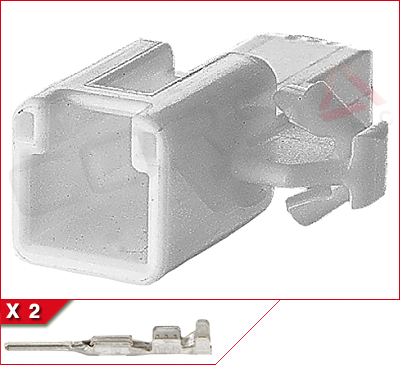

050U-2P-2

2-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 2 pin contacts for 22-20 AWG wire

Mfr:OEM Tokai Rika
Series:050 Unsealed
OEM P/N:4G0210-0001
Mating Part:050U-2S-2

For 7 x 12mm hole with 2.5mm max. thickness

Documents

Specifications

General

Sealing:Unsealed
Number of Ways:2
Contact Size:1.3mm (.050)
Wire Size:0.30 - 0.50 mm²
Number of Rows:1
Pitch:2.5mm
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Mounting Style:Clip
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:3A

Environmental

Temp Range^[2]:-40 - 85 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Cross Reference List

Sumitomo 1300-4764
Toyota 90980-11367
Yazaki 7282-4328
