Search Results

1995 Items.

  Showing Items 1501 thru 1550.
« Previous  First Page  . . .  22  23  24  25  26  27  28  29  30  31  . . .  Last Page (40)    Next »
39-Way PCB Header
W025-39P
39-Way PCB Header
W025-39P  39-Way PCB Header
Kit Contents: PCB header with 90 deg. mounting

Mfr: Aftermarket Sumitomo
Series: W 025 Sealed Series
Mating Part: W025-39S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:39
  • Contact Size:0.64mm (.025)
  • Number of Rows:3
  • Pitch:2.8mm
  • Row Spacing:3.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$6.84
6-19$6.50
20-49$6.16
50-99$5.81
100+$5.47
Quantity:  Ea

4mm Sealed Bullet Receptacle kit
BC40-1S-C
4mm Sealed Bullet Receptacle kit
OEM P/N: 7210-0011
BC40-1S-C  4mm Sealed Bullet Receptacle kit
Waterproof with .5-1.25 mm² AV wire.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7210-0011
Mating Part: BC40-1P-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda 32826-SA5-300 (cover), 07692-0010200 (terminal)
QtyPrice
1-49$0.85
50-99$0.77
100-249$0.68
250-499$0.59
500-999$0.51
1000+$0.42
Quantity:  Kit

5-Way Kit
GT150.35-5S
5-Way Kit
GT150.35-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals

Mfr: Aftermarket, Delphi does not make an actual version.
Series: GT-150 3.5mm CL Sealed Series
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 1.00 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • IGN1A coil connector
QtyPrice
1-5$4.98
6-19$4.73
20-49$4.48
50-99$4.23
100-249$3.98
250-499$3.74
500-999$3.49
1000+$3.24
Quantity:  Kit

Micro-Pack Removal Tool
TOOL-IRT15
Micro-Pack Removal Tool
OEM P/N: 680-12031876
TOOL-IRT15  Micro-Pack Removal Tool

OEM P/N: 680-12031876
Rennsteig's equal version of DELPHI part no. 12031876
Comparable with SPX Kent Moore part no. J-38125-13A

Price: $22.56
Quantity:  Ea

Rennsteig PEW 12 Die Set for MCON 1.2 Locking Lance sealed terminals (24-22 AWG)
TOOL-CDIE58
Rennsteig PEW 12 Die Set for MCON 1.2 Locking Lance sealed terminals (24-22 AWG)
OEM P/N: 624 836 3 012 RT
TOOL-CDIE58  Rennsteig PEW 12 Die Set for MCON 1.2 Locking Lance sealed terminals (24-22 AWG)
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 836 3 012 RT

Compatibility
P/NWire SizePlatingTE P/N
✗MCON.12LL-PIN1.13-.22 mm2 (26-24 AWG)Tin2141868-1
Gold2141868-1
✓MCON.12LL-PIN2.25-.35 mm2 (24-22 AWG)Tin1718758-1
Gold1718758-2
✗MCON.12LL-PIN3.5-.75 mm2 (20 AWG)Tin1718760-1
Gold1718760-2
✗MCON.12LL-PIN41-1.5 mm2 (18-16 AWG)Tin1718762-1
Gold1718762-2
✗MCON.12LL-SKT1.13-.22 mm2 (26-24 AWG)Tin2141970-1
Gold2141970-2
✓MCON.12LL-SKT2.25-.35 mm2 (24-22 AWG)Tin7-1452665-1
Gold7-1452665-2
✗MCON.12LL-SKT3.5-.75 mm2 (20 AWG)Tin7-1452668-1
Gold7-1452668-2
✗MCON.12LL-SKT41-1.5 mm2 (18-16 AWG)Tin7-1452671-1
Gold7-1452671-2

spacer

This item is backordered.
Price: $293.81
Quantity:  Ea

Rennsteig PEW 12 Die Set for MCON 1.2 Locking Lance sealed terminals (18-16 AWG)
TOOL-CDIE60
Rennsteig PEW 12 Die Set for MCON 1.2 Locking Lance sealed terminals (18-16 AWG)
OEM P/N: 624 837 3 012 RT
TOOL-CDIE60  Rennsteig PEW 12 Die Set for MCON 1.2 Locking Lance sealed terminals (18-16 AWG)
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 837 3 012 RT

Compatibility
P/NWire SizePlatingTE P/N
✗MCON.12LL-PIN1.13-.22 mm2 (26-24 AWG)Tin2141868-1
Gold2141868-1
✗MCON.12LL-PIN2.25-.35 mm2 (24-22 AWG)Tin1718758-1
Gold1718758-2
✗MCON.12LL-PIN3.5-.75 mm2 (20 AWG)Tin1718760-1
Gold1718760-2
✓MCON.12LL-PIN41-1.5 mm2 (18-16 AWG)Tin1718762-1
Gold1718762-2
✗MCON.12LL-SKT1.13-.22 mm2 (26-24 AWG)Tin2141970-1
Gold2141970-2
✗MCON.12LL-SKT2.25-.35 mm2 (24-22 AWG)Tin7-1452665-1
Gold7-1452665-2
✗MCON.12LL-SKT3.5-.75 mm2 (20 AWG)Tin7-1452668-1
Gold7-1452668-2
✓MCON.12LL-SKT41-1.5 mm2 (18-16 AWG)Tin7-1452671-1
Gold7-1452671-2

spacer

1x - in stock.
Price: $293.81
Quantity:  Ea

Rennsteig PEW 12 Die Set for Micro Quadlok System (MQS) 0.63 SWS terminals (24-22 AWG)
TOOL-CDIE61
Rennsteig PEW 12 Die Set for Micro Quadlok System (MQS) 0.63 SWS terminals (24-22 AWG)
OEM P/N: 624 685 3 012 RT
TOOL-CDIE61  Rennsteig PEW 12 Die Set for Micro Quadlok System (MQS) 0.63 SWS terminals (24-22 AWG)
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 685 3 012 RT

Compatibility
P/NWire SizePlatingStripLoose
✓MQS.63SWS-PIN1.2-.35 mm2 (24-22 AWG) wireTin962886-1963728-1
Gold5-962886-2963728-2
✗MQS.63SWS-PIN2.5-.75 mm2 (20 AWG) wireTin5-965908-1965909-1
Gold5-965908-2965909-2
✓MQS.63SWS-SKT1.2-.35 mm2 (24-22 AWG) wireTin5-962885-15-963727-1
Gold5-962885-55-963727-5
✗MQS.63SWS-SKT2.5-.75 mm2 (20 AWG) wireTin5-965906-15-965907-1
Gold5-965906-55-965907-5

This item is backordered.
Price: $352.16
Quantity:  Ea

Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
TOOL-CDIE64
Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
OEM P/N: 624 1730 3 01 RT
TOOL-CDIE64  Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
Kit Contents: Crimp die set, locator

OEM P/N: 624 1730 3 01 RT

Compatibility
P/NWire SizePlatingStripLoose
✗TE070-PIN1.2-.5 mm2 (24-20 AWG)Tin171631-1173600-1
Gold171631-2N/A
✓TE070-PIN2.5-1.25 mm2 (20-16 AWG)Tin171661-1173706-1
Gold171661-2N/A
✗TE070-SKT1.2-.5 mm2 (24-20 AWG)Tin171630-1171699-1
Gold171630-5N/A
✓TE070-SKT2.5-1.25 mm2 (20-16 AWG)Tin171662-1173707-1
Gold171662-5N/A

This item is backordered.
Price: $379.60
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo TS 060 Unsealed Terminals
TOOL-CDIE65
Rennsteig PEW 12 Die Set for Sumitomo TS 060 Unsealed Terminals
OEM P/N: 624 1686 3 012 RT
TOOL-CDIE65  Rennsteig PEW 12 Die Set for Sumitomo TS 060 Unsealed Terminals
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1686 3 012 RT

Compatibility
P/NWire SizeSumitomo P/N
✓TS060U-PIN1.3-.5 mm2 (22-20 AWG)8230-4925
✓TS060U-PIN2.75-1.25 mm2 (18-16 AWG)8230-4924
✓TS060U-PIN32.0 mm2 (14 AWG)8230-4923
✗-.13 mm2 (26 AWG)8240-0339
✗-.22-.35 mm2 (24-22 AWG)8240-0279
✓TS060U-SKT1.3-.5 mm2 (22-20 AWG)8240-0215
✓TS060U-SKT2.75-1.25 mm2 (18-16 AWG)8240-0213
✓TS060U-SKT32.0 mm2 (14 AWG)8240-0214

1x - in stock.
Price: $295.84
Quantity:  Ea

Rennsteig PEW 12 Die Set for AMP/TE Sensor Flat Type 1.5 mm terminals
TOOL-CDIE66
Rennsteig PEW 12 Die Set for AMP/TE Sensor Flat Type 1.5 mm terminals
OEM P/N: 624 724 3 0
TOOL-CDIE66  Rennsteig PEW 12 Die Set for AMP/TE Sensor Flat Type 1.5 mm terminals
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 724 3 0

Compatibility
P/NWire SizeStripLoose
✓-.5-1.0 mm2 (20-18 AWG)929027-x929028-x
✓-1.4-2.0 mm2 (16-14 AWG)929025-x929026-x
Obsolete terminal p/n's for reference: 968905-1, 968838-1, 968904-1, 968835-1

Price: $240.42
Quantity:  Ea

3-Way Kit
SL090-3S-3
3-Way Kit
OEM P/N: 6189-0646
SL090-3S-3  3-Way Kit

Mfr: Sumitomo
Series: SL 090 Sealed
OEM P/N: 6189-0646
Part Name: W-SL09ASY3FT-GR
Mating Part: N/A, device only
Obsolete connector
See TS090-3S-7 as a substitute.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:4.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.


2-Way Kit
GT150-2S-2
2-Way Kit
OEM P/N: Black: 15497399
Gray: 15419715
GT150-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: Black: 15497399
Gray: 15419715
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:Yes, separate item
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Harley Davidson 72098-06 (gray)
  • Maserati 673004824 repair kit connector
  • Mopar 68052577AA repair kit connector
Qty% Off
6-19 5%
20-4910%
50-9915%
100+20%
Quantity:  Kit

GT-150 TPA for 2-way connector
GT150-2S-2-TPA
GT-150 TPA for 2-way connector
OEM P/N: 15423278
GT150-2S-2-TPA  GT-150 TPA for 2-way connector

Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 15423278
TPA for use with GT150-2S-2

spacer

QtyPrice
1-49$0.37
50-99$0.35
100-249$0.33
250-499$0.30
500+$0.26
Quantity:  Ea

SLK 2.8 Single Wire Sealing Seal, for 5.2mm cavities
SLK28-SL
SLK 2.8 Single Wire Sealing Seal, for 5.2mm cavities
SLK28-SL  SLK 2.8 Single Wire Sealing Seal, for 5.2mm cavities

Mfr: OEM KOSTAL
Series: SLK 2.8 Single Wire Sealing Series
For 5.2mm dia. cavities.

Wire Insulation Dia.ColorPart Number
SLK28-SL11.1-2.1 mm (.043-.083 in)Blue10800444522
alt p/n: 10800444522091
SLK28-SL22.2-3.0 mm (.087-.118 in)Reddish Brown10800444523
alt p/n: 10800444523091
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.16
500+$0.14
Quantity:  Ea

1-Way Kit
HD250-1P
1-Way Kit
OEM P/N: 6098-0232
HD250-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0232
Part Name: HD25-1MAY-BR
Mating Part: HD250-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$2.35
6-19$2.23
20-49$2.12
50-99$2.00
100+$1.88
Quantity:  Kit

1-Way Kit
HD250-1S
1-Way Kit
OEM P/N: 6098-0234
HD250-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0234
Part Name: HD25-1FAY-BR
Mating Part: HD250-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford 9U2Z-14S411-HA, WPT-932 (Tin plated terminals) pigtail connector
QtyPrice
1-5$2.45
6-19$2.33
20-49$2.21
50-99$2.08
100+$1.96
Quantity:  Kit

2-Way Kit
58M-2P-1
2-Way Kit
OEM P/N: Sumitomo: 6101-1021 natural, 6101-1027 grey
Yazaki: 7122-6020 natural, 7122-6020-40 grey
58M-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, rear lock

Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1021 natural, 6101-1027 grey
Yazaki: 7122-6020 natural, 7122-6020-40 grey
Part Name: M02MW
Mating Part: 58M-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$5.86
6-19$5.57
20-49$5.27
50-99$4.98
100+$4.69
Quantity:  Kit

2-Way Kit
58M-2S-1
2-Way Kit
OEM P/N: Sumitomo: 6101-5021 natural, 6101-5027 grey
Yazaki: 7123-6020 natural, 7123-6020-40 grey
58M-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, rear lock

Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5021 natural, 6101-5027 grey
Yazaki: 7123-6020 natural, 7123-6020-40 grey
Part Name: M02FW
Mating Part: 58M-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.82
6-19$3.63
20-49$3.44
50-99$3.25
100+$3.06
Quantity:  Kit

4-Way Kit

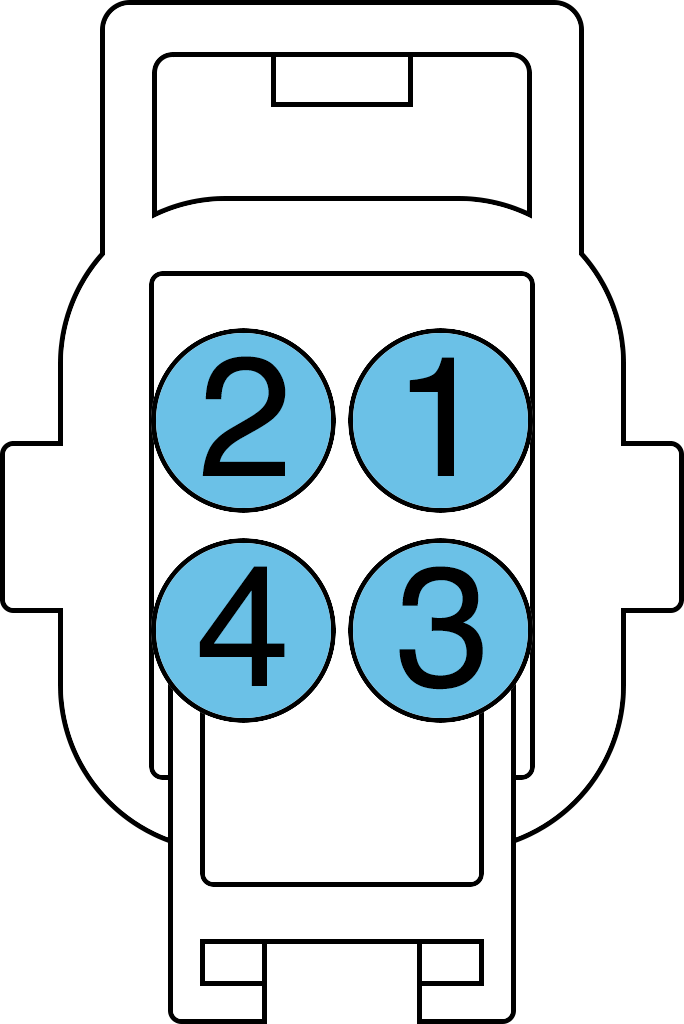

SSC-4P-Z
4-Way Kit
SSC-4P-Z  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, lock

Mfr: Aftermarket Tyco/AMP
Series: Sealed Sensor Connector Series
Keying: Z-no keying

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF15
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.88
6-19$4.64
20-49$4.39
50-99$4.15
100+$3.90
Quantity:  Kit

12-Way Kit
090II-12P
12-Way Kit
OEM P/N: 4G1292-0000 (Black)
4G1298-0000 (Light Gray)
090II-12P  12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals

Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4G1292-0000 (Black)
4G1298-0000 (Light Gray)
Mating Part: 090II-12S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:12
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:3
  • Pitch:6.0mm
  • Row Spacing:6.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Sumitomo 6181-0132 (lt. grey), 6181-0564 (black)
  • Toyota 90980-11086
  • Yazaki 7282-7427
QtyPrice
1-5$7.24
6-19$6.88
20-49$6.52
50-99$6.15
100+$5.79
Quantity:  Kit

10-Way (8+2) Hybrid Kit
090II/187-10S
10-Way (8+2) Hybrid Kit
OEM P/N: 4F1078-0004 (Light Gray)
4F1075-0004 (Dark Gray)
4F1072-0004 (Black)
090II/187-10S  10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 socket terminals and seals, 2x 187 socket terminals and seals

Mfr: OEM Tokai Rika
Series: 2.3II+4.8 (090II+187) Hybrid Sealed Series
OEM P/N: 4F1078-0004 (Light Gray)
4F1075-0004 (Dark Gray)
4F1072-0004 (Black)
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Sumitomo 1300-5507
  • Toyota 90980-11332
  • Yazaki 7283-1007-40
QtyPrice
1-5$7.19
6-19$6.83
20-49$6.47
50-99$6.11
100+$5.75
Quantity:  Kit

9-Way (7+2) Hybrid Kit
025/090II-9S-1
9-Way (7+2) Hybrid Kit
OEM P/N: 4F5902-000 (Black, In Stock)
4F5908-000 (Light Gray)
025/090II-9S-1  9-Way (7+2) Hybrid Kit
Kit Contents: Housing, 7x 025 socket terminals and seals, 2x 090 socket terminals and seals

Mfr: OEM Tokai Rika
Series: 0.64+2.3II (025+090II) Hybrid Sealed Series
OEM P/N: 4F5902-000 (Black, In Stock)
4F5908-000 (Light Gray)
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:9
  • Contact Size:Mixed
  • Wire Size:0.13 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:4.9mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-12362
QtyPrice
1-5$8.89
6-19$8.45
20-49$8.00
50-99$7.56
100+$7.11
Quantity:  Kit

5-Way Kit
090U-5S-1
5-Way Kit
OEM P/N: 4F0590-000 (Natural)
4F0592-0002 (Black, In Stock)
090U-5S-1  5-Way Kit
Kit Contents: Housing, 5 socket contacts

Mfr: OEM Tokai Rika
Series: 2.3 (090) Unsealed Series
OEM P/N: 4F0590-000 (Natural)
4F0592-0002 (Black, In Stock)
Mating Part: 4G0540-000

spacer
General
  • Sealing:Unsealed
  • Number of Ways:5
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Sumitomo 1300-2695
  • Toyota 90980-10631
  • Yazaki 7123-1451-30
QtyPrice
1-5$3.59
6-19$3.41
20-49$3.23
50-99$3.05
100+$2.87
Quantity:  Kit

20-Way PCB Header
025IIU-20PCB
20-Way PCB Header
OEM P/N: 4M2090-0000 (Natural, tin plated)
025IIU-20PCB  20-Way PCB Header
Kit Contents: PCB header

Mfr: OEM Tokai Rika
Series: 0.64II (025II) Unsealed Series
OEM P/N: 4M2090-0000 (Natural, tin plated)
Mating Part: 025IIU-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT
  • Mounting Style:PCB Board Mount
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:7A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-12258
QtyPrice
1-5$4.57
6-19$4.34
20-49$4.11
50-99$3.88
100+$3.66
Quantity:  Ea

3-Way (1+2) Hybrid Kit
TS187/312-3S
3-Way (1+2) Hybrid Kit
OEM P/N: 6189-0588
TS187/312-3S  3-Way (1+2) Hybrid Kit
Kit Contents: Housing, 1x 187 socket contact and seal, 2x 312 socket terminals and seals

Mfr: OEM Sumitomo
Series: TS 187+312 Hybrid Sealed Series
OEM P/N: 6189-0588
Part Name: WP8+A03F-A-GR2
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:Mixed
  • Wire Size:0.30 - 8.00 mm2
  • Number of Rows:1
  • Pitch:10.7mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:50A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Nissan Cooling Fan Module 21493-4GA0A
spacer
  • Nissan/Bosch J-48817-163 pigtail connector
  • Nissan service part 24008-9DN3B connector
  • Toyota 90980-12058
QtyPrice
1-5$6.92
6-19$6.57
20-49$6.23
50-99$5.88
100+$5.54
Quantity:  Kit

187 Sealed Series Pin Contact
Y187-PIN
187 Sealed Series Pin Contact
Y187-PIN  187 Sealed Series Pin Contact

Mfr: Yazaki
Series: 187 Sealed, 090II+187 Hybrid Sealed

Wire SizePart Number
Y187-PIN1.3-.5 mm2 (22-20 AWG)7114-4035
Y187-PIN2.85-1.25 mm2 (18-16 AWG)7114-4036
Y187-PIN32.0-3.0 mm2 (14-12 AWG)7114-4037
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.31
50-99$0.29
100-249$0.28
250-499$0.26
500-999$0.25
1000+$0.23
Quantity:  Ea

8-Way (6+2) Hybrid Kit
090II/187-8P-1
8-Way (6+2) Hybrid Kit
OEM P/N: 7282-7081-40
090II/187-8P-1  8-Way (6+2) Hybrid Kit
Kit Contents: Housing, 6x 090 pin terminals and seals, 2x 187 pin terminals and seals

Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7282-7081-40
Mating Part: 7283-7081-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10894
QtyPrice
1-5$9.03
6-19$8.58
20-49$8.13
50-99$7.68
100+$7.22
Quantity:  Kit

5-Way (2+3) Hybrid Kit
090II/187-5S
5-Way (2+3) Hybrid Kit
OEM P/N: 7283-7350-40, Light Gray
090II/187-5S  5-Way (2+3) Hybrid Kit
Kit Contents: Housing, 2x 090 pin terminals and seals, 3x 187 pin terminals and seals

Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7283-7350-40, Light Gray
Mating Part: 090II/187-5P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11413
QtyPrice
1-5$7.38
6-19$7.01
20-49$6.64
50-99$6.27
100+$5.90
Quantity:  Kit

5-Way (3+2) Hybrid Kit
TS090/187-5S-2
5-Way (3+2) Hybrid Kit
OEM P/N: Light gray: 6189-0166 (In stock)
Black: 6189-0190
Dark gray: 6189-0167
Orange: 6189-0704
TS090/187-5S-2  5-Way (3+2) Hybrid Kit
Kit Contents: Housing, 3x 090 socket terminals and seals, 2x 187 socket terminals and seals

Mfr: OEM Sumitomo
Series: TS 090+187 Hybrid Sealed
OEM P/N: Light gray: 6189-0166 (In stock)
Black: 6189-0190
Dark gray: 6189-0167
Orange: 6189-0704
Part Name: WP93+82FAY, 10946WYA05F
Mating Part: TS090/187-5P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:8.7mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Toyota 90980-10946
QtyPrice
1-5$5.94
6-19$5.64
20-49$5.35
50-99$5.05
100+$4.75
Quantity:  Kit

6-Way Kit
250.LT-6S-1
6-Way Kit
OEM P/N: 6110-2563 (alt p/n w/flange 6110-0363)
250.LT-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2563 (alt p/n w/flange 6110-0363)
Mating Part: 6120-0563

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PP
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • KUM PH025-06010
  • Yazaki 7123-2063
QtyPrice
1-5$3.59
6-19$3.41
20-49$3.23
50-99$3.05
100+$2.87
Quantity:  Kit

MWT Seal Plug
MWT-PG
MWT Seal Plug
OEM P/N: MWTDPS-1A-DN
MWT-PG  MWT Seal Plug

Mfr: OEM JST
Series: MWT Series
OEM P/N: MWTDPS-1A-DN

spacer

QtyPrice
1-49$0.14
50-99$0.13
100-249$0.13
250-499$0.11
500+$0.10
Quantity:  Ea

3-Way Kit
TS187-3S
3-Way Kit
OEM P/N: 6189-0165
TS187-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 187 Sealed Series
OEM P/N: 6189-0165
Part Name: WP187AY3F-GR
Mating Part: TS187-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Pitch:8.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-10841
QtyPrice
1-5$5.04
6-19$4.79
20-49$4.54
50-99$4.28
100+$4.03
Quantity:  Kit

58 Y Sealed Seals
58Y-SL
58 Y Sealed Seals
58Y-SL  58 Y Sealed Seals

Mfr: Yazaki
Series: YESC 1.5+58 Y Hybrid Sealed

Wire Insulation Dia.ColorPart Number
58Y-SL43.4-4.4 mm (.134-.173 in)Red7158-3034-50
58Y-SL54.0-5.0 mm (.157-.197 in)Natural7158-3035
58Y-SL65.3-6.5 mm (.209-.256 in)Yellow7158-3036-70
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice
1-49$0.43
50-99$0.41
100-249$0.39
250-499$0.34
500+$0.30
Quantity:  Ea

58 Y Socket Contact
58L/Y-SKT
58 Y Socket Contact
58L/Y-SKT  58 Y Socket Contact

Mfr: Yazaki
Series: 58 L type, 58 Y type, YESC 1.5+58 Y Hybrid Sealed

Wire SizePlatingPart Number
-.85-2 mm2 (18-14 AWG)Tin7116-3252
58L/Y-SKT13 mm2 (12 AWG)Tin7116-3251
58L/Y-SKT25-8 mm2 (10-8 AWG)Tin7116-3250
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:9.5mm (.375)
  • Wire Size:0.85 - 8.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford 96FG-14474-YBA (SKT1)
  • Ford 93BG-14474-YCA (SKT2)
QtyPrice
1-49$1.10
50-99$1.05
100-249$0.99
250-499$0.88
500+$0.77
Quantity:  Ea

1-Way Kit
090II-1S-3
1-Way Kit
OEM P/N: 7283-1114-40
090II-1S-3  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1114-40
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11363
QtyPrice
1-5$3.93
6-19$3.73
20-49$3.54
50-99$3.34
100+$3.14
Quantity:  Kit

58 Y Pin Contact
58L/Y-PIN
58 Y Pin Contact
58L/Y-PIN  58 Y Pin Contact

Mfr: Yazaki
Series: 58 L type, 58 Y type, YESC 1.5+58 Y Hybrid Sealed

Wire SizePlatingPart Number
58L/Y-PIN13 mm2 (12 AWG)Tin7114-3251
58L/Y-PIN25-8 mm2 (10-8 AWG)Tin7114-3250
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:9.5mm (.375)
  • Wire Size:3.00 - 8.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford 96FG-14421-YBA (PIN1)
  • Ford 93BG-14421-YCA (PIN2)
QtyPrice
1-49$0.80
50-99$0.76
100-249$0.72
250-499$0.64
500+$0.56
Quantity:  Ea

Sumitomo Connector Clamp
CLIP-118
Sumitomo Connector Clamp
OEM P/N: 6810-1584
CLIP-118  Sumitomo Connector Clamp

Mfr: OEM Sumitomo
Series: DL 090 sealed, SL 060 sealed, SL 090 sealed, SL 312 sealed
OEM P/N: 6810-1584
For 7.2 x 10.2mm hole with 0.7-2.0mm thickness

spacer

QtyPrice
1-5$0.76
6-19$0.72
20-49$0.68
50-99$0.65
100+$0.61
Quantity:  Ea

7-Way Kit
PA-7P
7-Way Kit
OEM P/N: 7118-3070
PA-7P  7-Way Kit
Kit Contents: Housing, 7 pin contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: 7118-3070
Mating Part: PA-7S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:7
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10042
QtyPrice
1-5$3.28
6-19$3.12
20-49$2.95
50-99$2.79
100+$2.62
Quantity:  Kit

7-Way Kit
PA-7S
7-Way Kit
OEM P/N: 7119-3070
PA-7S  7-Way Kit
Kit Contents: Housing, 7 socket contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: 7119-3070
Mating Part: PA-7P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:7
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10043
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

CB01 Pin Terminal
CB01-PIN
CB01 Pin Terminal
CB01-PIN  CB01 Pin Terminal

Mfr: Sumiko Tec
Series: CB01

Wire SizePart Number
CB01-PIN10.08-0.33 mm2 (28-22 AWG)
1.60mm Max Insulation dia		CB01C5-010A
CB01-PIN20.33-0.52 mm2 (22-20 AWG)
1.70mm Max Insulation dia		CB01C5-020A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:0.8mm (.030)
  • Wire Size:0.08 - 0.52 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $0.24
Quantity:  Ea

CB01 Socket Terminal
CB01-SKT
CB01 Socket Terminal
CB01-SKT  CB01 Socket Terminal

Mfr: Sumiko Tec
Series: CB01

Wire SizePart Number
CB01-SKT10.08-0.33 mm2 (28-22 AWG)
1.60mm Max Insulation dia		CB01C6-010A
CB01-SKT20.33-0.52 mm2 (22-20 AWG)
1.70mm Max Insulation dia		CB01C6-020A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:0.8mm (.030)
  • Wire Size:0.08 - 0.52 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $0.24
Quantity:  Ea

2-Way Kit
CB01-2P-2
2-Way Kit
CB01-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: OEM Sumiko Tec
Series: CB01
Mating Part: CB01-2S-x

Wire Insulation Dia.Part Number
CB01-2P-1 White1.00-1.30mmCB01A5-02N0-01
CB01-2P-1 Black1.00-1.30mmCB01A5-02B0-01
CB01-2P-2 White1.30-1.70mmCB01A5-02N0-02
CB01-2P-2 Black1.30-1.70mmCB01A5-02B0-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:0.8mm (.030)
  • Wire Size:0.08 - 0.52 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 105 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.59
6-19$4.36
20-49$4.13
50-99$3.90
100+$3.67
Quantity:  Kit

2-Way Kit
CB01-2S-1
2-Way Kit
CB01-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Sumiko Tec
Series: CB01
Mating Part: CB01-2P-x

Wire Insulation Dia.Part Number
CB01-2S-1 White1.00-1.30mmCB01A6-02N0-01
CB01-2S-1 Black1.00-1.30mmCB01A6-02B0-01
CB01-2S-2 White1.30-1.70mmCB01A6-02N0-02
CB01-2S-2 Black1.30-1.70mmCB01A6-02B0-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:0.8mm (.030)
  • Wire Size:0.08 - 0.52 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 105 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.71
6-19$3.52
20-49$3.34
50-99$3.15
100+$2.97
Quantity:  Kit

110 FASTIN-FASTON Socket Contact
110.FF-SKT
110 FASTIN-FASTON Socket Contact
110.FF-SKT  110 FASTIN-FASTON Socket Contact

Mfr: Tyco/AMP
Series: FASTIN-FASTON Series

Wire SizePlatingPart Number
110.FF-SKT.5-1.0 mm2 (20-18 AWG)
1.4-2.3mm Insulation dia		Tin Plated160864-2
Available stock: Aftermarket OEM
NOTE: For .8mm tab thickness terminals

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 1.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:11A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

2-Way Kit
110.FF-2S
2-Way Kit
OEM P/N: 925014-0
110.FF-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-18awg wire

Mfr: OEM Tyco/AMP
Series: FASTIN-FASTON Series
OEM P/N: 925014-0
Mating Part: N/A, device only
NOTE: For .8mm tab thickness terminals

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 1.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:11A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.21
6-19$2.10
20-49$1.99
50-99$1.88
100+$1.77
Quantity:  Kit

6-Way Kit
HX040-6P
6-Way Kit
OEM P/N: 6188-0658
HX040-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6188-0658
Part Name: HX4-6MAY-B
Mating Part: HX040-6S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-5$5.34
6-19$5.07
20-49$4.81
50-99$4.54
100+$4.27
Quantity:  Kit

3-Way Kit
RFW-3S-5
3-Way Kit
OEM P/N: FW-C-DE3F-GR (alt p/n: FT0792, U020168)
RFW-3S-5  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, lock

Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-DE3F-GR (alt p/n: FT0792, U020168)
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:14A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.93
6-19$4.68
20-49$4.44
50-99$4.19
100+$3.94
Quantity:  Kit

16-Way Kit
BD-16S
16-Way Kit
OEM P/N: White: 179631-1
Black: 179631-2
BD-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts for 20-18 AWG wire

Mfr: OEM Tyco/AMP
Series: OBD
OEM P/N: White: 179631-1
Black: 179631-2
Part Name: BD16FW
Mating Part: Industry standard connector

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:1.5mm (.060)
  • Wire Size:0.50 - 1.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:8.6mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Panel Mount
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
  • Voltage Rating:30V DC
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Maserati 673004840 repair kit connector
  • Mopar 05083231AA repair kit connector
  • Nissan/Bosch J-48817-139 pigtail connector
  • Nissan service part 24008-9DN1B connector
  • Toyota 90980-11665
QtyPrice
1-5$3.89
6-19$3.70
20-49$3.50
50-99$3.31
100+$3.11
Quantity:  Kit

4mm Sealed Bullet Receptacle kit (Double wire type)
BC40-1S-B2
4mm Sealed Bullet Receptacle kit (Double wire type)
OEM P/N: 7120-1152
BC40-1S-B2  4mm Sealed Bullet Receptacle kit (Double wire type)
Waterproof with double .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7120-1152
Mating Part: BC40-1P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice
1-49$1.19
50-99$1.13
100-249$1.07
250-499$0.95
500+$0.83
Quantity:  Kit

8-Way Kit
MX150-8S-D
8-Way Kit
OEM P/N: Green: 33472-4880 (SS: 33472-0804)
Black: 33472-4805 (SS: 33472-0805)
Gray: 33472-4882 (SS: 33472-0882, IN STOCK)
MX150-8S-D  8-Way Kit
Kit Contents: Housing, 8 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: Green: 33472-4880 (SS: 33472-0804)
Black: 33472-4805 (SS: 33472-0805)
Gray: 33472-4882 (SS: 33472-0882, IN STOCK)
Keying: D
Mating Part: 33482-0804

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:8
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford DU2Z-14S411-ACA, WPT-1358 (Black body, Silver plated terminals) pigtail connector
QtyPrice
1-5$4.85
6-19$4.61
20-49$4.36
50-99$4.12
100+$3.88
Quantity:  Kit


1995 Items.

  Showing Items 1501 thru 1550.
« Previous  First Page  . . .  22  23  24  25  26  27  28  29  30  31  . . .  Last Page (40)    Next »

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
