TS025U-PIN

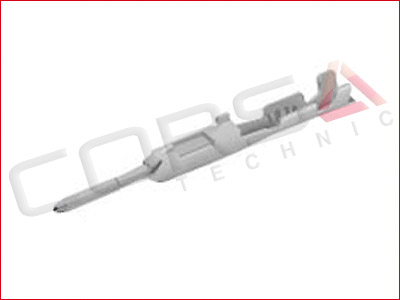

TS 025 Unsealed Pin Contact

Images shown may represent a range of products or be for illustration purposes only.

Mfr:Sumitomo
Series:TS 025 Unsealed, used in Tokai Rika 0.64II (025II) Unsealed, and Yazaki 025II+090II Hybrid Unsealed

	Wire Size	Plating	Part Number
TS025U-PIN1	.13 mm² (26 AWG) .85-.95mm insulation dia.	Tin	8230-4878
-	.13 mm² (26 AWG) .85-.95mm insulation dia.	Gold	8230-5136
TS025U-PIN2	.22-.35 mm² (24-22 AWG) .95-1.2mm insulation dia.	Tin	8100-3622
-	.22-.35 mm² (24-22 AWG) .95-1.2mm insulation dia.	Gold	8100-3626
TS025U-PIN3	.3-.5 mm² (22-20 AWG) 1.1-1.7mm insulation dia.	Tin	8100-3623
-	.3-.5 mm² (22-20 AWG) 1.1-1.7mm insulation dia.	Gold	8100-3627
Available stock: Aftermarket OEM

Documents

Specifications

General

Sealing:Unsealed
Contact Size:0.64mm (.025)
Wire Size:0.13 - 0.50 mm²

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Lance Type:Housing Lance

Electrical

Current Rating^[1]:7A
Voltage Rating:14V DC

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Cross Reference List

Terminal used in Toyota 82998-24270 (PIN3), 82998-24280 (Gold plated, PIN3-Au) repair wire
