34-Way
NEW ITEM!
MLC025/040III-34S
34-Way (27+7) Hybrid Housing
Mfr: OEM AMP/TE
Series: Multilock 025/040 I/O Series
OEM P/N: 1123337-1
Part Name: 025/040 ECU PLUG HSG ASSY 34P
Mating Part: 1318813, 1376430
Mfr: OEM AMP/TE
Series: Multilock 025/040 I/O Series
OEM P/N: 1123337-1
Part Name: 025/040 ECU PLUG HSG ASSY 34P
Mating Part: 1318813, 1376430
3D STEP (1123337-1_A1-3d_stp.zip)
Mfr Drawing (C-1123337_A1.pdf)General
- Sealing:Unsealed
- Number of Ways:34
- Contact Size:Mixed
- Wire Size:0.22 - 1.25 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12144
MX23A-34P-1
34-Way ECU PCB Header
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34NF1
Mating Part: MX23A-34S-1
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34NF1
Mating Part: MX23A-34S-1
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PBT+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Suzuki motorcycle ECU's
- YZF-R1 2009-2011 ECU's
- ZX10R 2008-2010 ECU's
MX23A-34P-2
34-Way ECU PCB Header (Alternate Keying, Grey)
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34NF6
Mating Part: MX23A-34S-2
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34NF6
Mating Part: MX23A-34S-2
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PBT+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Suzuki motorcycle ECU's (Grey connector)
- ZX10R 2008-2010 ECU's

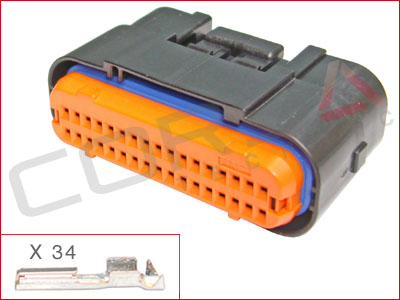

MX23A-34S-1
34-Way Kit
Kit Contents: Housing, 34 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34SF1
Mating Part: MX23A-34P-1
Kit Contents: Housing, 34 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34SF1
Mating Part: MX23A-34P-1
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Suzuki motorcycle ECU's
- YZF-R1 2009-2011 ECU's
- ZX10R 2008-2010 ECU's

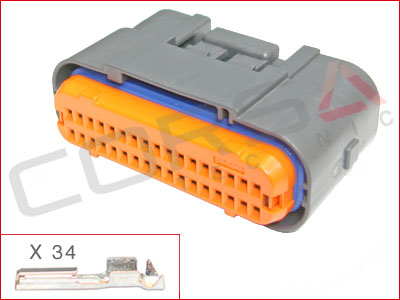

MX23A-34S-2
34-Way Kit (Alternate Keying, Grey)
Kit Contents: Housing, 34 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34SF2
Mating Part: MX23A-34P-2
Kit Contents: Housing, 34 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34SF2
Mating Part: MX23A-34P-2
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Suzuki motorcycle ECU's (Grey connector)
- ZX10R 2008-2010 ECU's
SS10-34P-1
34-Way PCB Header (Keying 1)
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6437288-1
Keying: 1
Mating Part: SS10-34S-1
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6437288-1
Keying: 1
Mating Part: SS10-34S-1
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- GSXR1300 Hayabusa ECU (99'-07')
- YZF-R1 2009-2011 ECU
- Motec ECU's: M84, M400, M600, M800, and M1 series M130, M142, M150
- Motec Power Distribution Module's: PDM15, PDM30
- Motec Expansion box E888
- Motec Dash Logger's: CDL3, C125
- DTAfast ECU's: S40, S60, S80, S100
- Haltech ECU's
- Link and Vi-PEC ECU's
SS10-34P-2
34-Way PCB Header (Keying 2)
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6437288-2
Keying: 2
Mating Part: SS10-34S-2
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6437288-2
Keying: 2
Mating Part: SS10-34S-2
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Link and Vi-PEC ECU's
SS10-34S-1
34-Way Kit (Keying 1)
Kit Contents: Housing, 34 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 4-1437290-0
Keying: 1
Mating Part: SS10-34P-1 and SS10-60P-1
Kit Contents: Housing, 34 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 4-1437290-0
Keying: 1
Mating Part: SS10-34P-1 and SS10-60P-1
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- GSXR1300 Hayabusa ECU (99'-07')
- YZF-R1 ECU (07'-11')
- YZF-R6 ECU (06'-14')
- ZX-10R ECU (04'-05')
- Motec ECU's: M84, M400, M600, M800, and M1 series M130, M142, M150
- Motec Power Distribution Module's: PDM15, PDM30
- Motec Expansion box E888
- Motec Dash Logger's: CDL3, C125
- DTAfast ECU's: S40, S60, S80, S100
- Haltech ECU's
- Link and Vi-PEC ECU's
- KTM 000700000CO
SS10-34S-2
34-Way Kit (Keying 2)
Kit Contents: Housing, 34 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 4-1437290-1
Keying: 2
Mating Part: SS10-34P-2
Kit Contents: Housing, 34 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 4-1437290-1
Keying: 2
Mating Part: SS10-34P-2
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Link and Vi-PEC ECU's
SS10-34S-2D
34-Way Kit (Keying 2, Double Locking)
Kit Contents: Housing, 34 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-9
Keying: 2
Mating Part: 3-6437285-1
Kit Contents: Housing, 34 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-9
Keying: 2
Mating Part: 3-6437285-1
General
- Sealing:Matte Sealed
- Number of Ways:34
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
