12-Way
090II-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4G1292-0000 (Black)
4G1298-0000 (Light Gray)
Mating Part: 090II-12S
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4G1292-0000 (Black)
4G1298-0000 (Light Gray)
Mating Part: 090II-12S
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Sumitomo 6181-0132 (lt. grey), 6181-0564 (black)
- Toyota 90980-11086
- Yazaki 7282-7427
090II-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4F1272-0003 (Black)
4F1278-0000 (Light gray)
Mating Part: 090II-12P
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4F1272-0003 (Black)
4F1278-0000 (Light gray)
Mating Part: 090II-12P
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Sumitomo 6189-0221 (gray)
- Toyota 90980-11087
- Yazaki 7283-7427
090IIU-12P-1
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-1009, 7282-4325
Part Name: 11692N9A12M
Mating Part: 090IIU-12S-1
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-1009, 7282-4325
Part Name: 11692N9A12M
Mating Part: 090IIU-12S-1
-
3D STEP (6520-1009.zip) -
Mfr Drawing (7282-4325.pdf) -
Derating Curves (090IIU-12x-1-TC.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11530, 90980-11692
090IIU-12S-1
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-1004, 7283-4325
Part Name: 11693N9A12F
Mating Part: 090IIU-12P-1
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-1004, 7283-4325
Part Name: 11693N9A12F
Mating Part: 090IIU-12P-1
-
3D STEP (6520-1004.zip)
-
Mfr Drawing (7283-4325.pdf)
-
Derating Curves (090IIU-12x-1-TC.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11531, 90980-11693, 90980-12351
090IIU-12S-2
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: Natural: 6520-0355 (IN STOCK), 7283-1120
Gray: 1300-3958
Orange: 1300-3272
Part Name: 11782N9A12F
Mating Part: 7282-1120
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: Natural: 6520-0355 (IN STOCK), 7283-1120
Gray: 1300-3958
Orange: 1300-3272
Part Name: 11782N9A12F
Mating Part: 7282-1120
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10803, 90980-11720, 90980-11782, 90980-12477
090IIU/187U-12P
12-Way (10+2) Hybrid Kit
Kit Contents: Housing, 10x 090 pin contacts, 2x 187 pin contacts
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7282-1128
Mating Part: 090IIU/187U-12S
Kit Contents: Housing, 10x 090 pin contacts, 2x 187 pin contacts
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7282-1128
Mating Part: 090IIU/187U-12S
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10878
090IIU/187U-12S
12-Way (10+2) Hybrid Kit
Kit Contents: Housing, 10x 090 socket contacts, 2x 187 socket contacts
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7283-1128
Mating Part: 090IIU/187U-12P
Kit Contents: Housing, 10x 090 socket contacts, 2x 187 socket contacts
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7283-1128
Mating Part: 090IIU/187U-12P
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10879, 90980-11755
91A-12P-1
12-Way Kit
Kit Contents: Housing, 12 pin contacts for 22-20 awg wire
Mfr: OEM KET, Sumitomo, Yazaki
Series: 91A, 91 A-Type, 91 A-Type
OEM P/N: MG641394
7282-4125 (IN STOCK)
Part Name: A12MW
Mating Part: 7283-8625
Kit Contents: Housing, 12 pin contacts for 22-20 awg wire
Mfr: OEM KET, Sumitomo, Yazaki
Series: 91A, 91 A-Type, 91 A-Type
OEM P/N: MG641394
7282-4125 (IN STOCK)
Part Name: A12MW
Mating Part: 7283-8625
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:0.8mm (.030)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:2.0mm
- Row Spacing:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DT-12S BLK.N.B
12-Way Plug
Mfr: Deutsch
Series: DT
Many more combinations exist. See drawing for details.
Mfr: Deutsch
Series: DT
| Key | Color | Seal | Cap | Part Number |
|---|---|---|---|---|
| A | Grey | N-Seal (Std) | - | DT06-12SA, -P004 |
| Grey | N-Seal (Std) | Short | DT06-12SA-E003, -EP04 | |
| Grey | N-Seal (Std) | Long | DT06-12SA-E008 | |
| Grey | E-Seal | - | DT06-12SA-C015 | |
| Grey | E-Seal | Short | DT06-12SA-CE01 | |
| Grey | E-Seal | Long | DT06-12SA-CE04 | |
| Black | N-Seal (Std) | - | n/a | |
| Black | N-Seal (Std) | Short | DT06-12SA-E005 | |
| Black | N-Seal (Std) | Long | n/a, see B016 style, -EP11 | |
| Black | E-Seal | - | DT06-12SA-CE02 | |
| Black | E-Seal | Short | CE03 ss by P012 style, -CE11 | |
| Black | E-Seal | Long | n/a, see P012 style, -CE12 | |
| B | Black | N-Seal (Std) | - | DT06-12SB |
| Black | N-Seal (Std) | Short | DT06-12SB-E003, -EP04 | |
| Black | N-Seal (Std) | Long | DT06-12SB-E008 | |
| Black | E-Seal | - | DT06-12SB-C015 | |
| Black | E-Seal | Short | DT06-12SB-CE01 | |
| Black | E-Seal | Long | DT06-12SB-CE04 | |
| Availability: In-Stock | ||||
-
Mfr Drawing (C-DT06-12SX-XXXX_B.pdf)
-
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:4.4mm
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DTM-12P
12-Way Receptacle
Mfr: Deutsch
Series: DTM
Mating Part: DTM-12S
Mfr: Deutsch
Series: DTM
Mating Part: DTM-12S
| Color | Cap | Part Number |
|---|---|---|
| Gray | - | DTM04-12PA |
| Gray | Short | DTM04-12PA-E003 |
| Gray | Long | N/A |
| Availability: In-Stock | ||
-
Tech Manual (114-151010_C1.pdf)
-
Product Specs (108-151010_F.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:Size 20
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:2
- Pitch:4.2mm
- Row Spacing:7.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DTM-12S
12-Way Plug
Mfr: Deutsch
Series: DTM
Mating Part: DTM-12P
Mfr: Deutsch
Series: DTM
Mating Part: DTM-12P
| Color | Cap | Part Number |
|---|---|---|
| Gray | - | DTM06-12SA |
| Gray | Short | DTM06-12SA-E003 |
| Gray | Long | DTM06-12SA-E007 |
| Availability: In-Stock | ||
-
Tech Manual (114-151010_C1.pdf)
-
Product Specs (108-151010_F.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:Size 20
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:2
- Pitch:4.2mm
- Row Spacing:7.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

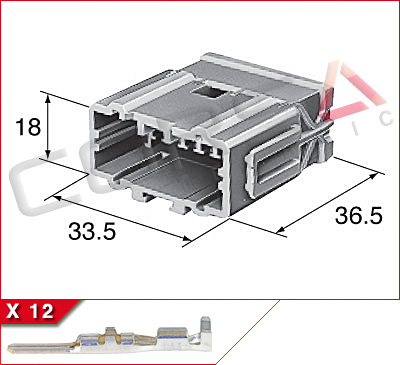

HD090-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0252
Mating Part: HD090-12S
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0252
Mating Part: HD090-12S
-
3D STEP (6098-0252.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

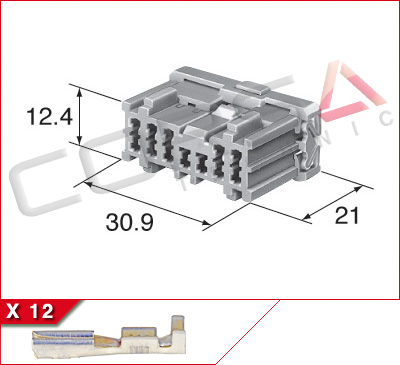

HD090-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0251
Mating Part: HD090-12P
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0251
Mating Part: HD090-12P
-
3D STEP (6098-0251.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HM-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6188-0375
Part Name: HM09WP 12MAY-GR
Mating Part: 6181-2459
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6188-0375
Part Name: HM09WP 12MAY-GR
Mating Part: 6181-2459
Bottom of connector features a bracket mount
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HS-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7282-4038-30
Mating Part: HS-12S
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7282-4038-30
Mating Part: HS-12S
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HS-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7283-4038-30
Mating Part: HS-12P
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7283-4038-30
Mating Part: HS-12P
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HX040.JC-12S
12-Way Joint Connector Kit
Kit Contents: Housing, 12 socket terminals, 1 busbar/splice
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6913
Part Name: HX4JC12FAY-NA
Kit Contents: Housing, 12 socket terminals, 1 busbar/splice
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6913
Part Name: HX4JC12FAY-NA
Requires cap, sold separately. HX040.JC-12S CAP
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:2.75mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX060-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6784
Part Name: HX06-12M-B
Mating Part: HX060-12S
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6784
Part Name: HX06-12M-B
Mating Part: HX060-12S
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.13 - 2.00 mm2
- Number of Rows:2
- Pitch:4.6mm
- Row Spacing:4.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX060-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7410
Part Name: HX06-12F-B
Mating Part: HX060-12P
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7410
Part Name: HX06-12F-B
Mating Part: HX060-12P
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.13 - 2.00 mm2
- Number of Rows:2
- Pitch:4.6mm
- Row Spacing:4.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
MLC.HYB-12S-1
12-Way Kit, 040 size
Kit Contents: Housing, 12x .040 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174913-6
Part Name: HYBRID PLUG HSG 12P GRAY
Kit Contents: Housing, 12x .040 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174913-6
Part Name: HYBRID PLUG HSG 12P GRAY
While this isn't a hybrid connector itself, it is part of the hybrid series
Mating half of connector: 174915-6, 2-178780-6
Mating half of connector: 174915-6, 2-178780-6
-
3D STEP (174913-6_E1-3d_stp.zip)
-
Mfr Drawing (C-174913_E4.pdf)
- See related terminals for crimp specs
-
Product Specs (108-5280_F7.pdf)
-
Manual (412-5476_B.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:11A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11129
MLC025HL-12S-2
12-Way Kit
Kit Contents: Housing, 12 socket contacts for 22-20 AWG wire
Mfr: AMP/TE
Series: Multilock 025 Series (Housing Lance)
OEM P/N: 1747375-1 Natural (IN STOCK)
1747375-2 Black
Part Name: 0.64III 12POS PLUG ASSY
Mating Part: 1473773, 1747080, 1747082
Kit Contents: Housing, 12 socket contacts for 22-20 AWG wire
Mfr: AMP/TE
Series: Multilock 025 Series (Housing Lance)
OEM P/N: 1747375-1 Natural (IN STOCK)
1747375-2 Black
Part Name: 0.64III 12POS PLUG ASSY
Mating Part: 1473773, 1747080, 1747082
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:2.2A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12614

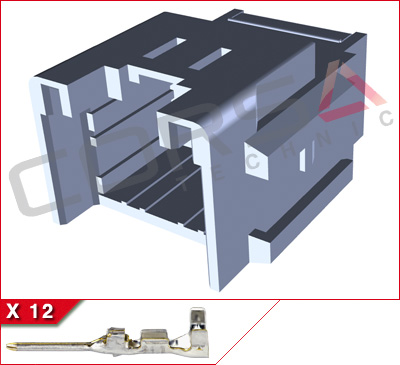

MLC040-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174058-2, Black
Part Name: 040 MULTILOCK CAP 12P
Mating Part: MLC040-12S
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174058-2, Black
Part Name: 040 MULTILOCK CAP 12P
Mating Part: MLC040-12S
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68020948AA repair kit connector

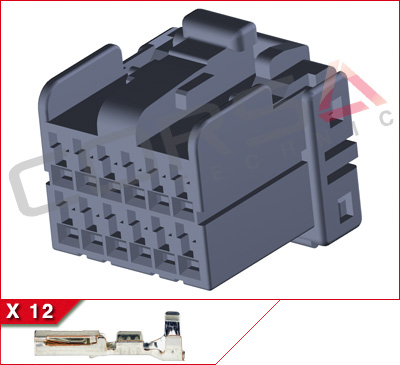

MLC040-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174045-2, Black
Part Name: 040 MULTILOCK PLUG 12P
Mating Part: MLC040-12P
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174045-2, Black
Part Name: 040 MULTILOCK PLUG 12P
Mating Part: MLC040-12P
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford F50B-14489-GA (black)
- Mopar 05102402AA repair kit connector
MLC070-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174933-1, Black: 174933-2
Part Name: 070 MLC W-W CAP HSG 12P
Mating Part: MLC070-12S
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174933-1, Black: 174933-2
Part Name: 070 MLC W-W CAP HSG 12P
Mating Part: MLC070-12S
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.9mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 73112-96BK
MLC070-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 173851-1, Black: 173851-2
Part Name: 070 MULTILOCK PLUG 12P
Mating Part: MLC070-12P
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 173851-1, Black: 173851-2
Part Name: 070 MULTILOCK PLUG 12P
Mating Part: MLC070-12P
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.9mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 73164-96BK
- Mopar 05183478AA repair kit connector
MTU.IL-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 7122-1210
Mating Part: MTU.IL-12S
Kit Contents: Housing, 12 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 7122-1210
Mating Part: MTU.IL-12S
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10513
MTU.IL-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6244-5121, 7123-1210
Mating Part: MTU.IL-12P
Kit Contents: Housing, 12 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6244-5121, 7123-1210
Mating Part: MTU.IL-12P
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10432

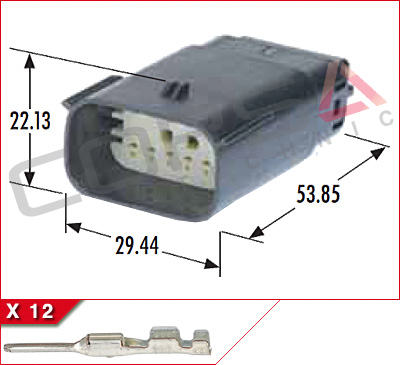

MX150-12P-A
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-1201 (superseded by 33482-6201)
Keying: A
Mating Part: MX150-12S-A
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-1201 (superseded by 33482-6201)
Keying: A
Mating Part: MX150-12S-A
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS/PA+GF20
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 72488-07BK
- Mopar 68490386AA repair kit connector
MX150-12P-B
12-Way Kit
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-1202 (ss by: 33482-6202)
Keying: B
Mating Part: 33472-1202, 33472-1207, 33472-1302, 33472-1307
Kit Contents: Housing, 12 pin contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-1202 (ss by: 33482-6202)
Keying: B
Mating Part: 33472-1202, 33472-1207, 33472-1302, 33472-1307
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS/PA+GF20
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

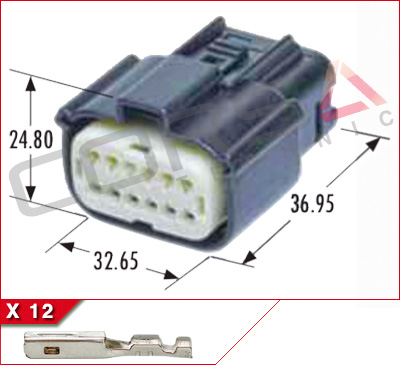

MX150-12S-A
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-1201 w/o CPA
33472-1206 w/CPA (IN STOCK)
Keying: A
Mating Part: MX150-12P-A
Kit Contents: Housing, 12 socket contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-1201 w/o CPA
33472-1206 w/CPA (IN STOCK)
Keying: A
Mating Part: MX150-12P-A
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS/PA+GF20
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford AU2Z-14S411-AMA, WPT-1125 (Clip-slot body, Silver plated terminals) pigtail connector
- Harley Davidson 72487-07BK
- Nissan/Bosch J-48817-1120 pigtail connector
- Nissan service part 24008-9DK3A connector
MX23A-12P
12-Way ECU PCB Header
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A12NF1
Mating Part: MX23A-12S
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A12NF1
Mating Part: MX23A-12S
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PBT+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX23A-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A12SF1
Mating Part: MX23A-12P
Kit Contents: Housing, 12 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A12SF1
Mating Part: MX23A-12P
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX34-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34012SF1
Mating Part: MX34012PF1, MX34012NF1, MX34012NF3, MX34012UF1, MX34012UF3
Kit Contents: Housing, 12 socket contacts
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34012SF1
Mating Part: MX34012PF1, MX34012NF1, MX34012NF3, MX34012UF1, MX34012UF3
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.85 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE+PA66
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NS-12S-1
12-Way Kit
Kit Contents: Housing, 12 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 91 NS, 91 NS
OEM P/N: 6098-4278
Part Name: NS12FW
Kit Contents: Housing, 12 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 91 NS, 91 NS
OEM P/N: 6098-4278
Part Name: NS12FW
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:3.8mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RCS25-12P-B
12-Way Housing
Mfr: OEM Tyco/AMP
OEM P/N: 2-828879-1
BMW: 61-13-1-378-137
Part Name: 12P ST-GEH 2,5MM D
Code: B
Mating Part: 61-13-1-378-139
Mfr: OEM Tyco/AMP
OEM P/N: 2-828879-1
BMW: 61-13-1-378-137
Part Name: 12P ST-GEH 2,5MM D
Code: B
Mating Part: 61-13-1-378-139
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.5mm dia.
- Wire Size:0.22 - 4.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RH-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7282-8854-30
Part Name: RH12MB
Mating Part: RH-12S
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7282-8854-30
Part Name: RH12MB
Mating Part: RH-12S
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RH-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7283-8854-30
Part Name: RH12FB
Code: A
Mating Part: RH-12P
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7283-8854-30
Part Name: RH12FB
Code: A
Mating Part: RH-12P
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NEW ITEM!

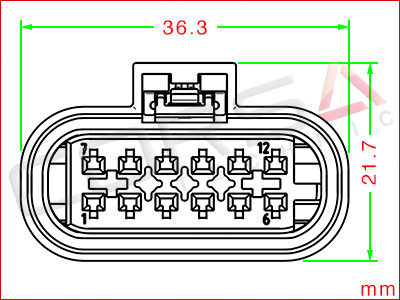

SS12-12S-A
12-Way Kit, Keying A
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Hirschmann
Series: SealStar 1.2mm
OEM P/N: 805-344-541
Keying: A
Mating Part: N/A, device only
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Hirschmann
Series: SealStar 1.2mm
OEM P/N: 805-344-541
Keying: A
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.2mm (.047)
- Wire Size:0.13 - 1.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IPX7/IPX9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

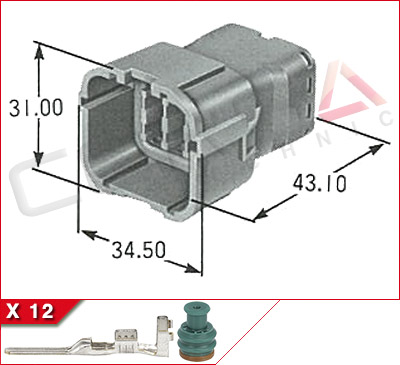

SWP-12P
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7222-7923-40
Mating Part: SWP-12S
Kit Contents: Housing, 12 pin contacts, 12 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7222-7923-40
Mating Part: SWP-12S
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:6.2mm
- Row Spacing:6.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

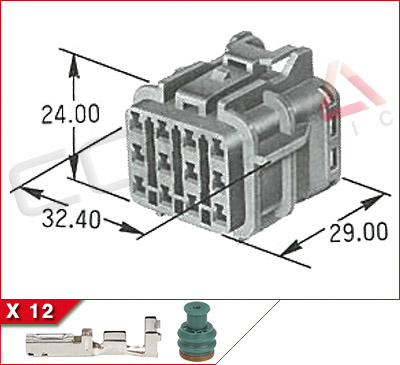

SWP-12S
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7123-7923-40
Mating Part: SWP-12P
Kit Contents: Housing, 12 socket contacts, 12 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7123-7923-40
Mating Part: SWP-12P
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:6.2mm
- Row Spacing:6.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TS025-12S-2
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1133
Part Name: 12357WQA12F-GR
Mating Part: N/A, device only
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1133
Part Name: 12357WQA12F-GR
Mating Part: N/A, device only
-
3D STEP (6189-1133.zip)
-
Mfr Drawing (6189-1133.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS025-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-12357
Y060-12P-2
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 Sealed
OEM P/N: 7182-8564-30
Mating Part: Y060-12S-2
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 Sealed
OEM P/N: 7182-8564-30
Mating Part: Y060-12S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:5.75mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Y060-12S-2
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 Sealed
OEM P/N: 7283-0016-30
Mating Part: Y060-12P-2
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 Sealed
OEM P/N: 7283-0016-30
Mating Part: Y060-12P-2
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:5.75mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:No
- CPA:Yes
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
YESC.15-12P-2
12-Way Kit
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7282-2432-30
Mating Part: YESC.15-12S-2
Kit Contents: Housing, 12 pin contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7282-2432-30
Mating Part: YESC.15-12S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68358149AA repair kit connector
YESC.15-12S-2
12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7283-2432-30 w/CPA (alt 7283-2433-30 w/o CPA)
Mating Part: YESC.15-12P-2
Kit Contents: Housing, 12 socket contacts, 12 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7283-2432-30 w/CPA (alt 7283-2433-30 w/o CPA)
Mating Part: YESC.15-12P-2
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68358148AA repair kit connector
YESC.15/28-12S
12-Way (8+4) Hybrid Kit
Kit Contents: Housing, 8x 060 socket terminals and seals, 4x 110 socket terminals and seals
Mfr: OEM Yazaki
Series: YESC 1.5+2.8 Hybrid Sealed
OEM P/N: 7283-4071-30
Mating Part: 7282-4071-30
Kit Contents: Housing, 8x 060 socket terminals and seals, 4x 110 socket terminals and seals
Mfr: OEM Yazaki
Series: YESC 1.5+2.8 Hybrid Sealed
OEM P/N: 7283-4071-30
Mating Part: 7282-4071-30
-
Mfr Drawing (7283-4071-30.pdf)
See individual terminals for crimp specs.
-
Series Catalog (YESC_Hybrid-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:12
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:6.8mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford AU2Z-14S411-TA, WPT-1061 (Tin plated terminals) pigtail connector
YG-12S-B
12-Way Kit
Kit Contents: Housing, 12 socket contacts for 20-16awg wire
Mfr: OEM Yazaki
Series: G-Type Series
OEM P/N: 7125-2921-30
Mating Part: N/A, direct connection
Kit Contents: Housing, 12 socket contacts for 20-16awg wire
Mfr: OEM Yazaki
Series: G-Type Series
OEM P/N: 7125-2921-30
Mating Part: N/A, direct connection
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:10.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Environmental
- Temp Range[2]:-40 - 85 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
