23-Way
HX040.JC-23S-1

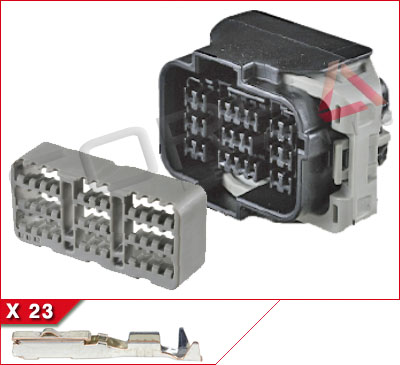

23-Way Kit
Kit Contents: Housing, 23 socket contacts, TPA lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-1082
Part Name: HX4-23FAY-B
Mating Part: 6188-0660, 6188-4787, 6188-4789, 5010-8627, 5011-1590, 5011-6687
Kit Contents: Housing, 23 socket contacts, TPA lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-1082
Part Name: HX4-23FAY-B
Mating Part: 6188-0660, 6188-4787, 6188-4789, 5010-8627, 5011-1590, 5011-6687
Series Catalog (HX040JC-CAT_4-2024.pdf)General
- Sealing:Matte Sealed
- Number of Ways:23
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:5.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040.JC-23S-2

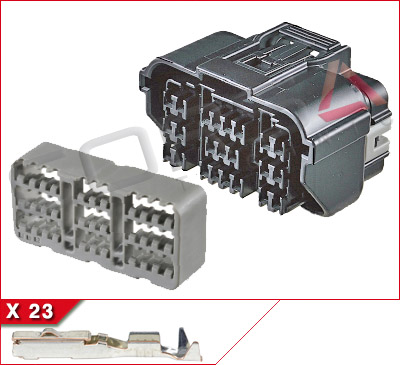

23-Way Kit
Kit Contents: Housing, 23 socket contacts, TPA lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6914
Part Name: HX4-L23FAY-B
Mating Part: 6188-4787, 6188-4789, 5010-8627, 5011-1590, 5011-6687
Kit Contents: Housing, 23 socket contacts, TPA lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6914
Part Name: HX4-L23FAY-B
Mating Part: 6188-4787, 6188-4789, 5010-8627, 5011-1590, 5011-6687
General
- Sealing:Matte Sealed
- Number of Ways:23
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:5.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
M050U/090IIU-23S
23-Way (19+4) Hybrid Kit
Kit Contents: Housing, 19x 050 socket contacts for 22-20awg wire, 4x 090 socket contacts
Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: 6950-1018
Part Name: 10921NYH23F-NA
Mating Part: 90980-10920
Kit Contents: Housing, 19x 050 socket contacts for 22-20awg wire, 4x 090 socket contacts
Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: 6950-1018
Part Name: 10921NYH23F-NA
Mating Part: 90980-10920
General
- Sealing:Unsealed
- Number of Ways:23
- Contact Size:Mixed
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10921
