6-Way
090II-6P-1
6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: Aftermarket, Yazaki does not make an actual part
Series: 090II Sealed Series
Mating Part: 090II-6S-1
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: Aftermarket, Yazaki does not make an actual part
Series: 090II Sealed Series
Mating Part: 090II-6S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
090II-6P-2
6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7064-40
Mating Part: 090II-6S-2
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7064-40
Mating Part: 090II-6S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.4mm
- Row Spacing:6.7mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10987
090II-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1968-30
Mating Part: 090II-6P-1
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1968-30
Mating Part: 090II-6P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KTM 000700000GH
- Nissan/Bosch J-48817-1125 pigtail connector
- Nissan service part 24008-9DK4A connector
- Toyota 90980-11858
090II-6S-2
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7064-40
Mating Part: 090II-6P-2
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7064-40
Mating Part: 090II-6P-2
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.4mm
- Row Spacing:6.7mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10988
090II-6S-8
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: Light gray: 7283-7062-40
Black: 7283-7062-30
Mating Part: 7282-7062
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: Light gray: 7283-7062-40
Black: 7283-7062-30
Mating Part: 7282-7062
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11034

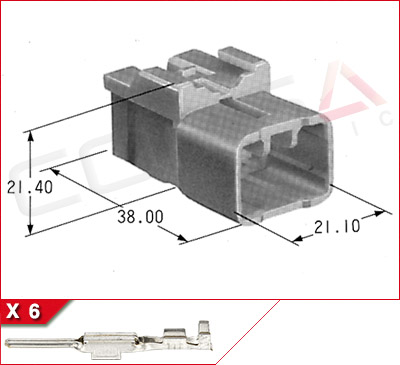

090IIU-6P-1
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1120, 7282-1060
Mating Part: 090IIU-6S-1
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1120, 7282-1060
Mating Part: 090IIU-6S-1
-
3D STEP (6240-1120.zip) -
Mfr Drawing (7282-1060.pdf) -
Derating Curves (090IIU-6x-1-TC.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10796
090IIU-6P-3
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1107
Mating Part: 6240-5118
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1107
Mating Part: 6240-5118
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11010, 90980-11729
090IIU-6P-4
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Yazaki
Series: 090II Unsealed Series
OEM P/N: 7282-1068
Mating Part: 090IIU-6S-4
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Yazaki
Series: 090II Unsealed Series
OEM P/N: 7282-1068
Mating Part: 090IIU-6S-4
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10998, 90980-11706

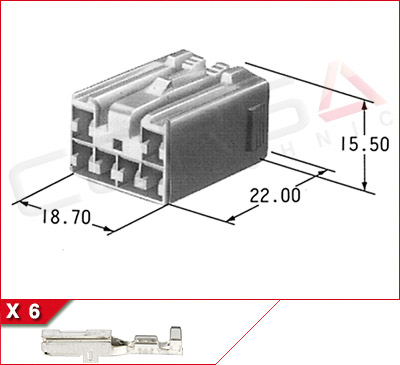

090IIU-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5160, 7283-1060
Mating Part: 090IIU-6P-1
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5160, 7283-1060
Mating Part: 090IIU-6P-1
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10797, 90980-12180, 90980-12344, 90980-12349
090IIU-6S-2
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1061
Mating Part: 7382-1177
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1061
Mating Part: 7382-1177
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10957
090IIU-6S-4
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Yazaki
Series: 090II Unsealed Series
OEM P/N: 7283-1068
Mating Part: 090IIU-6P-4
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Yazaki
Series: 090II Unsealed Series
OEM P/N: 7283-1068
Mating Part: 090IIU-6P-4
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11001, 90980-11707
090IIU/312U-6P
6-Way (4+2) Hybrid Kit
Kit Contents: Housing, 4x 090 pin contacts, 2x 312 socket contacts
Mfr: OEM Yazaki
Series: 090II+312 Hybrid Unsealed
OEM P/N: 7282-1064
Mating Part: 7283-1064
Kit Contents: Housing, 4x 090 pin contacts, 2x 312 socket contacts
Mfr: OEM Yazaki
Series: 090II+312 Hybrid Unsealed
OEM P/N: 7282-1064
Mating Part: 7283-1064
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:Mixed
- Wire Size:0.30 - 8.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:6.8mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:42A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10909
187U-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Yazaki
Series: 187 Unsealed Series
OEM P/N: 7282-1065
Mating Part: 187U-6S
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Yazaki
Series: 187 Unsealed Series
OEM P/N: 7282-1065
Mating Part: 187U-6S
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:6.8mm
- Row Spacing:6.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-10975, 90980-11756
187U-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Yazaki
Series: 187 Unsealed Series
OEM P/N: 7283-1065
Mating Part: 187U-6P
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Yazaki
Series: 187 Unsealed Series
OEM P/N: 7283-1065
Mating Part: 187U-6P
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:6.8mm
- Row Spacing:6.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-10976
250.ARM-6P-1
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2162-30 (PA66), 7122-2262-30 (PP)
Natural | 6111-2007 (PA66), 6070-6381 (PP) | 7122-2162 (PA66), 7122-2262 (PP)
Mating Part: 250.ARM-6S-1
Kit Contents: Housing, 6 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2162-30 (PA66), 7122-2262-30 (PP)
Natural | 6111-2007 (PA66), 6070-6381 (PP) | 7122-2162 (PA66), 7122-2262 (PP)
Mating Part: 250.ARM-6S-1
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- FZR Ignitor (black)
- Hero B-13R (male half)
250.ARM-6P-2
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-6S-2
Kit Contents: Housing, 6 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-6S-2
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.ARM-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2165-30 (PA66), 7123-2262-30 (PP)
Natural | 6111-2008 (PA66), 6070-6391 (PP) | 7123-2165 (PA66), 7123-2262 (PP)
Mating Part: 250.ARM-6P-1
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2165-30 (PA66), 7123-2262-30 (PP)
Natural | 6111-2008 (PA66), 6070-6391 (PP) | 7123-2165 (PA66), 7123-2262 (PP)
Mating Part: 250.ARM-6P-1
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- FZR Ignitor (harness side)
- Hero B-13R (female half)
- Honda 070PZ-002A800
250.ARM-6S-2
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-6P-2
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-6P-2
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.LOC-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-6S
Kit Contents: Housing, 6 pin contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-6S
P/N:
Natural, 6120-2063 (PP)
Black, ()
Natural, 6120-2063 (PP)
Black, ()
- See related terminal for crimp specs
-
Series Catalog (250LOC-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.LOC-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-6P
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-6P
P/N:
Natural, 6110-4563 (PP)
Black, ()
Natural, 6110-4563 (PP)
Black, ()
- See related terminal for crimp specs
-
Series Catalog (250LOC-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Panel Mount
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.LT-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2563 (alt p/n w/flange 6110-0363)
Mating Part: 6120-0563
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2563 (alt p/n w/flange 6110-0363)
Mating Part: 6120-0563
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KUM PH025-06010
- Yazaki 7123-2063
58M-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1061 natural, 6101-1067 grey
Yazaki: 7122-6060 natural, 7122-6060-40 grey
Part Name: M06MW
Mating Part: 58M-6S
Kit Contents: Housing, 6 pin contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1061 natural, 6101-1067 grey
Yazaki: 7122-6060 natural, 7122-6060-40 grey
Part Name: M06MW
Mating Part: 58M-6S
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58M-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5061 natural, 6101-5067 grey
Yazaki: 7123-6060 natural, 7123-6060-40 grey
Part Name: M06FW
Mating Part: 58M-6P
Kit Contents: Housing, 6 socket contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5061 natural, 6101-5067 grey
Yazaki: 7123-6060 natural, 7123-6060-40 grey
Part Name: M06FW
Mating Part: 58M-6P
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NEW ITEM!
58S-6P-1
6-Way Kit
Kit Contents: Housing, 6 pin contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-1061, 7122-1660
Part Name: S06MW
Mating Part: 58S-6S-1
Kit Contents: Housing, 6 pin contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-1061, 7122-1660
Part Name: S06MW
Mating Part: 58S-6S-1
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.8mm
- Row Spacing:4.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NEW ITEM!
58S-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-5061, 7123-1660
Part Name: S06FW
Mating Part: 58S-6P-1
Kit Contents: Housing, 6 socket contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-5061, 7123-1660
Part Name: S06FW
Mating Part: 58S-6P-1
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.8mm
- Row Spacing:4.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
62C-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket terminals for 20-18awg wire
Mfr: Furukawa, Sumitomo, OEM Yazaki
Series: 62 C-Type, 62 C-Type, 62 C-Type
OEM P/N: Furukawa PH855-06010, Yazaki 7123-7860
Part Name: C06FW
Mating Part: 7122-7860
Kit Contents: Housing, 6 socket terminals for 20-18awg wire
Mfr: Furukawa, Sumitomo, OEM Yazaki
Series: 62 C-Type, 62 C-Type, 62 C-Type
OEM P/N: Furukawa PH855-06010, Yazaki 7123-7860
Part Name: C06FW
Mating Part: 7122-7860
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:1.5mm (.060)
- Wire Size:0.20 - 0.85 mm2
- Number of Rows:2
- Pitch:3.3mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KET MG611277
APEX.28-6P-B
6-Way Kit, Type B
Kit Contents: Housing, 6 pin contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200613 (Aptiv p/n: 13589577)
Keying: B
Mating Part: APEX.28-6S-B
Kit Contents: Housing, 6 pin contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200613 (Aptiv p/n: 13589577)
Keying: B
Mating Part: APEX.28-6S-B
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 6.00 mm2
- Number of Rows:2
- Pitch:5.25mm
- Row Spacing:6.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
APEX.28-6S-A
6-Way Kit, Type A
Kit Contents: Housing, 6 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200608 (Aptiv p/n: 15419838)
Keying: A
Mating Part: 54200612 (Aptiv p/n: 15430633)
Kit Contents: Housing, 6 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200608 (Aptiv p/n: 15419838)
Keying: A
Mating Part: 54200612 (Aptiv p/n: 15430633)
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 6.00 mm2
- Number of Rows:2
- Pitch:5.25mm
- Row Spacing:6.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Chrysler 04707309, and connector used in Mopar 05013984AA repair kit.
- Nissan/Bosch J-48817-1115 pigtail connector
- Nissan service part 24008-9DK2A connector
APEX.28-6S-B
6-Way Kit, Type B
Kit Contents: Housing, 6 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200609 (Aptiv p/n: 15412914)
Keying: B
Mating Part: APEX.28-6P-B
Kit Contents: Housing, 6 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200609 (Aptiv p/n: 15412914)
Keying: B
Mating Part: APEX.28-6P-B
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 6.00 mm2
- Number of Rows:2
- Pitch:5.25mm
- Row Spacing:6.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Chrysler 04707310, and connector used in Mopar 05013985AA repair kit.
- Ford CU2Z-14S411-TA, WPT-1266 (Tin greased terminals) pigtail connector
APEX.EGAS-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM FCI
Series: APEX 150 EGAS
OEM P/N: 54390612
Keying: A
Mating Part: N/A, device only
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM FCI
Series: APEX 150 EGAS
OEM P/N: 54390612
Keying: A
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:1.5mm (.060)
- Wire Size:0.50 - 0.85 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF35
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Connector on Chrysler throttle body harness 05183469AB
- Throttle body 04591847AC, 53032801AC, A2C53099252, 5718201, 5775292
- Mopar 05183469AB repair kit connector
AS16-6S-2
6-Way Kit (-2 Grey)
Kit Contents: Housing, 6 socket contacts for .5-.8 mm2 (20-18 AWG) wire with 1.27-2.72mm ins. dia.
Mfr: OEM Tyco/AMP
Series: AMPSEAL 16 Series
OEM P/N: 776531-2 for 1.30-2.54mm insulation dia. (in stock)
776433-2 for 2.18-3.67mm insulation dia.
Keying: -2 Grey
Mating Part: 776537-x, 776434-x
Kit Contents: Housing, 6 socket contacts for .5-.8 mm2 (20-18 AWG) wire with 1.27-2.72mm ins. dia.
Mfr: OEM Tyco/AMP
Series: AMPSEAL 16 Series
OEM P/N: 776531-2 for 1.30-2.54mm insulation dia. (in stock)
776433-2 for 2.18-3.67mm insulation dia.
Keying: -2 Grey
Mating Part: 776537-x, 776434-x
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:1.58mm (.063)
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:5.3mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:16A
- Voltage Rating:250V DC
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
BAK-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts for 20-18 awg wire, 6 seals
Mfr: OEM Bosch
Series: BAK Series
OEM P/N: 1 928 404 669 (1928404669)
Code: 1
Mating Part: 1 928 405 111 (1928405111)
Kit Contents: Housing, 6 socket contacts for 20-18 awg wire, 6 seals
Mfr: OEM Bosch
Series: BAK Series
OEM P/N: 1 928 404 669 (1928404669)
Code: 1
Mating Part: 1 928 405 111 (1928405111)
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:1.5mm (.060)
- Wire Size:0.50 - 1.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:4A
- Voltage Rating:40V
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP54K, IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- LSU 4.9 UEGO sensor connector
- Ford BU2Z-14S411-NA, WPT-1146 (Tin greased terminals) pigtail connector
- Ford 6G9T-14A464-XDA
- Mopar 68250763AA repair kit connector
DL090-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0024
Mating Part: DL090-6S
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0024
Mating Part: DL090-6S
-
3D STEP (6195-0024.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0021
Mating Part: DL090-6P
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0021
Mating Part: DL090-6P
-
3D STEP (6195-0021.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ford 3U2Z-14S411-BGAB, WPT-1115 (Tin plated terminals, greased) pigtail connector
DT-6P
6-Way Receptacle
Mfr: Deutsch
Series: DT
Mfr: Deutsch
Series: DT
| Color | Seal | Cap | Part Number |
|---|---|---|---|
| Grey | N-Seal (Std) | - | DT04-6P, -P004 |
| Grey | N-Seal (Std) | Short | DT04-6P-E003, -EP04 |
| Grey | N-Seal (Std) | Long | DT04-6P-E008 |
| Grey | E-Seal | - | DT04-6P-C015 |
| Grey | E-Seal | Short | DT04-6P-CE01 |
| Grey | E-Seal | Long | DT04-6P-CE04 |
| Black | N-Seal (Std) | - | DT04-6P-E004 |
| Black | N-Seal (Std) | Short | DT04-6P-E005 |
| Black | N-Seal (Std) | Long | DT04-6P-EE01 |
| Black | E-Seal | - | DT04-6P-CE02 |
| Black | E-Seal | Short | DT04-6P-CE03 |
| Black | E-Seal | Long | DT04-6P-CE09 |
| Availability: In-Stock | |||
-
Mfr Drawing (DT04-6P-XXXX_B1.pdf)
-
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:3
- Pitch:4.4mm
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DTM-6P
6-Way Receptacle
Mfr: Deutsch
Series: DTM
Mating Part: DTM-6S
Mfr: Deutsch
Series: DTM
Mating Part: DTM-6S
| Color | Cap | Part Number |
|---|---|---|
| Gray | - | DTM04-6P |
| Gray | Short | DTM04-6P-E003 |
| Grey | Long | N/A |
| Black | - | DTM04-6P-E004 |
| Black | Short | DTM04-6P-E005 |
| Black | Long | N/A |
| Availability: In-Stock | ||
-
Tech Manual (114-151010_C1.pdf)
-
Product Specs (108-151010_F.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:Size 20
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:2
- Pitch:4.2mm
- Row Spacing:7.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DTM-6S
6-Way Plug
Mfr: Deutsch
Series: DTM
Mating Part: DTM-6P
Mfr: Deutsch
Series: DTM
Mating Part: DTM-6P
| Color | Cap | Part Number |
|---|---|---|
| Gray | - | DTM06-6S |
| Gray | Short | N/A |
| Gray | Long | DTM06-6S-E007 |
| Black | - | DTM06-6S-E004 |
| Black | Short | DTM06-6S-E005 |
| Black | Long | DTM06-6S-EE03 |
| Availability: In-Stock | ||
-
Tech Manual (114-151010_C1.pdf)
-
Product Specs (108-151010_F.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:Size 20
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:2
- Pitch:4.2mm
- Row Spacing:7.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
EP-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts for 18-14 awg wire
Mfr: Aftermarket Yazaki
Series: EP Series
OEM P/N: 7128-7060
Mating Part: EP-6S
Kit Contents: Housing, 6 pin contacts for 18-14 awg wire
Mfr: Aftermarket Yazaki
Series: EP Series
OEM P/N: 7128-7060
Mating Part: EP-6S
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.36mm dia.
- Wire Size:0.85 - 2.00 mm2
- Number of Rows:2
- Pitch:5.5mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
EP-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts for 18-14 awg wire
Mfr: Aftermarket Yazaki
Series: EP Series
OEM P/N: 7129-7060
Mating Part: EP-6P
Kit Contents: Housing, 6 socket contacts for 18-14 awg wire
Mfr: Aftermarket Yazaki
Series: EP Series
OEM P/N: 7129-7060
Mating Part: EP-6P
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.36mm dia.
- Wire Size:0.85 - 2.00 mm2
- Number of Rows:2
- Pitch:5.5mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
FEP28-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM FEP
Series: 2.8 Sealed
OEM P/N: unbranded, 42122200 (IN STOCK)
1J0 973 733, 42034100
Code: I
Mating Part: 1J0 973 833
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM FEP
Series: 2.8 Sealed
OEM P/N: unbranded, 42122200 (IN STOCK)
1J0 973 733, 42034100
Code: I
Mating Part: 1J0 973 833
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.8mm (.110)
- Wire Size:0.20 - 2.50 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Bosch LSU 4.2 UEGO sensor connector
FSW-6P-ECU
6-Way ECU PCB Header
Kit Contents: PCB Header
Mfr: OEM Furukawa
Series: FSW Series
OEM P/N: FP-C-SW6M-B
Part Name: FT0363
Mating Part: FSW-6S
Kit Contents: PCB Header
Mfr: OEM Furukawa
Series: FSW Series
OEM P/N: FP-C-SW6M-B
Part Name: FT0363
Mating Part: FSW-6S
Straight pins out back side
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
FSW-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, TPA
Mfr: OEM Furukawa
Series: FSW Series
OEM P/N: FSW-C-6F-B
Part Name: FT0354, Q011252
Mating Part: FSW-6P-ECU
Kit Contents: Housing, 6 socket contacts, 6 seals, TPA
Mfr: OEM Furukawa
Series: FSW Series
OEM P/N: FSW-C-6F-B
Part Name: FT0354, Q011252
Mating Part: FSW-6P-ECU
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:3.0mm (.118)
- Wire Size:0.75 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:7.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
GT150.45-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15397579 (15326833, superseded)
Mating Part: GT150.45-6S
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15397579 (15326833, superseded)
Mating Part: GT150.45-6S
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
GT150.45-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15397577 (15326829, superseded)
Mating Part: GT150.45-6P
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15397577 (15326829, superseded)
Mating Part: GT150.45-6P
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6+GB+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68316027AA repair kit connector
GT150.A-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 15355297
Mating Part: N/A, Device only
Kit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 15355297
Mating Part: N/A, Device only
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:7.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPA+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HD090-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0246
Mating Part: HD090-6S
Kit Contents: Housing, 6 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0246
Mating Part: HD090-6S
-
3D STEP (6098-0246.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HD090-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0245
Mating Part: HD090-6P
Kit Contents: Housing, 6 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0245
Mating Part: HD090-6P
-
3D STEP (6098-0245.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HE040-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts for 22-18 AWG wire
Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2780
Mating Part: HE040-6S
Kit Contents: Housing, 6 pin contacts for 22-18 AWG wire
Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2780
Mating Part: HE040-6S
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:1.0mm (.040)
- Wire Size:0.22 - 0.85 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HE040-6S
6-Way Kit
Kit Contents: Housing, 6 socket contacts for 22-18 AWG wire
Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2781
Part Name: HE04 6F-NA
Mating Part: HE040-6P
Kit Contents: Housing, 6 socket contacts for 22-18 AWG wire
Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2781
Part Name: HE04 6F-NA
Mating Part: HE040-6P
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:1.0mm (.040)
- Wire Size:0.22 - 0.85 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HM-6P
6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-6801
Mating Part: HM-6S
Kit Contents: Housing, 6 pin contacts, 6 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-6801
Mating Part: HM-6S
Similar to MT-6P-2, but bottom of connector features a bracket mount
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ducati ignition switch on 1199 (harness side)
- Suzuki ignition switch on GSXR to 05' (harness side, green or black depending on year)
- Hero FRSH-112
- Honda 07VPZ-002050A (natural), 070PZ-0020100 (grey)
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
