26-Way
Display:
090IIU/187U-26P
26-Way (22+4) Hybrid Kit
Kit Contents: Housing, 22x 090 pin contacts, 4x 187 pin contacts
Mfr: OEM Sumitomo
Series: TS 090+187 Hybrid
OEM P/N: Natural: 6249-1254 (IN STOCK)
Black: 6249-1299
Part Name: 11610NYA26M-NA
Mating Part: 6248-5292, 6248-5358
Kit Contents: Housing, 22x 090 pin contacts, 4x 187 pin contacts
Mfr: OEM Sumitomo
Series: TS 090+187 Hybrid
OEM P/N: Natural: 6249-1254 (IN STOCK)
Black: 6249-1299
Part Name: 11610NYA26M-NA
Mating Part: 6248-5292, 6248-5358
General
- Sealing:Unsealed
- Number of Ways:26
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11610
MLC.HYB-26S
26-Way (16+10) Hybrid Kit
Kit Contents: Housing, 16x .040 socket contacts, 10x .070 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: White: 174516-1
Grey: 174516-6
Yellow: 174516-7
Part Name: HYBRID I/O CONN PLUG HSG 26P
Kit Contents: Housing, 16x .040 socket contacts, 10x .070 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: White: 174516-1
Grey: 174516-6
Yellow: 174516-7
Part Name: HYBRID I/O CONN PLUG HSG 26P
Mating half of connector: 178811, 175446, 176242, 179375, 174917, 638010, 175448, 917322, 776189, 176122, 177609, 178764, 174518, 174915, 178780
-
3D STEP (174516-1_F-3d_stp.zip) -
Drawing (C-174516_E4.pdf) - See related terminals for crimp specs
-
Product Specs (108-5280_F7.pdf)
-
Manual (412-5476_B.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:26
- Contact Size:Mixed
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10763
MLC.HYBMK2-26S-1
26-Way (16+10) Hybrid KitKit Contents: Housing, 16x 040 size terminals, 10x 070 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917992-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 26P
Mating Part: 178764
-
3D STEP (917992-1_D-3d_stp.zip)
-
Drawing (C-917992_A1.pdf)
-
Rearview Pinout (MLC_HYBMK2-26S-1.png) -
Crimp Specs - 040II (114-5159_K1.pdf)
-
Crimp Specs - 070II (114-5160_J.pdf)
-
Product Specs (108-5342_D4.pdf)
-
Application Specs (114-8005_B.pdf)
-
Assembly Instructions (412-5631_A.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
Rearview Pinout (MLC_HYBMK2-26S-1.png)General
- Sealing:Unsealed
- Number of Ways:26
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11390, 90980-11786
MX23A-26P
26-Way ECU PCB Header
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A26NF1
Mating Part: MX23A-26S
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A26NF1
Mating Part: MX23A-26S
General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PBT+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Suzuki motorcycle ECU's

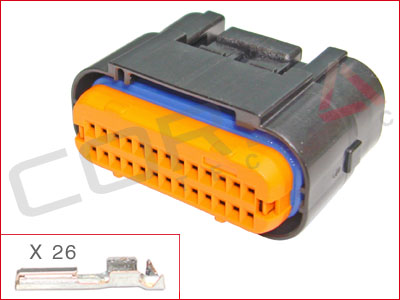

MX23A-26S
26-Way Kit
Kit Contents: Housing, 26 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A26SF1
Mating Part: MX23A-26P
Kit Contents: Housing, 26 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A26SF1
Mating Part: MX23A-26P
General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various KTM, Suzuki motorcycle ECU's
- KTM 000700000EV
SS10-26P-1
26-Way PCB Header (Keying 1)
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 9-6437287-8
Keying: 1
Mating Part: SS10-26S-1
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 9-6437287-8
Keying: 1
Mating Part: SS10-26S-1
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- GSXR1300 Hayabusa ECU (99'-07')
- Motec ECU's: M84, M400, M600, M800, and M1 series M130, M142, M150
- Motec Power Distribution Module's: PDM15, PDM30
- Motec Expansion box E888
- DTAfast ECU's: S60, S80, S100
- Haltech ECU's
- Link ECU's
SS10-26P-2
26-Way PCB Header (Keying 2)
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 9-6437287-9
Keying: 2
Mating Part: SS10-26S-2
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 9-6437287-9
Keying: 2
Mating Part: SS10-26S-2
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SS10-26P-3
26-Way PCB Header (Keying 3)
Kit Contents: PCB header with right angle mounting
Mfr: Aftermarket Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6473423-1
Keying: 3
Mating Part: SS10-26S-3
Kit Contents: PCB header with right angle mounting
Mfr: Aftermarket Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 6473423-1
Keying: 3
Mating Part: SS10-26S-3
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

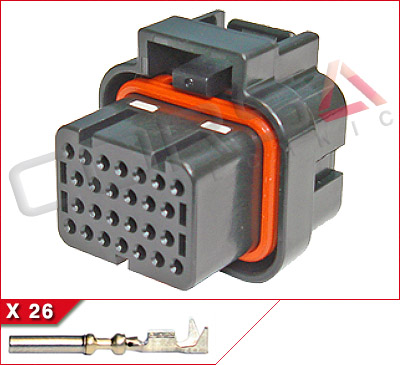

SS10-26S-1
26-Way Kit (Keying 1)
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-7
Keying: 1
Mating Part: SS10-26P-1 and SS10-60P-1
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-7
Keying: 1
Mating Part: SS10-26P-1 and SS10-60P-1
Rearview Pinout (SS10-26S-X.png)General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ducati 749, 848, 999, 1098, 1098R, 1198, Desmosedici dash (harness side)
- GSXR1300 Hayabusa ECU (99'-07')
- YZF-R1 ECU (07'-08')
- YZF-R6 ECU (06'-14')
- ZX-10R ECU (04'-05')
- Motec ECU's: M84, M400, M600, M800, and M1 series M130, M142, M150
- Motec Power Distribution Module's: PDM15, PDM30
- Motec Expansion box E888
- DTAfast ECU's: S60, S80, S100
- Haltech ECU's
- Link ECU's
- KTM 000700000AO

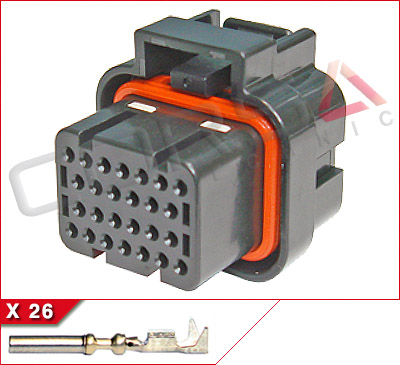

SS10-26S-2
26-Way Kit (Keying 2)
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-8
Keying: 2
Mating Part: SS10-26P-2
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-8
Keying: 2
Mating Part: SS10-26P-2
General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

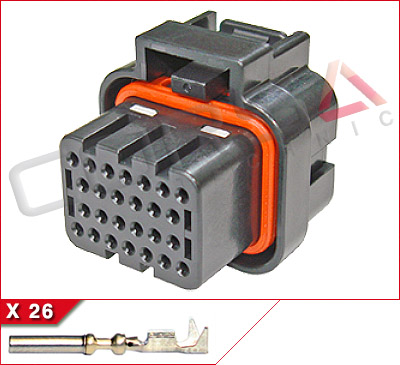

SS10-26S-3
26-Way Kit (Keying 3)
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 1473416-1
Keying: 3
Mating Part: SS10-26P-3 and 6473423-1, 6473418-2, or 6473427-1
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 1473416-1
Keying: 3
Mating Part: SS10-26P-3 and 6473423-1, 6473418-2, or 6473427-1
General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

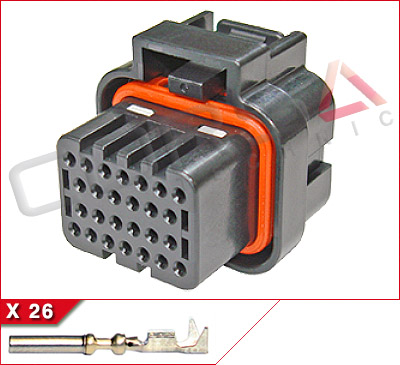

SS10-26S-4
26-Way Kit (Keying 4)
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 1473416-2
Keying: 4
Mating Part: 6473423-2
Kit Contents: Housing, 26 socket contacts
Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 1473416-2
Keying: 4
Mating Part: 6473423-2
General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
