4-Way
Display:

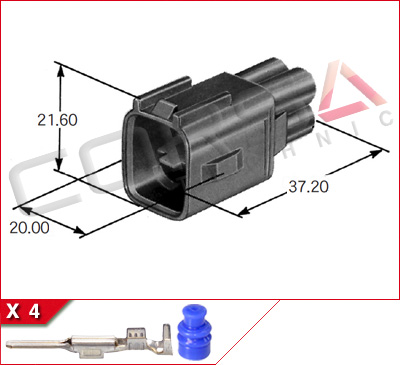

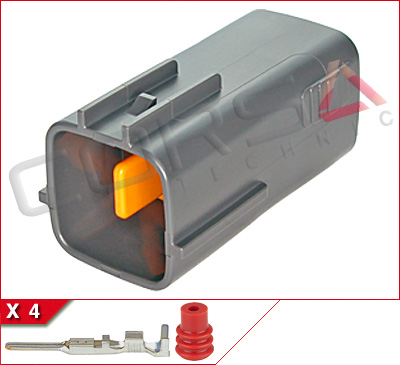

090II-4P-1
4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7040-10
Mating Part: 090II-4S-1
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7040-10
Mating Part: 090II-4S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10868

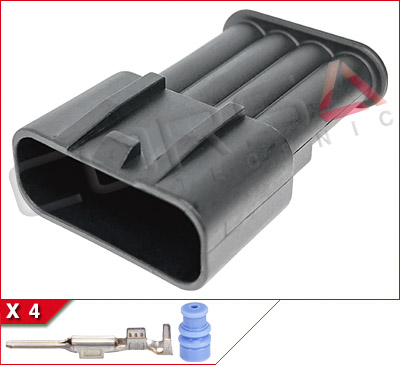

090II-4P-2
4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: Aftermarket, Yazaki does not make an actual part.
Series: 090II Sealed Series
Mating Part: 090II-4S-2
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: Aftermarket, Yazaki does not make an actual part.
Series: 090II Sealed Series
Mating Part: 090II-4S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

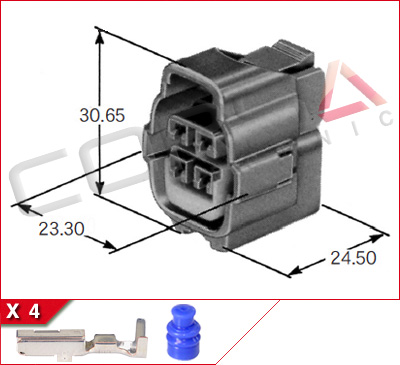

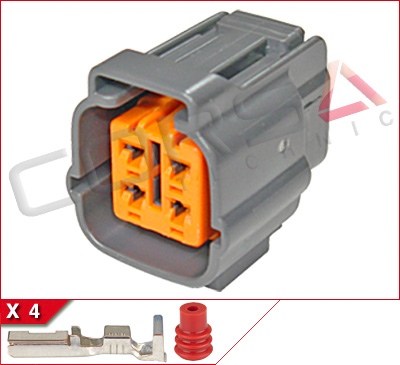

090II-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7040-10
Mating Part: 090II-4P-1
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7040-10
Mating Part: 090II-4P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10869

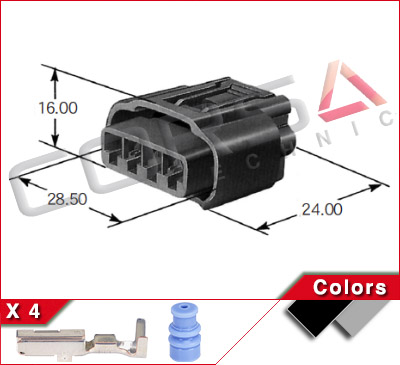

090II-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7449-30 Black
7283-7449-40 Grey
Mating Part: N/A, but an aftermarket part exists. 090II-4P-2
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7449-30 Black
7283-7449-40 Grey
Mating Part: N/A, but an aftermarket part exists. 090II-4P-2
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11885 (Yazaki), 90980-12176 (Sumitomo)
- Dorman 645-940 pigtail connector
090IIU-4P-1-CLIP-L
4-Way Kit
Kit Contents: Housing, 4 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 4G5410-000x, 1300-3792
Mating Part: 090IIU-4S-1
Kit Contents: Housing, 4 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 4G5410-000x, 1300-3792
Mating Part: 090IIU-4S-1
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10858, 90980-11801
090IIU-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-0349
Part Name: 11766N9A04F-NA
Mating Part: 090IIU-4P-1-CLIP-L
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-0349
Part Name: 11766N9A04F-NA
Mating Part: 090IIU-4P-1-CLIP-L
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10795, 90980-11718, 90980-11766, 90980-12018, 90980-12334, 90980-12474
090IIU/187U-4S
4-Way (2+2) Hybrid Kit
Kit Contents: Housing, 2x 090 socket contacts, 2x 187 socket contacts
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7283-1144 (IN STOCK), 4F5480-000x, 1300-3849
Mating Part: 7282-1146
Kit Contents: Housing, 2x 090 socket contacts, 2x 187 socket contacts
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7283-1144 (IN STOCK), 4F5480-000x, 1300-3849
Mating Part: 7282-1146
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:5.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11118, 90980-12637, 90980-11771, 90980-11835
250.ARM-4P
4-Way Kit
Kit Contents: Housing, 4 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2046-30 (PA66), 7122-2446-30 (PP)
Natural | 6111-2009 (PA66), 6070-4381 (PP) | 7122-2046 (PA66), 7122-2446 (PP)
Mating Part: 250.ARM-4S
Kit Contents: Housing, 4 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2046-30 (PA66), 7122-2446-30 (PP)
Natural | 6111-2009 (PA66), 6070-4381 (PP) | 7122-2046 (PA66), 7122-2446 (PP)
Mating Part: 250.ARM-4S
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- FZR Ignitor (black)
- Omron G8MS relay (relay side)
- Hero B-18R (male half)
- KTM 000700000EU
250.ARM-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2249-30 (PA66), 7123-2446-30 (PP)
Natural | 6111-2010 (PA66), 6070-4391 (PP) | 7123-2249 (PA66), 7123-2446 (PP)
Mating Part: 250.ARM-4P
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2249-30 (PA66), 7123-2446-30 (PP)
Natural | 6111-2010 (PA66), 6070-4391 (PP) | 7123-2249 (PA66), 7123-2446 (PP)
Mating Part: 250.ARM-4P
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- FZR Ignitor (harness side)
- Omron G8MS relay (harness side)
- Hero B-18R (female half)
250.AVR-4P-1
4-Way Kit
Kit Contents: Housing, 4 pin contacts, rear wire seal
Mfr: Aftermarket Sumitomo
Series: 250 Special Type
Mating Part: 250.AVR-4S-1
Kit Contents: Housing, 4 pin contacts, rear wire seal
Mfr: Aftermarket Sumitomo
Series: 250 Special Type
Mating Part: 250.AVR-4S-1
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:10.0mm
- Row Spacing:8.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mitsubishi and Nippondenso type alternators
250.AVR-4P-2
4-Way Kit
Kit Contents: Housing, 4 pin contacts, rear wire seal
Mfr: Aftermarket Yazaki
Series: 250 Special Type
Mating Part: 250.AVR-4S-2
Kit Contents: Housing, 4 pin contacts, rear wire seal
Mfr: Aftermarket Yazaki
Series: 250 Special Type
Mating Part: 250.AVR-4S-2
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:8.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA6
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.AVR-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear wire seal
Mfr: Aftermarket Sumitomo
Series: 250 Special Type
Mating Part: 250.AVR-4P-1
Kit Contents: Housing, 4 socket contacts, rear wire seal
Mfr: Aftermarket Sumitomo
Series: 250 Special Type
Mating Part: 250.AVR-4P-1
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:10.0mm
- Row Spacing:8.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mitsubishi and Nippondenso type alternators
250.AVR-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear wire seal
Mfr: Aftermarket Yazaki
Series: 250 Special Type
Mating Part: 250.AVR-4P-2
Kit Contents: Housing, 4 socket contacts, rear wire seal
Mfr: Aftermarket Yazaki
Series: 250 Special Type
Mating Part: 250.AVR-4P-2
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:8.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.HL-4P
4-Way Kit
Kit Contents: Housing, 4 pin contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-4S
Kit Contents: Housing, 4 pin contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-4S
| AMP/TE | Sumitomo | Yazaki |
|---|---|---|
| 172133-1 | 6070-4621 | 7122-2840 |
| Available stock: Aftermarket OEM | ||
-
3D STEP (172133-1_L-3d_step.zip)
Drawing, Sumitomo (6070-4621.pdf)- Drawing, TE (C-172133_F2.pdf)
-
TE Crimp Data, 12awg (C-2150746_B.pdf)
-
Crimp Specs - TE (114-5052_G.pdf)
-
Product Specs - TE (108-5147_E1.pdf)
-
Manual - TE (412-5111_O.pdf)
-
Series Catalog - TE (250HL-CAT.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.HL-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-4P
Kit Contents: Housing, 4 socket contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-4P
| AMP/TE | Sumitomo | Yazaki |
|---|---|---|
| 172134-1 | 6070-4611 | 7123-2840 |
| Available stock: Aftermarket OEM | ||
-
3D STEP (172134-1_K-3d_step.zip)
- Drawing, Sumitomo (6070-4611.pdf)
- Drawing, TE (C-172134_F2.pdf)
-
TE Crimp Data, 12awg (C-2150746_B.pdf)
-
Crimp Specs - TE (114-5052_G.pdf)
-
Product Specs - TE (108-5147_E1.pdf)
-
Manual - TE (412-5111_O.pdf)
-
Series Catalog - TE (250HL-CAT.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.LOC-4P
4-Way Kit
Kit Contents: Housing, 4 pin contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-4S
Kit Contents: Housing, 4 pin contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-4S
P/N:
Natural, 6120-2043 (PP), 6010-4051 (PA66)
Black, ()
Natural, 6120-2043 (PP), 6010-4051 (PA66)
Black, ()
-
Drawing (S-1882_15.pdf)
- See related terminal for crimp specs
-
Series Catalog (250LOC-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.LOC-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-4P
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo
Series: 250 Lock series
Mating Part: 250.LOC-4P
P/N:
Natural, 6110-4643 (PP)(6110-4543 w/flange)
Black, ()
Natural, 6110-4643 (PP)(6110-4543 w/flange)
Black, ()
-
Drawing (S-2551_4.pdf)
- See related terminal for crimp specs
-
Series Catalog (250LOC-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KTM 000700000FB

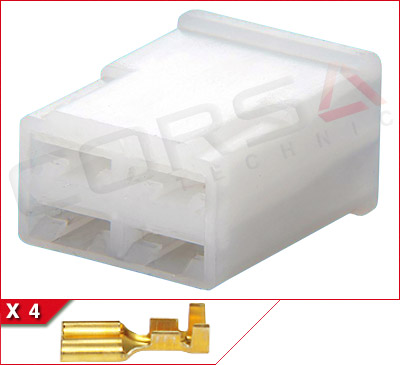

250.LT-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2543 (alt p/n w/flange 6110-0343)
Mating Part: 6120-0543
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2543 (alt p/n w/flange 6110-0343)
Mating Part: 6120-0543
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KUM PH025-04010
- Yazaki 7123-2043
58M-4P-1
4-Way Kit
Kit Contents: Housing, 4 pin contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1041
Yazaki: 7122-6040
Part Name: M04MW
Mating Part: 58M-4S-1
Kit Contents: Housing, 4 pin contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1041
Yazaki: 7122-6040
Part Name: M04MW
Mating Part: 58M-4S-1
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58M-4P-2
4-Way Kit
Kit Contents: Housing, 4 pin contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: 7122-6043-30
Part Name: M04MB
Mating Part: 58M-4S-2
Kit Contents: Housing, 4 pin contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: 7122-6043-30
Part Name: M04MB
Mating Part: 58M-4S-2
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:11.2mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58M-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5041
Yazaki: 7123-6040
Part Name: M04FW
Mating Part: 58M-4P-1
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5041
Yazaki: 7123-6040
Part Name: M04FW
Mating Part: 58M-4P-1
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58M-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: 7123-6043-30
Part Name: M04FB
Mating Part: 58M-4P-2
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: 7123-6043-30
Part Name: M04FB
Mating Part: 58M-4P-2
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:11.2mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58M-4S-LIS
4-Way KitKit Contents: Housing, 4 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 1300-6049
Yazaki: 7223-6144-90
Part Name: M04FL-IS
Mating Part: N/A, device only
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58S-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-5041, 7123-1640
Part Name: S04FW
Mating Part: 7122-1640
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-5041, 7123-1640
Part Name: S04FW
Mating Part: 7122-1640
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.8mm
- Row Spacing:4.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58S-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-0045, 7123-1649-90
Part Name: S04FL
Mating Part: 7122-1649
Kit Contents: Housing, 4 socket contacts, rear lock
Mfr: OEM Sumitomo, Yazaki
Series: 58 S Unsealed, 58 S Unsealed
OEM P/N: 6100-0045, 7123-1649-90
Part Name: S04FL
Mating Part: 7122-1649
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:7.8mm
- Row Spacing:4.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58W-4P
4-Way KitKit Contents: Housing, 4 pin contacts, 4 seals, rear holder/lock
Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7122-1844-40
Part Name: W04MW
Mating Part: 58W-4S
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.8mm
- Row Spacing:6.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58W-4S
4-Way KitKit Contents: Housing, 4 socket contacts, 4 seals, rear holder/lock
Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7223-1844-40
Part Name: W04FW
Mating Part: 58W-4P
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.8mm
- Row Spacing:6.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58X-4P
4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6244-40
Part Name: X04MGY
Mating Part: 58X-4S
Kit Contents: Housing, 4 pin contacts, 4 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6244-40
Part Name: X04MGY
Mating Part: 58X-4S
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 3.00 mm2
- Number of Rows:2
- Pitch:10.0mm
- Row Spacing:8.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

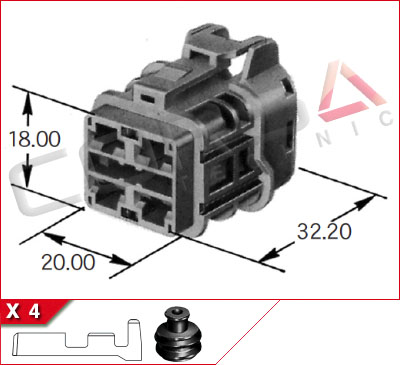

58X-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6244-40
Part Name: X04FGY
Mating Part: 58X-4P
Kit Contents: Housing, 4 socket contacts, 4 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6244-40
Part Name: X04FGY
Mating Part: 58X-4P
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 3.00 mm2
- Number of Rows:2
- Pitch:10.0mm
- Row Spacing:8.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
62E-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals (62E-SL5), lock
Mfr: OEM Sumitomo
Series: 62 E-Type
OEM P/N: 6098-0144
Part Name: E04FGY
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
Kit Contents: Housing, 4 socket contacts, 4 seals (62E-SL5), lock
Mfr: OEM Sumitomo
Series: 62 E-Type
OEM P/N: 6098-0144
Part Name: E04FGY
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
Superseded by RS.E-4S-1 per Sumitomo
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
- Voltage Rating:14V DC
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
712-4P
4-Way Kit
Kit Contents: 1x 4-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0409-00-04
Mating Part: 99-0410-00-04
Kit Contents: 1x 4-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0409-00-04
Mating Part: 99-0410-00-04
- Max. 24 awg wire
- Cable dia. 3.5-5mm (.138-.197 in)
Rearview Pinout (712-4P.png)General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:1.0mm (.040)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:125V
Environmental
- Temp Range[2]:-40 - 85 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on Aim data logger systems and hardware
719-4P-x
4-Way Kit
Kit Contents: 1x 4-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9767-70-04 for cable dia. 3-4mm (.118-.157 in)
09-9767-71-04 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-4S-x
Kit Contents: 1x 4-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9767-70-04 for cable dia. 3-4mm (.118-.157 in)
09-9767-71-04 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-4S-x
Rearview Pinout (719-4P.png)General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:0.75mm (.030)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:60V
Environmental
- Temp Range[2]:-25 - 70 °C
- Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
719-4S-x
4-Way Kit
Kit Contents: 1x 4-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9764-70-04 for cable dia. 3-4mm (.118-.157 in)
09-9764-71-04 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-4P-x
Kit Contents: 1x 4-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9764-70-04 for cable dia. 3-4mm (.118-.157 in)
09-9764-71-04 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-4P-x
Rearview Pinout (719-4S.png)General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:0.75mm (.030)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:60V
Environmental
- Temp Range[2]:-25 - 70 °C
- Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
91MLC-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6346-30
Part Name: M04FB-LC
Mating Part: 7122-6346-30
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6346-30
Part Name: M04FB-LC
Mating Part: 7122-6346-30
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:11.2mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
APEX.28-4P-B
4-Way Kit, Type B
Kit Contents: Housing, 4 pin contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200414 (Aptiv p/n: 13754761)
Keying: B
Mating Part: APEX.28-4S-B
Kit Contents: Housing, 4 pin contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200414 (Aptiv p/n: 13754761)
Keying: B
Mating Part: APEX.28-4S-B
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 6.00 mm2
- Number of Rows:1
- Pitch:5.25mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Chrysler 04707267, and connector used in Mopar 05013983AA repair kit.
- Ford DU5T-14A594-AA
APEX.28-4S-A
4-Way Kit, Type A
Kit Contents: Housing, 4 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200409 (Aptiv p/n: 15425692)
Keying: A
Mating Part: 54200413 (Aptiv p/n: 15489820)
Kit Contents: Housing, 4 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200409 (Aptiv p/n: 15425692)
Keying: A
Mating Part: 54200413 (Aptiv p/n: 15489820)
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 6.00 mm2
- Number of Rows:1
- Pitch:5.25mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Chrysler 04707262, and connector used in Mopar 05013979AC repair kit.
- Nissan/Bosch J-48817-1114 pigtail connector
- Nissan service part 24008-9DK1E connector
APEX.28-4S-B
4-Way Kit, Type B
Kit Contents: Housing, 4 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200410 (Aptiv p/n: 15324787)
Keying: B
Mating Part: APEX.28-4P-B
Kit Contents: Housing, 4 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200410 (Aptiv p/n: 15324787)
Keying: B
Mating Part: APEX.28-4P-B
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 6.00 mm2
- Number of Rows:1
- Pitch:5.25mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Chrysler 04707256, and connector used in Mopar 05013978AA repair kit.
- Ford 4L3T-14A464-AA, and connector used in WPT-1373 (Tin plated, greased terminals) 3U2Z-14S411-DGAB pigtail connector
APEX.28SM-4S
4-Way Kit, Keying A
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX SensoMate 2.8 Series
OEM P/N: F619600 (Aptiv p/n: 13856355)
(alt. p/n w/dk grey TPA: F339700, 13841589)
(alt. p/n w/CPA: F264310, 33513154, 35059595)
Keying: A
Mating Part: N/A, Device only
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX SensoMate 2.8 Series
OEM P/N: F619600 (Aptiv p/n: 13856355)
(alt. p/n w/dk grey TPA: F339700, 13841589)
(alt. p/n w/CPA: F264310, 33513154, 35059595)
Keying: A
Mating Part: N/A, Device only
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 3.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF35
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford BU5T-14A464-JAA (w/dk gray TPA)
- Ford BU2Z-14S411-ATA, WPT-1232 (Tin plated, greased terminals) pigtail connector
ATM-FB2
2x ATM Mini Fuse box
Kit Contents: 1x 2x ATM fuse box, 4x fuse terminals
Mfr: Aftermarket Sumitomo
Series: Mini Fuse Series
OEM P/N: 6353-0157
Part Name: M-FUSER 2P+SPR
Kit Contents: 1x 2x ATM fuse box, 4x fuse terminals
Mfr: Aftermarket Sumitomo
Series: Mini Fuse Series
OEM P/N: 6353-0157
Part Name: M-FUSER 2P+SPR
Holds 2x ATM fuses, 1x spare ATM fuse
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 5.00 mm2
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Mounting Style:Clip Slot
- TPA:No
CP-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Sumitomo
Series: 250 Special Type
OEM P/N: 6098-0006
Part Name: CP 4F-R 30A
Mating Part: N/A, Device only
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Sumitomo
Series: 250 Special Type
OEM P/N: 6098-0006
Part Name: CP 4F-R 30A
Mating Part: N/A, Device only
Starter solenoid/main fuse cover common on many motorcycles. 30A marking.
- See related terminal for crimp specs
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DEW-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, TPA lock
Mfr: OEM Furukawa
Series: DEW Series
OEM P/N: PB535-04027
Part Name: DEW04F-B
Mating Part: PB531-04020, DEW04M-B
Kit Contents: Housing, 4 socket contacts, 4 seals, TPA lock
Mfr: OEM Furukawa
Series: DEW Series
OEM P/N: PB535-04027
Part Name: DEW04F-B
Mating Part: PB531-04020, DEW04M-B
Rearview Pinout (DEW-4S.png)General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:1.2mm (.047)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:5.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

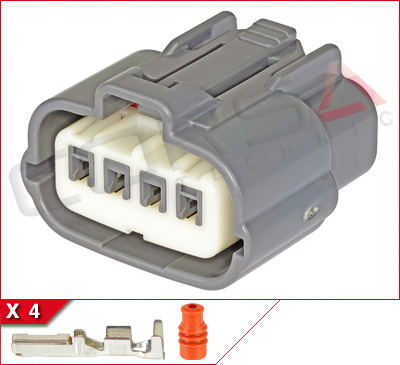

DL040-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0551
Part Name: W-DL04-4FAY-DGR
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0551
Part Name: W-DL04-4FAY-DGR
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.3mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-4P-1
4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0018
Mating Part: DL090-4S-1
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0018
Mating Part: DL090-4S-1
-
3D STEP (6195-0018.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-4S-1
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0015
Mating Part: DL090-4P-1
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0015
Mating Part: DL090-4P-1
-
3D STEP (6195-0015.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0030
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0030
Mating Part: N/A, but an aftermarket part exists. GEN090-4P-1
-
3D STEP (6195-0030.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Miata igniter (harness side)
- Miata cam sensor, CAS (harness side)
DL090-4S-3
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: Aftermarket Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0315
Part Name: WDL9F/P-4F AY-DH
Mating Part: N/A, device only
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: Aftermarket Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0315
Part Name: WDL9F/P-4F AY-DH
Mating Part: N/A, device only
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:8.0mm
- Row Spacing:11.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-4S-4
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0032
Part Name: DL09F/P4AY-NA
Mating Part: N/A, device only
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0032
Part Name: DL09F/P4AY-NA
Mating Part: N/A, device only
-
3D STEP (6195-0032.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.5mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-4S-5
4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0305
Part Name: F/P-WDL9-4FA-P8
Mating Part: N/A, device only
Kit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0305
Part Name: F/P-WDL9-4FA-P8
Mating Part: N/A, device only
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:8.0mm
- Row Spacing:11.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DSD.ISO-4S
Micro ISO Relay Connector Kit, 4-pin verison
Kit Contents: Housing, 2x 187 size terminals, 2x 250 size terminals
Mfr: Furukawa
Series: DSD Series
OEM P/N: Natural w/TPA: PU245-04015, NDSD04F-W-N AY, M122836 (IN STOCK)
Black w/TPA: PU245-04025, NDSD04F-B-N AY
Natural w/o TPA: PU245-04010, NDSD04F-W-N, R120622
Black w/o TPA: PU245-04020, NDSD04F-B-N
Part Name: NDSD04F
Kit Contents: Housing, 2x 187 size terminals, 2x 250 size terminals
Mfr: Furukawa
Series: DSD Series
OEM P/N: Natural w/TPA: PU245-04015, NDSD04F-W-N AY, M122836 (IN STOCK)
Black w/TPA: PU245-04025, NDSD04F-B-N AY
Natural w/o TPA: PU245-04010, NDSD04F-W-N, R120622
Black w/o TPA: PU245-04020, NDSD04F-B-N
Part Name: NDSD04F
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:N/A
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KTM 000700000EB
DT-4P
4-Way Receptacle
Mfr: Deutsch
Series: DT
Mating Part: DT-4S
Mfr: Deutsch
Series: DT
Mating Part: DT-4S
| Color | Seal | Cap | Part Number |
|---|---|---|---|
| Grey | N-Seal (Std) | - | DT04-4P, -P004 |
| Grey | N-Seal (Std) | Short | DT04-4P-E003, -EP04 |
| Grey | N-Seal (Std) | Long | DT04-4P-E008 |
| Grey | E-Seal | - | DT04-4P-C015 |
| Grey | E-Seal | Short | DT04-4P-CE01 |
| Grey | E-Seal | Long | DT04-4P-CE04 |
| Black | N-Seal (Std) | - | DT04-4P-E004 |
| Black | N-Seal (Std) | Short | DT04-4P-E005 |
| Black | N-Seal (Std) | Long | DT04-4P-EE01 |
| Black | E-Seal | - | DT04-4P-CE02 |
| Black | E-Seal | Short | DT04-4P-CE03 |
| Black | E-Seal | Long | DT04-4P-CE09 |
| Availability: In-Stock | |||
-
Drawing (C-DT04-4P-XXXX_B1.pdf)
-
Rearview Pinout (DT-4P.png) -
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
Rearview Pinout (DT-4P.png)General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:4.4mm
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
