8-Way
090II-8P-1
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7080-40
Mating Part: 090II-8S-1
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-7080-40
Mating Part: 090II-8S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10896
090II-8P-2
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-1081-40
Mating Part: 090II-8S-2
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7282-1081-40
Mating Part: 090II-8S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10890
090II-8S-1
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1289-40, improved TPA, supersedes 7283-7080-40
Mating Part: 090II-8P-1, 090II.JC-8P-1
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1289-40, improved TPA, supersedes 7283-7080-40
Mating Part: 090II-8P-1, 090II.JC-8P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10897
090II-8S-2
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1081-40
Mating Part: 090II-8P-2, 090II.JC-8P-2
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1081-40
Mating Part: 090II-8P-2, 090II.JC-8P-2
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10891, 90980-11190
090II.JC-8P-1
8-Way Splice Connector (All circuits tied)
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1480-40
Mating Part: 090II-8S-1
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1480-40
Mating Part: 090II-8S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
090II.JC-8P-2
8-Way Splice Connector (4+4)
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1481-10
Mating Part: 090II-8S-2
Kit Contents: 1x 8-way splice connector
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7382-1481-10
Mating Part: 090II-8S-2
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 82824-26020
090II/187-8P-1
8-Way (6+2) Hybrid Kit
Kit Contents: Housing, 6x 090 pin terminals and seals, 2x 187 pin terminals and seals
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7282-7081-40
Mating Part: 7283-7081-40
Kit Contents: Housing, 6x 090 pin terminals and seals, 2x 187 pin terminals and seals
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7282-7081-40
Mating Part: 7283-7081-40
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:Multiple
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10894
NEW ITEM!
090IIU-8S-1
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5031, 7283-1080 (IN STOCK)
Part Name: 10799N9H08F, 12181N9A08F
Mating Part: 6240-1077, 7282-1080
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5031, 7283-1080 (IN STOCK)
Part Name: 10799N9H08F, 12181N9A08F
Mating Part: 6240-1077, 7282-1080
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10799, 90980-12181, 90980-12475, 90980-12532
090IIU/187U-8S
8-Way (5+3) Hybrid Kit
Kit Contents: Housing, 5x 090 socket contacts, 3x 187 socket contacts
Mfr: OEM Tokai Rika
Series: 090II+187 Hybrid Unsealed
OEM P/N: 4F0880-000x Natural (IN STOCK)
4F0882-000x Black (IN STOCK)
Mating Part: 4G5800-000x
Kit Contents: Housing, 5x 090 socket contacts, 3x 187 socket contacts
Mfr: OEM Tokai Rika
Series: 090II+187 Hybrid Unsealed
OEM P/N: 4F0880-000x Natural (IN STOCK)
4F0882-000x Black (IN STOCK)
Mating Part: 4G5800-000x
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Sumitomo 1300-3376 (natural), 1300-4019 (black)
- Toyota 90980-10877
- Yazaki 7283-1088
250.ARM-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2086-30 (PA66), 7122-2186-30 (PP)
Natural | 6111-2011 (PA66), 6070-8381 (PP) | 7122-2086 (PA66), 7122-2186 (PP)
Mating Part: 250.ARM-8S
Kit Contents: Housing, 8 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2086-30 (PA66), 7122-2186-30 (PP)
Natural | 6111-2011 (PA66), 6070-8381 (PP) | 7122-2086 (PA66), 7122-2186 (PP)
Mating Part: 250.ARM-8S
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- FZR Ignitor (black)
250.ARM-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2086-30 (PA66), 7123-2186-30 (PP)
Natural | 6111-2012 (PA66), 6070-8391 (PP) | 7123-2086 (PA66), 7123-2186 (PP)
Mating Part: 250.ARM-8P
Kit Contents: Housing, 8 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2086-30 (PA66), 7123-2186-30 (PP)
Natural | 6111-2012 (PA66), 6070-8391 (PP) | 7123-2086 (PA66), 7123-2186 (PP)
Mating Part: 250.ARM-8P
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- FZR Ignitor (harness side)
NEW ITEM!
62Z-8P-1
8-Way Kit
8-Way Kit
NEW ITEM!
62Z-8P-1
8-Way Kit
Kit Contents: Housing, 8 pin contacts for 24-22 awg wire, 8 seals, front lock
Mfr: OEM Furukawa, Sumitomo, Yazaki
Series: 62 Z-Type, 62 Z-Type, 62 Z-Type
Mating Part: 62Z-8S-1
Kit Contents: Housing, 8 pin contacts for 24-22 awg wire, 8 seals, front lock
Mfr: OEM Furukawa, Sumitomo, Yazaki
Series: 62 Z-Type, 62 Z-Type, 62 Z-Type
Mating Part: 62Z-8S-1
| Furukawa | Sumitomo | Yazaki |
|---|---|---|
| R120225 Z08M-GY ss: PB011-08327 | - | 7222-7780-40 Z08MGY |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.5mm (.060)
- Wire Size:0.20 - 0.85 mm2
- Number of Rows:2
- Pitch:5.1mm
- Row Spacing:7.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NEW ITEM!
62Z-8S-1
8-Way Kit
8-Way Kit
NEW ITEM!
62Z-8S-1
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, front lock
Mfr: OEM Furukawa, Sumitomo, Yazaki
Series: 62 Z-Type, 62 Z-Type, 62 Z-Type
Mating Part: 62Z-8P-1
Kit Contents: Housing, 8 socket contacts, 8 seals, front lock
Mfr: OEM Furukawa, Sumitomo, Yazaki
Series: 62 Z-Type, 62 Z-Type, 62 Z-Type
Mating Part: 62Z-8P-1
| Furukawa | Sumitomo | Yazaki |
|---|---|---|
| R120249 Z08F-GY ss: PB015-08320 | - | 7123-7780-40 Z08FGY |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.5mm (.060)
- Wire Size:0.20 - 0.85 mm2
- Number of Rows:2
- Pitch:5.1mm
- Row Spacing:7.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
ATSS-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM JST
Series: ATSS Series
OEM P/N: w/CPA: ATSSPB-C08C-1AK (IN STOCK)
w/o CPA: ATSSPB-A08C-1AK
Mating Part: ATSSWB-08-1A-1AK
Kit Contents: Housing, 8 socket contacts
Mfr: OEM JST
Series: ATSS Series
OEM P/N: w/CPA: ATSSPB-C08C-1AK (IN STOCK)
w/o CPA: ATSSPB-A08C-1AK
Mating Part: ATSSWB-08-1A-1AK
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.80 mm2
- Number of Rows:1
- Pitch:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:7A
- Voltage Rating:14V DC
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68225149AA repair kit connector (w/CPA)
- Nissan/Bosch J-48817-1147 pigtail connector, (3 cavities blocked, no CPA)
- Nissan/Bosch J-48817-1148 pigtail connector, (2 cavities blocked, no CPA)
DL090-8P-1
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0054
Mating Part: DL090-8S-1
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0054
Mating Part: DL090-8S-1
-
3D STEP (6195-0054.zip) - See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-8P-2
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: Aftermarket. Sumitomo does not make an actual part.
Series: DL 090 Sealed Series
Mating Part: DL090-8S-2
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: Aftermarket. Sumitomo does not make an actual part.
Series: DL 090 Sealed Series
Mating Part: DL090-8S-2
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-8S-1
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0051
Mating Part: DL090-8P-1
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0051
Mating Part: DL090-8P-1
-
3D STEP (6195-0051.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DL090-8S-2
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0038
Part Name: W-DL09IGN8AY-GR
Mating Part: Device only, but aftermarket DL090-8P-2 available.
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0038
Part Name: W-DL09IGN8AY-GR
Mating Part: Device only, but aftermarket DL090-8P-2 available.
-
3D STEP (6195-0038.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DT-8P GRY.N.A
8-Way Receptacle
Mfr: Deutsch
Series: DT
Mating Part: DT-8S-x
Many more combinations exist. See drawing for details.
Mfr: Deutsch
Series: DT
Mating Part: DT-8S-x
| Key | Color | Seal | Cap | Part Number |
|---|---|---|---|---|
| A | Grey | N-Seal (Std) | - | DT04-08PA, -P004 |
| Grey | N-Seal (Std) | Short | DT04-08PA-E003, -EP04 | |
| Grey | N-Seal (Std) | Long | DT04-08PA-E008 | |
| Grey | E-Seal | - | DT04-08PA-C015 | |
| Grey | E-Seal | Short | DT04-08PA-CE01 | |
| Grey | E-Seal | Long | DT04-08PA-CE04 | |
| Black | N-Seal (Std) | - | DT04-08PA-E004 | |
| Black | N-Seal (Std) | Short | DT04-08PA-E005 | |
| Black | N-Seal (Std) | Long | DT04-08PA-EE01 (obs.) | |
| Black | E-Seal | - | DT04-08PA-CE02 | |
| Black | E-Seal | Short | DT04-08PA-CE03 | |
| Black | E-Seal | Long | DT04-08PA-CE09 | |
| B | Black | N-Seal (Std) | - | DT04-08PB |
| Black | N-Seal (Std) | Short | DT04-08PB-E003 | |
| Black | N-Seal (Std) | Long | n/a | |
| Black | E-Seal | - | DT04-08PB-C015 | |
| Black | E-Seal | Short | DT04-08PB-CE01 | |
| Black | E-Seal | Long | n/a | |
| Availability: In-Stock | ||||
-
Mfr Drawing (C-DT04-08PX-XXXX_B.pdf)
-
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DT-8S GRY.N.A
8-Way Plug
Mfr: Deutsch
Series: DT
Mating Part: DT-8P-x
Many more combinations exist. See drawing for details.
Mfr: Deutsch
Series: DT
Mating Part: DT-8P-x
| Key | Color | Seal | Cap | Part Number |
|---|---|---|---|---|
| A | Grey | N-Seal (Std) | - | DT06-08SA, -P004 |
| Grey | N-Seal (Std) | Short | DT06-08SA-E003, -EP04 | |
| Grey | N-Seal (Std) | Long | DT06-08SA-E008 | |
| Grey | E-Seal | - | DT06-08SA-C015 | |
| Grey | E-Seal | Short | DT06-08SA-CE01 | |
| Grey | E-Seal | Long | DT06-08SA-CE04 | |
| Black | N-Seal (Std) | - | DT06-08SA-E004 | |
| Black | N-Seal (Std) | Short | DT06-08SA-E005 | |
| Black | N-Seal (Std) | Long | n/a, see P012 style, -EP11 | |
| Black | E-Seal | - | ss by P012 style, -CE10 | |
| Black | E-Seal | Short | ss by P012 style, -CE11 | |
| Black | E-Seal | Long | ss by P012 style, -CE12 | |
| B | Black | N-Seal (Std) | - | DT06-08SB |
| Black | N-Seal (Std) | Short | DT06-08SB-E003, -EP04 | |
| Black | N-Seal (Std) | Long | n/a | |
| Black | E-Seal | - | DT06-08SB-C015 | |
| Black | E-Seal | Short | DT06-08SB-CE01 | |
| Black | E-Seal | Long | n/a | |
| Availability: In-Stock | ||||
-
Mfr Drawing (C-DT06-08SX-XXXX_B.pdf)
-
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DTM-8P
8-Way Receptacle
Mfr: Deutsch
Series: DTM
Mating Part: DTM-8S
Mfr: Deutsch
Series: DTM
Mating Part: DTM-8S
| Color | Cap | Part Number |
|---|---|---|
| Gray | - | DTM04-08PA |
| Gray | Short | DTM04-08PA-E003 |
| Gray | Long | N/A |
| Black | - | DTM04-08PB |
| Black | Short | DTM04-08PB-E003 |
| Black | Long | N/A |
| Green | - | DTM04-08PC |
| Green | Short | DTM04-08PC-E003 |
| Brown | - | DTM04-08PD |
| Brown | Short | DTM04-08PD-E003 |
| Availability: In-Stock | ||
-
Tech Manual (114-151010_C1.pdf)
-
Product Specs (108-151010_F.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:Size 20
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:2
- Pitch:4.2mm
- Row Spacing:7.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DTM-8S
8-Way Plug
Mfr: Deutsch
Series: DTM
Mating Part: DTM-8P
Mfr: Deutsch
Series: DTM
Mating Part: DTM-8P
| Color | Cap | Part Number |
|---|---|---|
| Gray | - | DTM06-08SA |
| Gray | Short | DTM06-08SA-E003 |
| Gray | Long | DTM06-08SA-E007 |
| Black | - | DTM06-08SB |
| Black | Short | DTM06-08SB-E003 |
| Black | Long | DTM06-08SB-E007 |
| Green | - | DTM06-08SC |
| Brown | - | DTM06-08SD |
| Availability: In-Stock | ||
-
Tech Manual (114-151010_C1.pdf)
-
Product Specs (108-151010_F.pdf)
- See related terminal for crimp specs
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:Size 20
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:2
- Pitch:4.2mm
- Row Spacing:7.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
ESJ-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals, lock
Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174984-2
Mating Part: ESJ-8S
Kit Contents: Housing, 8 pin contacts, 8 seals, lock
Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174984-2
Mating Part: ESJ-8S
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:4.8mm
- Row Spacing:5.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:18.5A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

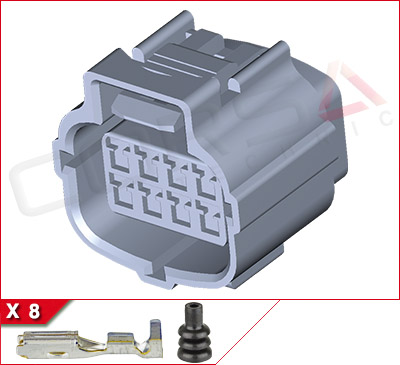

ESJ-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, lock plate
Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174982-2 (ss by: 2822393-1)
Mating Part: ESJ-8P
Kit Contents: Housing, 8 socket contacts, 8 seals, lock plate
Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174982-2 (ss by: 2822393-1)
Mating Part: ESJ-8P
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:4.8mm
- Row Spacing:5.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:18.5A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HD090-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0248
Mating Part: HD090-8S
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0248
Mating Part: HD090-8S
-
3D STEP (6098-0248.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HD090-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0247
Mating Part: HD090-8P
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0247
Mating Part: HD090-8P
-
3D STEP (6098-0247.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HM-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-8691
Part Name: HM090-08MASSY2
Mating Part: HM-8S
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-8691
Part Name: HM090-08MASSY2
Mating Part: HM-8S
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HM-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-8451
Mating Part: HM-8P
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-8451
Mating Part: HM-8P
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1051
Mating Part: HMU-8S
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1051
Mating Part: HMU-8S
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU-8P-CLIP
8-Way Kit with Clamp
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1125
Mating Part: HMU-8S
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1125
Mating Part: HMU-8S
With clamp for attachment to 7mm dia. hole. Plate thickness range: 0.7-2.2mm
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Clip
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1021
Mating Part: HMU-8P or HMU-8P-CLIP
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1021
Mating Part: HMU-8P or HMU-8P-CLIP
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HS-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7282-2148-30
Mating Part: HS-8S
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7282-2148-30
Mating Part: HS-8S
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HS-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7283-2148-30
Mating Part: HS-8P
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7283-2148-30
Mating Part: HS-8P
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HW-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0075
Mating Part: HW-8S
Kit Contents: Housing, 8 pin contacts, 8 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0075
Mating Part: HW-8S
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:2
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

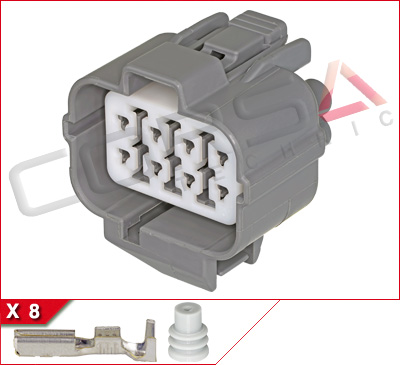

HW-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0134
Mating Part: HW-8P, HW.JC-8P
Kit Contents: Housing, 8 socket contacts, 8 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0134
Mating Part: HW-8P, HW.JC-8P
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:2
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HW.JC-8P
8-Way Joint Connector (All circuits tied)
Kit Contents: 1x 8-way splice connector
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0322
Part Name: HW9JC-8MAS-DGR
Mating Part: HW-8S
Kit Contents: 1x 8-way splice connector
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0322
Part Name: HW9JC-8MAS-DGR
Mating Part: HW-8S
All 8 circuits tied together
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Housing Material:PBT
- Mounting Style:Free hanging
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

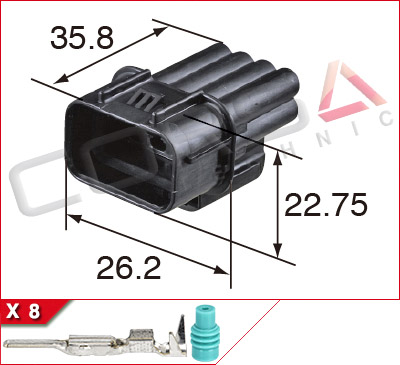

HX060-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6850
Part Name: HX06-8M-B
Mating Part: HX060-8S
Kit Contents: Housing, 8 pin contacts, 8 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6181-6850
Part Name: HX06-8M-B
Mating Part: HX060-8S
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.5mm (.060)
- Wire Size:0.13 - 2.00 mm2
- Number of Rows:2
- Pitch:4.6mm
- Row Spacing:4.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

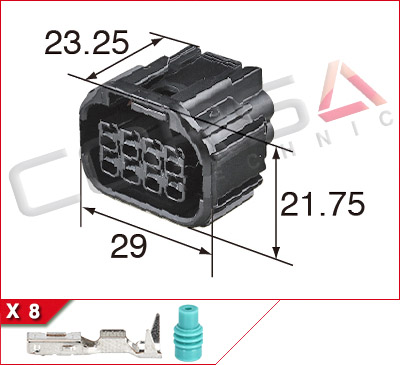

HX060-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7423
Part Name: HX06-8F-B
Mating Part: HX060-8P
Kit Contents: Housing, 8 socket contacts, 8 seals
Mfr: OEM Sumitomo
Series: HX 060 Sealed
OEM P/N: 6189-7423
Part Name: HX06-8F-B
Mating Part: HX060-8P
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.5mm (.060)
- Wire Size:0.13 - 2.00 mm2
- Number of Rows:2
- Pitch:4.6mm
- Row Spacing:4.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
JWPF-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 08T-JWPF-VSLE-D
Mating Part: JWPF-8S
Kit Contents: Housing, 8 pin contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 08T-JWPF-VSLE-D
Mating Part: JWPF-8S
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.35 mm2
- Number of Rows:2
- Pitch:2.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-55 - 85 °C
- Protection Rating:IPX7
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KTM 000700000DO
JWPF-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 08R-JWPF-VSLE-D
Mating Part: JWPF-8P
Kit Contents: Housing, 8 socket contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 08R-JWPF-VSLE-D
Mating Part: JWPF-8P
General
- Sealing:Matte Sealed
- Number of Ways:8
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.35 mm2
- Number of Rows:2
- Pitch:2.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-55 - 85 °C
- Protection Rating:IPX7
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Ducati and KTM
- KTM 000700000DN

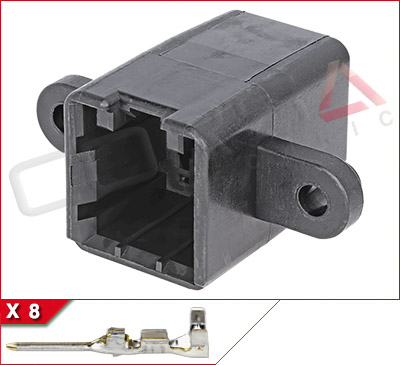

MLC040-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 176121-2, Black
Part Name: .040 MULTI-LOCK 8 POS
Mating Part: MLC040-8S
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 176121-2, Black
Part Name: .040 MULTI-LOCK 8 POS
Mating Part: MLC040-8S
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Panel Mount
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

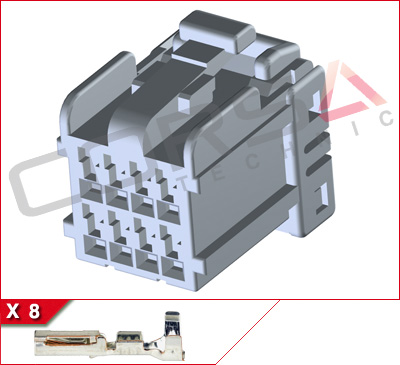

MLC040-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174044-2, Black
Part Name: 040 MLC PLUG HSG 8P BLACK
Mating Part: MLC040-8P
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174044-2, Black
Part Name: 040 MLC PLUG HSG 8P BLACK
Mating Part: MLC040-8P
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68057288AA repair kit connector
MLC070-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174931-1, Black: 174931-2
Part Name: 070 MLC W-W CAP HSG 8P
Mating Part: MLC070-8S
Kit Contents: Housing, 8 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174931-1, Black: 174931-2
Part Name: 070 MLC W-W CAP HSG 8P
Mating Part: MLC070-8S
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.9mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 73108-96BK
MLC070-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 173850-1, Black: 173850-2
Part Name: 070 MULTILOCK PLUG 8P
Mating Part: MLC070-8P
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 173850-1, Black: 173850-2
Part Name: 070 MULTILOCK PLUG 8P
Mating Part: MLC070-8P
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.9mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 73158-96BK
MLC070/250-8P
8-Way (5+3) Hybrid Kit
Kit Contents: Housing, 5x .070 pin contacts, 3x .250 pin contacts
Mfr: Aftermarket Tyco/AMP
Series: Multilock 070/250 Hybrid
Mating Part: MLC070/250-8S
Kit Contents: Housing, 5x .070 pin contacts, 3x .250 pin contacts
Mfr: Aftermarket Tyco/AMP
Series: Multilock 070/250 Hybrid
Mating Part: MLC070/250-8S
- See related terminals for crimp specs
-
Series Catalog (MLC070-250-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:4.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MLC070/250-8S
8-Way (5+3) Hybrid Kit
Kit Contents: Housing, 5x .070 socket contacts, 3x .250 socket contacts
Mfr: Aftermarket Tyco/AMP
Series: Multilock 070/250 Hybrid
Mating Part: MLC070/250-8P
Kit Contents: Housing, 5x .070 socket contacts, 3x .250 socket contacts
Mfr: Aftermarket Tyco/AMP
Series: Multilock 070/250 Hybrid
Mating Part: MLC070/250-8P
- See related terminals for crimp specs
-
Series Catalog (MLC070-250-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:4.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150-8P-1
8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12047931
Mating Part: MP150-8S-1
Kit Contents: Housing, 8 pin contacts, 8 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12047931
Mating Part: MP150-8S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT+GF
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150-8S-1
8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12047937
Mating Part: MP150-8P-1
Kit Contents: Housing, 8 socket contacts, 8 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12047937
Mating Part: MP150-8P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:8
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MTU.IL-8P
8-Way Kit
Kit Contents: Housing, 8 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1081, 7122-1480
Mating Part: MTU.IL-8S
Kit Contents: Housing, 8 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1081, 7122-1480
Mating Part: MTU.IL-8S
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10360
MTU.IL-8S
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5081, 7123-1480
Mating Part: MTU.IL-8P
Kit Contents: Housing, 8 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5081, 7123-1480
Mating Part: MTU.IL-8P
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10321
