5-Way
Display:
050-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts for 22-20 awg wire, 5 seals
Mfr: OEM Yazaki
Series: 050 Sealed
OEM P/N: 7283-7652
Mating Part: 7282-7652
Kit Contents: Housing, 5 socket contacts for 22-20 awg wire, 5 seals
Mfr: OEM Yazaki
Series: 050 Sealed
OEM P/N: 7283-7652
Mating Part: 7282-7652
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-30 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11182

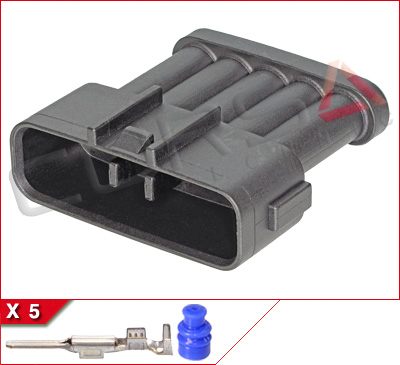

090II-5P-1
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals
Mfr: Aftermarket, Yazaki does not make an actual part
Series: 090II Sealed Series
Mating Part: 090II-5S-1
Kit Contents: Housing, 5 pin contacts, 5 seals
Mfr: Aftermarket, Yazaki does not make an actual part
Series: 090II Sealed Series
Mating Part: 090II-5S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

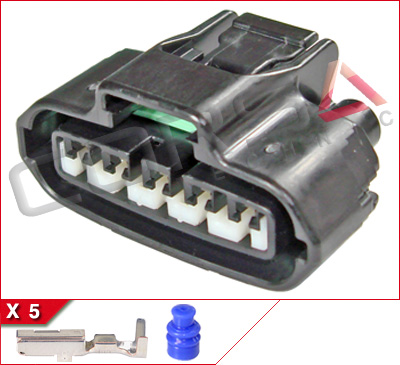

090II-5S-1
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1057-30
Mating Part: 090II-5P-1
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1057-30
Mating Part: 090II-5P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11317
090II-5S-2
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7050-30
Mating Part: N/A
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-7050-30
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11024

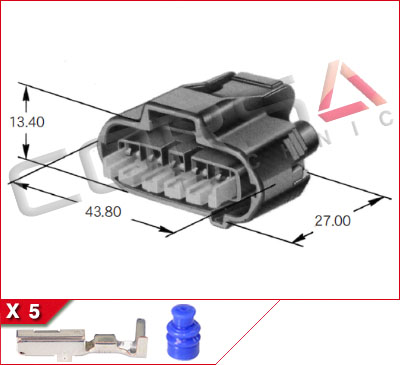

090II-5S-4
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1056-30
Mating Part: N/A
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1056-30
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11232
090II/187-5P
5-Way (2+3) Hybrid Kit
Kit Contents: Housing, 2x 090 pin terminals and seals, 3x 187 pin terminals and seals
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7282-7350-30 (Black)
Mating Part: 090II/187-5S
Kit Contents: Housing, 2x 090 pin terminals and seals, 3x 187 pin terminals and seals
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7282-7350-30 (Black)
Mating Part: 090II/187-5S
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11412
090II/187-5S
5-Way (2+3) Hybrid Kit
Kit Contents: Housing, 2x 090 pin terminals and seals, 3x 187 pin terminals and seals
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7283-7350-40, Light Gray
Mating Part: 090II/187-5P
Kit Contents: Housing, 2x 090 pin terminals and seals, 3x 187 pin terminals and seals
Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7283-7350-40, Light Gray
Mating Part: 090II/187-5P
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11413
090IIU-5P-1
5-Way Kit
Kit Contents: Housing, 5 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 1300-3783, 7282-1050, 7282-1157
Part Name: 11843N9A05M
Mating Part: 090IIU-5S-1
Kit Contents: Housing, 5 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 1300-3783, 7282-1050, 7282-1157
Part Name: 11843N9A05M
Mating Part: 090IIU-5S-1
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11085, 90980-11719, 90980-11843

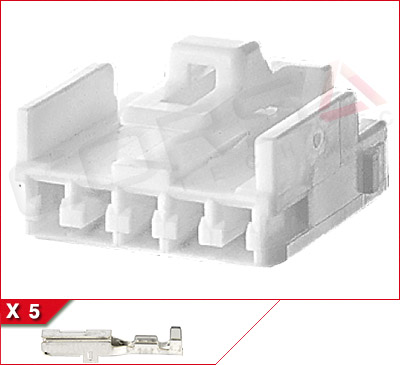

090IIU-5S-1
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 1300-3111 (Natural), 1300-3433 Black, 7183-6321
Part Name: 11772N9A05F-NA
Mating Part: 090IIU-5P-1
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 1300-3111 (Natural), 1300-3433 Black, 7183-6321
Part Name: 11772N9A05F-NA
Mating Part: 090IIU-5P-1
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10789, 90980-11772, 90980-11797, 90980-12348
090U-5S-1
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Tokai Rika
Series: 2.3 (090) Unsealed Series
OEM P/N: 4F0590-000 (Natural)
4F0592-0002 (Black, In Stock)
Mating Part: 4G0540-000
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Tokai Rika
Series: 2.3 (090) Unsealed Series
OEM P/N: 4F0590-000 (Natural)
4F0592-0002 (Black, In Stock)
Mating Part: 4G0540-000
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Sumitomo 1300-2695
- Toyota 90980-10631
- Yazaki 7123-1451-30
58X-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6550-40
Mating Part: 58X-5S
Kit Contents: Housing, 5 pin contacts, 5 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6550-40
Mating Part: 58X-5S
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 3.00 mm2
- Number of Rows:2
- Pitch:10.4mm
- Row Spacing:8.55mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
58X-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6550-40
Mating Part: 58X-5P
Kit Contents: Housing, 5 socket contacts, 5 seals, rear retainer/lock
Mfr: OEM Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6550-40
Mating Part: 58X-5P
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 3.00 mm2
- Number of Rows:2
- Pitch:10.4mm
- Row Spacing:8.55mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
712-5P
5-Way Kit
Kit Contents: 1x 5-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0413-00-05
Mating Part: 712-5S
Kit Contents: 1x 5-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0413-00-05
Mating Part: 712-5S
- Max. 24 awg wire
- Cable dia. 3.5-5mm (.138-.197 in)
Rearview Pinout (712-5P.png)General
- Sealing:Matte Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:125V
Environmental
- Temp Range[2]:-40 - 85 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
712-5S
5-Way Kit
Kit Contents: 1x 5-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0414-00-05
Mating Part: 712-5P
Kit Contents: 1x 5-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0414-00-05
Mating Part: 712-5P
- Max. 24 awg wire
- Cable dia. 3.5-5mm (.138-.197 in)
Rearview Pinout (712-5S.png)General
- Sealing:Matte Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:125V
Environmental
- Temp Range[2]:-40 - 85 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
719-5P
5-Way Kit
Kit Contents: 1x 5-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9789-71-05 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-5S
Kit Contents: 1x 5-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9789-71-05 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-5S
Rearview Pinout (719-5P.png)General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:0.75mm (.030)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:60V
Environmental
- Temp Range[2]:-25 - 70 °C
- Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
719-5S
5-Way Kit
Kit Contents: 1x 5-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9790-71-05 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-5P
Kit Contents: 1x 5-way solder cup kit for max. 22 awg wire
Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9790-71-05 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-5P
Rearview Pinout (719-5S.png)General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:0.75mm (.030)
- Wire Size:0.13 - 0.25 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:60V
Environmental
- Temp Range[2]:-25 - 70 °C
- Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
DSD.ISO-5S
Micro ISO Relay Connector Kit, 5-pin verison
Kit Contents: Housing, 3x 187 size terminals, 2x 250 size terminals
Mfr: Furukawa
Series: DSD Series
OEM P/N: Natural w/TPA: PU246-05015, NDSD05F-W-C AY
Black w/TPA: PU246-05025, NDSD05F-B-C AY
Natural w/o TPA: PU246-05010, NDSD05F-W-C, R120627 (IN STOCK)
Black w/o TPA: PU246-05020, NDSD05F-B-C
Part Name: NDSD05F
Kit Contents: Housing, 3x 187 size terminals, 2x 250 size terminals
Mfr: Furukawa
Series: DSD Series
OEM P/N: Natural w/TPA: PU246-05015, NDSD05F-W-C AY
Black w/TPA: PU246-05025, NDSD05F-B-C AY
Natural w/o TPA: PU246-05010, NDSD05F-W-C, R120627 (IN STOCK)
Black w/o TPA: PU246-05020, NDSD05F-B-C
Part Name: NDSD05F
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:N/A
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
GT150.35-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: Aftermarket, Delphi does not make an actual version.
Series: GT-150 3.5mm CL Sealed Series
Mating Part: N/A, device only
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: Aftermarket, Delphi does not make an actual version.
Series: GT-150 3.5mm CL Sealed Series
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 1.00 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- IGN1A coil connector
GT150.45-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 13519053 (15326827, superseded)
Mating Part: GT150.45-5S
Kit Contents: Housing, 5 pin contacts, 5 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 13519053 (15326827, superseded)
Mating Part: GT150.45-5S
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
GT150.45-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 13519051 (15326822, superseded)
Mating Part: GT150.45-5P
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 13519051 (15326822, superseded)
Mating Part: GT150.45-5P
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68486187AA repair kit connector
GT150.A-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 13519912
Mating Part: N/A, Device only
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: 13519912
Mating Part: N/A, Device only
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6+GB+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HD250-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts
Mfr: Aftermarket Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0216
Mating Part: HD250-5S
Kit Contents: Housing, 5 pin contacts
Mfr: Aftermarket Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0216
Mating Part: HD250-5S
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:7.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HD250-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: Aftermarket Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0218
Mating Part: HD250-5P
Kit Contents: Housing, 5 socket contacts
Mfr: Aftermarket Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0218
Mating Part: HD250-5P
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:7.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HE040-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts for 22-18 AWG wire
Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2779
Part Name: HE04 5F-NA
Mating Part: N/A
Kit Contents: Housing, 5 socket contacts for 22-18 AWG wire
Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2779
Part Name: HE04 5F-NA
Mating Part: N/A
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.22 - 0.85 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HU-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: Aftermarket Furukawa
Series: HU Series
OEM P/N: PK605-05027
Part Name: HU05F-B SA'Y
Mating Part: PK601-05027
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: Aftermarket Furukawa
Series: HU Series
OEM P/N: PK605-05027
Part Name: HU05F-B SA'Y
Mating Part: PK601-05027
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HVG-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, lock
Mfr: Aftermarket Sumitomo
Series: HV/HVG Sealed Series
Mating Part: HVG-5S
Kit Contents: Housing, 5 pin contacts, 5 seals, lock
Mfr: Aftermarket Sumitomo
Series: HV/HVG Sealed Series
Mating Part: HVG-5S
- See related terminal for crimp specs
-
Series Catalog (HV-HVG-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HVG-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock
Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-6909
Part Name: HV4-5FAY-B
Mating Part: HVG-5P
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock
Mfr: OEM Sumitomo
Series: HV/HVG Sealed Series
OEM P/N: 6189-6909
Part Name: HV4-5FAY-B
Mating Part: HVG-5P
-
3D STEP (6189-6909.zip) -
Drawing (S-72705.pdf)
- See related terminal for crimp specs
-
Series Catalog (HV-HVG-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, front lock
Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 040 Sealed Series
Mating Part: HX040-5S
Kit Contents: Housing, 5 pin contacts, 5 seals, front lock
Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 040 Sealed Series
Mating Part: HX040-5S
- See related terminal for crimp specs
-
Series Catalog (HX040-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX040-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6189-1081
Part Name: HX4-DCV5FAY-B
Mating Part: HX040-5P
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6189-1081
Part Name: HX4-DCV5FAY-B
Mating Part: HX040-5P
-
3D STEP (6189-1081.zip)
-
Drawing (S-50394_2.pdf)
- See related terminal for crimp specs
-
Series Catalog (HX040-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX090-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock
Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0618
Part Name: HX9-F/P5FAY-DGR
Mating Part: N/A
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock
Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0618
Part Name: HX9-F/P5FAY-DGR
Mating Part: N/A
- See related terminal for crimp specs
-
Series Catalog (HX090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:8.0mm
- Row Spacing:10.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ford 8U2Z-14S411-NA, WPT-909 (Tin plated terminals) pigtail connector
HX187-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock
Mfr: OEM Sumitomo
Series: HX 187 Sealed Series
OEM P/N: 6189-1154 Natural
6189-0902 Dark Gray (IN STOCK)
6189-0903 Brown
6189-0904 Black (IN STOCK)
Part Name: WP187-5FAY
Mating Part: N/A, device header
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock
Mfr: OEM Sumitomo
Series: HX 187 Sealed Series
OEM P/N: 6189-1154 Natural
6189-0902 Dark Gray (IN STOCK)
6189-0903 Brown
6189-0904 Black (IN STOCK)
Part Name: WP187-5FAY
Mating Part: N/A, device header
- See related terminal for crimp specs
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:8.2mm
- Row Spacing:8.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
ILAG5-5S
5-Way KitKit Contents: Housing, 5x socket contacts
Mfr: OEM JAE
Series: IL-AG5 Series
OEM P/N: IL-AG5-5S-S3C1
Mating Part: Pin header
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
IR.MICRO-1B
Micro ISO Relay Connector Kit
Kit Contents: Housing, 3x 187 size terminals for 20-18 AWG, 2x 250 size terminals for 16-14 AWG
Mfr: Aftermarket Sumitomo
Series: Micro/Mini ISO Relay
OEM P/N: 6400-0819
Part Name: MISO BLK-5F-GR
Kit Contents: Housing, 3x 187 size terminals for 20-18 AWG, 2x 250 size terminals for 16-14 AWG
Mfr: Aftermarket Sumitomo
Series: Micro/Mini ISO Relay
OEM P/N: 6400-0819
Part Name: MISO BLK-5F-GR
IR.MICRO-1B-F
Micro ISO Relay Connector Kit
Kit Contents: Housing, 3x 187 size terminals for 20-18 AWG, 2x 250 size terminals for 16-14 AWG
Mfr: OEM Furukawa
Series: FMR, Micro/Mini ISO Relay
OEM P/N: Q011993
Part Name: FMR-C-B5F
Kit Contents: Housing, 3x 187 size terminals for 20-18 AWG, 2x 250 size terminals for 16-14 AWG
Mfr: OEM Furukawa
Series: FMR, Micro/Mini ISO Relay
OEM P/N: Q011993
Part Name: FMR-C-B5F
JC250-5P
5-way grounding bus bar
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7114-9441
Mating Part: JC250-5S
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7114-9441
Mating Part: JC250-5S
Has an M6 hole, and anti-rotation tab.
Similar to 7114-9440 which doesn't have an anti-rotation tab.
Similar to 7114-9440 which doesn't have an anti-rotation tab.
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Number of Rows:1
- Pitch:8.5mm
Mechanical
- Contact Type:Pin, flat
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KET GP881212
JC250-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7123-2655
Mating Part: JC250-5P
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Yazaki
Series: 250 Joint Connector
OEM P/N: 7123-2655
Mating Part: JC250-5P
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:1
- Pitch:8.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KET MG630664
JPT-5S
5-way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282193-1
Part Name: SPLASH PROOF CONN. W.S.L.
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282193-1
Part Name: SPLASH PROOF CONN. W.S.L.
Rearview Pinout (JPT-5S.png)General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-30 - 125 °C
- Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MIC.MK2-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts
Mfr: OEM Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172504-1
Part Name: MIC CAP HSG 5P MK II
Mating Part: MIC.MK2-5S
Kit Contents: Housing, 5 pin contacts
Mfr: OEM Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172504-1
Part Name: MIC CAP HSG 5P MK II
Mating Part: MIC.MK2-5S
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:3.0mm (.118)
- Wire Size:0.30 - 2.27 mm2
- Number of Rows:2
- Pitch:7.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA
- Mounting Style:Free hanging
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MIC.MK2-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172494-1
Part Name: MIC MARK-2 PLUG HSG 5P
Mating Part: MIC.MK2-5P
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172494-1
Part Name: MIC MARK-2 PLUG HSG 5P
Mating Part: MIC.MK2-5P
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:3.0mm (.118)
- Wire Size:0.30 - 2.27 mm2
- Number of Rows:2
- Pitch:7.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MLK12.SWS-5S-1A
5-Way Kit (Keying A)
Kit Contents: Housing, 5 socket contacts for 20 AWG wire, 5 seals
Mfr: OEM KOSTAL
Series: MLK 1.2 Single Wire Sealing Series
OEM P/N: 10095335
Code: A
Kit Contents: Housing, 5 socket contacts for 20 AWG wire, 5 seals
Mfr: OEM KOSTAL
Series: MLK 1.2 Single Wire Sealing Series
OEM P/N: 10095335
Code: A
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.2mm (.047)
- Wire Size:0.12 - 1.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF30
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:19A
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12103974
Mating Part: MP150-5S
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12103974
Mating Part: MP150-5S
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12146045
Mating Part: MP150-5P
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12146045
Mating Part: MP150-5P
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150.2-5S-1
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12162825
Mating Part: N/A
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12162825
Mating Part: N/A
General
- Sealing:Matte Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150.2-5S-2
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12186056
Mating Part: N/A
Kit Contents: Housing, 5 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12186056
Mating Part: N/A
Notes: Optional 90 deg. cable exit cap P/N: 12110794
General
- Sealing:Matte Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP280-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12186400
Mating Part: 12084891
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12186400
Mating Part: 12084891
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 5.00 mm2
- Number of Rows:1
- Pitch:7.7mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT+GF
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
PA-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts
Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620211
Yazaki: 7118-3050
Mating Part: PA-5S
Kit Contents: Housing, 5 pin contacts
Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620211
Yazaki: 7118-3050
Mating Part: PA-5S
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
- Number of Rows:2
- Pitch:7.0mm
- Row Spacing:7.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
PA-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts
Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG610189
Yazaki: 7119-3050
Mating Part: PA-5P
Kit Contents: Housing, 5 socket contacts
Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG610189
Yazaki: 7119-3050
Mating Part: PA-5P
General
- Sealing:Unsealed
- Number of Ways:5
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
- Number of Rows:2
- Pitch:7.0mm
- Row Spacing:7.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SLK28-5S-A
5-Way Kit
Kit Contents: Housing, 5x socket contacts, 5x wire seals
Mfr: KOSTAL
Series: SLK 2.8 Single Wire Sealing Series
OEM P/N: 09441511, 09 4415 11
Mercedes A2115451128, A 211 545 11 28
Code: A
Kit Contents: Housing, 5x socket contacts, 5x wire seals
Mfr: KOSTAL
Series: SLK 2.8 Single Wire Sealing Series
OEM P/N: 09441511, 09 4415 11
Mercedes A2115451128, A 211 545 11 28
Code: A
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:2.8mm (.110)
- Wire Size:0.22 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF30
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:37A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
SS15-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282107-1
Mating Part: SS15-5S
Kit Contents: Housing, 5 pin contacts, 5 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282107-1
Mating Part: SS15-5S
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 2.50 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:14A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SS15-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282089-1
Mating Part: SS15-5P
Kit Contents: Housing, 5 socket contacts, 5 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282089-1
Mating Part: SS15-5P
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 2.50 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:14A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 72012-07
- Maserati 673004807 repair kit connector
- Mopar 68199272AA repair kit connector
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
