16-Way
Display:
050U/090IIU-16P
16-Way (6+10) Hybrid Kit
Kit Contents: Housing, 6x 050 pin contacts for 22-20awg wire, 10x 090 pin contacts
Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: Natural: 6098-1061
Part Name: 11561NYA16M-NA
Mating Part: 050U/090IIU-16S
Kit Contents: Housing, 6x 050 pin contacts for 22-20awg wire, 10x 090 pin contacts
Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: Natural: 6098-1061
Part Name: 11561NYA16M-NA
Mating Part: 050U/090IIU-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11561
050U/090IIU-16S
16-Way (6+10) Hybrid Kit
Kit Contents: Housing, 6x 050 socket contacts for 22-20awg wire, 10x 090 socket contacts
Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: 6098-1063
Part Name: 11562NYA16F-NA
Mating Part: 050U/090IIU-16P
Kit Contents: Housing, 6x 050 socket contacts for 22-20awg wire, 10x 090 socket contacts
Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: 6098-1063
Part Name: 11562NYA16F-NA
Mating Part: 050U/090IIU-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11562
090IIU-16P-1
16-Way Kit
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7282-1160
Mating Part: 090IIU-16S-1
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7282-1160
Mating Part: 090IIU-16S-1
-
3D STEP (6240-1031.zip) -
Drawing (7282-1160.pdf) -
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10808
090IIU-16S-1
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1160, ss by:7283-7967
Mating Part: 090IIU-16P-1
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1160, ss by:7283-7967
Mating Part: 090IIU-16P-1
-
3D STEP (6240-5033.zip)
-
Drawing (7283-7967.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10809
090IIU-16S-2
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5088
Part Name: TS090AY-16F
Mating Part: 6240-1158
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5088
Part Name: TS090AY-16F
Mating Part: 6240-1158
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10848, 90980-11806

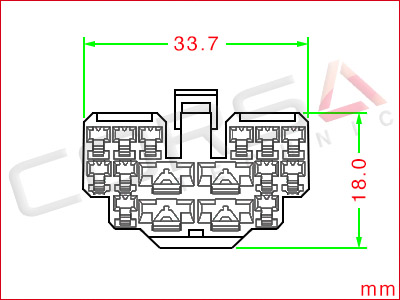

090U/250U-16S
16-Way (12+4) Hybrid Kit
Kit Contents: Housing, 12x 090 socket contacts, 4x 250 socket contacts
Mfr: Aftermarket Yazaki
Series: 090+250 Hybrid Unsealed Series
OEM P/N: 7123-1165
Mating Part: 7122-1165
Kit Contents: Housing, 12x 090 socket contacts, 4x 250 socket contacts
Mfr: Aftermarket Yazaki
Series: 090+250 Hybrid Unsealed Series
OEM P/N: 7123-1165
Mating Part: 7122-1165
Rearview Pinout (090U_250U-16S.png)General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
- Toyota 90980-10454
91A-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts for 22-20 awg wire
Mfr: Aftermarket KET, Sumitomo, Yazaki
Series: 91A, 91 A-Type, 91 A-Type
OEM P/N: MG641425
7282-8665
Part Name: A16MW
Mating Part: 7283-8665
Kit Contents: Housing, 16 pin contacts for 22-20 awg wire
Mfr: Aftermarket KET, Sumitomo, Yazaki
Series: 91A, 91 A-Type, 91 A-Type
OEM P/N: MG641425
7282-8665
Part Name: A16MW
Mating Part: 7283-8665
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.8mm (.030)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:2.0mm
- Row Spacing:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
BD-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts for 20-18 AWG wire
Mfr: OEM Tyco/AMP
Series: OBD
OEM P/N: White: 179631-1
Black: 179631-2
Part Name: BD16FW
Mating Part: Industry standard connector
Kit Contents: Housing, 16 socket contacts for 20-18 AWG wire
Mfr: OEM Tyco/AMP
Series: OBD
OEM P/N: White: 179631-1
Black: 179631-2
Part Name: BD16FW
Mating Part: Industry standard connector
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.50 - 1.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:8.6mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Panel Mount
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:30V DC
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Maserati 673004840 repair kit connector
- Mopar 05083231AA repair kit connector
- Nissan/Bosch J-48817-139 pigtail connector
- Nissan service part 24008-9DN1B connector
- Toyota 90980-11665
DL090-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6188-0495
Part Name: W-DL09AY16M-DGR
Mating Part: DL090-16S
Kit Contents: Housing, 16 pin contacts, 16 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6188-0495
Part Name: W-DL09AY16M-DGR
Mating Part: DL090-16S
-
3D STEP (6188-0495.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KTM 000700000CQ
DL090-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6189-0715
Part Name: W-DL09AY16F-DGR
Mating Part: DL090-16P
Kit Contents: Housing, 16 socket contacts, 16 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6189-0715
Part Name: W-DL09AY16F-DGR
Mating Part: DL090-16P
-
3D STEP (6189-0715.zip)
- See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KTM 000700000CP
- Subaru repair kit 99801AA100
HE050-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1397
Part Name: HE05 16MAY-L
Mating Part: HE050-16S
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1397
Part Name: HE05 16MAY-L
Mating Part: HE050-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HE050-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts for 22-20awg wire
Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1398
Part Name: HE05 16FAY-L
Mating Part: HE050-16P
Kit Contents: Housing, 16 socket contacts for 22-20awg wire
Mfr: OEM Sumitomo
Series: HE 050 Unsealed Series
OEM P/N: 6098-1398
Part Name: HE05 16FAY-L
Mating Part: HE050-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HE050/187-16P
16-Way (14+2) Hybrid Kit
Kit Contents: Housing, 14x 050 pin contacts, 2x 187 pin contacts
Mfr: OEM Sumitomo
Series: HE 050+187 Hybrid Unsealed Series
OEM P/N: 6950-1058
Part Name: HE514+82MAY-SB2
Mating Part: HE050/187-16S
Kit Contents: Housing, 14x 050 pin contacts, 2x 187 pin contacts
Mfr: OEM Sumitomo
Series: HE 050+187 Hybrid Unsealed Series
OEM P/N: 6950-1058
Part Name: HE514+82MAY-SB2
Mating Part: HE050/187-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
HE050/187-16S
16-Way (14+2) Hybrid Kit
Kit Contents: Housing, 14x 050 sockets for 22-20awg wire, 2x 187 socket contacts
Mfr: OEM Sumitomo
Series: HE 050+187 Hybrid Unsealed Series
OEM P/N: 6950-1053
Part Name: HE514+82FAY-SB
Mating Part: HE050/187-16P
Kit Contents: Housing, 14x 050 sockets for 22-20awg wire, 2x 187 socket contacts
Mfr: OEM Sumitomo
Series: HE 050+187 Hybrid Unsealed Series
OEM P/N: 6950-1053
Part Name: HE514+82FAY-SB
Mating Part: HE050/187-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
HM-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16S
Kit Contents: Housing, 16 pin contacts, 16 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16S
Bottom of connector features a bracket mount
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:4
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Suzuki GSXR injector sub-harness
HM-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16P
Kit Contents: Housing, 16 socket contacts, 16 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-16P
Bottom of connector features a bracket mount
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:4
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Suzuki GSXR injector sub-harness
HMU-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1099 (natural color)
Mating Part: HMU-16S
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1099 (natural color)
Mating Part: HMU-16S
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1071 (natural color)
Mating Part: HMU-16P
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1071 (natural color)
Mating Part: HMU-16P
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
MLC.HDHYB-16S
16-Way (14+2) Hybrid Kit
Kit Contents: Housing, 14x 040 size terminals, 2x 070 size terminals
Mfr: AMP/TE
Series: Multilock .040/.070 II HD Hybrid
OEM P/N: 179678-6
Part Name: 04/07-2 HD HYBRID PLUG ASY 16P
Mating Part: 179684, 179686
Kit Contents: Housing, 14x 040 size terminals, 2x 070 size terminals
Mfr: AMP/TE
Series: Multilock .040/.070 II HD Hybrid
OEM P/N: 179678-6
Part Name: 04/07-2 HD HYBRID PLUG ASY 16P
Mating Part: 179684, 179686
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MLC.HYB-16S
16-Way Kit
Kit Contents: Housing, 16x .040 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174514-6, other P/N: White: 174514-1, Yellow: 174514-7
Part Name: HYBRID I/O CONN PLUG HSG 16P
Kit Contents: Housing, 16x .040 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174514-6, other P/N: White: 174514-1, Yellow: 174514-7
Part Name: HYBRID I/O CONN PLUG HSG 16P
While this isn't a hybrid connector itself, it is part of the hybrid series
Mating half of connector: 174915, 175446, 175448, 175521, 177609, 178093, 178764, 178780, 5174915, 5175446, 5175448, 5177609, 5178093, 5178764, 5178780
Mating half of connector: 174915, 175446, 175448, 175521, 177609, 178093, 178764, 178780, 5174915, 5175446, 5175448, 5177609, 5178093, 5178764, 5178780
-
3D STEP (174514-6_C-3d_stp.zip)
-
Drawing (C-174514_C3.pdf)
- See related terminals for crimp specs
-
Product Specs (108-5280_F7.pdf)
-
Manual (412-5476_B.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:11A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10764
MLC.HYBMK2-16S-1
16-Way KitKit Contents: Housing, 16x 040 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917981-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 16P
Mating Part: 178764
While this isn't a hybrid connector itself, it is part of the hybrid series
-
3D STEP (917981-1_A-3d_stp.zip)
-
Drawing (C-917981_A.pdf)
-
Rearview Pinout (MLC_HYBMK2-16S-1.png) -
Crimp Specs - 040II (114-5159_K1.pdf)
-
Crimp Specs - 070II (114-5160_J.pdf)
-
Product Specs (108-5342_D4.pdf)
-
Application Specs (114-8005_B.pdf)
-
Assembly Instructions (412-5631_A.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
Rearview Pinout (MLC_HYBMK2-16S-1.png)General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11391
MLC025HL-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts for 22-20 AWG wire
Mfr: AMP/TE
Series: Multilock 025 Series (Housing Lance)
OEM P/N: 1717109-1 Natural (IN STOCK)
1717109-2 Black
1717109-4 Natural, with guard over finger lock
1717109-3 Black, with guard over finger lock
Part Name: 0.64 III 16POS PLUG ASSY
Mating Part: 1376106, 1473796, 1318382, 6318382
Kit Contents: Housing, 16 socket contacts for 22-20 AWG wire
Mfr: AMP/TE
Series: Multilock 025 Series (Housing Lance)
OEM P/N: 1717109-1 Natural (IN STOCK)
1717109-2 Black
1717109-4 Natural, with guard over finger lock
1717109-3 Black, with guard over finger lock
Part Name: 0.64 III 16POS PLUG ASSY
Mating Part: 1376106, 1473796, 1318382, 6318382
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:2.2A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Maserati 673004843 repair kit connector
- Toyota 90980-12533
MLC040-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 776178-2, Black
Part Name: 16POS .040 MULTILOCK CAP HSG
Mating Part: MLC040-16S
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 776178-2, Black
Part Name: 16POS .040 MULTILOCK CAP HSG
Mating Part: MLC040-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MLC040-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174046-2, Black
Part Name: 040 MULTILOCK PLUG 16P
Mating Part: MLC040-16P
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174046-2, Black
Part Name: 040 MULTILOCK PLUG 16P
Mating Part: MLC040-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Kawasaki ZX-6R (2003-2006) instrument cluster
- Kawasaki Z750S (2005-2006) instrument cluster
- Kawasaki Z1000 (2003-2006) instrument cluster
- Various Suzuki GSXR instrument cluster
- Various Triumph instrument cluster
- Ford 3U2Z-14S411-GMA, WPT-332 (Tin plated terminals) pigtail connector
- Mopar 68080554AA repair kit connector
MLC040MK2-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series, Mk II
OEM P/N: 175966-1, Natural (IN STOCK)
175966-2, Black
Part Name: 040 MLC II PLUG HSG ASSY 16P
Mating Part: 175615, 175976
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series, Mk II
OEM P/N: 175966-1, Natural (IN STOCK)
175966-2, Black
Part Name: 040 MLC II PLUG HSG ASSY 16P
Mating Part: 175615, 175976
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:11A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68032269AA repair kit connector (black)
MP150U-16P
16-Way Kit, OBD II connection
Kit Contents: Housing, 16 pin contacts, locking clip
Mfr: OEM Delphi
Series: Metri-Pack 150 Unsealed series
OEM P/N: 12110252
Mating Part: MP150U-16S
Kit Contents: Housing, 16 pin contacts, locking clip
Mfr: OEM Delphi
Series: Metri-Pack 150 Unsealed series
OEM P/N: 12110252
Mating Part: MP150U-16S
NOTE: Connector not intended to be used as a "stand alone" connector, and are designed to be used as part of an insert molded male OBD-II cable assembly to meet SAE J-1962.
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 0.80 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:8.6mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT+GF
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150U-16S
16-Way Kit, OBD II connection
Kit Contents: Housing, 16 socket contacts, 2x TPA
Mfr: OEM Delphi
Series: Metri-Pack 150 Unsealed series
OEM P/N: 12110250
Mating Part: MP150U-16P
Kit Contents: Housing, 16 socket contacts, 2x TPA
Mfr: OEM Delphi
Series: Metri-Pack 150 Unsealed series
OEM P/N: 12110250
Mating Part: MP150U-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:8.6mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Panel Mount
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX150-16P-A
16-Way Kit
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-8601 (supersedes: 33482-1601)
Keying: A
Mating Part: MX150-16S-A
Kit Contents: Housing, 16 pin contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-8601 (supersedes: 33482-1601)
Keying: A
Mating Part: MX150-16S-A
General
- Sealing:Matte Sealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS/PA+GF20
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 72167-07BK
MX150-16S-A
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-1601
Keying: A
Mating Part: MX150-16P-A
Kit Contents: Housing, 16 socket contacts
Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-1601
Keying: A
Mating Part: MX150-16P-A
General
- Sealing:Matte Sealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS/PA+GF20
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford CU2Z-14S411-ADA, WPT-1279 (Silver plated terminals) pigtail connector
- Ford 4L3T-14A464-WA
- Harley Davidson 72166-07BK
MX34-16P-A
16-Way PCB Header - Angled Pin
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016NF1
Mating Part: MX34-16S
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016NF1
Mating Part: MX34-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.85 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- GSXR-1000 '07-'08 dash
- GSXR-1300R K8 dash
- Kawasaki Z1000 '07-'09 dash
MX34-16P-S
16-Way PCB Header - Straight Pin
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016UF1
Mating Part: MX34-16S
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016UF1
Mating Part: MX34-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.85 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:SPS+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- GSXR-1000 '07-'08 dash
- GSXR-1300R K8 dash
- Kawasaki Z1000 '07-'09 dash
MX34-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016SF1
Mating Part: MX34-16P-A, MX34-16P-S
Kit Contents: Housing, 16 socket contacts
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016SF1
Mating Part: MX34-16P-A, MX34-16P-S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.85 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE+PA66
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Kawasaki Z1000 '07-'09 dash
- GSXR-1300R K8 dash
- GSXR-1000 '07-'08 dash
NH025-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5281
Part Name: TH16MW-NH
Mating Part: NH025-16S
Kit Contents: Housing, 16 pin contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5281
Part Name: TH16MW-NH
Mating Part: NH025-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
NH025-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5279
Part Name: TH16FW-NH
Mating Part: NH025-16P
Kit Contents: Housing, 16 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5279
Part Name: TH16FW-NH
Mating Part: NH025-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
OBD2-16P
OBD-II Cable, Male
OBD-II Cable harness, male
- J1962M to open end
- 1ft OR 3ft length
- 26 AWG stripped and tinned wires
OBD2-16S
OBD-II Cable, 1ft, Female
OBD-II Cable harness, female
- J1962F to open end
- 1ft length
- 26 AWG stripped and tinned wires
RFW-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals, lock
Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-16M-B (alt p/n: P010645, 12445-5216-2)
Mating Part: RFW-16S
Kit Contents: Housing, 16 pin contacts, 16 seals, lock
Mfr: OEM Furukawa
Series: RFW Series
OEM P/N: FW-C-16M-B (alt p/n: P010645, 12445-5216-2)
Mating Part: RFW-16S
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:4
- Pitch:5.8mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RFW-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals, lock
Mfr: Furukawa
Series: RFW Series
OEM P/N: Black: FW-C-16F-B (alt p/n: P010643, 12444-5216-2) OEM
White: FW-C-16F-W Aftermarket
Blue: FW-C-16F-L
Green: FW-C-16F-G
Mating Part: RFW-16P
Kit Contents: Housing, 16 socket contacts, 16 seals, lock
Mfr: Furukawa
Series: RFW Series
OEM P/N: Black: FW-C-16F-B (alt p/n: P010643, 12444-5216-2) OEM
White: FW-C-16F-W Aftermarket
Blue: FW-C-16F-L
Green: FW-C-16F-G
Mating Part: RFW-16P
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:4
- Pitch:5.8mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RFW/QLW-16S
16-Way (14+2) Hybrid Kit
Kit Contents: Housing, 14x 090 socket terminals and seals, 2x 250 socket terminals and seals, front lock
Mfr: OEM Furukawa
Series: RFW+QLW Hybrid Series
OEM P/N: FW/QLW2-C-16F-B (alt p/n: 13412-4116-2)
Kit Contents: Housing, 14x 090 socket terminals and seals, 2x 250 socket terminals and seals, front lock
Mfr: OEM Furukawa
Series: RFW+QLW Hybrid Series
OEM P/N: FW/QLW2-C-16F-B (alt p/n: 13412-4116-2)
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 8.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:34A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SWP-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7222-7564-40
Mating Part: SWP-16S
Kit Contents: Housing, 16 pin contacts, 16 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7222-7564-40
Mating Part: SWP-16S
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:4
- Pitch:6.2mm
- Row Spacing:6.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SWP-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7123-7564-40
Mating Part: SWP-16P
Kit Contents: Housing, 16 socket contacts, 16 seals, rear holder/lock
Mfr: OEM Yazaki
Series: SWP Series
OEM P/N: 7123-7564-40
Mating Part: SWP-16P
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:4
- Pitch:6.2mm
- Row Spacing:6.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
YESC.15-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7282-3445-30
Mating Part: YESC.15-16S
Kit Contents: Housing, 16 pin contacts, 16 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7282-3445-30
Mating Part: YESC.15-16S
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.25 mm2
- Number of Rows:4
- Pitch:5.5mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Panel Mount
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
YESC.15-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts, 16 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7283-3445-30
Mating Part: YESC.15-16P
Kit Contents: Housing, 16 socket contacts, 16 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7283-3445-30
Mating Part: YESC.15-16P
General
- Sealing:Single Wire Sealed
- Number of Ways:16
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:4
- Pitch:5.5mm
- Row Spacing:6.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
