10-Way
050U-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts for 22-20 AWG wire
Mfr: OEM Yazaki
Series: 050 Unsealed
OEM P/N: 7283-7602
Mating Part: 7282-7602
Kit Contents: Housing, 10 socket contacts for 22-20 AWG wire
Mfr: OEM Yazaki
Series: 050 Unsealed
OEM P/N: 7283-7602
Mating Part: 7282-7602
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11657
090II/187-10S
10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 socket terminals and seals, 2x 187 socket terminals and seals
Mfr: OEM Tokai Rika
Series: 2.3II+4.8 (090II+187) Hybrid Sealed Series
OEM P/N: 4F1078-0004 (Light Gray)
4F1075-0004 (Dark Gray)
4F1072-0004 (Black)
Mating Part: N/A, device only
Kit Contents: Housing, 8x 090 socket terminals and seals, 2x 187 socket terminals and seals
Mfr: OEM Tokai Rika
Series: 2.3II+4.8 (090II+187) Hybrid Sealed Series
OEM P/N: 4F1078-0004 (Light Gray)
4F1075-0004 (Dark Gray)
4F1072-0004 (Black)
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
- Sumitomo 1300-5507
- Toyota 90980-11332
- Yazaki 7283-1007-40
090IIU-10P-2
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1143, 7282-1100
Part Name: 10800N9A10M
Mating Part: 090IIU-10S-2
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1143, 7282-1100
Part Name: 10800N9A10M
Mating Part: 090IIU-10S-2
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10800, 90980-11757
090IIU-10S-2
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5196, 7283-1100
Part Name: 10801N9A10F
Mating Part: 090IIU-10P-2
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5196, 7283-1100
Part Name: 10801N9A10F
Mating Part: 090IIU-10P-2
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10801, 90980-12069
NEW ITEM!
090IIU/187U-10P
10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 pin contacts, 2x 187 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090+187 Hybrid, 090II+187 Hybrid Unsealed
OEM P/N: 6520-1150, 7282-1405 (IN STOCK)
Part Name: 11849NYA10M
Mating Part: 6520-1142, 7283-1405
Kit Contents: Housing, 8x 090 pin contacts, 2x 187 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090+187 Hybrid, 090II+187 Hybrid Unsealed
OEM P/N: 6520-1150, 7282-1405 (IN STOCK)
Part Name: 11849NYA10M
Mating Part: 6520-1142, 7283-1405
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11596, 90980-11849
250.HL-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-10S
Kit Contents: Housing, 10 pin contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-10S
| AMP/TE | Sumitomo | Yazaki |
|---|---|---|
| 172137-1 | 6071-0621 | 7122-2800 |
| Available stock: Aftermarket OEM | ||
-
3D STEP (172137-1_E-3d_step.zip) -
Mfr Drawing (C-172137_C3.pdf) -
TE Crimp Data, 12awg (C-2150746_B.pdf)
-
Crimp Specs - TE (114-5052_G.pdf)
-
Product Specs - TE (108-5147_E1.pdf)
-
Manual - TE (412-5111_O.pdf)
-
Series Catalog - TE (250HL-CAT.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.HL-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-10P
Kit Contents: Housing, 10 socket contacts
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-10P
| AMP/TE | Sumitomo | Yazaki |
|---|---|---|
| 172138-1 | 6071-0611 | 7123-2800 |
| Available stock: Aftermarket OEM | ||
-
3D STEP (172138-1_F-3d_step.zip)
-
Mfr Drawing (C-172138_D.pdf)
-
TE Crimp Data, 12awg (C-2150746_B.pdf)
-
Crimp Specs - TE (114-5052_G.pdf)
-
Product Specs - TE (108-5147_E1.pdf)
-
Manual - TE (412-5111_O.pdf)
-
Series Catalog - TE (250HL-CAT.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

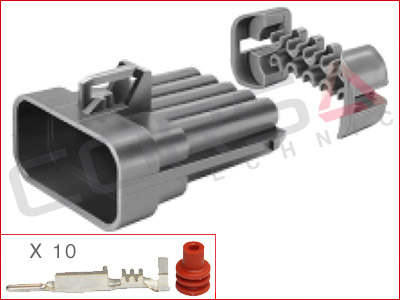

APEX.150-10P-A
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 150 Series
OEM P/N: 54241000 (Aptiv p/n: 13763996)
Mating Part: 54241030, 13737245
Kit Contents: Housing, 10 pin contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 150 Series
OEM P/N: 54241000 (Aptiv p/n: 13763996)
Mating Part: 54241030, 13737245
General
- Sealing:Matte Sealed
- Number of Ways:10
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

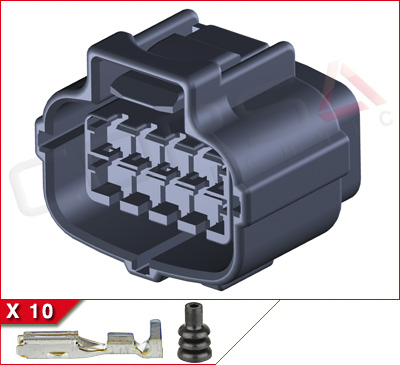

ESJ-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals, lock plate
Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174655-2, 2822395-1
Mating Part: 174657-2
Kit Contents: Housing, 10 socket contacts, 10 seals, lock plate
Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174655-2, 2822395-1
Mating Part: 174657-2
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:4.8mm
- Row Spacing:5.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:18.5A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NEW ITEM!
GT150.45-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts, 10 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15326847
Mating Part: GT150.45-10S
Kit Contents: Housing, 10 pin contacts, 10 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15326847
Mating Part: GT150.45-10S
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:7.2mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6+GB+GF
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Maserati 673004795 repair kit connector
- Mopar 68137858AA repair kit connector
GT150.45-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15326842 (superseded by 13545282)
Mating Part: GT150.45-10P
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Delphi
Series: GT-150 4.5mm CL Sealed Series
OEM P/N: 15326842 (superseded by 13545282)
Mating Part: GT150.45-10P
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:7.2mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Maserati 673004789 repair kit connector
- Mopar 68137859AA repair kit connector
HD090-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0250
Mating Part: HD090-10S
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0250
Mating Part: HD090-10S
-
3D STEP (6098-0250.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HD090-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0249
Mating Part: HD090-10P
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0249
Mating Part: HD090-10P
-
3D STEP (6098-0249.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1056
Mating Part: HMU-10S
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1056
Mating Part: HMU-10S
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HMU-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1220
Mating Part: HMU-10P
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo
Series: HM Unsealed Series
OEM P/N: 6090-1220
Mating Part: HMU-10P
- See related terminal for crimp specs
-
Series Catalog (HMU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HW-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts, 10 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0076
Part Name: HW09-10M-DGR
Mating Part: HW-10S
Kit Contents: Housing, 10 pin contacts, 10 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0076
Part Name: HW09-10M-DGR
Mating Part: HW-10S
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HW-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0135
Mating Part: HW-10P
Kit Contents: Housing, 10 socket contacts, 10 seals, TPA lock
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0135
Mating Part: HW-10P
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:3
- Pitch:6.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HX.HYB-10P
10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 pin terminals and seals, 2x 187 pin terminals and seals, front lock
Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6181-0381
Mating Part: HX.HYB-10S
Kit Contents: Housing, 8x 090 pin terminals and seals, 2x 187 pin terminals and seals, front lock
Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6181-0381
Mating Part: HX.HYB-10S
-
3D STEP (6181-0381.zip)
- See related terminal for crimp specs
-
Series Catalog (HX_HYB-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:Multiple
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HX.HYB-10S
10-Way (8+2) Hybrid Kit
Kit Contents: Housing, 8x 090 socket terminals and seals, 2x 187 socket terminals and seals, front lock
Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6189-0555
Mating Part: HX.HYB-10P
Kit Contents: Housing, 8x 090 socket terminals and seals, 2x 187 socket terminals and seals, front lock
Mfr: OEM Sumitomo
Series: HX Sealed Hybrid Series
OEM P/N: 6189-0555
Mating Part: HX.HYB-10P
-
3D STEP (6189-0555.zip)
- See related terminal for crimp specs
-
Series Catalog (HX_HYB-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:Multiple
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
IR.MICRO-2A
Dual Micro ISO Relay Connector Kit
Kit Contents: Housing, 6x 187 size terminals for 20-18 AWG, 4x 250 size terminals for 16-14 AWG
Mfr: OEM Sumitomo
Series: Micro/Mini ISO Relay
OEM P/N: 6400-0829 Black
6400-0830 Gray (IN STOCK)
6400-0831 Brown
6400-0833 Blue
6400-1157 Green
6400-0857 Natural - Restricted
6400-0860 Black - Restricted
Part Name: MRB MISO5+5
Kit Contents: Housing, 6x 187 size terminals for 20-18 AWG, 4x 250 size terminals for 16-14 AWG
Mfr: OEM Sumitomo
Series: Micro/Mini ISO Relay
OEM P/N: 6400-0829 Black
6400-0830 Gray (IN STOCK)
6400-0831 Brown
6400-0833 Blue
6400-1157 Green
6400-0857 Natural - Restricted
6400-0860 Black - Restricted
Part Name: MRB MISO5+5

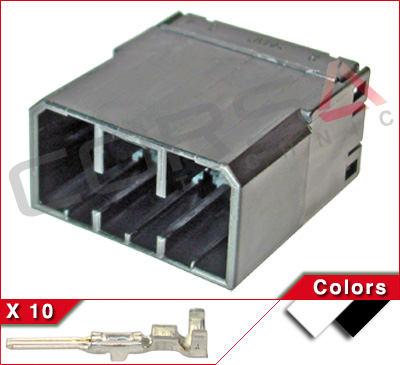

MLC070-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174932-1, Black: 174932-2
Part Name: 070 MLC W-W CAP HSG 10P
Mating Part: MLC070-10S
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174932-1, Black: 174932-2
Part Name: 070 MLC W-W CAP HSG 10P
Mating Part: MLC070-10S
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.9mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 73110-96BK

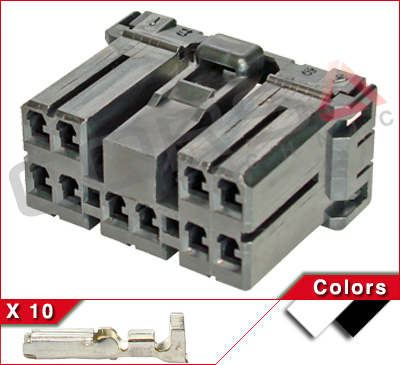

MLC070-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174465-1, Black: 174465-2
Part Name: 070 MULTILOCK 10P B DOUBLE
Mating Part: MLC070-10P
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174465-1, Black: 174465-2
Part Name: 070 MULTILOCK 10P B DOUBLE
Mating Part: MLC070-10P
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.9mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 73160-96BK
MP150-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts, 10 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12045808
Mating Part: MP150-10S
Kit Contents: Housing, 10 pin contacts, 10 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12045808
Mating Part: MP150-10S
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

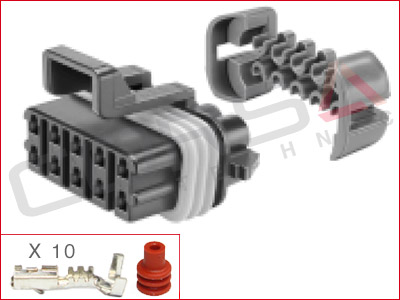

MP150-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12065425
Mating Part: MP150-10P
Kit Contents: Housing, 10 socket contacts, 10 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12065425
Mating Part: MP150-10P
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MTU.IL-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1101, 7122-1300
Mating Part: MTU.IL-10S
Kit Contents: Housing, 10 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-1101, 7122-1300
Mating Part: MTU.IL-10S
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10375
MTU.IL-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5101, 7123-1300
Mating Part: MTU.IL-10P
Kit Contents: Housing, 10 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5101, 7123-1300
Mating Part: MTU.IL-10P
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10322
RH-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts, 10 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7282-8856-30
Part Name: RH10MB
Mating Part: RH-10S
Kit Contents: Housing, 10 pin contacts, 10 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7282-8856-30
Part Name: RH10MB
Mating Part: RH-10S
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68601820AA repair kit connector
RH-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7283-8856-30
Part Name: RH10FB
Mating Part: RH-10P
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7283-8856-30
Part Name: RH10FB
Mating Part: RH-10P
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 68601819AA repair kit connector
SDL-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7122-8307
Mating Part: SDL-10S
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7122-8307
Mating Part: SDL-10S
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SDL-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8307
Mating Part: SDL-10P
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8307
Mating Part: SDL-10P
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TK-10P
10-Way Kit
Kit Contents: Housing, 10x pin contacts for 22-20 AWG wire
Mfr: OEM Yazaki
Series: 91 TK Type
OEM P/N: 7282-6360
Part Name: TK10MW
Mating Part: TK-10S
Kit Contents: Housing, 10x pin contacts for 22-20 AWG wire
Mfr: OEM Yazaki
Series: 91 TK Type
OEM P/N: 7282-6360
Part Name: TK10MW
Mating Part: TK-10S
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TK-10S
10-Way Kit
Kit Contents: Housing, 10x socket contacts for 22-20 AWG wire
Mfr: OEM Yazaki
Series: 91 TK Type
OEM P/N: 7283-6360
Part Name: TK10FW
Mating Part: TK-10P
Kit Contents: Housing, 10x socket contacts for 22-20 AWG wire
Mfr: OEM Yazaki
Series: 91 TK Type
OEM P/N: 7283-6360
Part Name: TK10FW
Mating Part: TK-10P
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TS025-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts for 24-20 awg wire, 10 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-0696
Part Name: 12379WQA10M-B
Mating Part: TS025-10S
Kit Contents: Housing, 10 pin contacts for 24-20 awg wire, 10 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-0696
Part Name: 12379WQA10M-B
Mating Part: TS025-10S
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.50 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-12379
TS025-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1134
Part Name: 12380WQA10F-B
Mating Part: TS025-10P
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1134
Part Name: 12380WQA10F-B
Mating Part: TS025-10P
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-12380

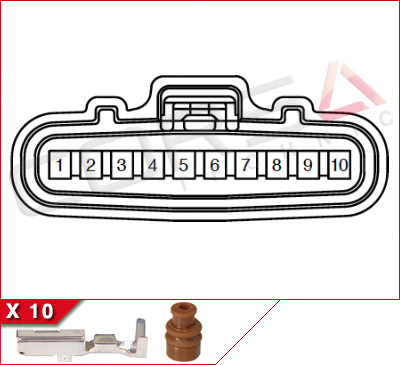

TS090-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0515
Part Name: 11653W9A10F-B
Mating Part: N/A, device only
Kit Contents: Housing, 10 socket contacts, 10 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0515
Part Name: 11653W9A10F-B
Mating Part: N/A, device only
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-11653
TS187U-10P
10-Way Kit
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-0154
Part Name: TS187AY10M
Mating Part: TS187U-10S
Kit Contents: Housing, 10 pin contacts
Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-0154
Part Name: TS187AY10M
Mating Part: TS187U-10S
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:6.8mm
- Row Spacing:6.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-10861
TS187U-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-0156
Part Name: TS187AY10F
Mating Part: TS187U-10P
Kit Contents: Housing, 10 socket contacts
Mfr: OEM Sumitomo
Series: TS 187 Unsealed Series
OEM P/N: 6098-0156
Part Name: TS187AY10F
Mating Part: TS187U-10P
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:6.8mm
- Row Spacing:6.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-10862
YG-10S
10-Way Kit
Kit Contents: Housing, 10 socket contacts for 20-16awg wire
Mfr: OEM Yazaki
Series: G-Type Series
OEM P/N: 7125-2900
Mating Part: N/A, direct connection
Kit Contents: Housing, 10 socket contacts for 20-16awg wire
Mfr: OEM Yazaki
Series: G-Type Series
OEM P/N: 7125-2900
Mating Part: N/A, direct connection
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:10.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Environmental
- Temp Range[2]:-40 - 85 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
