Home ▹ Connectors ▹ By # Of Ways ▹ 14-Way

14-Way

14-Way Kit
050U-14S
14-Way Kit
OEM P/N: 7283-7644
050U-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts for 22-20 AWG wire

Mfr: OEM Yazaki
Series: 050 Unsealed
OEM P/N: 7283-7644
Mating Part: N/A, device only

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:HPA
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-11556
QtyPrice
1-5$6.84
6-19$6.50
20-49$6.16
50-99$5.81
100+$5.47
Quantity:  Kit

14-Way (12+2) Hybrid Kit
090IIU/187U-14S
14-Way (12+2) Hybrid Kit
OEM P/N: 7283-1148-80 Brown
090IIU/187U-14S  14-Way (12+2) Hybrid Kit
Kit Contents: Housing, 12x 090 socket contacts, 2x 187 socket contacts

Mfr: OEM Yazaki
Series: 090II+187 Hybrid Unsealed
OEM P/N: 7283-1148-80 Brown
Mating Part: 7282-1148

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:Mixed
  • Wire Size:0.22 - 3.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10813
QtyPrice
1-5$6.13
6-19$5.82
20-49$5.52
50-99$5.21
100+$4.90
Quantity:  Kit

14-Way (12+2) Hybrid Kit
HD.HYB-14P
14-Way (12+2) Hybrid Kit
OEM P/N: 6950-0992
HD.HYB-14P  14-Way (12+2) Hybrid Kit
Kit Contents: Housing, 12x 090 pin contacts, 2x 187 pin contacts

Mfr: OEM Sumitomo
Series: HD 090+187 Hybrid Unsealed Series
OEM P/N: 6950-0992
Mating Part: HD.HYB-14S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
spacer
QtyPrice
1-5$6.20
6-19$5.89
20-49$5.58
50-99$5.27
100+$4.96
Quantity:  Kit

14-Way (12+2) Hybrid Kit
HD.HYB-14S
14-Way (12+2) Hybrid Kit
OEM P/N: 6950-0991
HD.HYB-14S  14-Way (12+2) Hybrid Kit
Kit Contents: Housing, 12x 090 socket contacts, 2x 187 socket contacts

Mfr: OEM Sumitomo
Series: HD 090+187 Hybrid Unsealed Series
OEM P/N: 6950-0991
Part Name: HYB912+802F-LGR1
Mating Part: HD.HYB-14P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
spacer
QtyPrice
1-5$7.45
6-19$7.08
20-49$6.71
50-99$6.33
100+$5.96
Quantity:  Kit

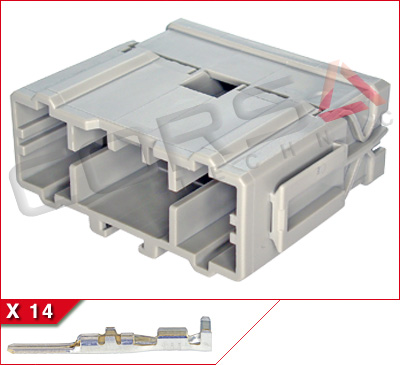

14-Way Kit
HD090-14P
14-Way Kit
OEM P/N: 6098-0254
HD090-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0254
Mating Part: HD090-14S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.65
6-19$3.39
20-49$3.10
50-99$2.92
100+$2.55
Quantity:  Kit

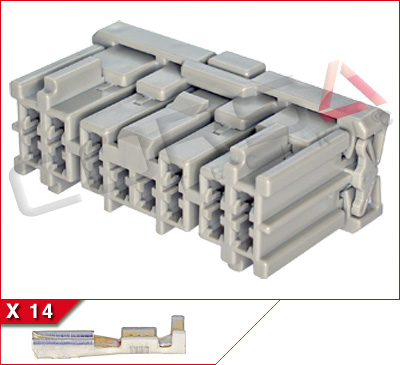

14-Way Kit
HD090-14S
14-Way Kit
OEM P/N: 6098-0253
HD090-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0253
Mating Part: HD090-14P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$3.55
6-19$3.37
20-49$3.19
50-99$3.02
100-499$2.84
500-999$2.66
1000-1999$2.48
2000+$2.31
Quantity:  Kit

14-Way (12+2) Hybrid Kit
HE090/187-14P
14-Way (12+2) Hybrid Kit
OEM P/N: 6098-4660
HE090/187-14P  14-Way (12+2) Hybrid Kit
Kit Contents: Housing, 12x 090 pin contacts, 2x 187 pin contacts

Mfr: OEM Sumitomo
Series: HE 090+187 Hybrid Unsealed Series
OEM P/N: 6098-4660
Part Name: HE912+82M-NA
Mating Part: HE090/187-14S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.38
6-19$6.06
20-49$5.74
50-99$5.42
100+$5.10
Quantity:  Kit

14-Way (12+2) Hybrid Kit
HE090/187-14S
14-Way (12+2) Hybrid Kit
OEM P/N: 6098-3565
HE090/187-14S  14-Way (12+2) Hybrid Kit
Kit Contents: Housing, 12x 090 sockets, 2x 187 socket contacts

Mfr: OEM Sumitomo
Series: HE 090+187 Hybrid Unsealed Series
OEM P/N: 6098-3565
Part Name: HE912+82F-NA
Mating Part: HE090/187-14P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.11
6-19$5.80
20-49$5.50
50-99$5.19
100+$4.89
Quantity:  Kit

14-Way Kit
HM-14P
14-Way Kit
OEM P/N: 6188-4691
HM-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts, 14 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6188-4691
Part Name: HM090WP14MASSY2
Mating Part: HM-14S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$7.19
6-19$6.83
20-49$6.47
50-99$6.11
100+$5.75
Quantity:  Kit

14-Way Kit
HM-14S
14-Way Kit
OEM P/N: 6181-4451
HM-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts, 14 seals

Mfr: OEM Sumitomo
Series: HM Sealed Series
OEM P/N: 6181-4451
Mating Part: HM-14P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
spacer
QtyPrice
1-5$6.84
6-19$6.36
20-49$5.81
50-99$5.47
100+$4.79
Quantity:  Kit

14-Way Kit
HW-14P
14-Way Kit
OEM P/N: 6181-0077
HW-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts, 14 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0077
Part Name: HW09-14M-DGR
Mating Part: HW-14S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.85
6-19$5.56
20-49$5.26
50-99$4.97
100+$4.68
Quantity:  Kit

14-Way Kit
HW-14S
14-Way Kit
OEM P/N: Gray: 6189-0136
Blue: 6189-0252
HW-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts, 14 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: Gray: 6189-0136
Blue: 6189-0252
Part Name: HW09-14FAY
Mating Part: HW-14P, HW.JC-14P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$6.10
6-19$5.79
20-49$5.49
50-99$5.18
100+$4.88
Quantity:  Kit

14-Way Joint Connector (7+7)
HW.JC-14P-1
14-Way Joint Connector (7+7)
OEM P/N: 6188-0378
HW.JC-14P-1  14-Way Joint Connector (7+7)
Kit Contents: 1x 14-way splice connector

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0378
Part Name: HW9JC-14MAS-DGR
Mating Part: HW-14S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$7.13
6-19$6.77
20-49$6.42
50-99$6.06
100+$5.70
Quantity:  Ea

14-Way Kit
ILAG5-14S
14-Way Kit
OEM P/N: IL-AG5-14S-D3C1-A
ILAG5-14S  14-Way Kit
Kit Contents: Housing, 14x socket contacts

Mfr: OEM JAE
Series: IL-AG5 Series
OEM P/N: IL-AG5-14S-D3C1-A
Mating Part: N/A
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$2.86
6-19$2.72
20-49$2.57
50-99$2.43
100+$2.29
Quantity:  Kit

14-Way Kit
MLC040-14P
14-Way Kit
OEM P/N: 917532-1, White
MLC040-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts

Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 917532-1, White
Part Name: 040 MLC T.F. CAP HSG 14P NATU
Mating Part: 917531

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
Price: $5.02
Quantity:  Kit

14-Way Kit

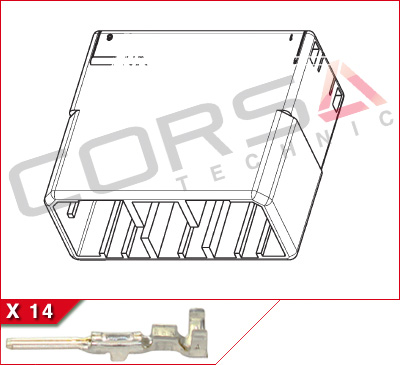

MLC070-14P
14-Way Kit
OEM P/N: White: 174934-1
MLC070-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts

Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174934-1
Mating Part: MLC070-14S

spacer
spacer
spacer
QtyPrice
1-5$4.58
6-19$4.26
20-49$3.89
50-99$3.66
100+$3.21
Quantity:  Kit

14-Way Kit

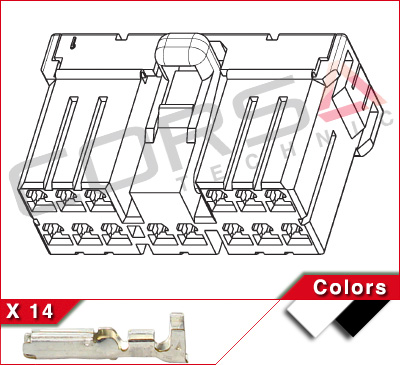

MLC070-14S
14-Way Kit
OEM P/N: White: 173852-1, Black: 173852-2
MLC070-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 173852-1, Black: 173852-2
Mating Part: MLC070-14P

spacer
spacer
spacer
  • Mopar 05183479AA repair kit connector
QtyPrice
1-5$5.81
6-19$5.40
20-49$4.94
50-99$4.65
100+$4.07
Quantity:  Kit

14-Way Kit
MTU.IL-14P
14-Way Kit
MTU.IL-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
Mating Part: MTU.IL-14S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.06
6-19$4.71
20-49$4.30
50-99$4.05
100+$3.54
Quantity:  Kit

14-Way Kit
MTU.IL-14S
14-Way Kit
OEM P/N: 6244-5141
MTU.IL-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6244-5141
Mating Part: MTU.IL-14P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
  • Toyota 90980-10538
QtyPrice
1-5$4.69
6-19$4.36
20-49$3.99
50-99$3.75
100+$3.28
Quantity:  Kit

14-Way Kit
SDL-14S
14-Way Kit
OEM P/N: 7123-8346
SDL-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts

Mfr: OEM Yazaki
Series: SDL Series
OEM P/N: 7123-8346
Mating Part: 7122-8346

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:1.8mm (.070)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:9A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
spacer
QtyPrice
1-5$5.32
6-19$5.05
20-49$4.79
50-99$4.52
100+$4.26
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2024 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
