18-Way

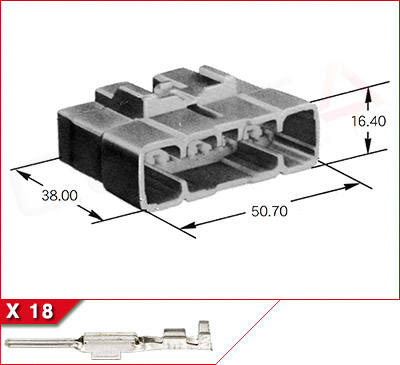

090IIU-18P
18-Way Kit
Kit Contents: Housing, 18 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7282-1180
Mating Part: 090IIU-18S
Kit Contents: Housing, 18 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7282-1180
Mating Part: 090IIU-18S
3D STEP (090IIU-18P.zip)
Mfr Drawing (7282-1180.pdf)General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:2.3mm (.090)
- Wire Size:0.50 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10818, 90980-11759
090IIU-18S
18-Way Kit
Kit Contents: Housing, 18 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1180-90 blue
Mating Part: 090IIU-18P
Kit Contents: Housing, 18 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1180-90 blue
Mating Part: 090IIU-18P
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:2.3mm (.090)
- Wire Size:0.50 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10819, 90980-11704
91A/NS-18P
18-Way (10+8) Hybrid Kit
Kit Contents: Housing, 10x 030 pin terminals for 22-20AWG wire, 8x 090 pin terminals
Mfr: OEM Yazaki
Series: 91 Hybrid Series
OEM P/N: 7282-8180
Part Name: A10MW+NS8, A10+NS08
Mating Part: 91A/NS-18S
Kit Contents: Housing, 10x 030 pin terminals for 22-20AWG wire, 8x 090 pin terminals
Mfr: OEM Yazaki
Series: 91 Hybrid Series
OEM P/N: 7282-8180
Part Name: A10MW+NS8, A10+NS08
Mating Part: 91A/NS-18S
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:4.72mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
91A/NS-18S
18-Way (10+8) Hybrid Kit
Kit Contents: Housing, 10x 030 socket terminals for 22-20AWG wire, 8x 090 socket terminals
Mfr: OEM Yazaki
Series: 91 Hybrid Series
OEM P/N: 7283-8180
Part Name: A10FW+NS8, A10+NS08
Mating Part: 91A/NS-18P
Kit Contents: Housing, 10x 030 socket terminals for 22-20AWG wire, 8x 090 socket terminals
Mfr: OEM Yazaki
Series: 91 Hybrid Series
OEM P/N: 7283-8180
Part Name: A10FW+NS8, A10+NS08
Mating Part: 91A/NS-18P
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:4.72mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
ES3.WTB-18P
18-Way PCB Header
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344103-1
Mating Part: ES3.WTB-18S
Kit Contents: PCB header with right angle mounting
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344103-1
Mating Part: ES3.WTB-18S
General
- Sealing:Single Wire Sealed
- Number of Ways:18
- Contact Size:1.8mm (.070)
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PA66+GF
- Mounting Style:PCB Board Mount
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- M&W CDI Ignition units
- Motec M8 ECU's

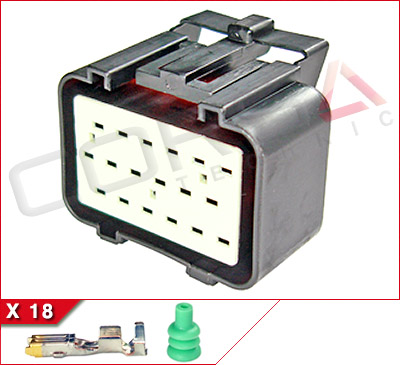

ES3.WTB-18S
18-Way Kit
Kit Contents: Housing, 18 socket contacts for 20-16 AWG wire, 18 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344106-1
Mating Part: ES3.WTB-18P
Kit Contents: Housing, 18 socket contacts for 20-16 AWG wire, 18 seals, front lock
Mfr: OEM Tyco/AMP
Series: Econoseal III Wire to Board Series
OEM P/N: 344106-1
Mating Part: ES3.WTB-18P
General
- Sealing:Single Wire Sealed
- Number of Ways:18
- Contact Size:1.8mm (.070)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:3
- Pitch:5.0mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- M&W CDI Ignition units
- Motec M8 ECU's
HLC.060-18P
18-Way Kit
Kit Contents: Housing, 18 pin contacts
Mfr: OEM Yazaki
Series: HLC 060 Series
OEM P/N: 7186-8851
Mating Part: HLC.060-18S
Kit Contents: Housing, 18 pin contacts
Mfr: OEM Yazaki
Series: HLC 060 Series
OEM P/N: 7186-8851
Mating Part: HLC.060-18S
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.4mm
- Row Spacing:4.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
HLC.060-18S
18-Way Kit
Kit Contents: Housing, 18 socket contacts
Mfr: OEM Yazaki
Series: HLC 060 Series
OEM P/N: 7187-8856
Mating Part: HLC.060-18P
Kit Contents: Housing, 18 socket contacts
Mfr: OEM Yazaki
Series: HLC 060 Series
OEM P/N: 7187-8856
Mating Part: HLC.060-18P
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:2
- Pitch:3.4mm
- Row Spacing:4.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
MTU.IL-18S
18-Way Kit
Kit Contents: Housing, 18 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5181, 7123-1280
Part Name: MT090-18F
Mating Part: 6240-1181, 7122-1280
Kit Contents: Housing, 18 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: 6240-5181, 7123-1280
Part Name: MT090-18F
Mating Part: 6240-1181, 7122-1280
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10326
MX23A-18P
18-Way ECU PCB Header
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A18NF1
Mating Part: MX23A-18S
Kit Contents: PCB header
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A18NF1
Mating Part: MX23A-18S
General
- Sealing:Matte Sealed
- Number of Ways:18
- Contact Size:1.0mm (.040)
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:PCB solder tail
- Housing Material:PBT+GF
- Mounting Style:PCB Board Mount
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various KTM, Suzuki motorcycle ECU's

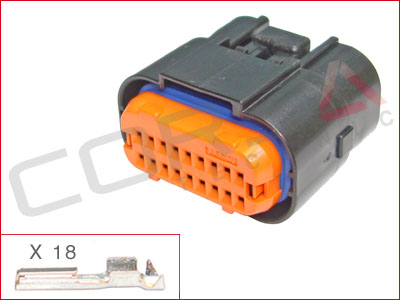

MX23A-18S
18-Way Kit
Kit Contents: Housing, 18 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A18SF1
Mating Part: MX23A-18P
Kit Contents: Housing, 18 socket contacts, front lock
Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A18SF1
Mating Part: MX23A-18P
General
- Sealing:Matte Sealed
- Number of Ways:18
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:2.5mm
- Row Spacing:4.4mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Suzuki motorcycle ECU's
- Honda 070MZ-MCAA300
- KTM 000700000BU
