7-Way
Display:
040IIIU-7S
7-Way Kit
Kit Contents: Housing (4x parts), 7 socket contacts for 22-20 AWG wire
Mfr: OEM Tokai Rika
Series: 1.0III (040III) Unsealed Series
OEM P/N: 4F0730-000x
5pin housing, 5pin retainer, 2pin housing, Cap
4F0730-0010, 4F0730-0020, 4F0730-0030, 4F0730-0040
Mating Part: 4G0720-000x
Kit Contents: Housing (4x parts), 7 socket contacts for 22-20 AWG wire
Mfr: OEM Tokai Rika
Series: 1.0III (040III) Unsealed Series
OEM P/N: 4F0730-000x
5pin housing, 5pin retainer, 2pin housing, Cap
4F0730-0010, 4F0730-0020, 4F0730-0030, 4F0730-0040
Mating Part: 4G0720-000x
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:3
- Pitch:2.5mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-12060
- 5pin housing, 5pin retainer, 2pin housing, Cap
- Sumitomo 1300-7573, 6918-1973, 1300-7574, 6911-2070
- Yazaki 7183-6107, 7158-4799, 7183-1171, 7134-8347
090IIU-7S
7-Way Kit
Kit Contents: Housing, 7 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-0996, 7283-1071 (IN STOCK)
Mating Part: 7282-1071
Kit Contents: Housing, 7 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-0996, 7283-1071 (IN STOCK)
Mating Part: 7282-1071
-
Drawing (7283-1071.pdf) -
Derating Curves (090IIU-7x-TC.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11529, 90980-11740, 90980-12336
712-7P
7-Way Kit
Kit Contents: 1x 7-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0421-00-07
Mating Part: 99-0422-00-07
Kit Contents: 1x 7-way solder cup kit
Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0421-00-07
Mating Part: 99-0422-00-07
- Max. 26 awg wire
- Cable dia. 3.5-5mm (.138-.197 in)
Rearview Pinout (712-7P.png)General
- Sealing:Matte Sealed
- Number of Ways:7
- Contact Size:1.0mm (.040)
- Wire Size:0.13 - 0.13 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Solder Cup
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:1A
- Voltage Rating:125V
Environmental
- Temp Range[2]:-40 - 85 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Common on 2D Debus & Diebold systems and hardware
- Common on Aim data logger systems and hardware
APEX.28/63-7S
7-Way Kit for trailer tow harness
Kit Contents: Housing, 6x 2.8 socket contacts and seals, 1x 6.3 socket contact and seal
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
Mating Part: 9U5T-14A624-MAC, XL3T-14A624-BB, 8U5T-14A624-AB, FU5T-14A624-GA
Kit Contents: Housing, 6x 2.8 socket contacts and seals, 1x 6.3 socket contact and seal
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
Mating Part: 9U5T-14A624-MAC, XL3T-14A624-BB, 8U5T-14A624-AB, FU5T-14A624-GA
General
- Sealing:Single Wire Sealed
- Number of Ways:7
- Contact Size:Mixed
- Wire Size:0.50 - 6.00 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:55A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 8U5T-14A464-AAB, ss: 8U5T-14A464-AAA
- Ford 8U5T-14A464-FBB, ss: 8U5T-14A464-FBA
- Ford 8U5T-14A464-GBB, ss: 8U5T-14A464-GBA
- Ford 8U5T-14A464-JBB, ss: 8U5T-14A464-JBA
- Ford 3U2Z-14S411-JXB, WPT-975 (Tin plated terminals) pigtail connector
HD.HYB-7P
7-Way (5+2) Hybrid Kit
Kit Contents: Housing, 5x 250 pin contacts, 2x 305 pin contacts for 12-10 awg
Mfr: Aftermarket Sumitomo
Series: HD 250+305 Hybrid Unsealed Series
OEM P/N: 6950-1030
Mating Part: HD.HYB-7S
Kit Contents: Housing, 5x 250 pin contacts, 2x 305 pin contacts for 12-10 awg
Mfr: Aftermarket Sumitomo
Series: HD 250+305 Hybrid Unsealed Series
OEM P/N: 6950-1030
Mating Part: HD.HYB-7S
-
3D STEP (6950-1030.zip) -
Drawing (6950-1030.pdf)
-
Rearview Pinout (HD_HYB-7P.png) - See related terminal for crimp specs
-
Series Catalog (HD250+305-CAT.pdf)
Rearview Pinout (HD_HYB-7P.png)General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:Mixed
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:50A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
HD.HYB-7S
7-Way (5+2) Hybrid Kit
Kit Contents: Housing, 5x 250 socket contacts, 2x 305 socket contacts for 12-10 awg
Mfr: Aftermarket Sumitomo
Series: HD 250+305 Hybrid Unsealed Series
OEM P/N: 6950-0366
Mating Part: HD.HYB-7P
Kit Contents: Housing, 5x 250 socket contacts, 2x 305 socket contacts for 12-10 awg
Mfr: Aftermarket Sumitomo
Series: HD 250+305 Hybrid Unsealed Series
OEM P/N: 6950-0366
Mating Part: HD.HYB-7P
-
3D STEP (6950-0366.zip)
-
Rearview Pinout (HD_HYB-7S.png)
- See related terminal for crimp specs
-
Series Catalog (HD250+305-CAT.pdf)
Rearview Pinout (HD_HYB-7S.png)General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:Mixed
- Wire Size:0.30 - 5.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:50A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
HD250-7P
7-Way Kit
Kit Contents: Housing, 7 pin contacts
Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0212
Part Name: HD25-7MAY-BR
Mating Part: HD250-7S
Kit Contents: Housing, 7 pin contacts
Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0212
Part Name: HD25-7MAY-BR
Mating Part: HD250-7S
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:7.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HD250-7S
7-Way Kit
Kit Contents: Housing, 7 socket contacts
Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0214
Part Name: HD25-7F-AY-BR
Mating Part: HD250-7P
Kit Contents: Housing, 7 socket contacts
Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0214
Part Name: HD25-7F-AY-BR
Mating Part: HD250-7P
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:7.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

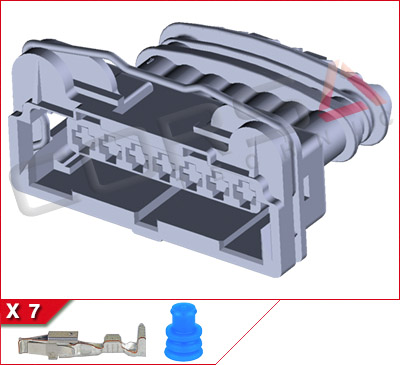

JPT-7S
7-way Kit
Kit Contents: Housing, 7 socket contacts, 7 seals
Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282194-1, black
Part Name: SPLASH PROOF CONN. W.S.L.
Mating Part: N/A, but compatible with JPTA-7P
Kit Contents: Housing, 7 socket contacts, 7 seals
Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282194-1, black
Part Name: SPLASH PROOF CONN. W.S.L.
Mating Part: N/A, but compatible with JPTA-7P
Rearview Pinout (JPT-7S.png)General
- Sealing:Single Wire Sealed
- Number of Ways:7
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-30 - 125 °C
- Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
JPTA-7P
7-Way Kit
Kit Contents: Housing, tpa, 7 pin contacts for 20-18 AWG, 7 seals
Mfr: Aftermarket Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 444211-1
Part Name: 7 POS JPT TAB. ASSY
Mating Part: 444212-1
Kit Contents: Housing, tpa, 7 pin contacts for 20-18 AWG, 7 seals
Mfr: Aftermarket Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 444211-1
Part Name: 7 POS JPT TAB. ASSY
Mating Part: 444212-1
General
- Sealing:Single Wire Sealed
- Number of Ways:7
- Contact Size:2.8mm (.110)
- Wire Size:0.20 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA6
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-30 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MIC.MK2-7P
7-Way Kit
Kit Contents: Housing, 7 pin contacts
Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172505-1
Part Name: MIC CAP HSG 7P MK II
Mating Part: MIC.MK2-7S
Kit Contents: Housing, 7 pin contacts
Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172505-1
Part Name: MIC CAP HSG 7P MK II
Mating Part: MIC.MK2-7S
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:3.0mm (.118)
- Wire Size:0.30 - 2.27 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA
- Mounting Style:Free hanging
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MIC.MK2-7S
7-Way Kit
Kit Contents: Housing, 7 socket contacts
Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172495-1
Part Name: MIC MK-II PLUG HSG 7P
Mating Part: MIC.MK2-7P
Kit Contents: Housing, 7 socket contacts
Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
OEM P/N: 172495-1
Part Name: MIC MK-II PLUG HSG 7P
Mating Part: MIC.MK2-7P
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:3.0mm (.118)
- Wire Size:0.30 - 2.27 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

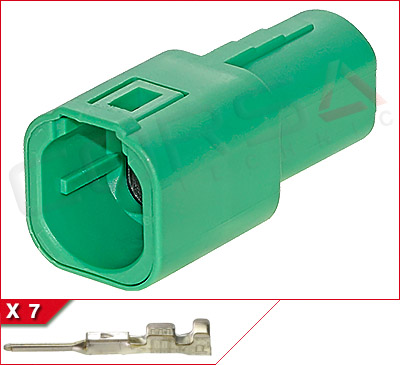

MINI.MLC-7P
7-Way Kit
Kit Contents: Housing, 7 pin contacts
Mfr: OEM Tyco/AMP
Series: Mini Multilock Series
Mating Part: MINI.MLC-7S
Kit Contents: Housing, 7 pin contacts
Mfr: OEM Tyco/AMP
Series: Mini Multilock Series
Mating Part: MINI.MLC-7S
P/N: Green, 2822344-1 (In Stock) (Supercedes p/n: 917319-4)
Natural, 2822344-2
Black, 2822344-3
Grey, 2822344-4
Yellow, 2822344-5
Natural, 2822344-2
Black, 2822344-3
Grey, 2822344-4
Yellow, 2822344-5
General
- Sealing:Matte Sealed
- Number of Ways:7
- Contact Size:0.8mm (.030)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:5
- Pitch:4.0mm
- Row Spacing:2.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:11A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson throttle by wire
- Honda VTX1300/VTX1800 instruments

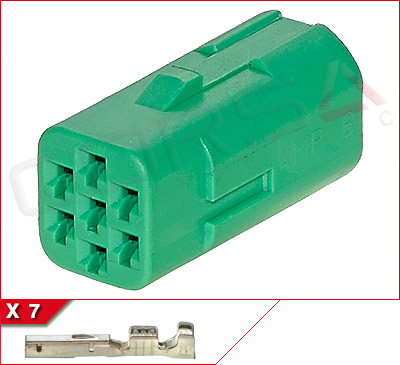

MINI.MLC-7S
7-Way Kit
Kit Contents: Housing, 7 socket contacts
Mfr: OEM Tyco/AMP
Series: Mini Multilock Series
Mating Part: MINI.MLC-7P
Kit Contents: Housing, 7 socket contacts
Mfr: OEM Tyco/AMP
Series: Mini Multilock Series
Mating Part: MINI.MLC-7P
P/N: Green, 2822343-1 (In Stock) (Supercedes p/n: 917318-4)
Natural, 2822343-2
Black, 2822343-3
Grey, 2822343-4
Yellow, 2822343-5
Natural, 2822343-2
Black, 2822343-3
Grey, 2822343-4
Yellow, 2822343-5
General
- Sealing:Matte Sealed
- Number of Ways:7
- Contact Size:0.8mm (.030)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:5
- Pitch:4.0mm
- Row Spacing:2.4mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:11A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson throttle by wire
- Honda VTX1300/VTX1800 instruments
PA-7P
7-Way Kit
Kit Contents: Housing, 7 pin contacts
Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620212
Yazaki: 7118-3070
Mating Part: PA-7S
Kit Contents: Housing, 7 pin contacts
Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620212
Yazaki: 7118-3070
Mating Part: PA-7S
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:7.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10042
PA-7S
7-Way Kit
Kit Contents: Housing, 7 socket contacts
Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG610203
Yazaki: 7119-3070
Mating Part: PA-7P
Kit Contents: Housing, 7 socket contacts
Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG610203
Yazaki: 7119-3070
Mating Part: PA-7P
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:7.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10043
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
