48-Way
91A/NS-48S
48-Way (32+16) Hybrid Kit
Kit Contents: Housing, 32x 030 socket terminals for 22-20AWG wire, 16x 090 socket terminals
Mfr: OEM Sumitomo
Series: 91 Hybrid Series
OEM P/N: 6098-1122
Part Name: A 32 FW-NS 16
Mating Part: 6098-1109, 6098-1442, 6098-1443
Kit Contents: Housing, 32x 030 socket terminals for 22-20AWG wire, 16x 090 socket terminals
Mfr: OEM Sumitomo
Series: 91 Hybrid Series
OEM P/N: 6098-1122
Part Name: A 32 FW-NS 16
Mating Part: 6098-1109, 6098-1442, 6098-1443
3D STEP (6098-1122.zip)
Series Catalog (91-HYB-SUMI-CAT.pdf)General
- Sealing:Unsealed
- Number of Ways:48
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
ZRO-48P
48-Way PCB Header
Kit Contents: PCB header for right angle mounting
Mfr: OEM JST
Series: ZRO Series
OEM P/N: S48B-ZROK-2A-R Normal type (alt pn: S48B-ZROK-3A-R w/ case lock)
Keying: A
Mating Part: ZRO-48S, 48ZRO-B-2A
Kit Contents: PCB header for right angle mounting
Mfr: OEM JST
Series: ZRO Series
OEM P/N: S48B-ZROK-2A-R Normal type (alt pn: S48B-ZROK-3A-R w/ case lock)
Keying: A
Mating Part: ZRO-48S, 48ZRO-B-2A
Electrical
- Current Rating[1]:7A
- Voltage Rating:50 V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

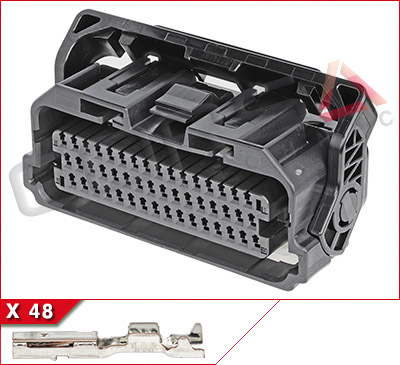

ZRO-48S
48-Way Kit
Kit Contents: Housing, 48 socket terminals
Mfr: OEM JST
Series: ZRO Series
OEM P/N: 48ZRO-B-1A
Keying: A
Mating Part: ZRO-48P, S48B-ZROK-3A-R
Kit Contents: Housing, 48 socket terminals
Mfr: OEM JST
Series: ZRO Series
OEM P/N: 48ZRO-B-1A
Keying: A
Mating Part: ZRO-48P, S48B-ZROK-3A-R
General
- Sealing:Matte Sealed
- Number of Ways:48
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:3
- Pitch:2.55mm
- Row Spacing:3.75mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
- Voltage Rating:50 V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
