Home ▹ Connectors ▹ By # Of Ways ▹ 1-Way

1-Way

81 Items.  Showing Items 1 thru 50.
 1  2   Next »   Show All

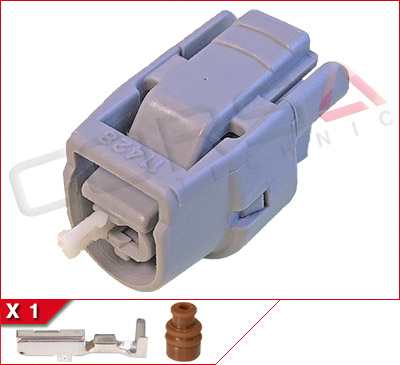

1-Way Kit

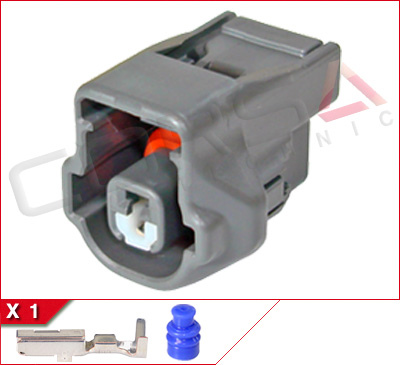

090II-1S-1
1-Way Kit
OEM P/N: 7283-1015-10
View Item
090II-1S-1  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1015-10
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11166 (grey)
QtyPrice (USD)
1-5$4.36
6-19$4.14
20-49$3.92
50-99$3.71
100+$3.49
Quantity:  Kit

1-Way Kit

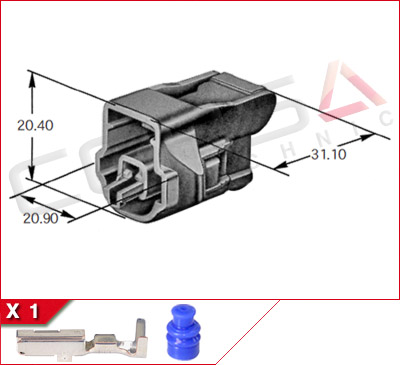

090II-1S-2
1-Way Kit
OEM P/N: 7283-1019-40
View Item
090II-1S-2  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1019-40
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11243 (grey)
QtyPrice (USD)
1-5$3.88
6-19$3.69
20-49$3.49
50-99$3.30
100+$3.10
Quantity:  Kit

1-Way Kit

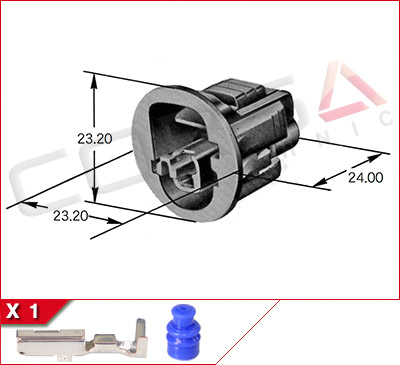

090II-1S-3
1-Way Kit
OEM P/N: 7283-1114-40
View Item
090II-1S-3  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-1114-40
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11363
QtyPrice (USD)
1-5$3.93
6-19$3.73
20-49$3.54
50-99$3.34
100+$3.14
Quantity:  Kit

1-Way Kit
090II-1S-6
1-Way Kit
OEM P/N: 4F0188-0005 Light gray (IN STOCK)
4F0182-000x Black
View Item
090II-1S-6  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Tokai Rika
Series: 2.3II (090II) Sealed Series
OEM P/N: 4F0188-0005 Light gray (IN STOCK)
4F0182-000x Black
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Sumitomo 1300-3629
  • Toyota 90980-11007
  • Yazaki 7283-1013-40
QtyPrice (USD)
1-5$3.63
6-19$3.45
20-49$3.27
50-99$3.09
100+$2.90
Quantity:  Kit

1-Way Kit
187.FN-1S-A
1-Way Kit
OEM P/N: 1-170823-3
View Item
187.FN-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 1-170823-3
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.20 - 1.25 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.28
6-19$0.27
20-49$0.25
50-99$0.24
100+$0.22
Quantity:  Kit

1-Way Kit
205.FN-1S-A
1-Way Kit
OEM P/N: 4-170823-1
View Item
205.FN-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 4-170823-1
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:5.2mm (.205)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.48
6-19$0.45
20-49$0.41
50-99$0.38
100+$0.34
Quantity:  Kit

1-Way Kit
205.FN-1S-B
1-Way Kit
View Item
205.FN-1S-B  1-Way Kit
Kit Contents: Housing, 1 socket contact

Series: FASTON Series
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:5.2mm (.205)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.85
6-19$0.79
20-49$0.72
50-99$0.68
100+$0.59
Quantity:  Kit

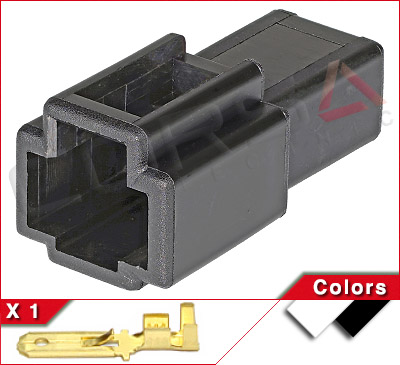

1-Way Kit
250.ARM-1P
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)
View Item
250.ARM-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

Mating Part: 250.ARM-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (male half)
  • KTM 000700000BN
QtyPrice (USD)
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-499$0.76
500+$0.71
Quantity:  Kit

1-Way Kit

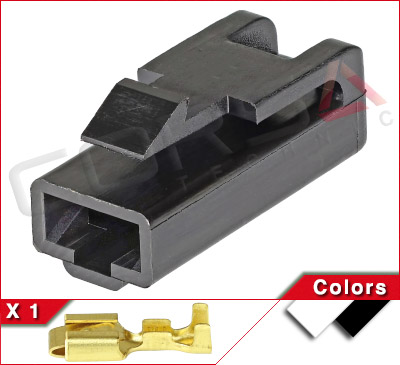

250.ARM-1S
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
View Item
250.ARM-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
Mating Part: 250.ARM-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (female half)
  • KTM 000700000CH
QtyPrice (USD)
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-249$0.76
250-499$0.71
500+$0.67
Quantity:  Kit

1-Way Kit
250.FLAG-1S-A
1-Way Kit
OEM P/N: 170891-1
View Item
250.FLAG-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 170891-1
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.31 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.63
6-19$0.60
20-49$0.57
50-99$0.54
100-999$0.50
1000+$0.47
Quantity:  Kit

1-Way Kit
250.FN-1S-A
1-Way Kit
OEM P/N: 170823-2
View Item
250.FN-1S-A  1-Way Kit
Kit Contents: Insulation sleeve, 1 socket contact

Mfr: Tyco/AMP
Series: FASTON Series
OEM P/N: 170823-2
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PVC
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 60 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.54
6-19$0.51
20-49$0.49
50-99$0.46
100-249$0.43
250-499$0.41
500-999$0.38
1000+$0.35
Quantity:  Kit

1-Way Kit
250.FN-1S-B
1-Way Kit
OEM P/N: OS-250
(Sumitomo: 6910-0425)
View Item
250.FN-1S-B  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Richco
Series: FASTON Series
OEM P/N: OS-250
(Sumitomo: 6910-0425)
Mating Part: Device

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.22 - 2.00 mm2
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 105 °C
  • Flammability Rating:UL94 V-2
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.97
6-19$0.90
20-49$0.82
50-99$0.78
100+$0.68
Quantity:  Kit

1-Way Kit
250.HL-1P
1-Way Kit
View Item

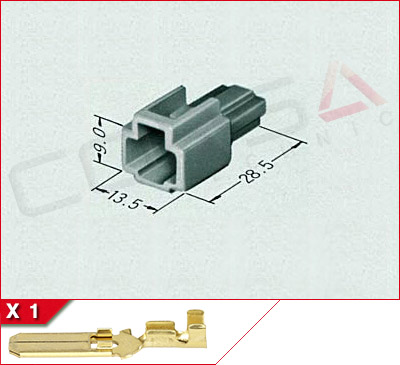

250.HL-1P  1-Way Kit
Kit Contents: Housing, 1 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-1S

AMP/TESumitomoYazaki
172127-16070-16217122-2810
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.95
6-19$0.88
20-49$0.81
50-99$0.76
100+$0.67
Quantity:  Kit

1-Way Kit
250.HL-1S
1-Way Kit
View Item

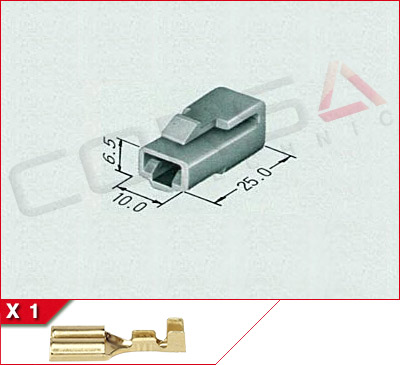

250.HL-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-1P

AMP/TESumitomoYazaki
172128-16070-16117123-2810
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.95
6-19$0.88
20-49$0.81
50-99$0.76
100+$0.67
Quantity:  Kit

1-Way Kit
250.WC-1P
1-Way Kit
OEM P/N: 6180-1541
View Item
250.WC-1P  1-Way Kit
Kit Contents: Housing, 1 pin contacts, rear wire seal

Mfr: OEM Sumitomo
Series: 250 Waterproof Connector
OEM P/N: 6180-1541
Mating Part: 250.WC-1S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10246
QtyPrice (USD)
1-5$2.78
6-19$2.64
20-49$2.50
50-99$2.36
100+$2.22
Quantity:  Kit

1-Way Kit
250.WC-1S
1-Way Kit
OEM P/N: 6187-1551
View Item
250.WC-1S  1-Way Kit
Kit Contents: Housing, 1 socket contacts, rear seal

Mfr: OEM Sumitomo
Series: 250 Waterproof Connector
OEM P/N: 6187-1551
Mating Part: 250.WC-1P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.54
6-19$3.36
20-49$3.19
50-99$3.01
100+$2.83
Quantity:  Kit

1-Way Plug Kit
305.TL-1P
1-Way Plug Kit
View Item

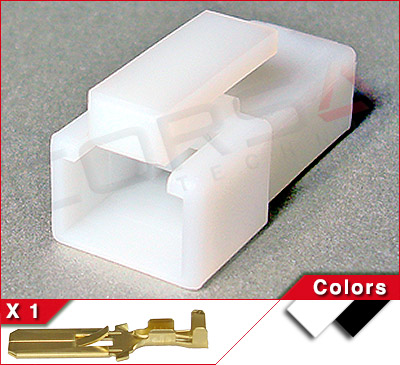

305.TL-1P  1-Way Plug Kit
Kit Contents: Housing, 1x pin contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-1S


spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-57 (male half)
  • Yazaki 7122-3010
QtyPrice (USD)
1-5$1.49
6-19$1.42
20-49$1.34
50-99$1.27
100-249$1.19
250-499$1.12
500+$1.04
Quantity:  Kit

1-Way Receptacle Kit
305.TL-1S
1-Way Receptacle Kit
View Item

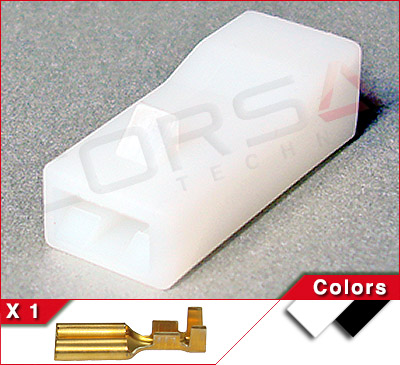

305.TL-1S  1-Way Receptacle Kit
Kit Contents: Housing, 1x socket contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: 305.TL-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-57 (female half)
  • KUM PH235-01010
  • Yazaki 7123-3010
QtyPrice (USD)
1-5$1.49
6-19$1.42
20-49$1.34
50-99$1.27
100-249$1.19
250-499$1.12
500+$1.04
Quantity:  Kit

1-Way Kit
305.WC-1P
1-Way Kit
OEM P/N: 6180-1481
View Item
305.WC-1P  1-Way Kit
Kit Contents: Housing, 1 pin contacts, rear wire seal

Mfr: OEM Sumitomo
Series: 305 Waterproof Connector
OEM P/N: 6180-1481
Mating Part: 305.WC-1S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10114
SEALS are out of stock. Email or call for alternate options while we restock the correct seal

1-Way Kit
305.WC-1S
1-Way Kit
OEM P/N: Natural: 6189-1491
Black: 6189-1492 (IN STOCK)
Gray: 6189-1493
View Item
305.WC-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, rear seal

Mfr: OEM Sumitomo
Series: 305 Waterproof Connector
OEM P/N: Natural: 6189-1491
Black: 6189-1492 (IN STOCK)
Gray: 6189-1493
Mating Part: 305.WC-1P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10115
SEALS are out of stock. Email or call for alternate options while we restock the correct seal
QtyPrice (USD)
1-5$5.37
6-19$5.10
20-49$4.83
50-99$4.56
100+$4.30
Quantity:  Kit

1-Way Kit
58W-1S
1-Way Kit
OEM P/N: 7223-1814-40
View Item

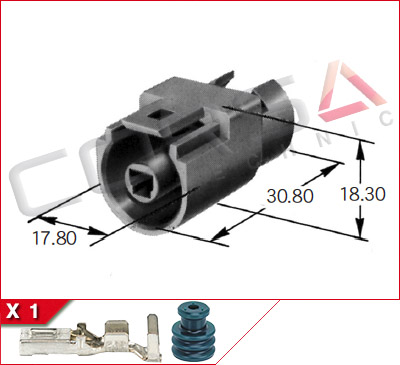

58W-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7223-1814-40
Part Name: W01FW
Mating Part: 7122-1814-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.73
6-19$5.44
20-49$5.16
50-99$4.87
100+$4.58
Quantity:  Kit

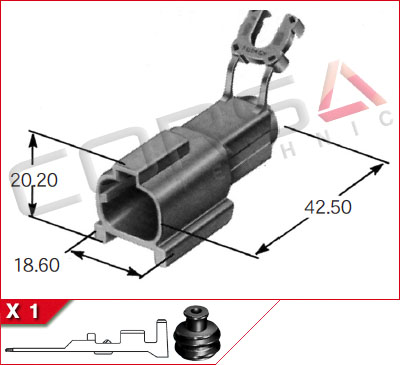

1-Way Kit
58X-1P
1-Way Kit
OEM P/N: 7222-6214-40
View Item
58X-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
OEM P/N: 7222-6214-40
Part Name: X01MGY
Mating Part: 58X-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.10
6-19$2.95
20-49$2.79
50-99$2.64
100+$2.48
Quantity:  Kit

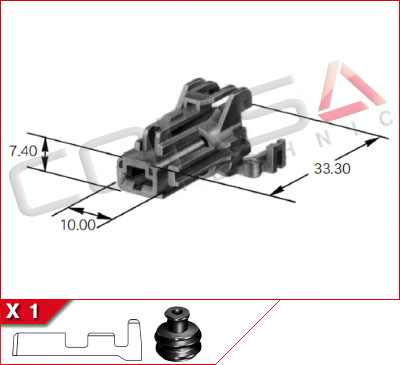

1-Way Kit
58X-1S
1-Way Kit
OEM P/N: 7123-6214-40
View Item
58X-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
OEM P/N: 7123-6214-40
Part Name: X01FGY
Mating Part: 58X-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nissan/Bosch J-48817-187 pigtail connector
  • Nissan service part 24008-9DN7D connector
QtyPrice (USD)
1-5$1.99
6-19$1.89
20-49$1.79
50-99$1.69
100+$1.59
Quantity:  Kit

1-Way Kit
91MLC-1P-1
1-Way Kit
OEM P/N: 7122-6317
View Item
91MLC-1P-1  1-Way Kit
Kit Contents: Housing, 1 pin contact for 12 awg wire

Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7122-6317
Part Name: M01MW-LC
Mating Part: 7123-6317

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.32
6-19$1.25
20-49$1.19
50-99$1.12
100+$1.06
Quantity:  Kit

3.5mm Bullet Plug kit
BC35-1P
3.5mm Bullet Plug kit
View Item
BC35-1P  3.5mm Bullet Plug kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC35-1S, 2x fit in BC35-2S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-41 (terminal), B-3 (cover)
  • Honda 070MZ-0020100 (terminal)
QtyPrice (USD)
1-49$0.29
50-99$0.26
100-249$0.23
250-499$0.20
500-999$0.17
1000+$0.14
Quantity:  Kit

3.5mm Bullet Receptacle kit
BC35-1S
3.5mm Bullet Receptacle kit
View Item
BC35-1S  3.5mm Bullet Receptacle kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC35-1P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-42 (terminal), B-4 (cover)
  • Honda 070MZ-0020200 (terminal, SKT1), 070MZ-0020300 (terminal, SKT2)
  • JST KS-052534 (cover)
QtyPrice (USD)
1-49$0.32
50-99$0.29
100-249$0.26
250-499$0.22
500-999$0.19
1000+$0.16
Quantity:  Kit

4mm Bullet Plug kit
BC40-1P-A
4mm Bullet Plug kit
View Item
BC40-1P-A  4mm Bullet Plug kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-1 (terminal), B-66 (cover)
  • KET ST750036-1, -2, ST750318-1, -2
  • KUM MT041-01200
  • TE 170002-4, -5 (loose: 170020-2, -3)
  • Yazaki 7113-1020, 7113-1021
QtyPrice (USD)
1-49$0.29
50-99$0.26
100-249$0.23
250-499$0.20
500-999$0.17
1000+$0.14
Quantity:  Kit

4mm Sealed Bullet Plug kit
BC40-1P-B
4mm Sealed Bullet Plug kit
OEM P/N: 7120-8013
View Item
BC40-1P-B  4mm Sealed Bullet Plug kit
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 sleeve

OEM P/N: 7120-8013
Mating Part: BC40-1S-B, BC40-1S-B2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST750036-1, -2, ST750318-1, -2
  • KUM MT041-01200
  • TE 170002-4, -5 (loose: 170020-2, -3)
  • Yazaki 7113-1020, 7113-1021
QtyPrice (USD)
1-49$0.42
50-99$0.38
100-249$0.34
250-499$0.29
500-999$0.25
1000+$0.21
Quantity:  Kit

4mm Sealed Bullet Plug kit
BC40-1P-C
4mm Sealed Bullet Plug kit
OEM P/N: 7230-5873
View Item
BC40-1P-C  4mm Sealed Bullet Plug kit
Waterproof with .5-1.25 mm² AV wire.

Kit Contents: 1 terminal and 1 sleeve

OEM P/N: 7230-5873
Mating Part: BC40-1S-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda 32825-SA5-300 (cover), 07692-0010100 (terminal)
QtyPrice (USD)
1-49$0.58
50-99$0.52
100-249$0.46
250-499$0.41
500-999$0.35
1000+$0.29
Quantity:  Kit

4mm Bullet Receptacle kit
BC40-1S-A
4mm Bullet Receptacle kit
View Item
BC40-1S-A  4mm Bullet Receptacle kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC40-1P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-2 (terminal), B-67 (cover)
  • JST KS-053534 (cover)
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice (USD)
1-49$0.32
50-99$0.29
100-249$0.26
250-499$0.22
500-999$0.19
1000+$0.16
Quantity:  Kit

4mm Sealed Bullet Receptacle kit
BC40-1S-B
4mm Sealed Bullet Receptacle kit
OEM P/N: 7120-1151
View Item
BC40-1S-B  4mm Sealed Bullet Receptacle kit
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7120-1151
Mating Part: BC40-1P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice (USD)
1-49$0.42
50-99$0.38
100-249$0.34
250-499$0.29
500-999$0.25
1000+$0.21
Quantity:  Kit

4mm Sealed Bullet Receptacle kit (Double wire type)
BC40-1S-B2
4mm Sealed Bullet Receptacle kit (Double wire type)
OEM P/N: 7120-1152
View Item
BC40-1S-B2  4mm Sealed Bullet Receptacle kit (Double wire type)
Waterproof with double .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7120-1152
Mating Part: BC40-1P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST730018-1, ST730343-2, ST730317-1, -2
  • KUM MT045-01200
  • Sumitomo 1800-2089
  • TE 170003-4, -5 (loose 170021-2, -3)
  • Yazaki 7115-1050
QtyPrice (USD)
1-49$1.19
50-99$1.13
100-249$1.07
250-499$0.95
500+$0.83
Quantity:  Kit

4mm Sealed Bullet Receptacle kit
BC40-1S-C
4mm Sealed Bullet Receptacle kit
OEM P/N: 7210-0011
View Item
BC40-1S-C  4mm Sealed Bullet Receptacle kit
Waterproof with .5-1.25 mm² AV wire.

Kit Contents: 1 terminal and 1 insulator

OEM P/N: 7210-0011
Mating Part: BC40-1P-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda 32826-SA5-300 (cover), 07692-0010200 (terminal)
Out of Stock - Estimated ETA early 2026

1-Way Kit
NEW ITEM! BS-1P
1-Way Kit
OEM P/N: MG610161
7118-3310 (IN STOCK)
View Item
NEW ITEM! BS-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, rear wire seal

Mfr: OEM KET, Yazaki
Series: BS Series
OEM P/N: MG610161
7118-3310 (IN STOCK)
Mating Part: BS-1S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10240
QtyPrice (USD)
1-5$4.74
6-19$4.50
20-49$4.27
50-99$4.03
100+$3.79
Quantity:  Kit

1-Way Kit
BS-1S
1-Way Kit
OEM P/N: MG640162 (IN STOCK)
7219-3310
View Item
BS-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, rear seal

Mfr: OEM KET, Yazaki
Series: BS Series
OEM P/N: MG640162 (IN STOCK)
7219-3310
Mating Part: BS-1P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10241
QtyPrice (USD)
1-5$3.45
6-19$3.28
20-49$3.10
50-99$2.93
100+$2.76
Quantity:  Kit

1-Way Kit

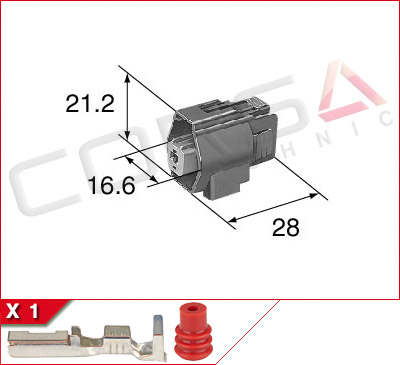

DL090-1S
1-Way Kit
OEM P/N: 6195-0066
View Item
DL090-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0066
Part Name: W-DL09F/S1AY-GR
Mating Part: 6195-0240

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$3.54
6-19$3.36
20-49$3.19
50-99$3.01
100+$2.83
Quantity:  Kit

1-Way Kit
DPA-1S
1-Way Kit
OEM P/N: 570040370
View Item
DPA-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, rear seal

Mfr: Denso
OEM P/N: 570040370
Mating Part: N/A, device only
Informational listing only. This connector is not available, but uses a terminal that is stocked and available to repin an existing connector. Uses PA-SKT terminal listed in related items.

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10197
  • Yazaki 7119-3410
This item is backordered.

1-Way Plug, Size 12
DTHD-12-1S
1-Way Plug, Size 12
OEM P/N: DTHD06-1-12S
View Item
DTHD-12-1S  1-Way Plug, Size 12

Mfr: Deutsch
Series: DTHD
OEM P/N: DTHD06-1-12S
Mating Part: DTHD04-1-12P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:Size 12
  • Wire Size:2.00 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PEI
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:25A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:Not tested
  • Flammability Rating:Not tested
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.75
6-19$2.61
20-49$2.48
50-99$2.34
100+$2.20
Quantity:  Ea

1-Way Kit

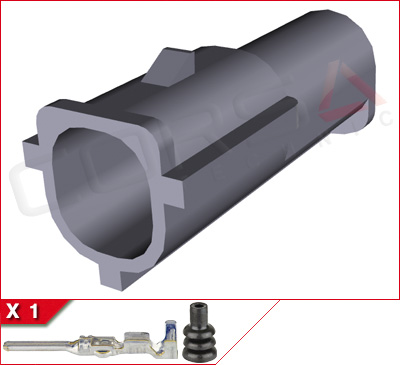

ESJ-1P
1-Way Kit
OEM P/N: 174879-2
View Item
ESJ-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal, lock

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174879-2
Mating Part: ESJ-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.70
6-19$1.61
20-49$1.53
50-99$1.44
100+$1.36
Quantity:  Kit

1-Way Kit
ESJ-1S
1-Way Kit
OEM P/N: 174877-2 (superseded by: 2822388-1)
View Item
ESJ-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174877-2 (superseded by: 2822388-1)
Mating Part: ESJ-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.76
6-19$2.62
20-49$2.48
50-99$2.35
100+$2.21
Quantity:  Kit

1-Way Kit
FSB-1S-1
1-Way Kit
OEM P/N: D6TB-14489-D
View Item
FSB-1S-1  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Ford
Series: Standard Block
OEM P/N: D6TB-14489-D

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPO
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Environmental
  • Temp Range[2]:-40 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 3U2Z-14S411-CJA, WPT-305 (Tin plated terminals) pigtail connector
QtyPrice (USD)
1-5$3.21
6-19$3.05
20-49$2.89
50-99$2.73
100+$2.57
Quantity:  Kit

1-Way Kit
FSB-1S-2
1-Way Kit
OEM P/N: D3AB-14489-FB
View Item
FSB-1S-2  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Ford
Series: Standard Block
OEM P/N: D3AB-14489-FB

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPO
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Environmental
  • Temp Range[2]:-40 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 3U2Z-14S411-HNA, WPT-352 (Tin plated terminals) pigtail connector
QtyPrice (USD)
1-5$2.96
6-19$2.81
20-49$2.66
50-99$2.52
100-249$2.37
250-499$2.22
500+$2.07
Quantity:  Kit

1-Way Kit
HB050-1S
1-Way Kit
OEM P/N: Orange: 6098-2539
Blue: 6098-2538
Natural: 6098-2537
View Item
HB050-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-2539
Blue: 6098-2538
Natural: 6098-2537
Part Name: HB050-1F-x
Mating Part: 6098-2534, 6098-2535, 6098-2536

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$1.45
6-19$1.38
20-49$1.30
50-99$1.23
100+$1.16
Quantity:  Kit

1-Way Kit
HD250-1P
1-Way Kit
OEM P/N: 6098-0232
View Item
HD250-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0232
Part Name: HD25-1MAY-BR
Mating Part: HD250-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.35
6-19$2.23
20-49$2.12
50-99$2.00
100+$1.88
Quantity:  Kit

1-Way Kit
HD250-1S
1-Way Kit
OEM P/N: 6098-0234
View Item
HD250-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: OEM Sumitomo
Series: HD 250 Unsealed Series
OEM P/N: 6098-0234
Part Name: HD25-1FAY-BR
Mating Part: HD250-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:30A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford 9U2Z-14S411-HA, WPT-932 (Tin plated terminals) pigtail connector
QtyPrice (USD)
1-5$2.45
6-19$2.33
20-49$2.21
50-99$2.08
100+$1.96
Quantity:  Kit

1-Way Kit
HW-1P
1-Way Kit
OEM P/N: 6181-0227
View Item
HW-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0227
Mating Part: HW-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.54
6-19$2.41
20-49$2.29
50-99$2.16
100+$2.03
Quantity:  Kit

1-Way Kit
HW-1S
1-Way Kit
OEM P/N: 6189-0386
View Item
HW-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0386
Mating Part: HW-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • VTEC solenoid on Honda B16 B18 D16 Civic
QtyPrice (USD)
1-5$2.88
6-19$2.74
20-49$2.59
50-99$2.45
100+$2.30
Quantity:  Kit

1-Way Kit
HX040-1P-1
1-Way Kit
OEM P/N: 6188-0657
View Item
HX040-1P-1  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6188-0657
Part Name: HX4-1MAY-B
Mating Part: HX040-1S-1, HX040-1S-2, HX040-1S-4

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.47
6-19$2.35
20-49$2.22
50-99$2.10
100+$1.98
Quantity:  Kit

1-Way Kit
HX040-1S-1
1-Way Kit
OEM P/N: 6189-0940
View Item
HX040-1S-1  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, front lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: 6189-0940
Part Name: HX4-DC1FAY-B
Mating Part: HX040-1P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.91
6-19$2.76
20-49$2.62
50-99$2.47
100+$2.33
Quantity:  Kit

1-Way Kit
HX040-1S-2
1-Way Kit
OEM P/N: Light Gray: 6189-7192
Dark Blue: 6189-7054 (IN STOCK)
View Item
HX040-1S-2  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, front lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: Light Gray: 6189-7192
Dark Blue: 6189-7054 (IN STOCK)
Part Name: HX4-DCV1FAY-x
Mating Part: HX040-1P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.85
6-19$2.71
20-49$2.56
50-99$2.42
100+$2.28
Quantity:  Kit

81 Items.  Showing Items 1 thru 50.
 1  2   Next »   Show All

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
