28-Way
MLC040IIIHD-28S
28-Way Housing
Mfr: OEM AMP/TE
Series: Multilock 040 III High Density Series
OEM P/N: 353030-1
Part Name: 040 H/D-3 PLUG HSG ASSY 28P
Mating Part: 353015, 353016
Mfr: OEM AMP/TE
Series: Multilock 040 III High Density Series
OEM P/N: 353030-1
Part Name: 040 H/D-3 PLUG HSG ASSY 28P
Mating Part: 353015, 353016
3D STEP (353030-1_A-3d_stp.zip)
Mfr Drawing (C-353030_A.pdf)General
- Sealing:Unsealed
- Number of Ways:28
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:3
- Pitch:2.5mm
- Row Spacing:4.6mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11637
MX34-28S

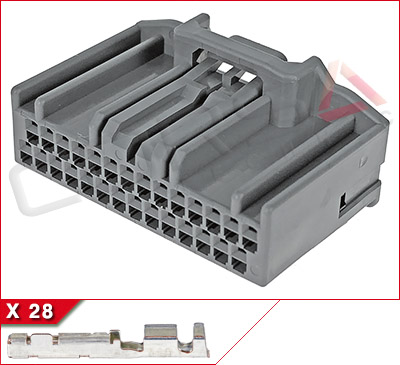

28-Way Kit
Kit Contents: Housing, 28 socket contacts
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34028SF1
Mating Part: MX34028NF2, MX34028NF3, MX34028UF2, MX34028UF3
Kit Contents: Housing, 28 socket contacts
Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34028SF1
Mating Part: MX34028NF2, MX34028NF3, MX34028UF2, MX34028UF3
General
- Sealing:Unsealed
- Number of Ways:28
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.85 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE+PA66
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
