Home ▹ Connectors ▹ By # Of Ways ▹ 20-Way

20-Way

20-Way PCB Header
025IIU-20PCB
20-Way PCB Header
OEM P/N: 4M2090-0000 (Natural, tin plated) IN STOCK
ss by: 4C1460-0000 (Natural, tin plated, for lead-free solder mounting)
View Item
025IIU-20PCB  20-Way PCB Header
Kit Contents: PCB header

Mfr: OEM Tokai Rika
Series: 0.64II (025II) Unsealed Series
OEM P/N: 4M2090-0000 (Natural, tin plated) IN STOCK
ss by: 4C1460-0000 (Natural, tin plated, for lead-free solder mounting)
Mating Part: 025IIU-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT
  • Mounting Style:PCB Board Mount
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:7A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-12258
QtyPrice (USD)
1-5$4.57
6-19$4.34
20-49$4.11
50-99$3.88
100+$3.66
Quantity:  Ea

20-Way Kit
025IIU-20S
20-Way Kit
OEM P/N: 4F2060-000 (Natural)
4F2062-000 (Black)
4F2064-000 (Blue) IN STOCK
4F2067-000 (Orange)
4F2068-000 (Light Gray)
View Item
025IIU-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts for 22-20 awg wire

Mfr: OEM Tokai Rika
Series: 0.64II (025II) Unsealed Series
OEM P/N: 4F2060-000 (Natural)
4F2062-000 (Black)
4F2064-000 (Blue) IN STOCK
4F2067-000 (Orange)
4F2068-000 (Light Gray)
Part Name: 12460NQA20F
Mating Part: 025IIU-20PCB

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-12460
QtyPrice (USD)
1-5$4.80
6-19$4.56
20-49$4.32
50-99$4.08
100+$3.84
Quantity:  Kit

20-Way (16+4) Hybrid Kit
new item icon 050U/090IIU-20P
20-Way (16+4) Hybrid Kit
OEM P/N: Natural: 6098-0909
View Item
new item icon 050U/090IIU-20P  20-Way (16+4) Hybrid Kit
Kit Contents: Housing, 16x 050 pin contacts for 22-20awg wire, 4x 090 pin contacts

Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: Natural: 6098-0909
Part Name: 11504NYA20M-NA
Mating Part: 050U/090IIU-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.22 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11504
QtyPrice (USD)
1-5$6.75
6-19$6.41
20-49$6.08
50-99$5.74
100+$5.40
Quantity:  Kit

20-Way (16+4) Hybrid Kit
050U/090IIU-20S
20-Way (16+4) Hybrid Kit
OEM P/N: Natural: 6098-0913 (In Stock)
Orange: 6098-0931
Blue: 6098-1159
View Item
050U/090IIU-20S  20-Way (16+4) Hybrid Kit
Kit Contents: Housing, 16x 050 socket contacts for 22-20awg wire, 4x 090 socket contacts

Mfr: OEM Sumitomo
Series: TS 050+090 Hybrid Unsealed
OEM P/N: Natural: 6098-0913 (In Stock)
Orange: 6098-0931
Blue: 6098-1159

Part Name: 11469NYA20F-NA
Mating Part: 050U/090IIU-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.22 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11469 (Sumitomo), 90980-11715
QtyPrice (USD)
1-5$7.59
6-19$7.21
20-49$6.83
50-99$6.45
100+$6.07
Quantity:  Kit

20-Way Kit

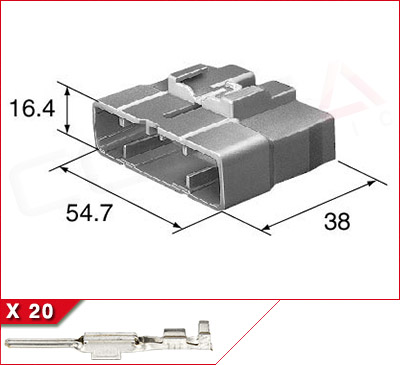

090IIU-20P-1
20-Way Kit
OEM P/N: 7282-1200
View Item
090IIU-20P-1  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7282-1200
Mating Part: 090IIU-20S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.50 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10820
QtyPrice (USD)
1-5$5.95
6-19$5.65
20-49$5.36
50-99$5.06
100+$4.76
Quantity:  Kit

20-Way Kit
090IIU-20P-2
20-Way Kit
OEM P/N: 6240-1035 Natural
6240-1065 Blue (IN STOCK)
View Item
090IIU-20P-2  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-1035 Natural
6240-1065 Blue (IN STOCK)
Part Name: TS090AY20M
Mating Part: 090IIU-20S-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.50 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10810, 90980-11440
Price: $7.79
Quantity:  Kit

20-Way Kit

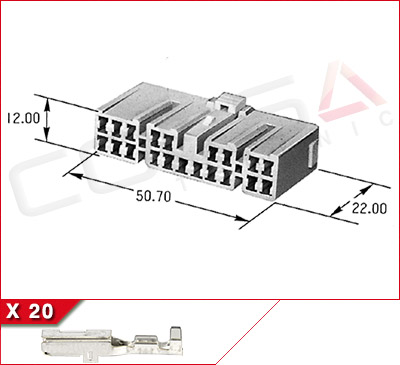

090IIU-20S-1
20-Way Kit
OEM P/N: 7283-1200
View Item
090IIU-20S-1  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 7283-1200
Mating Part: 090IIU-20P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.50 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10821
QtyPrice (USD)
1-5$6.25
6-19$5.94
20-49$5.62
50-99$5.31
100+$5.00
Quantity:  Kit

20-Way Kit
090IIU-20S-2
20-Way Kit
OEM P/N: 6240-5134 Natural (IN STOCK)
6240-5139 Blue
View Item
090IIU-20S-2  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6240-5134 Natural (IN STOCK)
6240-5139 Blue
Part Name: TS090AY20F-4S
Mating Part: 090IIU-20P-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.50 - 2.00 mm2
  • Number of Rows:3
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10811, 90980-11441
QtyPrice (USD)
1-5$5.76
6-19$5.47
20-49$5.18
50-99$4.90
100+$4.61
Quantity:  Kit

20-Way Kit
91A-20P-A
20-Way Kit
OEM P/N: MG641409
7282-8600 (IN STOCK)
View Item
91A-20P-A  20-Way Kit
Kit Contents: Housing, 20 pin contacts for 22-20 awg wire

Mfr: OEM KET, Sumitomo, Yazaki
Series: 91A, 91 A-Type, 91 A-Type
OEM P/N: MG641409
7282-8600 (IN STOCK)
Part Name: A20MW
Mating Part: 91A-20S-A

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.8mm (.030)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.0mm
  • Row Spacing:2.54mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.30
6-19$5.04
20-49$4.77
50-99$4.50
100+$4.24
Quantity:  Kit

20-Way Kit
91A-20S-A
20-Way Kit
OEM P/N: MG651412
7283-8600
View Item
91A-20S-A  20-Way Kit
Kit Contents: Housing, 20 socket contacts for 22-20 awg wire

Mfr: Aftermarket KET, Sumitomo, Yazaki
Series: 91A, 91 A-Type, 91 A-Type
OEM P/N: MG651412
7283-8600
Part Name: A20FW
Mating Part: 91A-20P-A

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.8mm (.030)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.0mm
  • Row Spacing:2.54mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.83
6-19$3.64
20-49$3.45
50-99$3.26
100+$3.06
Quantity:  Kit

20-Way Kit
DL040-20P
20-Way Kit
OEM P/N: 6188-0494
View Item
DL040-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts (for 18-16 awg, DL040-SKT2), 20 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6188-0494
Part Name: W-DL04AY20M-LGR
Mating Part: DL040-20S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:5
  • Pitch:4.3mm
  • Row Spacing:4.45mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$11.49
6-19$10.92
20-49$10.34
50-99$9.77
100+$9.19
Quantity:  Kit

20-Way Kit
DL040-20S
20-Way Kit
OEM P/N: 6189-0714
View Item
DL040-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts, 20 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0714
Part Name: W-DL04AY20F-LGR
Mating Part: DL040-20P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:5
  • Pitch:4.3mm
  • Row Spacing:4.45mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$8.89
6-19$8.45
20-49$8.00
50-99$7.56
100+$7.11
Quantity:  Kit

20-Way (16+4) Hybrid Kit
HD.HYB-20P
20-Way (16+4) Hybrid Kit
OEM P/N: 6950-0982
View Item
HD.HYB-20P  20-Way (16+4) Hybrid Kit
Kit Contents: Housing, 16x 090 pin contacts, 4x 187 pin contacts

Mfr: OEM Sumitomo
Series: HD 090+187 Hybrid Unsealed Series
OEM P/N: 6950-0982
Mating Part: HD.HYB-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Honda K-series (2002-2006) C302 connector
QtyPrice (USD)
1-5$6.31
6-19$5.99
20-49$5.68
50-99$5.36
100+$5.05
Quantity:  Kit

20-Way (16+4) Hybrid Kit
HD.HYB-20S
20-Way (16+4) Hybrid Kit
OEM P/N: 6950-0981
View Item
HD.HYB-20S  20-Way (16+4) Hybrid Kit
Kit Contents: Housing, 16x 090 socket contacts, 4x 187 socket contacts

Mfr: Aftermarket Sumitomo
Series: HD 090+187 Hybrid Unsealed Series
OEM P/N: 6950-0981
Mating Part: HD.HYB-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.

spacer
  • Honda K-series (2002-2006) C101 connector
QtyPrice (USD)
1-5$5.78
6-19$5.49
20-49$5.20
50-99$4.91
100+$4.62
Quantity:  Kit

20-Way Kit

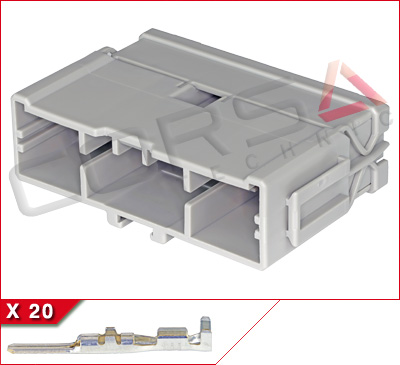

HD090-20P
20-Way Kit
OEM P/N: 6098-0260
View Item
HD090-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0260
Mating Part: HD090-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.33
6-19$4.96
20-49$4.53
50-99$4.26
100+$3.73
Quantity:  Kit

20-Way Kit

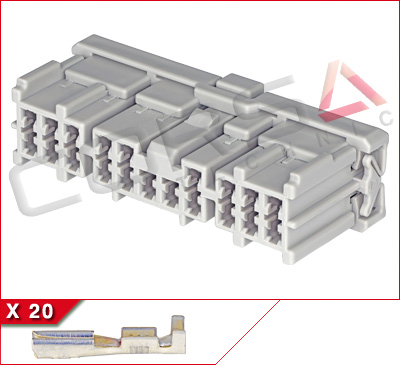

HD090-20S
20-Way Kit
OEM P/N: 6098-0259
View Item
HD090-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0259
Mating Part: HD090-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.26
6-19$3.96
20-49$3.62
50-99$3.41
100+$2.98
Quantity:  Kit

20-Way Splice Connector, Type 10
HMU.SP-20P-10
20-Way Splice Connector, Type 10
OEM P/N: 6409-0603
View Item
HMU.SP-20P-10  20-Way Splice Connector, Type 10
Kit Contents: 1x 20-way splice connector

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0603
Part Name: J/C AS 20P-M-BR
Mating Part: HMU.SP-20S-10

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.35
6-19$4.13
20-49$3.91
50-99$3.70
100+$3.48
Quantity:  Ea

20-Way Splice Connector, Type 2
HMU.SP-20P-2
20-Way Splice Connector, Type 2
OEM P/N: 6409-0072
View Item
HMU.SP-20P-2  20-Way Splice Connector, Type 2
Kit Contents: 1x 20-way splice connector

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0072
Part Name: J/C AS 20P-M-G
Mating Part: HMU.SP-20S-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.90
6-19$4.66
20-49$4.41
50-99$4.17
100+$3.92
Quantity:  Ea

20-Way Splice Connector, Type 3
HMU.SP-20P-3
20-Way Splice Connector, Type 3
OEM P/N: 6409-0255
View Item
HMU.SP-20P-3  20-Way Splice Connector, Type 3
Kit Contents: 1x 20-way splice connector

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0255
Part Name: J/C AS 20P-M-GR
Mating Part: HMU.SP-20S-3

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.50
6-19$4.28
20-49$4.05
50-99$3.83
100+$3.60
Quantity:  Ea

20-Way Splice Connector, Type 4
HMU.SP-20P-4
20-Way Splice Connector, Type 4
OEM P/N: 6409-0073
View Item
HMU.SP-20P-4  20-Way Splice Connector, Type 4
Kit Contents: 1x 20-way splice connector

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0073
Part Name: J/C AS 20P-M-L
Mating Part: HMU.SP-20S-4

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

This item is backordered.
QtyPrice (USD)
1-5$3.90
6-19$3.71
20-49$3.51
50-99$3.31
100+$3.12
Quantity:  Ea

20-Way Splice Connector, Type 6
HMU.SP-20P-6
20-Way Splice Connector, Type 6
OEM P/N: 6409-0075
View Item
HMU.SP-20P-6  20-Way Splice Connector, Type 6
Kit Contents: 1x 20-way splice connector

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6409-0075
Part Name: J/C AS 20P-M-O
Mating Part: HMU.SP-20S-6

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.76
6-19$4.52
20-49$4.28
50-99$4.05
100+$3.81
Quantity:  Ea

20-Way Splice Connector, Type 9
HMU.SP-20P-9
20-Way Splice Connector, Type 9
OEM P/N: 6440-0128
View Item
HMU.SP-20P-9  20-Way Splice Connector, Type 9
Kit Contents: 1x 20-way splice connector

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6440-0128
Part Name: J/C AS 20P-M-P
Mating Part: HMU.SP-20S-9

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.25
6-19$4.04
20-49$3.83
50-99$3.61
100+$3.40
Quantity:  Ea

20-Way Kit, Type 10
HMU.SP-20S-10
20-Way Kit, Type 10
OEM P/N: 6400-0186
View Item
HMU.SP-20S-10  20-Way Kit, Type 10
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0186
Part Name: J/C RD 20P-F-BR
Mating Part: HMU.SP-20P-10

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.95
6-19$5.65
20-49$5.36
50-99$5.06
100+$4.76
Quantity:  Kit

20-Way Kit, Type 2
HMU.SP-20S-2
20-Way Kit, Type 2
OEM P/N: 6400-0013
View Item
HMU.SP-20S-2  20-Way Kit, Type 2
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0013
Part Name: J/C RD 20P-F-G
Mating Part: HMU.SP-20P-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.70
6-19$5.42
20-49$5.13
50-99$4.85
100+$4.56
Quantity:  Kit

20-Way Kit, Type 3
HMU.SP-20S-3
20-Way Kit, Type 3
OEM P/N: 6400-0081
View Item
HMU.SP-20S-3  20-Way Kit, Type 3
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0081
Part Name: J/C RD 20P-F-GR
Mating Part: HMU.SP-20P-3

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$6.15
6-19$5.84
20-49$5.54
50-99$5.23
100+$4.92
Quantity:  Kit

20-Way Kit, Type 4
HMU.SP-20S-4
20-Way Kit, Type 4
OEM P/N: 6400-0014
View Item
HMU.SP-20S-4  20-Way Kit, Type 4
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0014
Part Name: J/C RD 20P-F-L
Mating Part: HMU.SP-20P-4

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.77
6-19$5.48
20-49$5.19
50-99$4.90
100+$4.62
Quantity:  Kit

20-Way Kit, Type 6
HMU.SP-20S-6
20-Way Kit, Type 6
OEM P/N: 6400-0016
View Item
HMU.SP-20S-6  20-Way Kit, Type 6
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6400-0016
Part Name: J/C RD 20P-F-O
Mating Part: HMU.SP-20P-6

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$6.57
6-19$6.24
20-49$5.91
50-99$5.58
100+$5.26
Quantity:  Kit

20-Way Kit, Type 9
HMU.SP-20S-9
20-Way Kit, Type 9
OEM P/N: 6440-0129
View Item
HMU.SP-20S-9  20-Way Kit, Type 9
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo
Series: HM Unsealed - Splice Series
OEM P/N: 6440-0129
Part Name: J/C RD 20P-F-P
Mating Part: HMU.SP-20P-9

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.77
6-19$5.48
20-49$5.19
50-99$4.90
100+$4.62
Quantity:  Kit

20-Way Kit

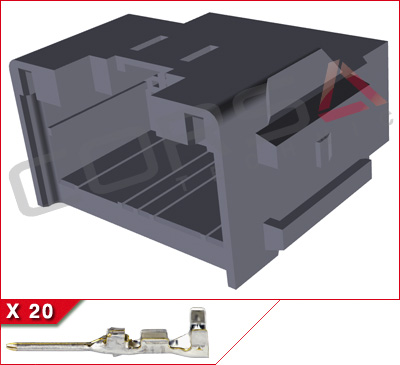

MLC040-20P
20-Way Kit
OEM P/N: 175652-2, Black
View Item
MLC040-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 175652-2, Black
Part Name: 040 MLC CAP HSG 20P W-W
Mating Part: MLC040-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.67
6-19$5.39
20-49$5.10
50-99$4.82
100+$4.54
Quantity:  Kit

20-Way Kit
MLC040-20S
20-Way Kit
OEM P/N: 174047-2, Black
View Item
MLC040-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174047-2, Black
Part Name: 040 MULTILOCK PLUG 20P
Mating Part: MLC040-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:5A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford F57B-14489-YA (black)
  • KTM 000700000AA
  • Mopar 68080555AA repair kit connector
QtyPrice (USD)
1-5$3.97
6-19$3.77
20-49$3.57
50-99$3.37
100+$3.18
Quantity:  Kit

20-Way Kit
MLC040MK2-20S
20-Way Kit
OEM P/N: 175967-2, Black
View Item
MLC040MK2-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock 040 Series, Mk II
OEM P/N: 175967-2, Black
Part Name: 040 MLC II PLUG HSG ASSY 20P
Mating Part: 175975, 174912, 175977

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.2mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:11A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mopar 68057298AA repair kit connector (black, -2)
QtyPrice (USD)
1-5$4.25
6-19$4.04
20-49$3.83
50-99$3.61
100+$3.40
Quantity:  Kit

20-Way Kit

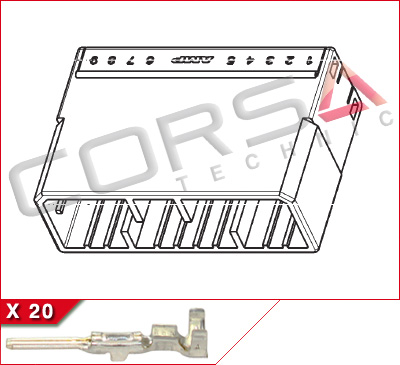

MLC070-20P
20-Way Kit
OEM P/N: White: 174936-1
View Item
MLC070-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174936-1
Part Name: 070 MLC W-W CAP HSG 20P
Mating Part: MLC070-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:5.9mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.79
6-19$5.38
20-49$4.92
50-99$4.63
100+$4.05
Quantity:  Kit

20-Way Kit

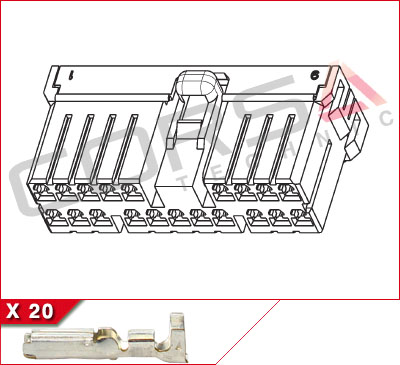

MLC070-20S
20-Way Kit
OEM P/N: White: 174952-1, Black: 174952-2
View Item
MLC070-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock 070 Series
OEM P/N: White: 174952-1, Black: 174952-2
Part Name: 070 MLC W-W PLUG HSG 20P
Mating Part: MLC070-20P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:5.9mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mopar 05183484AA repair kit connector
QtyPrice (USD)
1-5$5.78
6-19$5.49
20-49$5.20
50-99$4.91
100+$4.62
Quantity:  Kit

20-Way Kit
MTU.IL-20S-1
20-Way Kit
OEM P/N: Sumitomo: 6240-5201, Yazaki: 7123-1220
View Item
MTU.IL-20S-1  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: MT Unsealed Interlocking, 090 Unsealed
OEM P/N: Sumitomo: 6240-5201, Yazaki: 7123-1220
Part Name: MT090-20F
Mating Part: 6240-1201, 7122-1220

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10327
QtyPrice (USD)
1-5$6.49
6-19$6.04
20-49$5.52
50-99$5.19
100+$4.54
Quantity:  Kit

20-Way Kit

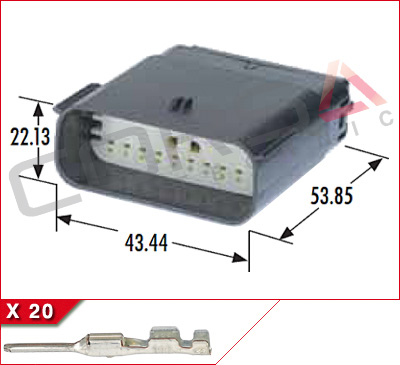

MX150-20P-A
20-Way Kit
OEM P/N: 33482-2001 (ss by: 33482-2101)
View Item
MX150-20P-A  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-2001 (ss by: 33482-2101)
Keying: A
Mating Part: MX150-20S-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:20
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 7U2Z-14S411-HA, WPT-890 (Silver plated terminals) pigtail connector
QtyPrice (USD)
1-5$4.43
6-19$4.21
20-49$3.99
50-99$3.77
100+$3.54
Quantity:  Kit

20-Way Kit
MX150-20P-B
20-Way Kit
OEM P/N: 33482-2102 (ss: 33482-2002)
View Item
MX150-20P-B  20-Way Kit
Kit Contents: Housing, 20 pin contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33482-2102 (ss: 33482-2002)
Keying: B
Mating Part: MX150-20S-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:20
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.09
6-19$4.84
20-49$4.58
50-99$4.33
100+$4.07
Quantity:  Kit

20-Way Kit

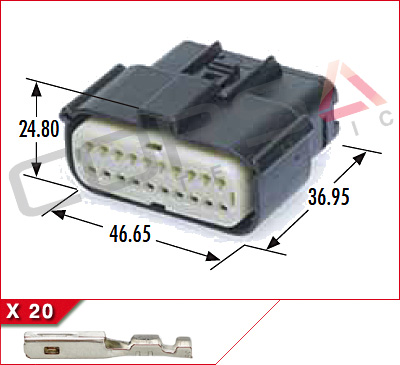

MX150-20S-A
20-Way Kit
OEM P/N: 33472-2001
View Item
MX150-20S-A  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-2001
Keying: A
Mating Part: MX150-20P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:20
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 7U2Z-14S411-GA, WPT-889 (Silver plated terminals) pigtail connector
  • Ford 6L3T-14A464-AA
  • Harley Davidson 72500-07BK
QtyPrice (USD)
1-5$5.46
6-19$5.19
20-49$4.91
50-99$4.64
100+$4.37
Quantity:  Kit

20-Way Kit

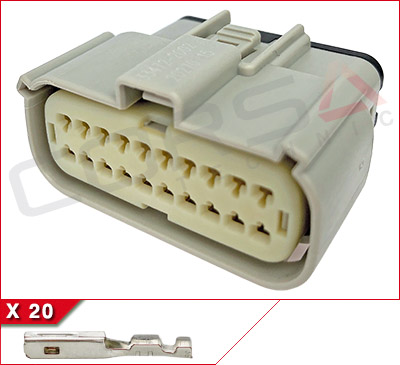

MX150-20S-B
20-Way Kit
OEM P/N: 33472-2002
View Item
MX150-20S-B  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33472-2002
Keying: B
Mating Part: MX150-20P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:20
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.82
6-19$5.53
20-49$5.24
50-99$4.95
100+$4.66
Quantity:  Kit

20-Way PCB Header - Straight Pin
MX34-20P-S
20-Way PCB Header - Straight Pin
OEM P/N: MX34020UF1
View Item
MX34-20P-S  20-Way PCB Header - Straight Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34020UF1
Mating Part: MX34-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.26
6-19$3.03
20-49$2.77
50-99$2.61
100+$2.28
Quantity:  Ea

20-Way Kit
MX34-20S
20-Way Kit
OEM P/N: MX34020SF1
View Item
MX34-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34020SF1
Mating Part: MX34-20P-S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.81
6-19$3.54
20-49$3.24
50-99$3.05
100+$2.67
Quantity:  Kit

20-Way (14+6) Hybrid Kit
YESC.15/28-20P
20-Way (14+6) Hybrid Kit
OEM P/N: 7282-9450-30
View Item
YESC.15/28-20P  20-Way (14+6) Hybrid Kit
Kit Contents: Housing, 14x 060 pin terminals and seals, 6x 110 pin terminals and seals

Mfr: OEM Yazaki
Series: YESC 1.5+2.8 Hybrid Sealed
OEM P/N: 7282-9450-30
Keying: A
Mating Part: 7283-9450-30

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.30 - 4.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF15
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$11.22
6-19$10.66
20-49$10.10
50-99$9.54
100+$8.98
Quantity:  Kit


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
