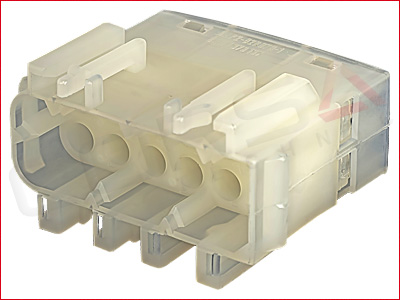

RCS25-12P-B12-Way Housing
Images shown may represent a range of products or be for illustration purposes only.
Mfr:OEM Tyco/AMP
OEM P/N:2-828879-1
BMW: 61-13-1-378-137
Part Name:12P ST-GEH 2,5MM D
Code:B
Mating Part:61-13-1-378-139
Specifications
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.5mm dia.
- Wire Size:0.22 - 4.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
