Search Results

2207 Items.

  Showing Items 951 thru 1000.
« Previous  First Page  . . .  11  12  13  14  15  16  17  18  19  20  . . .  Last Page (45)    Next »
3-Way Kit
250.WC-3P
3-Way Kit
OEM P/N: 6180-3541
View Item
250.WC-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, rear wire seal

Mfr: Aftermarket Sumitomo
Series: 250 Waterproof Connector
OEM P/N: 6180-3541
Mating Part: 250.WC-3S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:5.5mm
  • Row Spacing:8.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.
QtyPrice (USD)
1-5$4.35
6-19$4.13
20-49$3.91
50-99$3.70
100+$3.48
Quantity:  Kit

APEX 2.8 Series Plug
APEX.28-PG
APEX 2.8 Series Plug
OEM P/N: 54200005
View Item
APEX.28-PG  APEX 2.8 Series Plug

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200005

spacer
General
  • Sealing:Matte Sealed
Mechanical

QtyPrice (USD)
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.17
500+$0.15
Quantity:  Ea

MLK 1.2 Single Wire Sealing Socket Contact
MLK12.SWS-SKT3
MLK 1.2 Single Wire Sealing Socket Contact
View Item
MLK12.SWS-SKT3  MLK 1.2 Single Wire Sealing Socket Contact

Mfr: KOSTAL
Series: MLK 1.2 Single Wire Sealing Series

MLK12.SWS-Wire SizePlatingPart Number (latest)Part Number (superseded)
SKT1.17-.25 mm2 (24 AWG)Silver3212473410332124734100
-Gold3212573410332125734100
-Tin3214073410332140734100
SKT2.35 mm2 (22 AWG)Silver3212473411332124734110
-Gold3212573411332125734110
-Tin3214073411332140734110
SKT3.5-.75 mm2 (20 AWG)Silver3212473412332124734120
-Gold3212573412332125734120
-Tin3214073412332140734120
SKT4.75-1.0 mm2 (18 AWG)Silver3212473413332124734130
-Gold3212573413332125734130
-Tin3214073413332140734130
SKT51.5 mm2 (16 AWG)Silver3212473414332124734140
-Gold3212573414332125734140
-Tin3214073414332140734140
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.2mm (.047)
  • Wire Size:0.12 - 1.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.16
2500-4999$0.15
5000+$0.14
Quantity:  Ea

MLK 1.2 Single Wire Sealing Seal
MLK12.SWS-SL
MLK 1.2 Single Wire Sealing Seal
View Item
MLK12.SWS-SL  MLK 1.2 Single Wire Sealing Seal

Mfr: OEM KOSTAL
Series: MLK 1.2 Single Wire Sealing Series, and used in Hirschmann SealStar 1.2mm HMK

Wire Insulation Dia.ColorPart Number
-0.81-1.2 mm (.032-.047 in)Blue10080436
MLK12.SWS-SL1.1-2.1 mm (.043-.083 in)Maize Yellow10800507250
alt p/n: 10800507250091
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500+$0.11
Quantity:  Ea

2-Way Kit (Keying A)
MLK12.SWS-2S-2A
2-Way Kit (Keying A)
OEM P/N: 10531129 (ss: 10092983)
GM: 10010337 (ss by: 10530497)
View Item
MLK12.SWS-2S-2A  2-Way Kit (Keying A)
Kit Contents: Housing, 2 socket contacts for 20 AWG wire, 2 seals

Mfr: OEM KOSTAL
Series: MLK 1.2 Single Wire Sealing Series
OEM P/N: 10531129 (ss: 10092983)
GM: 10010337 (ss by: 10530497)
Code: A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.2mm (.047)
  • Wire Size:0.12 - 1.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66+GF30
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:19A
Environmental
  • Temp Range[2]:-40 - 155 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.91
6-19$5.61
20-49$5.32
50-99$5.02
100+$4.73
Quantity:  Kit

Connector Clamp With Harness Tape Tab
CLIP-110
Connector Clamp With Harness Tape Tab
OEM P/N: 0499-0173
View Item
CLIP-110  Connector Clamp With Harness Tape Tab

Mfr: OEM D.A. Inc.
Series: 090II Sealed, TS 025 Sealed, TS 090 Sealed, TS 187 Unsealed, Yazaki 0.64mm Sealed Series
OEM P/N: 0499-0173
Similar to CLIP-104, but with a harness support tape tab.

QtyPrice (USD)
1-5$0.51
6-19$0.48
20-49$0.46
50-99$0.43
100+$0.41
Quantity:  Ea

Splice Crimp Die
TOOL-CDIE5
Splice Crimp Die
View Item
TOOL-CDIE5  Splice Crimp Die

Crimp die people are finding works well for crimp splices FCS-3 and FCS-4.

Price: $24.05
Quantity:  Ea

58 X Sealed Plug
58X-PG
58 X Sealed Plug
View Item
58X-PG  58 X Sealed Plug

Mfr: Aftermarket Yazaki
Series: 58 X Sealed
Generic design plug to meet function of 7157-3572-80

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Contact Type:Pin, flat
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500+$0.08
Quantity:  Ea

5-Way Kit
HX187-5S
5-Way Kit
OEM P/N: 6189-1154 Natural
6189-0902 Dark Gray (IN STOCK)
6189-0903 Brown
6189-0904 Black (IN STOCK)
View Item
HX187-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock

Mfr: OEM Sumitomo
Series: HX 187 Sealed Series
OEM P/N: 6189-1154 Natural
6189-0902 Dark Gray (IN STOCK)
6189-0903 Brown
6189-0904 Black (IN STOCK)

Part Name: WP187-5FAY
Mating Part: N/A, device header

  • See related terminal for crimp specs
spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:8.2mm
  • Row Spacing:8.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $12.78
Quantity:  Kit

HM-4S Cap/Cover
HM-4S-CAP
HM-4S Cap/Cover
View Item
HM-4S-CAP  HM-4S Cap/Cover

Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
Mating Part: HM-4S
Cap/cover for HM-4S diagnostic connector when not in use.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging

QtyPrice (USD)
1-5$1.76
6-19$1.67
20-49$1.58
50-99$1.50
100+$1.41
Quantity:  Kit

2-Way Kit
TS187-2P
2-Way Kit
OEM P/N: 6188-0259
View Item
TS187-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 187 Sealed Series
OEM P/N: 6188-0259
Part Name: 11409W8A02M-GR
Mating Part: TS187-2S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:4.8mm (.187)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Pitch:8.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-11409
QtyPrice (USD)
1-5$5.42
6-19$5.15
20-49$4.88
50-99$4.61
100+$4.34
Quantity:  Kit

16-Way Kit
DL090-16P
16-Way Kit
OEM P/N: 6188-0495
View Item
DL090-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals

Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6188-0495
Part Name: W-DL09AY16M-DGR
Mating Part: DL090-16S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:4
  • Pitch:Multiple
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KTM 000700000CQ
QtyPrice (USD)
1-5$9.72
6-19$9.23
20-49$8.75
50-99$8.26
100+$7.78
Quantity:  Kit

6-Way Kit
RS.T2-6P-1
6-Way Kit
OEM P/N: 6181-0511
View Item
RS.T2-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6181-0511
Part Name: RS06MG
Mating Part: RS.T2-6S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.76
6-19$4.52
20-49$4.28
50-99$4.05
100+$3.81
Quantity:  Kit

6-Way Kit
RS.T2-6S-1
6-Way Kit
OEM P/N: 6189-7760 (supersedes: 6189-0766)
View Item
RS.T2-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, front lock

Mfr: OEM Sumitomo
Series: RS Series - Standard Type 2 (previously called 91 series)
OEM P/N: 6189-7760 (supersedes: 6189-0766)
Part Name: RS06FG
Mating Part: RS.T2-6P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.88
6-19$4.64
20-49$4.39
50-99$4.15
100+$3.90
Quantity:  Kit

20-Way PCB Header - Straight Pin
MX34-20P-S
20-Way PCB Header - Straight Pin
OEM P/N: MX34020UF1
View Item
MX34-20P-S  20-Way PCB Header - Straight Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34020UF1
Mating Part: MX34-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.26
6-19$3.03
20-49$2.77
50-99$2.61
100+$2.28
Quantity:  Ea

20-Way Kit
MX34-20S
20-Way Kit
OEM P/N: MX34020SF1
View Item
MX34-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34020SF1
Mating Part: MX34-20P-S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.81
6-19$3.54
20-49$3.24
50-99$3.05
100+$2.67
Quantity:  Kit

44-Way PCB Header
SS10-44P
44-Way PCB Header
OEM P/N: 5-6447223-7 upper lock (supersedes 5-1447223-7, restricted)
View Item
SS10-44P  44-Way PCB Header
Kit Contents: PCB header with right angle mounting

Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 5-6447223-7 upper lock (supersedes 5-1447223-7, restricted)
Mating Part: SS10-44S

spacer
Electrical
  • Current Rating[1]:15A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $19.75
Quantity:  Ea

16-Way Kit
YESC.15-16P
16-Way Kit
OEM P/N: 7282-3445-30
View Item
YESC.15-16P  16-Way Kit
Kit Contents: Housing, 16 pin contacts, 16 seals

Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7282-3445-30
Mating Part: YESC.15-16S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:16
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.25 mm2
  • Number of Rows:4
  • Pitch:5.5mm
  • Row Spacing:6.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Panel Mount
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $8.38
Quantity:  Kit

5-Way Kit
MP280-5P
5-Way Kit
OEM P/N: 12186400
View Item
MP280-5P  5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA

Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12186400
Mating Part: 12084891

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 5.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT+GF
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:Yes, separate item
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.94
6-19$3.74
20-49$3.55
50-99$3.35
100+$3.15
Quantity:  Kit

1-Way Kit
MP280-1P
1-Way Kit
OEM P/N: 12065171
View Item
MP280-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal, TPA

Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12065171
Mating Part: MP280-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 5.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:Yes, separate item
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.99
6-19$1.89
20-49$1.79
50-99$1.69
100+$1.59
Quantity:  Kit

1-Way Kit
MP280-1S
1-Way Kit
OEM P/N: 12065172
View Item
MP280-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, TPA

Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12065172
Mating Part: MP280-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 5.00 mm2
  • Number of Rows:1
  • Pitch:7.7mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:Yes, separate item
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.99
6-19$1.89
20-49$1.79
50-99$1.69
100+$1.59
Quantity:  Kit

5-Way Kit
719-5P
5-Way Kit
OEM P/N: 09-9789-71-05 for cable dia. 4-5mm (.157-.197 in)
View Item
719-5P  5-Way Kit
Kit Contents: 1x 5-way solder cup kit for max. 22 awg wire

Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9789-71-05 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-5S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:5
  • Contact Size:0.75mm (.030)
  • Wire Size:0.13 - 0.25 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, circular
  • Termination:Solder Cup
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:60V
Environmental
  • Temp Range[2]:-25 - 70 °C
  • Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on 2D Debus & Diebold systems and hardware
  • Common on Aim data logger systems and hardware
Price: $8.56
Quantity:  Kit

3-Way Kit
719-3S-x
3-Way Kit
OEM P/N: 09-9748-70-03 for cable dia. 3-4mm (.118-.157 in)
09-9748-71-03 for cable dia. 4-5mm (.157-.197 in)
View Item
719-3S-x  3-Way Kit
Kit Contents: 1x 3-way solder cup kit for max. 22 awg wire

Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9748-70-03 for cable dia. 3-4mm (.118-.157 in)
09-9748-71-03 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-3P-x

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:0.75mm (.030)
  • Wire Size:0.13 - 0.25 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Solder Cup
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:60V
Environmental
  • Temp Range[2]:-25 - 70 °C
  • Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on 2D Debus & Diebold systems and hardware
  • Common on Aim data logger systems and hardware
Price: $6.04
Quantity:  Kit

4-Way Kit
719-4S-x
4-Way Kit
OEM P/N: 09-9764-70-04 for cable dia. 3-4mm (.118-.157 in)
09-9764-71-04 for cable dia. 4-5mm (.157-.197 in)
View Item
719-4S-x  4-Way Kit
Kit Contents: 1x 4-way solder cup kit for max. 22 awg wire

Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9764-70-04 for cable dia. 3-4mm (.118-.157 in)
09-9764-71-04 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-4P-x

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:0.75mm (.030)
  • Wire Size:0.13 - 0.25 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Solder Cup
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:60V
Environmental
  • Temp Range[2]:-25 - 70 °C
  • Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on 2D Debus & Diebold systems and hardware
  • Common on Aim data logger systems and hardware
Price: $7.28
Quantity:  Kit

5-Way Kit
719-5S
5-Way Kit
OEM P/N: 09-9790-71-05 for cable dia. 4-5mm (.157-.197 in)
View Item
719-5S  5-Way Kit
Kit Contents: 1x 5-way solder cup kit for max. 22 awg wire

Mfr: OEM Binder
Series: 719 Series
OEM P/N: 09-9790-71-05 for cable dia. 4-5mm (.157-.197 in)
Mating Part: 719-5P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:5
  • Contact Size:0.75mm (.030)
  • Wire Size:0.13 - 0.25 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Solder Cup
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:60V
Environmental
  • Temp Range[2]:-25 - 70 °C
  • Protection Rating:IP40
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on 2D Debus & Diebold systems and hardware
  • Common on Aim data logger systems and hardware
Price: $8.56
Quantity:  Kit

5-Way Kit
712-5P
5-Way Kit
OEM P/N: 99-0413-00-05
View Item
712-5P  5-Way Kit
Kit Contents: 1x 5-way solder cup kit

Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0413-00-05
Mating Part: 712-5S
  • Max. 24 awg wire
  • Cable dia. 3.5-5mm (.138-.197 in)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:5
  • Contact Size:1.0mm (.040)
  • Wire Size:0.13 - 0.25 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, circular
  • Termination:Solder Cup
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 85 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on 2D Debus & Diebold systems and hardware
  • Common on Aim data logger systems and hardware
This item is backordered.
Price: $12.36
Quantity:  Kit

5-Way Kit
712-5S
5-Way Kit
OEM P/N: 99-0414-00-05
View Item
712-5S  5-Way Kit
Kit Contents: 1x 5-way solder cup kit

Mfr: OEM Binder
Series: 712 Series
OEM P/N: 99-0414-00-05
Mating Part: 712-5P
  • Max. 24 awg wire
  • Cable dia. 3.5-5mm (.138-.197 in)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:5
  • Contact Size:1.0mm (.040)
  • Wire Size:0.13 - 0.25 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Solder Cup
  • Housing Material:PA
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:125V
Environmental
  • Temp Range[2]:-40 - 85 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on 2D Debus & Diebold systems and hardware
  • Common on Aim data logger systems and hardware
This item is backordered.
Price: $13.24
Quantity:  Kit

Small Open Barrel Terminal ''F'' Crimp Die
TOOL-CDIE1
Small Open Barrel Terminal ''F'' Crimp Die
View Item
TOOL-CDIE1  Small Open Barrel Terminal ''F'' Crimp Die

For use on smaller motorcycle/automotive terminals

NOT compatible with:
- JWPF-series, JST
- SS10-series, Tyco/AMP
- MX23A-series, JAE
- MX47-series, JAE


Price: $18.03
Quantity:  Ea

P-706 Open Barrel ''F'' Crimper
TOOL-CF7
P-706 Open Barrel ''F'' Crimper
View Item
TOOL-CF7  P-706 Open Barrel ''F'' Crimper

Ideal for crimping small terminals, the Hozan P-706 is machined and built to high standards that result in a high quality crimp.

Features 11 "F" crimp cavities from 1.4-3.7mm (1.4, 1.7L, 1.7H, 2.0L, 2.0H, 2.4L, 2.4M, 2.4H, 2.8, 3.2, 3.7mm)
L=Narrow crimp width, M=Mid size crimp width, H=Wide crimp width (Widest, of the particular size available)
3 round insulation crimps: 1.8, 2.5, and 4.0mm diameter
Made in Japan


Price: $55.73
Quantity:  Ea

P-707 Open Barrel ''F'' Crimper
TOOL-CF8
P-707 Open Barrel ''F'' Crimper
View Item
TOOL-CF8  P-707 Open Barrel ''F'' Crimper

The Hozan P-707 features 13 "F" crimp cavities suitable for a wide range of terminals, both small and large.
Die range: 1.2-4.2mm (1.2, 1.4, 1.4L, 1.7, 1.7L, 2.0, 2.0L, 2.4, 2.4L, 2.9, 2.9L, 3.5, 4.2mm)
L=Narrow crimp width
2 round insulation crimps: 1.6, and 2.2mm diameter
Made in Japan

This item is backordered.
QtyPrice (USD)
1-9$78.50
10-19$74.58
20+$70.65
Quantity:  Ea

6-Way Kit, Type B
APEX.28-6S-B
6-Way Kit, Type B
OEM P/N: 54200609 (Aptiv p/n: 15412914)
View Item
APEX.28-6S-B  6-Way Kit, Type B
Kit Contents: Housing, 6 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200609 (Aptiv p/n: 15412914)
Keying: B
Mating Part: APEX.28-6P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707310, and connector used in Mopar 05013985AA repair kit.
  • Ford CU2Z-14S411-TA, WPT-1266 (Tin greased terminals) pigtail connector
QtyPrice (USD)
1-5$6.80
6-19$6.46
20-49$6.12
50-99$5.78
100+$5.44
Quantity:  Kit

APEX 2.8 Series Pin Contact
APEX.28-PIN
APEX 2.8 Series Pin Contact
View Item
APEX.28-PIN  APEX 2.8 Series Pin Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28-PIN1.3 mm2 (22 AWG)Tin54002201 (10762776)
-Gold54002230 (33501642)
APEX.28-PIN2.5-.85 mm2 (20-18 AWG)Tin54001801 (10762775)
-Gold54001818 (15435215)
APEX.28-PIN31.25-2.0 mm2 (16-14 AWG)Tin54001401 (10757692)
-Gold54001441 (13681974)
APEX.28-PIN43.0-5.0 mm2 (12-10 AWG)Tin54001001 (10762774)
-Gold54001020 (15512730)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.65
50-99$0.62
100-249$0.58
250-499$0.55
500-999$0.52
1000+$0.49
Quantity:  Ea

3-Way Kit, Type C
APEX.28-3P-C
3-Way Kit, Type C
OEM P/N: 54200314 (Aptiv p/n: 13865701)
View Item
APEX.28-3P-C  3-Way Kit, Type C
Kit Contents: Housing, 3 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200314 (Aptiv p/n: 13865701)
Keying: C
Mating Part: APEX.28-3S-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 56038165
QtyPrice (USD)
1-5$6.05
6-19$5.75
20-49$5.45
50-99$5.14
100+$4.84
Quantity:  Kit

4-Way Kit, Type B
APEX.28-4P-B
4-Way Kit, Type B
OEM P/N: 54200414 (Aptiv p/n: 13754761)
View Item
APEX.28-4P-B  4-Way Kit, Type B
Kit Contents: Housing, 4 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200414 (Aptiv p/n: 13754761)
Keying: B
Mating Part: APEX.28-4S-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707267, and connector used in Mopar 05013983AA repair kit.
  • Ford DU5T-14A594-AA
QtyPrice (USD)
1-5$6.15
6-19$5.84
20-49$5.54
50-99$5.23
100-249$4.92
250+$4.61
Quantity:  Kit

APEX 2.8 Single Wire Sealing Socket Contact
APEX.28SWS-SKT
APEX 2.8 Single Wire Sealing Socket Contact
View Item
APEX.28SWS-SKT  APEX 2.8 Single Wire Sealing Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Single Wire Sealing Series, APEX 2.8 + 6.3 Hybrid

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28SWS-SKT1.5-.85 mm2 (20-18 AWG)Tin54001807 (10810375)
-Gold54001811 (13948955)
APEX.28SWS-SKT21.25-2.0 mm2 (16-14 AWG)Tin54001404 (13627267)
-Gold54001410 (15470590)
APEX.28SWS-SKT33.0 mm2 (12 AWG)Tin54001202 (10810733)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 9U5T-14474-KA (54001879), 9U5T-14474-JA (54001448), XL3T-14474-DA (54001840), XL3T-14474-AA (54001432)
QtyPrice (USD)
1-49$0.31
50-99$0.29
100-249$0.28
250-499$0.26
500-999$0.25
1000+$0.23
Quantity:  Ea

3-Way Kit, Keying A
APEX.28SM-3S
3-Way Kit, Keying A
OEM P/N: F258300 (Aptiv p/n: 13791661)
(alt. p/n w/aqua TPA: F593500, 33513145)
(alt. p/n w/CPA: F731210, 13962796)
View Item
APEX.28SM-3S  3-Way Kit, Keying A
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX SensoMate 2.8 Series
OEM P/N: F258300 (Aptiv p/n: 13791661)
(alt. p/n w/aqua TPA: F593500, 33513145)
(alt. p/n w/CPA: F731210, 13962796)
Keying: A
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford AU2Z-14S411-JA, WPT-1068 (Tin plated, greased terminals) pigtail connector
  • Ford AU2Z-14S411-JB, WPT-1369 (Tin plated, greased terminals) pigtail connector
  • Ford 8U5T-14A464-GAC
QtyPrice (USD)
1-5$6.64
6-19$6.31
20-49$5.98
50-99$5.64
100+$5.31
Quantity:  Kit

2-Way Kit
MX150-2S-1A
2-Way Kit
OEM P/N: 33471-0201
View Item
MX150-2S-1A  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33471-0201
Keying: A
Mating Part: 33481-0201

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.49
6-19$2.37
20-49$2.24
50-99$2.12
100+$1.99
Quantity:  Kit

3-Way Kit
MX150-3S-1A
3-Way Kit
OEM P/N: 33471-0301 (superseded by: 33471-3301)
View Item
MX150-3S-1A  3-Way Kit
Kit Contents: Housing, 3 socket contacts

Mfr: OEM Molex
Series: MX150 Sealed Series
OEM P/N: 33471-0301 (superseded by: 33471-3301)
Keying: A
Mating Part: MX150-3P-1A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
  • Number of Rows:1
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS/PA+GF20
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Harley Davidson 72512-07BK
  • Mopar 68358151AA repair kit connector
QtyPrice (USD)
1-5$2.56
6-19$2.43
20-49$2.30
50-99$2.18
100+$2.05
Quantity:  Kit

MIL-C-27500 Shielded Cable
M27500
MIL-C-27500 Shielded Cable
View Item
M27500  MIL-C-27500 Shielded Cable

Comparable to 55A11X1, also known as SPEC 55, or 55A wire, which is the marketing name used by TE-Raychem for WC-27500 cable.
SPECS:
  • MIL-DTL-27500 (NEMA WC27500)
  • Conductor: M22759/32 tin plated copper wire, with cross-linked modified Tefzel insulation (XLETFE)
  • Shield: Tin plated copper
  • Jacket: Cross-linked modified Tefzel insulation (XLETFE)
  • 600 V voltage rating
  • +150° C temperature rating

Applicable shield terminator
AWG size, # of Cond.Nom. width*P/N M27500-CWT-seriesS01/S02
M83519 series
22 AWG, 1C1.85mm (.073")22SB1T23CWT-3-W122-5S01-02-x
S02-06-x
22 AWG, 2C2.88mm (.113")22SB2T23CWT-5-W122-5S01-03-x
S02-08-x
22 AWG, 3C3.03mm (.119")22SB3T23
22 AWG, 4C3.60mm (.142")22SB4T23
22 AWG, 6C4.07mm (.160")22SB6T23
20 AWG, 1C2.14mm (.084")20SB1T23CWT-3-W122-5S01-02-x
S02-07-x
20 AWG, 2C3.34mm (.131")20SB2T23CWT-5-W122-5S01-03-x
S02-08-x
20 AWG, 3C3.39mm (.133")20SB3T23
20 AWG, 4C4.02mm (.158")20SB4T23
*Nom. width at widest point, as cross section varies in shape with conductor count

WC-27500 P/NSPEC 55 P/N
M27500-22SB1T2355A1111-22-9-9
M27500-22SB2T2355A1121-22-9/96-9
M27500-22SB3T2355A1131-22-9/96/93-9
M27500-22SB4T2355A1141-22-9/93/95/96-9
M27500-22SB6T23n/a
M27500-20SB1T2355A1111-20-9-9
M27500-20SB2T2355A1121-20-9/96-9
M27500-20SB3T2355A1131-20-9/96/93-9
M27500-20SB4T2355A1141-20-9/93/95/96-9

Qty% Off
25-49 5%
50-9910%
100+15%

Quantity:  Ft

MCP 1.5K Single Wire Sealing Socket Contact
MCP15K.SWS-SKT
MCP 1.5K Single Wire Sealing Socket Contact
View Item
MCP15K.SWS-SKT  MCP 1.5K Single Wire Sealing Socket Contact

Mfr: OEM AMP/TE

Wire SizePlatingStripLoose
MCP15K.SWS-SKT1.2-.35 mm2 (24-22 AWG)Tin1564324-11564325-1
-Gold1564324-21564325-2
MCP15K.SWS-SKT2.5-1.0 mm2 (20-18 AWG)Tin1241380-11241381-1
MCP15K.SWS-SKT2-AUGold1241380-21241381-2
MCP15K.SWS-SKT31.0-1.5 mm2 (16 AWG)Tin1418884-11418885-1
-GoldN/AN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.20 - 1.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

58 S Unsealed Pin Contact
58S-PIN
58 S Unsealed Pin Contact
View Item
58S-PIN  58 S Unsealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 S Unsealed, Yazaki: 58 S Unsealed

Wire SizeMaterialPlatingSumitomoYazaki
-.3-.5 mm2 (22-20 AWG)BrassTinN/A7114-1230
-GoldN/A7114-1230-08
-Copper AlloyTinN/A7114-1238
58S-PIN1-S.3-.85 mm2 (22-18 AWG)BrassTin1400-0198N/A
-Copper AlloyTin1400-0302N/A
-.85-2.0 mm2 (18-14 AWG)BrassTinN/A7114-1231
-GoldN/A7114-1231-08
-Copper AlloyTinN/A7114-1239
58S-PIN2-S1.25-2.0 mm2 (16-14 AWG)BrassTin1400-0199N/A
-Copper AlloyTin1400-0303N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

6-Way Kit
BAK-6S
6-Way Kit
OEM P/N: 1 928 404 669 (1928404669)
View Item
BAK-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts for 20-18 awg wire, 6 seals

Mfr: OEM Bosch
Series: BAK Series
OEM P/N: 1 928 404 669 (1928404669)
Code: 1
Mating Part: 1 928 405 111 (1928405111)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.5mm (.060)
  • Wire Size:0.50 - 1.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:4A
  • Voltage Rating:40V
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP54K, IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • LSU 4.9 UEGO sensor connector
spacer
  • Ford BU2Z-14S411-NA, WPT-1146 (Tin greased terminals) pigtail connector
  • Ford 6G9T-14A464-XDA
  • Mopar 68250763AA repair kit connector
QtyPrice (USD)
1-5$10.65
6-19$10.12
20-49$9.59
50-99$9.05
100-249$8.52
250-499$7.99
500+$7.46
Quantity:  Kit

0B Series 0.7mm Socket Contact
LEMO-0B-0.7-SKT
0B Series 0.7mm Socket Contact
OEM P/N: EGG.0B.655.ZZM for 26-22 AWG
View Item
LEMO-0B-0.7-SKT  0B Series 0.7mm Socket Contact

Mfr: OEM LEMO
Series: B Series
OEM P/N: EGG.0B.655.ZZM for 26-22 AWG

spacer
General
  • Sealing:Unsealed
  • Contact Size:.7mm dia.
  • Wire Size:0.14 - 0.34 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:6A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $2.95
Quantity:  Ea

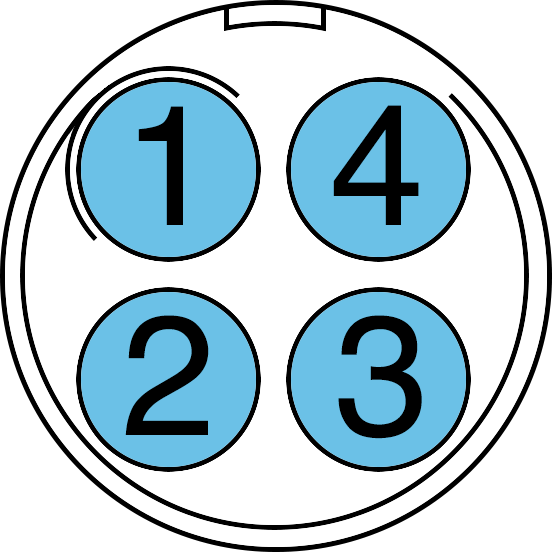

4-Way Kit
LEMO-00-4P
4-Way Kit
OEM P/N: FGG.00.304.CLAD35 for cable dia. 2.8-3.5mm (.110-.138in.)
View Item
LEMO-00-4P  4-Way Kit
Kit Contents: Housing with male solder cup insert for 30 AWG

Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.00.304.CLAD35 for cable dia. 2.8-3.5mm (.110-.138in.)

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:.5mm dia.
  • Wire Size:0.05 - 0.05 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, circular
  • Termination:Solder Cup
  • Housing Material:Brass
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:1A
Environmental
  • Temp Range[2]:-55 - 250 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $27.19
Quantity:  Kit

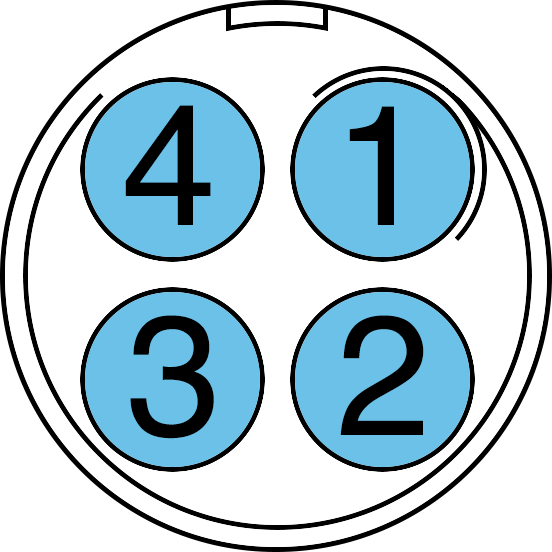

4-Way Kit
LEMO-0B-4S
4-Way Kit
OEM P/N: PHG.0B.304.CYMD42 for cable dia. 3.3-4.2mm (.130-.165 in)
View Item
LEMO-0B-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts for 26-22 AWG

Mfr: OEM LEMO
Series: B Series
OEM P/N: PHG.0B.304.CYMD42 for cable dia. 3.3-4.2mm (.130-.165 in)
Mating Part: LEMO-0B-4P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:.7mm dia.
  • Wire Size:0.14 - 0.34 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:Brass
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:6A
Environmental
  • Temp Range[2]:-55 - 250 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Common on Pi Research/Cosworth data systems and hardware
Price: $27.69
Quantity:  Kit

13-Way Kit
HE040-13S
13-Way Kit
OEM P/N: 6098-2784
View Item
HE040-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts for 22-18 AWG wire

Mfr: OEM Sumitomo
Series: HE 040 Unsealed Series
OEM P/N: 6098-2784
Part Name: HE04 13F-NA
Mating Part: HE040-13P, 6098-3239

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:1.0mm (.040)
  • Wire Size:0.22 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.37
6-19$5.10
20-49$4.83
50-99$4.56
100+$4.30
Quantity:  Kit

34-Way Kit (Keying 2, Double Locking)
SS10-34S-2D
34-Way Kit (Keying 2, Double Locking)
OEM P/N: 3-1437290-9
View Item
SS10-34S-2D  34-Way Kit (Keying 2, Double Locking)
Kit Contents: Housing, 34 socket contacts

Mfr: OEM Tyco/AMP
Series: Superseal 1.0 Series
OEM P/N: 3-1437290-9
Keying: 2
Mating Part: 3-6437285-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:34
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:4
  • Pitch:3.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PET
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$19.59
6-19$18.61
20-49$17.63
50-99$16.65
100+$15.67
Quantity:  Kit

2-Way Kit
250.WC-2P-2
2-Way Kit
View Item
250.WC-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, rear wire seal

Mfr: Aftermarket Sumitomo
Series: 250 Waterproof Connector
Mating Part: 250.WC-2S-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:10.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.77
6-19$2.63
20-49$2.49
50-99$2.35
100+$2.22
Quantity:  Kit

12-Way Kit, 040 size
MLC.HYB-12S-1
12-Way Kit, 040 size
OEM P/N: Grey: 174913-6
View Item
MLC.HYB-12S-1  12-Way Kit, 040 size
Kit Contents: Housing, 12x .040 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174913-6
Part Name: HYBRID PLUG HSG 12P GRAY
While this isn't a hybrid connector itself, it is part of the hybrid series
Mating half of connector: 174915-6, 2-178780-6

spacer
General
  • Sealing:Unsealed
  • Number of Ways:12
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:11A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11129
QtyPrice (USD)
1-5$5.62
6-19$5.23
20-49$4.78
50-99$4.50
100+$3.93
Quantity:  Kit

58 M Unsealed Pin Contact
58M-PIN
58 M Unsealed Pin Contact
View Item
58M-PIN  58 M Unsealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed

Wire SizeMaterialPlatingSumitomoYazaki
-.3-.5 mm2 (22-20 AWG)BrassNone1400-76487114-2870
58M-PIN1TinN/A7114-2870-02
-Copper alloyTin1400-98287114-2875
-.85-2.0 mm2 (18-14 AWG)BrassNone1401-76487114-2871
58M-PIN2TinN/A7114-2871-02
-Copper alloyTin1401-98287114-2876
-3.0 mm2 (12 AWG)BrassNone1402-76487114-2872
58M-PIN3TinN/A7114-2872-02
-Copper alloyTin1402-98287114-2877
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea


2207 Items.

  Showing Items 951 thru 1000.
« Previous  First Page  . . .  11  12  13  14  15  16  17  18  19  20  . . .  Last Page (45)    Next »

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
