3-Way

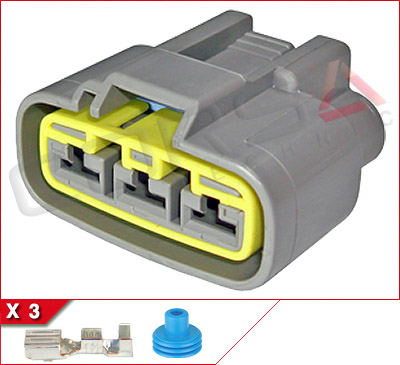

QLW-3S-2
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Furukawa
Series: QLW Series
OEM P/N: QLW-A-3F-GR (alt p/n: Q011781)
Mating Part: N/A
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Furukawa
Series: QLW Series
OEM P/N: QLW-A-3F-GR (alt p/n: Q011781)
Mating Part: N/A
Rearview Pinout (QLW-3S-X.png)General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:6.3mm (.250)
- Wire Size:2.00 - 8.00 mm2
- Number of Rows:1
- Pitch:10.45mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:34A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Various regulator, rectifier
RH-3S-1
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7283-8852-30
Part Name: RH03FB
Code: A
Mating Part: RH-3P-1
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Yazaki
Series: RH Series
OEM P/N: 7283-8852-30
Part Name: RH03FB
Code: A
Mating Part: RH-3P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford CU2Z-14S411-AXA, WPT-1341 (Tin greased terminals) pigtail connector
- Mopar 68528156AA repair kit connector
- Nissan/Bosch J-48817-116 pigtail connector
- Nissan service part 24008-9DM0C connector

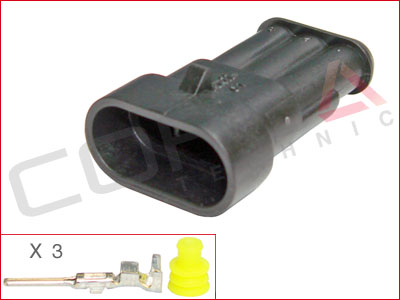

SS15-3P
3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282105-1
Mating Part: SS15-3S
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282105-1
Mating Part: SS15-3S
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 2.50 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:14A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ducati wheel speed, diagnostic, and side stand (sensor side)

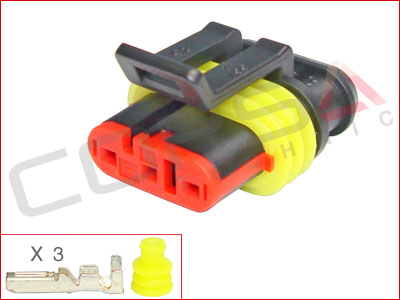

SS15-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282087-1
Mating Part: SS15-3P
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Tyco/AMP
Series: Superseal 1.5 Series
OEM P/N: 282087-1
Mating Part: SS15-3P
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 2.50 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:14A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ducati wheel speed, diagnostic, and side stand (harness side)
- Maserati 673004806 repair kit connector
- Mopar 68127055AA repair kit connector
- Nissan/Bosch J-48817-1117 pigtail connector
- Nissan service part 24008-9DK2C connector

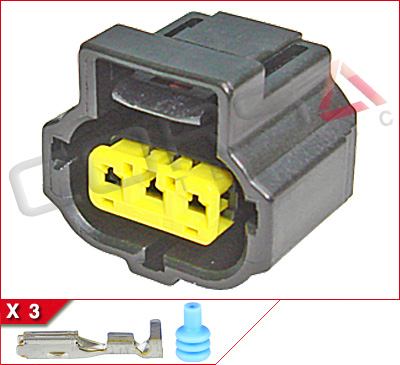

SSC-3S-A
3-Way Kit (Keying A)
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184032-1
Keying: A
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184032-1
Keying: A
Rearview Pinout (SSC-3S-A.png)General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:17A
- Voltage Rating:125V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 6th Gen. alternator on many Fords '01-'09
- CBR F4, F4i TPS 99-06' (harness side)
- Ford 1U2Z-14S411-TA, WPT-118 (Tin plated terminals) pigtail connector
- Ford 3U2Z-14S411-ESAA, WPT-777 (Gold plated terminals) pigtail connector
- Mopar 05019915AB repair kit connector
SSD-3P-1
3-Way Kit
Kit Contents: Housing, 3 pin contacts for 22-18 AWG wire, 3 seals, rear lock
Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7182-8730-30
Mating Part: SSD-3S-1
Kit Contents: Housing, 3 pin contacts for 22-18 AWG wire, 3 seals, rear lock
Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7182-8730-30
Mating Part: SSD-3S-1
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.2mm (.047)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Miata CMP
- GSXR1000 K4,K5 TPS
SSD-3S-1
3-Way Kit
Kit Contents: Housing, 3 socket contacts for 22-18 AWG wire, 3 seals, rear lock
Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8730-30
Mating Part: SSD-3P-1
Kit Contents: Housing, 3 socket contacts for 22-18 AWG wire, 3 seals, rear lock
Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8730-30
Mating Part: SSD-3P-1
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.2mm (.047)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Miata CMP
- GSXR1000 K4,K5,K8 TPS
- KTM 000700000EX
SSD-3S-2
3-Way Kit
Kit Contents: Housing, rear lock, 3 socket contacts for 22-18 AWG wire, 3 seals
Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8732-40
Mating Part: N/A
Kit Contents: Housing, rear lock, 3 socket contacts for 22-18 AWG wire, 3 seals
Mfr: OEM Yazaki
Series: SSD Series
OEM P/N: 7283-8732-40
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.2mm (.047)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

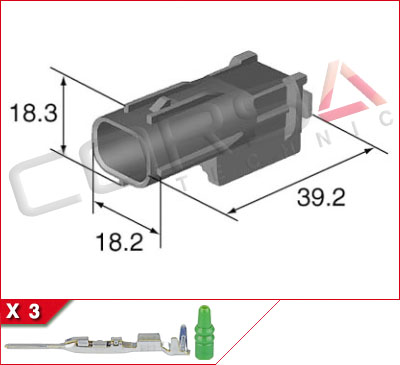

TS025-3P
3-Way Kit
Kit Contents: Housing, 3 pin contacts for 24-20 awg wire, 3 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4920
Part Name: 12719WQA03M-B
Mating Part: TS025-3S
Kit Contents: Housing, 3 pin contacts for 24-20 awg wire, 3 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4920
Part Name: 12719WQA03M-B
Mating Part: TS025-3S
-
3D STEP (6188-4920.zip) -
Drawing (6188-4920.pdf) - See related terminal for crimp specs
-
Series Catalog (TS025-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-12719, (90980-12179 is a typo)
TS025-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1129
Mating Part: TS025-3P
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1129
Mating Part: TS025-3P
-
3D STEP (6189-1129.zip)
-
Drawing (6189-1129.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS025-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-12353

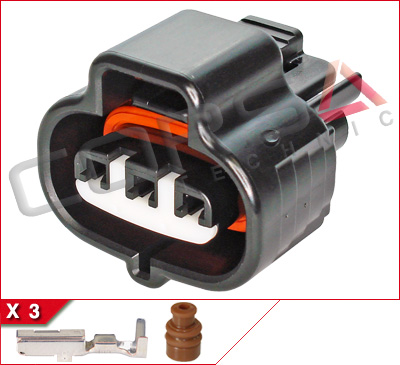

TS090-3S-3
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0326
Black: 6189-0099 (In stock)
Natural: 6189-0622
Dark gray: 6189-0312
Part Name: WP090VCM3FAY
Mating Part: TS090-3P-3Z (Universal keying)
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0326
Black: 6189-0099 (In stock)
Natural: 6189-0622
Dark gray: 6189-0312
Part Name: WP090VCM3FAY
Mating Part: TS090-3P-3Z (Universal keying)
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Various Mikuni TPS
- Suzuki motorcycles with TPS p/n: 13550-13D60
- -GSX-R600 97-00
- -GSX-R750 96-99
- -Bandit (GSF1200/S/Z) 01-05
- -Katana (GSX600F/GSX750F) 98-06
- -SV1000/SV1000S 03-07
- -GS500F 04-09
- -SV650 03-07
- -V-Strom (DL650) 04-06
- Yamaha motorcycles with TPS p/n: 4HD-85885-00-00 (supersedes 4SV-85885-00-00)
- And TPS p/n: 2D1-85885-00-00 (supersedes 5FL-85885-00-00, 5FL-85885-01-00, 5FL-85885-02-00)
- -YZF-R1 98-01, 04-06
- -YZF1000 97-98
- -FZ1 07-14
- -FZS1 2015
- -FZ6 04-09
- -FZ6R 09-17
- -YZF-R7 99
- -SRX700 00-02
- -SX Viper 02-06
- -Venture 700 2004
- KTM 000700000BZ
- Toyota 90980-10845, 90980-12636

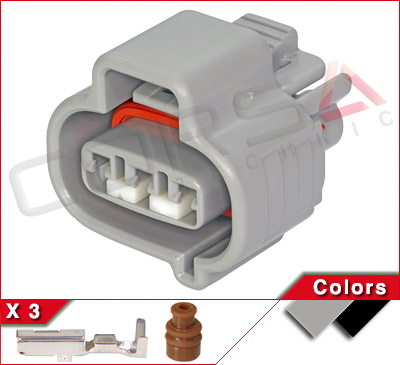

TS090-3S-4
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6248-5336 (Natural)
6248-5317 (Light grey)
6248-5316 (Black)
Part Name: 11143W9A03F
Mating Part: TS090-3P-3Z (Universal keying)
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6248-5336 (Natural)
6248-5317 (Light grey)
6248-5316 (Black)
Part Name: 11143W9A03F
Mating Part: TS090-3P-3Z (Universal keying)
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-11143

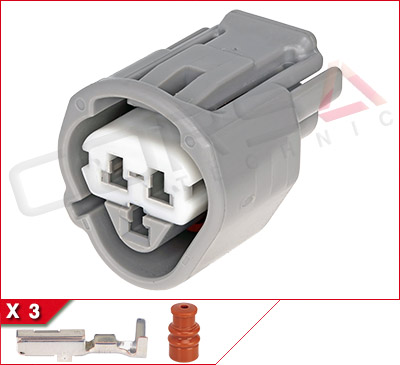

TS090-3S-7
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0486 (In stock)
Black: 6189-0990
Natural: 6189-0627
Dark gray: 6189-0586
Part Name: 11451W9A03F-GR
Mating Part: N/A, Device only
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0486 (In stock)
Black: 6189-0990
Natural: 6189-0627
Dark gray: 6189-0586
Part Name: 11451W9A03F-GR
Mating Part: N/A, Device only
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.0mm
- Row Spacing:4.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ford CU2Z-14S411-PA, WPT-1281 (Tin plated greased terminals) pigtail connector
- KTM 000700000EC
- Toyota 90980-11451
Y312U-3P
3-Way Kit
Kit Contents: Housing, 3 pin contacts
Mfr: OEM Yazaki
Series: 312 Unsealed Series
OEM P/N: 7282-3030
Mating Part: Y312U-3S
Kit Contents: Housing, 3 pin contacts
Mfr: OEM Yazaki
Series: 312 Unsealed Series
OEM P/N: 7282-3030
Mating Part: Y312U-3S
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:8.0mm (.312)
- Wire Size:0.50 - 8.00 mm2
- Number of Rows:1
- Pitch:8.7mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:42A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11385
Y312U-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts
Mfr: OEM Yazaki
Series: 312 Unsealed Series
OEM P/N: 7283-3030 HPA (alt p/n: 7283-3034 PBT)
Mating Part: Y312U-3P
Kit Contents: Housing, 3 socket contacts
Mfr: OEM Yazaki
Series: 312 Unsealed Series
OEM P/N: 7283-3030 HPA (alt p/n: 7283-3034 PBT)
Mating Part: Y312U-3P
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:8.0mm (.312)
- Wire Size:0.50 - 8.00 mm2
- Number of Rows:1
- Pitch:8.7mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:42A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10956
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
