050U/090IIU-4S
4-Way (2+2) Hybrid KitKit Contents: Housing, 2x 050 socket contacts for 22-20awg wire, 2x 090 socket contacts
Mfr: OEM Tokai Rika
Series: TS 050+090 Hybrid Unsealed
OEM P/N: 4A1100-0000
Mating Part: 4G5490-0000
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:Mixed
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA12
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Sumitomo 1300-5100
- Toyota 90980-11606
- Yazaki 7283-7447
090IIU-10S-3
10-Way KitKit Contents: Housing, 10 socket contacts
Mfr: OEM Tokai Rika, Sumitomo, Yazaki
Series: 2.3II, TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 4F1060-0000, 1300-4026, 6098-4674
Part Name: 11781N9A10F, 12540N9H10F
Mating Part: 4G6020-0000
General
- Sealing:Unsealed
- Number of Ways:10
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10997, 90980-11781, 90980-11800, 90980-12540, 90980-12691
090IIU-11S-2
11-Way KitKit Contents: Housing, 11 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6248-5275
Part Name: 11539N9A11F
Mating Part: 6249-1234
-
3D STEP (6248-5275.zip) -
Drawing (S-27151_8.pdf) -
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:11
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11539, 90980-11712, 90980-12345, 90980-12476
090IIU-12S-3
12-Way KitKit Contents: Housing, 12 socket contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: Natural: 6098-1985, 7183-2416
Gray: 6520-1523 (IN STOCK)
Black: 6098-3745
Part Name: 11847N9A12F, 11847N9H12F
Mating Part: 7182-2416, 7182-4941, 7182-4942
-
3D STEP (7183-2416.zip)
-
Drawing (7183-2416.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-30 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11661, 90980-11847, 90980-12339, 90980-12478
090IIU-2P-6
2-Way KitKit Contents: Housing, 2 pin contacts
Mfr: OEM Tokai Rika, Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 4G0270-000 (IN STOCK), 1300-4938, 7282-1026
Mating Part: 090IIU-2S-6
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10934, 90980-11725
090IIU-4P-1-CLIP-R
4-Way KitKit Contents: Housing, 4 pin contacts
Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 4G5480-0000, 1300-4455
Part Name: 11779N9A04M
Mating Part: 090IIU-4S-1
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.
-
3D STEP (1300-4455.zip)
-
Drawing (S-26184_7.pdf)
-
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6T
- Mounting Style:Clip
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11399, 90980-11779, 90980-11811
090IIU/187U-24P
24-Way (20+4) Hybrid KitKit Contents: Housing, 20x 090 pin contacts, 4x 187 pin contacts
Mfr: OEM Sumitomo, Tokai Rika, Yazaki
Series: TS 090+187 Hybrid, 090II+187 Hybrid Unsealed
OEM P/N: Natural: 6520-1185, 4G2410-000x, 7282-1248
Yellow: 7282-1248-70 (IN STOCK)
Mating Part: 090IIU/187U-24S
General
- Sealing:Unsealed
- Number of Ways:24
- Contact Size:Mixed
- Wire Size:0.22 - 3.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:28A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10880, 90980-11762
DT-12P BLK.N.B
12-Way ReceptacleMfr: Deutsch
Series: DT
Mating Part: DT-12S
| Key | Color | Seal | Cap | Part Number |
|---|---|---|---|---|
| A | Grey | N-Seal (Std) | - | DT06-12PA, -P004 |
| Grey | N-Seal (Std) | Short | DT06-12PA-E003, -EP04 | |
| Grey | N-Seal (Std) | Long | DT06-12PA-E008 | |
| Grey | E-Seal | - | DT06-12PA-C015 | |
| Grey | E-Seal | Short | DT06-12PA-CE01 | |
| Grey | E-Seal | Long | DT06-12PA-CE04 | |
| Black | N-Seal (Std) | - | DT06-12PA-E004 | |
| Black | N-Seal (Std) | Short | DT06-12PA-E005 | |
| Black | N-Seal (Std) | Long | n/a | |
| Black | E-Seal | - | DT06-12PA-CE02 | |
| Black | E-Seal | Short | DT06-12PA-CE03 | |
| Black | E-Seal | Long | DT06-12PA-CE09 | |
| B | Black | N-Seal (Std) | - | DT06-12PB, -P004 |
| Black | N-Seal (Std) | Short | DT06-12PB-E003, -EP04 | |
| Black | N-Seal (Std) | Long | n/a | |
| Black | E-Seal | - | DT06-12PB-C015 | |
| Black | E-Seal | Short | DT06-12PB-CE01 | |
| Black | E-Seal | Long | DT06-12PB-CE04 | |
| Availability: In-Stock | ||||
-
Drawing (C-DT04-12PX-XXXX_B1.pdf)
-

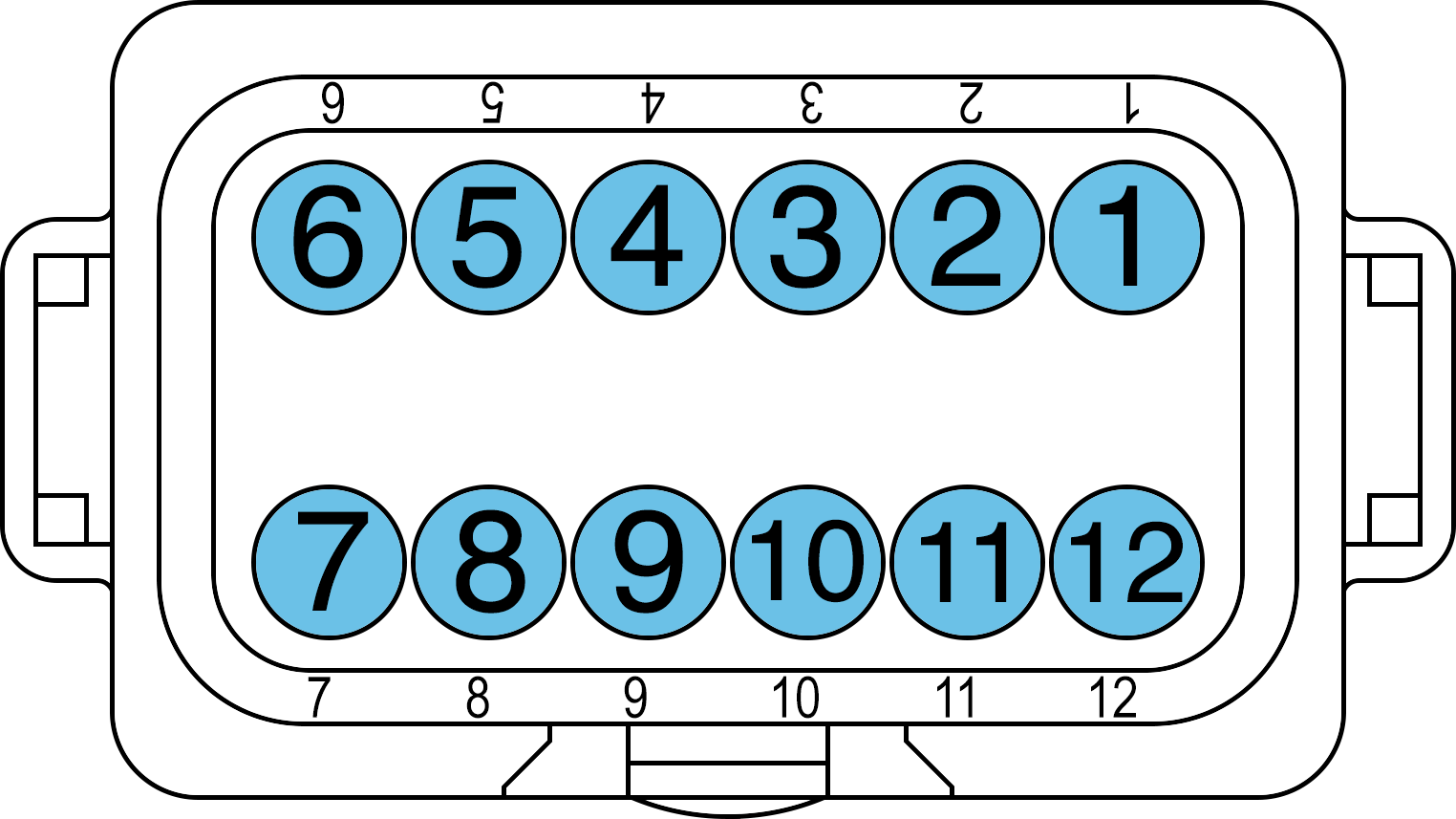

Rearview Pinout (DT-12P-x.png) -
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
Rearview Pinout (DT-12P-x.png)General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:4.4mm
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
DT-6S GRY.N
6-Way PlugMfr: Deutsch
Series: DT
Mating Part: DT-6P
| Color | Seal | Cap | Part Number |
|---|---|---|---|
| Grey | N-Seal (Std) | - | DT06-6S, -P004 |
| Grey | N-Seal (Std) | Short | DT06-6S-E003, -EP04 |
| Grey | N-Seal (Std) | Long | DT06-6S-E008 |
| Grey | E-Seal | - | DT06-6S-C015 |
| Grey | E-Seal | Short | DT06-6S-CE01 |
| Grey | E-Seal | Long | DT06-6S-CE04 |
| Black | N-Seal (Std) | - | DT06-6S-E004, -P012 |
| Black | N-Seal (Std) | Short | DT06-6S-E005, EP06 |
| Black | N-Seal (Std) | Long | DT06-6S-EP11 |
| Black | E-Seal | - | DT06-6S-CE02, -CE06 |
| Black | E-Seal | Short | DT06-6S-CE03, -CE05 |
| Black | E-Seal | Long | DT06-6S-CE13 |
| Availability: In-Stock | |||
-
Drawing (C-DT06-6S-XXXX_B4.pdf)
-

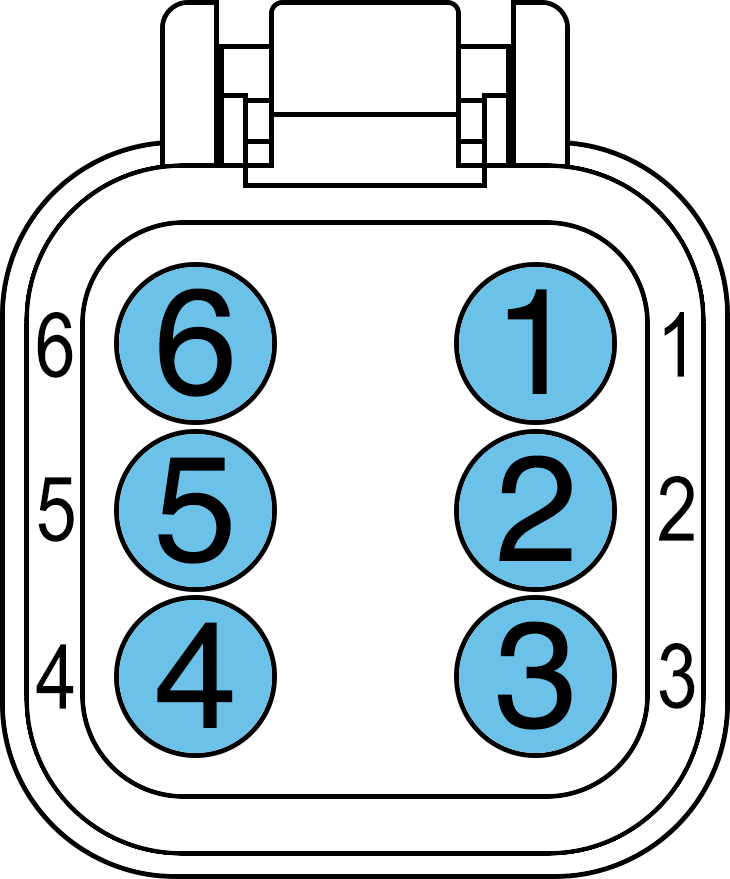

Rearview Pinout (DT-6S.png)
-
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
Rearview Pinout (DT-6S.png)General
- Sealing:Matte Sealed
- Number of Ways:6
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:3
- Pitch:4.4mm
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
HD090-18S
18-Way KitKit Contents: Housing, 18 socket contacts
Mfr: OEM Sumitomo
Series: HD 090 Unsealed Series
OEM P/N: 6098-0257
Mating Part: 6098-0258
-
3D STEP (6098-0257.zip)
- See related terminal for crimp specs
-
Series Catalog (HD090-CAT.pdf)
General
- Sealing:Unsealed
- Number of Ways:18
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
HS-6S-3
6-Way KitKit Contents: Housing, 6 socket contacts, 6 seals
Mfr: OEM Yazaki
Series: HS 025 Series
OEM P/N: 7289-9553-30 Black
Mating Part: 7288-9556-30
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
JPT.GEH-2S
2-way KitKit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 1-967412-2
Part Name: JPT GEH ASSY 2P
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT/ASA+GF20
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
- Voltage Rating:50V
Environmental
- Temp Range[2]:-40 - 120 °C
- Protection Rating:IP X4K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nissan/Bosch J-48817-1103 pigtail connector
- Nissan service part 24008-9DM0D connector
LAC-SKT
Locking Arm Connector Socket ContactMfr: Tyco/AMP
Series: Locking Arm Connector
| Wire Size | Strip | Loose | ||
|---|---|---|---|---|
| - | .3-.85 mm2 (22-18 AWG) wire 1.5-2.8mm Insulation dia | 170295-1 | na | |
| LAC-SKT | .5-2.0 mm2 (20-14 AWG) wire 2.2-3.4mm Insulation dia | 170280-1 | 170293-1 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:2.0mm dia.
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-12110 repair wire
MP25-2P
2-Way KitKit Contents: Housing, 2x pin contacts for 22-20awg wire
Mfr: OEM Molex
Series: Mizu-P25
OEM P/N: 52266-0211
Mating Part: MP25-2S
For 0.3-0.5 mm2 (22-20 AWG) wire, with 1.4-1.9mm dia. insulation
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:4A
- Voltage Rating:18V
Environmental
- Temp Range[2]:-40 - 105 °C
- Protection Rating:IP67
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP25-2S
2-Way KitKit Contents: Housing, 2x socket contacts for 22-20awg wire
Mfr: OEM Molex
Series: Mizu-P25
OEM P/N: 52213-0211
Mating Part: MP25-2P
For 0.3-0.5 mm2 (22-20 AWG) wire, with 1.4-1.9mm dia. insulation
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:4A
- Voltage Rating:18V
Environmental
- Temp Range[2]:-40 - 105 °C
- Protection Rating:IP67
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Maserati 673004814 repair kit connector
MP25-PIN
Mizu-P25 Pin ContactMfr: Molex
Series: Mizu-P25
OEM P/N: 50147-8000
For 0.3-0.5 mm2 (22-20 AWG) wire, with 1.4-1.9mm dia. insulation
General
- Sealing:Matte Sealed
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:4A
- Voltage Rating:18V
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP25-SKT
Mizu-P25 Socket ContactMfr: Molex
Series: Mizu-P25
OEM P/N: 50148-8000
For 0.3-0.5 mm2 (22-20 AWG) wire, with 1.4-1.9mm dia. insulation
General
- Sealing:Matte Sealed
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:4A
- Voltage Rating:18V
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MT-2S-10
2-Way KitKit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6180-2591
Part Name: WP090DIS2F
Mating Part: MT-2P-10
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

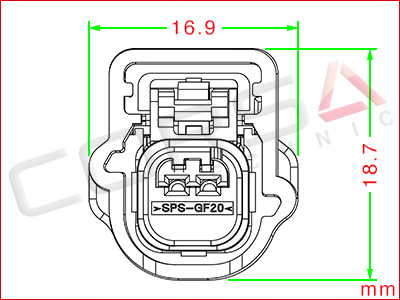

MX64-2S-C
2-Way KitKit Contents: Housing, 2x socket contacts
Mfr: OEM Molex
Series: MX64
OEM P/N: 31403-2600 w/o CPA
31403-2610 w/CPA (IN STOCK)
Keying: C
Mating Part: N/A, device only

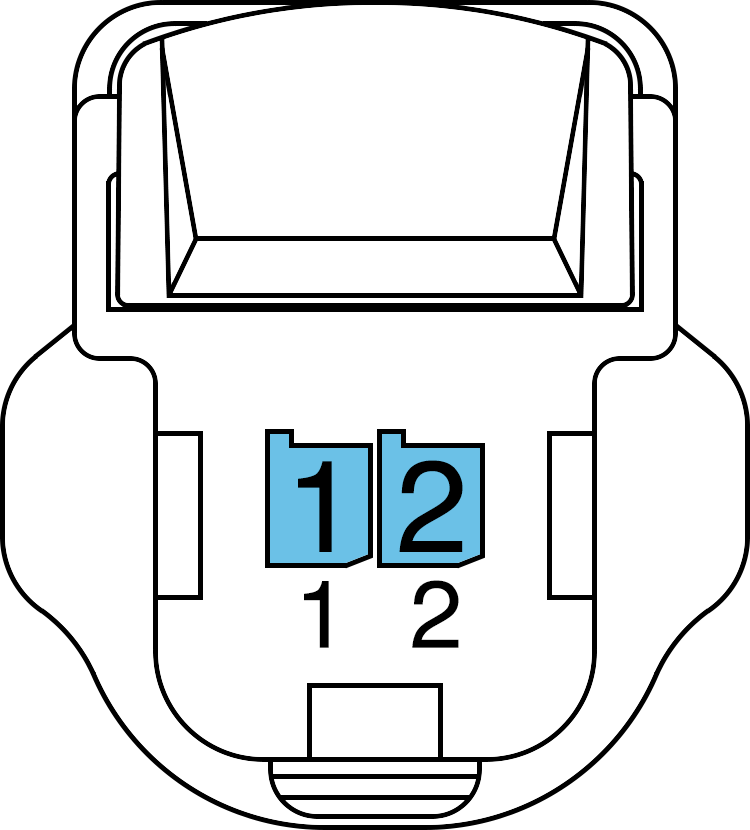

Rearview Pinout (MX64-2S-x.png)General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
- Number of Rows:1
- Pitch:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:11A
- Voltage Rating:20V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

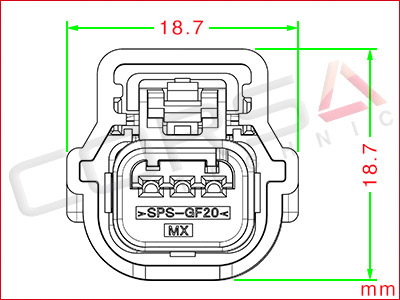

MX64-3S-A
3-Way KitKit Contents: Housing, 3x socket contacts
Mfr: OEM Molex
Series: MX64
OEM P/N: 31403-3100 w/o CPA
31403-3110 w/CPA (IN STOCK)
Keying: A
Mating Part: N/A, device only

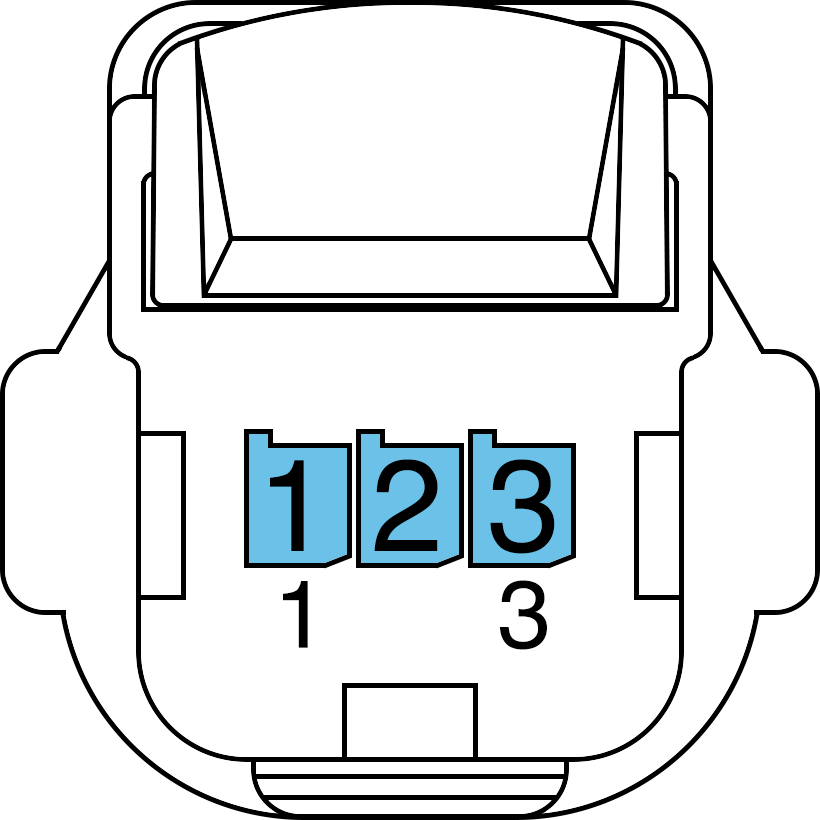

Rearview Pinout (MX64-3S-x.png)General
- Sealing:Matte Sealed
- Number of Ways:3
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
- Number of Rows:1
- Pitch:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:11A
- Voltage Rating:20V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX64-SKT
MX64 Socket ContactMfr: Molex
Series: MX64
| Wire Size | Plating | RH "B" Wind | LH "D" Wind | |
|---|---|---|---|---|
| MX64-SKT1 | .35 mm2 (22 AWG) 1.47-1.65mm Insulation dia | Tin Plated | 33468-0001 | 33468-0002 |
| -Au | Gold Plated | 33467-0003 | 33467-0004 | |
| MX64-SKT2 | .5-.75 mm2 (20-18 AWG) 1.70-2.06mm Insulation dia | Tin Plated | 33468-0003 | 33468-0004 |
| -Au | Gold Plated | 33467-0005 | 33467-0006 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Matte Sealed
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:11A
- Voltage Rating:20V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
N250-6P-AB
6-Way KitKit Contents: Housing, 6 pin contacts for 18-14 awg wire
Mfr: OEM Yazaki
Series: New 250 Series
OEM P/N: 7222-5565 w/TPA (IN STOCK)
7122-5565 w/o TPA
Mating Part: N250-6S-x
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:11.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
RS.E-2S-8
2-Way KitKit Contents: Housing, 2 socket contacts, 2 seals, front lock
Mfr: OEM Sumitomo
Series: RS Series - Type E-RS (previously called 91 series)
OEM P/N: 6189-0773
Part Name: E02FB-RS
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Nissan/Bosch J-48817-181 pigtail connector
- Nissan service part 24008-9DM1D connector

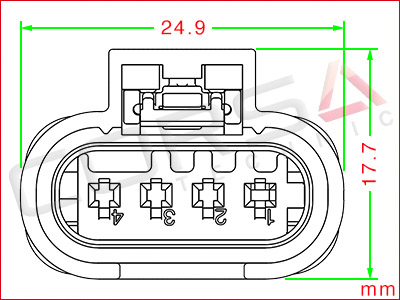

SS12-4S-A
4-Way Kit, Keying AKit Contents: Housing, 4 socket contacts, 4 seals
Mfr: OEM Hirschmann
Series: SealStar 1.2mm
OEM P/N: 805-122-541 (IN STOCK) ss by: 805-122-551 w/CPA
805-122-550 w/o CPA
805-122-581 Mopar
Keying: A
Mating Part: 872-617-541
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:1.2mm (.047)
- Wire Size:0.13 - 1.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IPX7/IPX9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- BMW 7549032-02 (Non CPA style)
- Mercedes A2115451928 (Non CPA style)
- Mopar 68396618AA repair kit connector (-581)
TLC-7S
7-Way KitKit Contents: Housing, 7 socket contacts for 24-20 awg wire, 5 seals
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7129-6071
Mating Part: 7228-6071, 7228-6072, 7228-6073, 7328-6071, 7328-6072
Rearview Pinout (TLC-7S.png)General
- Sealing:Single Wire Sealed
- Number of Ways:7
- Contact Size:1.0mm (.040)
- Wire Size:0.20 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10628
TS025U-22S
22-Way KitKit Contents: Housing, 22 socket contacts for 22-20 awg wire
Mfr: OEM Sumitomo
Series: TS 025 Unsealed
OEM P/N: 6098-3925
Part Name: 12372NQA22F
Mating Part: 6098-3885
General
- Sealing:Unsealed
- Number of Ways:22
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12372, 90980-12545
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
