2207 Items.

  Showing Items 2101 thru 2150.
« Previous  First Page  . . .  34  35  36  37  38  39  40  41  42  43  . . .  Last Page (45)    Next »
7-Way Kit for trailer tow harness
APEX.28/63-7S
7-Way Kit for trailer tow harness
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
View Item
APEX.28/63-7S  7-Way Kit for trailer tow harness
Kit Contents: Housing, 6x 2.8 socket contacts and seals, 1x 6.3 socket contact and seal

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
Mating Part: 9U5T-14A624-MAC, XL3T-14A624-BB, 8U5T-14A624-AB, FU5T-14A624-GA

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:7
  • Contact Size:Mixed
  • Wire Size:0.50 - 6.00 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:55A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 8U5T-14A464-AAB, ss: 8U5T-14A464-AAA
  • Ford 8U5T-14A464-FBB, ss: 8U5T-14A464-FBA
  • Ford 8U5T-14A464-GBB, ss: 8U5T-14A464-GBA
  • Ford 8U5T-14A464-JBB, ss: 8U5T-14A464-JBA
  • Ford 3U2Z-14S411-JXB, WPT-975 (Tin plated terminals) pigtail connector
QtyPrice (USD)
1-5$7.27
6-19$6.91
20-49$6.54
50-99$6.18
100+$5.82
Quantity:  Kit

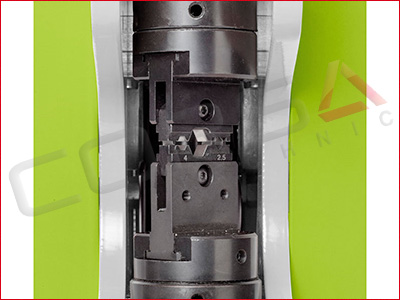

Rennsteig PEW 12 Die Set for non-insulated terminals per DIN 46234, 46235, 46267
TOOL-CDIE98
Rennsteig PEW 12 Die Set for non-insulated terminals per DIN 46234, 46235, 46267
OEM P/N: 624 1071 3 0 RT
View Item
TOOL-CDIE98  Rennsteig PEW 12 Die Set for non-insulated terminals per DIN 46234, 46235, 46267
Kit Contents: Crimp die set

OEM P/N: 624 1071 3 0 RT
Die Set for Non-Insulated Terminals and Non-Insulated Butt/Splice/Open/Plug Connectors. For 0.5-10 mm2 (20-8 AWG) terminals

Price: $93.86
Quantity:  Ea

22-Way Kit
ILAG5-22S
22-Way Kit
OEM P/N: IL-AG5-22S-D3C1
View Item
ILAG5-22S  22-Way Kit
Kit Contents: Housing, 22x socket contacts

Mfr: OEM JAE
Series: IL-AG5 Series
OEM P/N: IL-AG5-22S-D3C1
Mating Part: IL-AG5-22P-D3C1
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:22
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.64
6-19$3.46
20-49$3.28
50-99$3.09
100+$2.91
Quantity:  Kit

2.8mm ''Wedgelock'' Socket Terminal
UP28U-SKT1
2.8mm ''Wedgelock'' Socket Terminal
View Item
UP28U-SKT1  2.8mm ''Wedgelock'' Socket Terminal

Mfr: OEM Ford
Series: 2.8mm Wedgelock

Wire SizePlatingPart Number
UP28U-SKT1.85 mm2 (18 AWG)TinD9AB-14488-NA
-1.25 mm2 (16 AWG)TinD9AB-14488-PA
-2.0 mm2 (14 AWG)TinD1AB-14488-CA
Available stock: Aftermarket OEM
NOTE: Grease filled terminal

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.85 - 2.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$1.49
50-99$1.42
100-249$1.34
250-499$1.19
500+$1.04
Quantity:  Ea

Pulse Lock Connector Socket Contact
PLC-SKT2
Pulse Lock Connector Socket Contact
View Item
PLC-SKT2  Pulse Lock Connector Socket Contact

Mfr: Tyco/AMP
Series: Pulse Lock Connector

Wire SizePlatingStripLoose
PLC-SKT1.3-.5 mm2 (22-20 AWG) wire
1.5-2.3mm Insulation dia		Tin170352-1172771-1
-Gold170352-2172771-2
PLC-SKT2.5-1.25 mm2 (20-16 AWG) wire
2.1-2.8mm Insulation dia		Tin170353-1172772-1
-Gold170353-2172772-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:18.5A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Terminal used in Toyota 82998-12200 (Power) repair wire
  • Terminal used in Toyota 82998-12210 (Signal) repair wire
QtyPrice (USD)
1-49$1.77
50-99$1.68
100-249$1.59
250-499$1.42
500+$1.24
Quantity:  Ea

1.5mm Blade System Socket Contact
DC15-SKT2
1.5mm Blade System Socket Contact
View Item
DC15-SKT2  1.5mm Blade System Socket Contact

Mfr: Molex
Series: 1.5mm Blade System

Wire SizePlatingPart Number
DC15-SKT1.2-.3 mm2 (24-22 AWG)Tin33119-0002
-Gold33120-0004
DC15-SKT2.5-.85 mm2 (20-18 AWG)Tin33119-0004
-Gold33120-0006
Available stock: Aftermarket OEM
NOTE: Grease filled terminal

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.20 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance

spacer
  • Chrysler terminal ref. 4793039 (Tin), 4760759 (Gold plated)
QtyPrice (USD)
1-49$0.99
50-99$0.94
100-249$0.89
250-499$0.79
500+$0.69
Quantity:  Ea

22-Way Kit
050U-22S-1
22-Way Kit
OEM P/N: 6098-0916
View Item
050U-22S-1  22-Way Kit
Kit Contents: Housing, 22x socket contacts for 22-20 AWG wire

Mfr: OEM Sumitomo
Series: TS 050 Unsealed
OEM P/N: 6098-0916
Part Name: 11502N5A22F-NA
Mating Part: 050U-22P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:22
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11502, 90980-11708
QtyPrice (USD)
1-5$6.08
6-19$5.78
20-49$5.47
50-99$5.17
100+$4.86
Quantity:  Kit

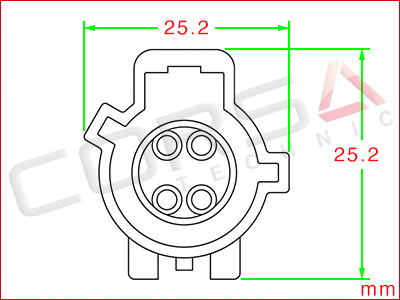

4-Way Kit
UP16-4S-D
4-Way Kit
OEM P/N: F4SB-14A464-AJC
View Item
UP16-4S-D  4-Way Kit
Kit Contents: Housing, 4x sockets for 20-18 AWG wire, TPA

Mfr: OEM Ford
Series: 1.6mm Micropin "Wedgelock"
OEM P/N: F4SB-14A464-AJC
Keying: D
Mating Part: 1F1T-14A624-GA
Blue seal for 1.70-2.69mm insulation wire

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:1.58mm (.063)
  • Wire Size:0.25 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:8.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 135 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 3U2Z-14S411-BKAA, WPT-742 (Tin plated terminals) pigtail connector
  • Ford 7U2Z-14S411-LA, WPT-893 (Tin and gold plated terminals) pigtail connector
  • Ford 1U2Z-14S411-ZA, WPT-123 (Gold plated terminals) pigtail connector
  • Ford 1F1T-14A464-JA
QtyPrice (USD)
1-5$8.37
6-19$7.95
20-49$7.53
50-99$7.11
100+$6.70
Quantity:  Kit

Rennsteig Crimping Machine CM 25-1
TOOL-CM25-1
Rennsteig Crimping Machine CM 25-1
OEM P/N: 636 025-1 RT
View Item
TOOL-CM25-1  Rennsteig Crimping Machine CM 25-1
Kit Contents: Crimp machine without die set

OEM P/N: 636 025-1 RT
  • Accepts any of the hundreds of different PEW 12 system crimp dies and locators*
  • User friendly rotatable die position
  • Stroke from 6 to 14mm (0.24 - 0.55")
  • Automatic safety closure - needed only for 14mm (0.55") stroke
  • Digital crimp counter
  • Hand or foot switch
  • Adjustable leg height
  • Operating pressure: 6 BAR (87 PSI)
  • Height: 500mm (20") Width: 280mm (11") Depth: 325mm (13")
  • Weight: 34kg (74 lbs)
Note*: Single wire stop can not be installed on machine

Order with 6-8 week lead time
This item is backordered.
Price: $4506.48
Quantity:  Ea

Rennsteig Crimping Machine CM 25-5
TOOL-CM25-5
Rennsteig Crimping Machine CM 25-5
OEM P/N: 636 025-5 RT
View Item
TOOL-CM25-5  Rennsteig Crimping Machine CM 25-5
Kit Contents: Crimp machine without die set

OEM P/N: 636 025-5 RT
  • Crimping machine with sliding tray for most of the crimp dies and locators of the Rennsteig PEW 12 Crimp System*
  • Stroke of 14mm (0.55")
  • Wire clamps in for safe working
  • Machine crimps automatically following insertion
  • Automatic release following insertion
  • Digital crimp counter
  • Operating pressure: 6 BAR (87 PSI)
  • Height: 500mm (20") Width: 280mm (11") Depth: 325mm (13")
  • Weight: 34kg (74 lbs)
Note*: Single wire stop can not be installed on machine

Order with 6-8 weeks lead time
This item is backordered.
Price: $4684.33
Quantity:  Ea

MERTEC 1.0 Series Socket Contact
MERTEC-SKT1
MERTEC 1.0 Series Socket Contact
View Item
MERTEC-SKT1  MERTEC 1.0 Series Socket Contact

Mfr: Tyco/AMP
Series: MERTEC 1.0 Series

Wire SizeP/N
MERTEC-SKT1.5-.85 mm2 (20-18 AWG)1437284-9 (ss: 13002630101)
MERTEC-SKT21.25-2.0 mm2 (16-14 AWG)1-1437284-0 (ss: 13002630102)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.50 - 2.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.59
50-99$0.56
100-249$0.53
250-499$0.47
500+$0.41
Quantity:  Ea

1-Way Kit
PA-1P
1-Way Kit
OEM P/N: KET: MG620090
Yazaki: 7118-3110
View Item
PA-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620090
Yazaki: 7118-3110
Mating Part: PA-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10182
QtyPrice (USD)
1-5$0.66
6-19$0.63
20-49$0.59
50-99$0.56
100+$0.53
Quantity:  Kit

1-Way Kit
PA-1S
1-Way Kit
OEM P/N: KET: MG610089
Yazaki: 7119-3110
View Item
PA-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG610089
Yazaki: 7119-3110
Mating Part: PA-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10183
QtyPrice (USD)
1-5$0.59
6-19$0.56
20-49$0.53
50-99$0.50
100+$0.47
Quantity:  Kit

3-Way Kit
SFC15-3S-1
3-Way Kit
OEM P/N: 284425-1
View Item
SFC15-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts for 20-18AWG wire

Mfr: Tyco/AMP
Series: Sensor Flat Contact System
OEM P/N: 284425-1
Part Name: 3P, 1.5MM SFC, REC HSG, SLD, SPARK COIL
Mating Part: N/A, device only

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.75 - 2.00 mm2
  • Number of Rows:1
  • Pitch:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA46+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:11A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-40 - 140 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mopar 68199256AB repair kit connector
QtyPrice (USD)
1-5$3.97
6-19$3.77
20-49$3.57
50-99$3.37
100+$3.18
Quantity:  Kit

Yazaki 1.5 System Unsealed Pin Contact
YESC.15U-PIN
Yazaki 1.5 System Unsealed Pin Contact
View Item
YESC.15U-PIN  Yazaki 1.5 System Unsealed Pin Contact

Mfr: Yazaki
Series: YESC 1.5 System Unsealed

Wire SizePlatingPart Number
YESC.15U-PIN1.3-.5 mm2 (22-20 AWG)Tin7114-4100-02
-Gold7114-4100-08
YESC.15U-PIN2.6-1.25 mm2 (18-16 AWG)Tin7114-4101-02
-Gold7114-4101-08
YESC.15U-PIN31.5 mm2 (16 AWG)Tin7114-4104-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.30 - 1.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 97BG-14421-AAB (PIN1), 97BG-14421-AFA (PIN1-Au), 97BG-14421-ABB (PIN2), 97BG-14421-AGA (PIN2-Au), 97BG-14421-ACB (PIN3)
Qty% Off
50-99 5%
100-24910%
250-49915%
500-99920%
1000-249925%
2500-499930%
5000+35%
Quantity:  Ea

AS Micro Series I & II Pin Contact
AS-06-05-PIN
AS Micro Series I & II Pin Contact
OEM P/N: 604011-31
View Item
AS-06-05-PIN  AS Micro Series I & II Pin Contact

Mfr: Deutsch
Series: AS Micro Series I & II (AS)
OEM P/N: 604011-31
Contact size: 23, Wire size: 28-22 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 23
  • Wire Size:0.05 - 0.35 mm2
Mechanical
  • Contact Type:Pin, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $1.62
Quantity:  Ea

8 AWG MIL-W-22759/16-8 Wire
/16-8AWG
8 AWG MIL-W-22759/16-8 Wire
View Item
/16-8AWG  8 AWG MIL-W-22759/16-8 Wire

SPECS:
  • 8.0 mm2 (8 AWG) (8.59 mm2 calculated)
  • 133/29 stranding
  • Nom. O.D. 5.06 mm (0.199 in)
  • Tinned copper conductor
  • ETFE Tefzel insulation
  • 47A current rating*
  • 600 V voltage rating
  • -50° to +150° C temperature rating
* Current rating based on continuous duty, 60°C ambient temp, .5 bundle derating, 10k ft altitude derating. What does this mean?

QtyPrice (USD)
1-99$3.86
100-249$3.28
250-499$2.90
500+$2.51
Quantity:  Ft

8STA #22D Pin Contact
8599-0702-PIN
8STA #22D Pin Contact
OEM P/N: 8599-0702 JJ (ss by: 8599-0702 900)
View Item
8599-0702-PIN  8STA #22D Pin Contact

Mfr: Eaton Souriau
Series: 8STA
OEM P/N: 8599-0702 JJ (ss by: 8599-0702 900)
Contact size: 22D, Wire size: 28-22 awg
For shells: 08 to 24, 02-35, 04-35, 06-35

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 22D
  • Wire Size:0.08 - 0.35 mm2
Mechanical
  • Contact Type:Pin, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $2.28
Quantity:  Ea

AS Micro MK3 #23 Socket Contact
AS-SZ23-SKT
AS Micro MK3 #23 Socket Contact
OEM P/N: 604935
View Item
AS-SZ23-SKT  AS Micro MK3 #23 Socket Contact

Mfr: Deutsch
Series: AS Micro HE (AS), AS Micro Lite HE (ASL)
OEM P/N: 604935
Contact size: 23, Wire size: 28-22 awg

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 23
  • Wire Size:0.05 - 0.35 mm2
Mechanical
  • Contact Type:Socket, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $2.55
Quantity:  Ea

4-Way Kit
UP16-4S-A
4-Way Kit
OEM P/N: E6DB-14A464-AA
View Item
UP16-4S-A  4-Way Kit
Kit Contents: Housing, 4x sockets for 20-18 AWG wire, TPA

Mfr: OEM Ford
Series: 1.6mm Micropin "Wedgelock"
OEM P/N: E6DB-14A464-AA
Keying: A
Mating Part: 1F1T-14A624-DA
Gray seal for 2.41-3.18mm insulation wire

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:1.58mm (.063)
  • Wire Size:0.25 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:8.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 135 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 1U2Z-14S411-BGA, WPT-152 (Tin plated terminals) pigtail connector
  • Ford 7U2Z-14S411-MA, WPT-894 (Tin and gold plated terminals) pigtail connector
  • Ford 1U2Z-14S411-LA, WPT-112 (Gold plated terminals) pigtail connector
  • Ford 1F1T-14A464-FA
QtyPrice (USD)
1-5$9.49
6-19$9.02
20-49$8.54
50-99$8.07
100+$7.59
Quantity:  Kit

SOLISTRAND Ring Terminals
SRT
SOLISTRAND Ring Terminals
View Item
SRT  SOLISTRAND Ring Terminals

Mfr: TE/AMP
Series: Ring Terminals
Stud sizeWire sizeCircular MilsLWP/NDrawing3D STEP
M60.26-1.65mm² | 22-16AWG509-326021.7411.9134113 (M6-22/16) pdf icon 3d step icon
1.04-2.62mm² | 16-14AWG2050-518021.7211.9134124 (M6-16/14) pdf icon 3d step icon
1.65-4.17mm² | 14-12AWG3260-823018.7710.6934487 (M6-14/12) pdf icon 3d step icon
2.62-6.64mm² | 12-10AWG5180-1310021.9712.7035772 (M6-12/10) pdf icon 3d step icon
6.64-10.5mm² | 8 AWG13100-2080023.7011.9133461 (M6-8) pdf icon 3d step icon
10.5-16.8mm² | 6 AWG20800-3310029.6711.89321598 (M6-6) pdf icon 3d step icon
16.8-26.7mm² | 4 AWG33100-5260030.4512.7031811 (M6-4) pdf icon 3d step icon

spacer
General
  • Sealing:Unsealed
Mechanical
  • Termination:Closed barrel crimp
Environmental
  • Temp Range[2]:-55 - 170 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.


Quantity:  Ea

7-Way Kit
090IIU-7S
7-Way Kit
OEM P/N: 6520-0996, 7283-1071 (IN STOCK)
View Item
090IIU-7S  7-Way Kit
Kit Contents: Housing, 7 socket contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 6520-0996, 7283-1071 (IN STOCK)
Mating Part: 7282-1071

spacer
General
  • Sealing:Unsealed
  • Number of Ways:7
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11529, 90980-11740, 90980-12336
QtyPrice (USD)
1-5$3.76
6-19$3.57
20-49$3.38
50-99$3.20
100+$3.01
Quantity:  Kit

2-Way Kit
040III-2S
2-Way Kit
OEM P/N: 7283-6175-30
View Item
040III-2S  2-Way Kit
Kit Contents: Housing, 2x socket contacts for 22-20 AWG wire, 2x seals

Mfr: OEM Yazaki
Series: 040 III Sealed Series
OEM P/N: 7283-6175-30
Mating Part: 7282-6175-30

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:1
  • Pitch:4.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:HPA
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-12195
QtyPrice (USD)
1-5$4.68
6-19$4.45
20-49$4.21
50-99$3.98
100+$3.74
Quantity:  Kit

7-Way Kit
JPTA-7P
7-Way Kit
OEM P/N: 444211-1
View Item
JPTA-7P  7-Way Kit
Kit Contents: Housing, tpa, 7 pin contacts for 20-18 AWG, 7 seals

Mfr: Aftermarket Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 444211-1
Part Name: 7 POS JPT TAB. ASSY
Mating Part: 444212-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:7
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.43
6-19$5.16
20-49$4.89
50-99$4.62
100+$4.34
Quantity:  Kit

Junior Power Timer Pin Contact (Type A)
JPTA.SWS-PIN2
Junior Power Timer Pin Contact (Type A)
View Item
JPTA.SWS-PIN2  Junior Power Timer Pin Contact (Type A)

Mfr: Tyco/AMP
Series: Junior Power Timer Series, and used in FEP 2.8 Sealed, Audi/VW 2.8 Tab
Tab Contacts with Modified Spring and Single Wire Sealing System

Wire SizeStripLoose
JPTA.SWS-PIN1.2-.5 mm2 (24-20 AWG)2-964298-12-964297-1
JPTA.SWS-PIN2.5-1.0 mm2 (20-18 AWG)2-964300-12-964299-1
JPTA.SWS-PIN31.25-2.5 mm2 (16-14 AWG)2-964302-12-964301-1
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.32
50-99$0.30
100-249$0.29
250-499$0.26
500+$0.22
Quantity:  Ea

20-Way (14+6) Hybrid Kit
YESC.15/28-20P
20-Way (14+6) Hybrid Kit
OEM P/N: 7282-9450-30
View Item
YESC.15/28-20P  20-Way (14+6) Hybrid Kit
Kit Contents: Housing, 14x 060 pin terminals and seals, 6x 110 pin terminals and seals

Mfr: OEM Yazaki
Series: YESC 1.5+2.8 Hybrid Sealed
OEM P/N: 7282-9450-30
Keying: A
Mating Part: 7283-9450-30

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:Mixed
  • Wire Size:0.30 - 4.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF15
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$11.22
6-19$10.66
20-49$10.10
50-99$9.54
100+$8.98
Quantity:  Kit

8STA #26 Socket Contact, for 0605 shell
8593-0999-SKT
8STA #26 Socket Contact, for 0605 shell
OEM P/N: 8593-0999 A
View Item
8593-0999-SKT  8STA #26 Socket Contact, for 0605 shell

Mfr: Eaton Souriau
Series: 8STA
OEM P/N: 8593-0999 A
Contact size: #26, Wire size: 30-24 awg
For shell: 06-05

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 26
  • Wire Size:0.05 - 0.22 mm2
Mechanical
  • Contact Type:Socket, circular
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $4.58
Quantity:  Ea

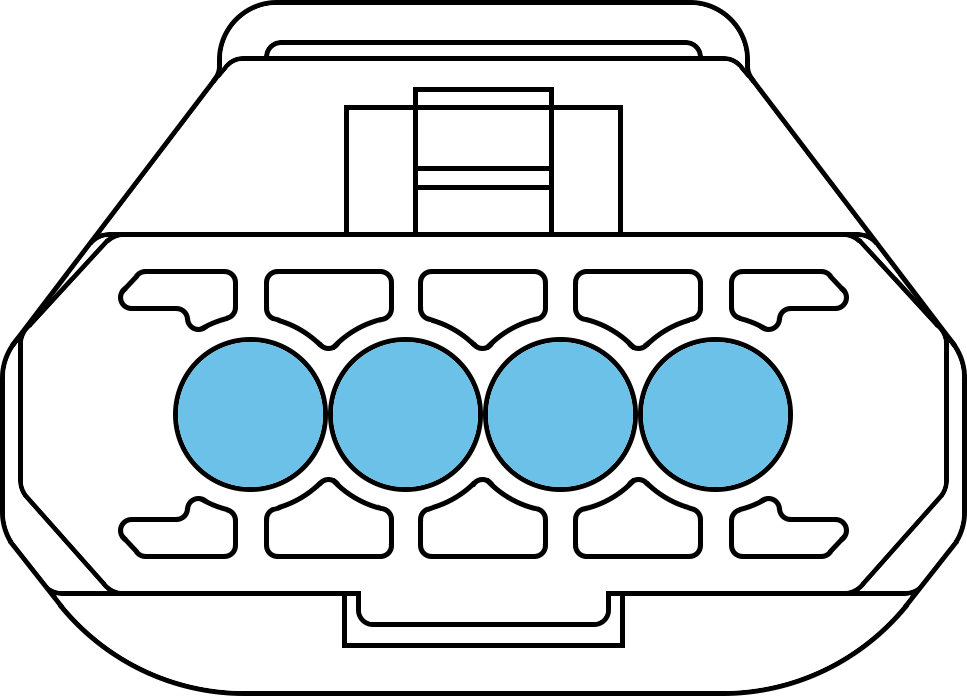

4-Way Kit
TL-4S
4-Way Kit
OEM P/N: 6189-7188
View Item
TL-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TL Sealed
OEM P/N: 6189-7188
Part Name: WTL2.3-4FAY-B
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$6.12
6-19$5.81
20-49$5.51
50-99$5.20
100+$4.90
Quantity:  Kit

3-Way Kit
MT-3S-5
3-Way Kit
OEM P/N: 6187-3901
View Item
MT-3S-5  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6187-3901
Part Name: WP090-3FC-AY
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.81
6-19$3.62
20-49$3.43
50-99$3.24
100+$3.05
Quantity:  Kit

4-Way Kit
090IIU-4P-1-CLIP-L
4-Way Kit
OEM P/N: 4G5410-000x, 1300-3792
View Item
090IIU-4P-1-CLIP-L  4-Way Kit
Kit Contents: Housing, 4 pin contacts

Mfr: OEM Sumitomo, Yazaki
Series: TS 090 Unsealed, 090II Unsealed Series
OEM P/N: 4G5410-000x, 1300-3792
Mating Part: 090IIU-4S-1
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10858, 90980-11801
QtyPrice (USD)
1-5$3.11
6-19$2.95
20-49$2.80
50-99$2.64
100+$2.49
Quantity:  Kit

12-Way Kit, Keying A
SS12-12S-A
12-Way Kit, Keying A
OEM P/N: 805-344-541
View Item
SS12-12S-A  12-Way Kit, Keying A
Kit Contents: Housing, 12 socket contacts, 12 seals

Mfr: OEM Hirschmann
Series: SealStar 1.2mm
OEM P/N: 805-344-541
Keying: A
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:12
  • Contact Size:1.2mm (.047)
  • Wire Size:0.13 - 1.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IPX7/IPX9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.25
6-19$5.94
20-49$5.62
50-99$5.31
100+$5.00
Quantity:  Kit

DEW Series Seal Plug
DEW-PG
DEW Series Seal Plug
OEM P/N: R120528, PZ001-15024
View Item
DEW-PG  DEW Series Seal Plug

Mfr: OEM Furukawa
Series: DEW Series
OEM P/N: R120528, PZ001-15024
Part Name: DEW PG/P ASSY

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-49$0.39
50-99$0.37
100-249$0.35
250-499$0.33
500-999$0.31
1000-2499$0.29
2500-4999$0.27
5000+$0.25
Quantity:  Ea

8-Way Kit
RS.T1-8S-1
8-Way Kit
View Item
RS.T1-8S-1  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, front lock

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1

FurukawaSumitomo
HousingPB295-08920
RS08FGY-PR		6185-5181 (ss: 6185-1179)
RS08FGY-HG-NL
RetainerPB464-08880
F/H RS08NP-LG		6918-1780
RS08MF-F/H-G
Terminals-RS-SKT
Wire Seals-RS-SL
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:14V DC
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nissan/Bosch J-48817-166 pigtail connector
  • Nissan service part 24008-9DN3E connector
QtyPrice (USD)
1-5$4.79
6-19$4.55
20-49$4.31
50-99$4.07
100+$3.83
Quantity:  Kit

8-Way Kit
RS.T1-8S-2
8-Way Kit
View Item
RS.T1-8S-2  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, front lock

Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series (previously called 91 series)
Sumitomo: RS Series - Standard Type 1

FurukawaSumitomo
HousingPB295-08820
RS08FB-PR		6185-5179 (ss: 6185-1177)
RS08FB-HG-NL
RetainerPB464-08880
F/H RS08NP-LG		6918-1780
RS08MF-F/H-G
Terminals-RS-SKT
Wire Seals-RS-SL
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.6mm
  • Row Spacing:7.9mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:14V DC
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Nissan/Bosch J-48817-171 pigtail connector
  • Nissan service part 24008-9DN4E connector
QtyPrice (USD)
1-5$3.52
6-19$3.34
20-49$3.17
50-99$2.99
100+$2.82
Quantity:  Kit

6-Way Kit
58W-6S
6-Way Kit
OEM P/N: 7223-1864-40
View Item
58W-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, rear holder/lock

Mfr: OEM Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N: 7223-1864-40
Part Name: W06FW
Mating Part: 7122-1864-40

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:6.8mm
  • Row Spacing:6.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$9.22
6-19$8.76
20-49$8.30
50-99$7.84
100+$7.38
Quantity:  Kit

8-Way (6+2) Hybrid Kit
090II/187-8S-1
8-Way (6+2) Hybrid Kit
OEM P/N: 7283-7081-40, Light gray
View Item
090II/187-8S-1  8-Way (6+2) Hybrid Kit
Kit Contents: Housing, 6x 090 pin terminals and seals, 2x 187 pin terminals and seals

Mfr: OEM Yazaki
Series: 090II+187 Hybrid Sealed
OEM P/N: 7283-7081-40, Light gray
Mating Part: 090II/187-8P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:Mixed
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:28A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10895
QtyPrice (USD)
1-5$10.30
6-19$9.79
20-49$9.27
50-99$8.76
100+$8.24
Quantity:  Kit

1-Way Kit
BS-1P
1-Way Kit
OEM P/N: MG610161
7118-3310 (IN STOCK)
View Item
BS-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, rear wire seal

Mfr: OEM KET, Yazaki
Series: BS Series
OEM P/N: MG610161
7118-3310 (IN STOCK)
Mating Part: BS-1S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10240
QtyPrice (USD)
1-5$4.74
6-19$4.50
20-49$4.27
50-99$4.03
100+$3.79
Quantity:  Kit

DTP 2-Pin Receptacle Wedge Lock
DTP-2P-LOCK
DTP 2-Pin Receptacle Wedge Lock
OEM P/N: WP-2P
View Item
DTP-2P-LOCK  DTP 2-Pin Receptacle Wedge Lock

Mfr: Deutsch
Series: DTP
OEM P/N: WP-2P

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.25
50-99$0.24
100-249$0.23
250-499$0.20
500+$0.17
Quantity:  Ea

MATE-N-LOK .140 Socket Contact
MNL.140-SKT1
MATE-N-LOK .140 Socket Contact
View Item
MNL.140-SKT1  MATE-N-LOK .140 Socket Contact

Mfr: AMP/TE
Series: MATE-N-LOK .140

Wire SizeP/N
MNL.140-SKT1.5-2.0 mm2 (20-14 AWG)61626-2
MNL.140-SKT22-5 mm2 (14-10 AWG)350200-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:3.56mm (.140)
  • Wire Size:0.50 - 5.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:17A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.26
50-99$0.25
100-249$0.23
250-499$0.21
500+$0.18
Quantity:  Ea

M22520/2-07 Contact Positioner
K40
M22520/2-07 Contact Positioner
OEM P/N: K40
View Item
K40  M22520/2-07 Contact Positioner

OEM P/N: K40
For use with the following contacts:
  • Deutsch AS size 22 socket 38943-22
  • M39029/56-348
  • M39029/56-349
  • M39029/56-350
  • M39029/88-482 thru -485
  • M39029/106-614
  • M39029/117-632
  • M39029/117-638
  • M39029/121-664
Qualified to AS22520/2

1x - in stock.
Price: $105.12
Quantity:  Ea

Standard .093" Pin Contact
MX093-PIN
Standard .093" Pin Contact
View Item
MX093-PIN  Standard .093" Pin Contact

Mfr: Molex
Series: Standard .093" Series

Wire SizeStripLoose
MX093-PIN1.3-.85 mm2 (22-18 AWG)02-09-211602-09-2118
MX093-PIN2.5-2.0 mm2 (20-14 AWG)02-09-210102-09-2103
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.36mm dia. (.093)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:17A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.11
50-99$0.10
100-249$0.10
250-499$0.09
500+$0.08
Quantity:  Ea

TLC Pin Contact
TLC-PIN
TLC Pin Contact
OEM P/N: 7113-2331
View Item
TLC-PIN  TLC Pin Contact

Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7113-2331
For .2-.5 mm2 (24-20 AWG) wire.
NOTE: The same terminal is used in sealed and unsealed connectors of the TLC series.

spacer
General
  • Sealing:Mixed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.20 - 0.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST750402-3
  • Terminal used in Toyota 82998-12220 (unsealed), 82998-12280 (sealed) repair wire
QtyPrice (USD)
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500+$0.11
Quantity:  Ea

M22520/1-04 Size 20, 16, 12 Contact Positioner
TH163
M22520/1-04 Size 20, 16, 12 Contact Positioner
OEM P/N: TH163
View Item
TH163  M22520/1-04 Size 20, 16, 12 Contact Positioner

OEM P/N: TH163
For use with the following contacts:

TurretContacts
RED
  • Deutsch AS size 20 pin 38941-20
  • Deutsch AS size 20 socket 38943-20
  • Souriau 8STA size 20 pin 8599-0703 SA
  • Souriau 8STA size 20 socket 8599-0707 900
  • M39029/56-351
  • M39029/57-357
  • M39029/58-363
  • M39029/106-615
  • M39029/107-621
  • M39029/117-634
  • M39029/117-640
  • M39029/118-646
  • M39029/118-652
  • M39029/121-665
  • M39029/122-672
BLUE
  • Deutsch AS size 16 pin 38941-16
  • Deutsch AS size 16 socket 38943-16
  • Souriau 8STA size 16 pin 8599-0704 MJ
  • Souriau 8STA size 16 socket 8599-0708 900
  • M39029/56-352
  • M39029/57-358
  • M39029/58-364
  • M39029/106-616
  • M39029/107-622
  • M39029/117-635
  • M39029/117-641
  • M39029/118-647
  • M39029/118-653
  • M39029/121-666
  • M39029/122-673
YELLOW
  • Souriau 8STA size 12 pin 8599-0705 MJ
  • Souriau 8STA size 12 socket 8599-0709 900
  • M39029/56-353
  • M39029/57-359
  • M39029/58-365
  • M39029/106-617
  • M39029/107-623
  • M39029/117-636
  • M39029/117-642
  • M39029/118-648
  • M39029/118-654
  • M39029/121-667
  • M39029/122-674
Qualified to AS22520/1

Price: $186.97
Quantity:  Ea

6-Way Kit
BS-6S
6-Way Kit
OEM P/N: MG640174 (IN STOCK)
7219-3460
View Item
BS-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, rear seal

Mfr: OEM KET, Yazaki
Series: BS Series
OEM P/N: MG640174 (IN STOCK)
7219-3460
Mating Part: BS-6P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:5.0mm
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10195
QtyPrice (USD)
1-5$4.44
6-19$4.22
20-49$4.00
50-99$3.77
100+$3.55
Quantity:  Kit

6-Way Kit
K250-6S
6-Way Kit
OEM P/N: MG610049
View Item
K250-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: KET
Series: 250 Connector
OEM P/N: MG610049
Mating Part: MG620048

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.52
6-19$2.39
20-49$2.27
50-99$2.14
100+$2.02
Quantity:  Kit

M22520/2-06 Contact Positioner
K41
M22520/2-06 Contact Positioner
OEM P/N: K41
View Item
K41  M22520/2-06 Contact Positioner

OEM P/N: K41
For use with the following contacts:
  • Souriau 8STA size 22D sockets 8599-0706 900, 8599-0710 900
  • M39029/57-354
  • M39029/57-355
  • M39029/57-356
  • M39029/57-982
  • M39029/89-494 thru -497
Qualified to AS22520/2

Price: $93.86
Quantity:  Ea

M22520/2-09 Contact Positioner
K42
M22520/2-09 Contact Positioner
OEM P/N: K42
View Item
K42  M22520/2-09 Contact Positioner

OEM P/N: K42
For use with the following contacts:
  • Deutsch AS size 22 pin 38941-22
  • Deutsch ASDD 7-11 size 24 socket 612532
  • Souriau 8STA size 22D pin 8599-0702 900
  • M39029/58-360 thru -362
  • M39029/58-986
  • M39029/87-470 thru -473
  • M39029/107-620
  • M39029/118-644
  • M39029/118-650
  • M39029/122-671
Qualified to AS22520/2

Price: $90.25
Quantity:  Ea

M22520/2-10 Contact Positioner
K43
M22520/2-10 Contact Positioner
OEM P/N: K43
View Item
K43  M22520/2-10 Contact Positioner

OEM P/N: K43
For use with the following contacts:
  • Deutsch AS size 20 contacts 38941-20, 38943-20, 6862-201-20278
  • Souriau 8STA size 20 contacts 8599-0703 SA, 8599-0707 900
  • M39029/56-351
  • M39029/57-357
  • M39029/58-363
  • M39029/87-474 thru -477
  • M39029/88-486 thru -489
  • M39029/89-498 thru -501
  • M39029/106-615
  • M39029/107-621
  • M39029/117-634
  • M39029/117-640
  • M39029/118-652
  • M39029/118-656
  • M39029/121-665
  • M39029/122-672
Qualified to AS22520/2

Price: $92.20
Quantity:  Ea


2207 Items.

  Showing Items 2101 thru 2150.
« Previous  First Page  . . .  34  35  36  37  38  39  40  41  42  43  . . .  Last Page (45)    Next »

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
