Pin Terminals
LEMO-0B-0.7-PIN
0B Series 0.7mm Pin Contact
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.555.ZZC for 26-22 AWG
Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.555.ZZC for 26-22 AWG
General
- Sealing:Unsealed
- Contact Size:.7mm dia.
- Wire Size:0.14 - 0.34 mm2
Mechanical
- Contact Type:Pin, circular
- Termination:Closed barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:6A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
MCON.12LL-PIN
MCON 1.2 Locking Lance (LL) Sealed Pin Contact
Mfr: TE/AMP
Series: MCON 1.2 Locking Lance, also used in Hirschmann SealStar 1.2mm, SealStar 1.2mm-Shroudless
Mfr: TE/AMP
Series: MCON 1.2 Locking Lance, also used in Hirschmann SealStar 1.2mm, SealStar 1.2mm-Shroudless
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| MCON.12LL-PIN1 | .13-.22 mm2 (26-24 AWG) | Tin | 2141868-1 |
| - | Gold | 2141868-2 | |
| MCON.12LL-PIN2 | .25-.35 mm2 (24-22 AWG) | Tin | 1718758-1 |
| - | Gold | 1718758-2 | |
| MCON.12LL-PIN3 | .5-.75 mm2 (20 AWG) | Tin | 1718760-1 |
| - | Gold | 1718760-2 | |
| MCON.12LL-PIN4 | 1-1.5 mm2 (18-16 AWG) | Tin | 1718762-1 |
| - | Gold | 1718762-2 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.2mm (.047)
- Wire Size:0.13 - 1.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MIC.MK2-PIN
Multiple Interlock Connectors (MIC) Mk-II Pin Contact
Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II
| Part Number | |||||
|---|---|---|---|---|---|
| Wire Size | Material | Plating | Strip | Loose | |
| MIC.MK2-PIN1 | .3-.89 mm2 (22-18 AWG), 1.5-2.6 mm insulation dia | Brass | Tin | 172779-1 | 172780-1 |
| - | Gold | 172779-2 | 172780-2 | ||
| - | Ph. bronze | Tin | 172779-4 | 172780-4 | |
| MIC.MK2-PIN2 | .5-2.27 mm2 (20-14 AWG), 2.1-3.4 mm insulation dia | Brass | Tin | 172777-1 | 172778-1 |
| - | Gold | 172777-2 | 172778-2 | ||
| - | Ph. bronze | Tin | 172777-4 | 172778-4 | |
| Available stock: Aftermarket OEM | |||||
General
- Sealing:Unsealed
- Contact Size:3.0mm (.118)
- Wire Size:0.30 - 2.27 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
MINI.MLC-PIN
Mini Multilock Pin Contact
Mfr: OEM Tyco/AMP
Series: Mini Multilock Series
OEM P/N: 917309-1
Mfr: OEM Tyco/AMP
Series: Mini Multilock Series
OEM P/N: 917309-1
For .3-.5 mm2 (22-20 AWG) wire
General
- Sealing:Matte Sealed
- Contact Size:0.8mm (.030)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:11A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MLC025-PIN
Multilock 025 Terminal Lance Pin Contact
Mfr: AMP/TE
Series: Multilock 025 (Terminal Lance)
Mfr: AMP/TE
Series: Multilock 025 (Terminal Lance)
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| MLC025-PIN | .22-.5 mm2 (24-20 AWG) | Tin | 1376109-1 | 1376607-1 |
| - | Gold | 1376109-2 | 1376607-2 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:2.2A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-24230 (tin), 82998-24240 (gold) repair wire
MLC040-PIN
Multilock 040 Pin Contact
Mfr: Tyco/AMP
Series: Multilock 040 Series, Multilock 040 Series, Mk II
Mfr: Tyco/AMP
Series: Multilock 040 Series, Multilock 040 Series, Mk II
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| MLC040-PIN1 | .3-.5 mm2 (22-20 AWG) wire, 1.0-1.7mm Insulation dia | Tin | 175206-1 | N/A |
| - | Gold | N/A | N/A | |
| MLC040-PIN2 | .3-.5 mm2 (22-20 AWG) wire, 1.8-2.0mm Insulation dia | Tin | 173682-1 | 175063-1 |
| - | Gold | 2098032-3 | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ford F50B-14421-DA (size 2, tin)
- Harley Davidson 72990-01
MLC070-PIN
Multilock 070 Pin Contact
Mfr: Tyco/AMP
Series: Multilock 070 Series, Multilock 070/250 Hybrid
Mfr: Tyco/AMP
Series: Multilock 070 Series, Multilock 070/250 Hybrid
| Part Number | |||||
|---|---|---|---|---|---|
| Wire Size | Material | Plating | Strip | Loose | |
| - | .2-.3 mm2 (24-22 AWG), .3-.5 mm insulation dia | Brass | Tin | 175207-1 | N/A |
| MLC070-PIN1 | .2-.3 mm2 (24-22 AWG), 1.4-1.9 mm insulation dia | Brass | Tin | 173633-1 | 175029-1 |
| - | Ph. bronze | Tin | 173633-2 | 175029-2 | |
| - | Gold | 173633-3 | 175029-3 | ||
| - | .5-1.25 mm2 (20-16 AWG), 1.2-2.2 mm insulation dia | Brass | Tin | 175208-1 | N/A |
| MLC070-PIN2 | .5-1.25 mm2 (20-16 AWG), 2.0-2.6 mm insulation dia | Brass | Tin | 173645-1 | 175030-1 |
| - | Ph. bronze | Tin | 173645-2 | 175030-2 | |
| - | Gold | 173645-3 | 175030-3 | ||
| Available stock: Aftermarket OEM | |||||
Mfr Drawing, thin ins. (C-175207_E.pdf)- Mfr Drawing, PIN1 (C-173633_E.pdf)
- Mfr Drawing, thin ins. (C-175208_B.pdf)
- Mfr Drawing, PIN2 (C-173645_F.pdf)
-
Crimp Specs (114-5092_A.pdf)
-
Crimp Specs, thin ins. (114-5157-1_O.pdf)
-
Product Specs (108-5264_E1.pdf)
-
Disassembly (411-5287_O1.pdf)
-
Series Catalog (MLC070-CAT.pdf)
General
- Sealing:Unsealed
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-12180 repair wire
- Harley Davidson 73190-96
MLK12.SWS-PIN
MLK 1.2 Single Wire Sealing Pin Contact
Mfr: KOSTAL
Series: MLK 1.2 Single Wire Sealing Series
Mfr: KOSTAL
Series: MLK 1.2 Single Wire Sealing Series
| MLK12.SWS- | Wire Size | Plating | Part Number (latest) | Part Number (superseded) |
|---|---|---|---|---|
| PIN1 | .17-.22 mm2 (24 AWG) | Silver | 32124651803 | 32124651800 |
| - | Gold | 32125651803 | 32125651800 | |
| - | Tin | 32140651803 | 32140651800 | |
| PIN2 | .35 mm2 (22 AWG) | Silver | 32124651813 | 32124651810 |
| - | Gold | 32125651813 | 32125651810 | |
| - | Tin | 32140651813 | 32140651810 | |
| PIN3 | .5-.75 mm2 (20 AWG) | Silver | 32124680913 | 32124680910 |
| - | Gold | 32125680913 | 32125680910 | |
| - | Tin | 32140680913 | 32140680910 | |
| PIN4 | .75-1.0 mm2 (18 AWG) | Silver | 32124651823 | 32124651820 |
| - | Gold | 32125651823 | 32125651820 | |
| - | Tin | 32140651823 | 32140651820 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:1.2mm (.047)
- Wire Size:0.17 - 1.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:19A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
MP150-PIN
Metri-Pack 150 Sealed Pin Contact
Mfr: Delphi
Series: Metri-Pack 150 Sealed series
Mfr: Delphi
Series: Metri-Pack 150 Sealed series
| Wire Size | P/N | |
|---|---|---|
| MP150-PIN1 | .35-.5 mm2 (22-20) | 12077628 |
| MP150-PIN2 | .8-1.0 mm2 (18 AWG) | 12045773 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150U-PIN
Metri-Pack 150 Unsealed Pin Contact
Mfr: Delphi
Series: Metri-Pack 150 Unsealed series
Mfr: Delphi
Series: Metri-Pack 150 Unsealed series
| Wire Size | P/N | |
|---|---|---|
| MP150U-PIN1 | .35-.5 mm2 (22-20) | 12059894 |
| MP150U-PIN2 | .5-.8 mm2 (20-18 AWG) | 12047581 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Unsealed
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 0.80 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP280-3P-2-PIN
2.8 Pin Contact

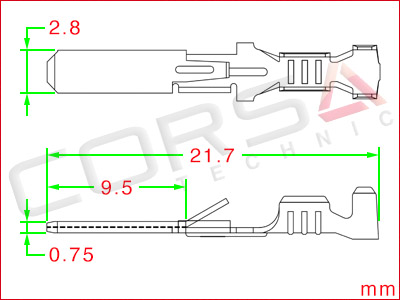

Pin specific for use with MP280-3P-2, for .85-1.25 mm2 (18-16 AWG) wire.
General
- Sealing:Unsealed
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP280-PIN
Metri-Pack 280 Sealed Pin Contact
Mfr: Delphi
Series: Metri-Pack 280 series
Mfr: Delphi
Series: Metri-Pack 280 series
| Wire Size | P/N | |
|---|---|---|
| MP280-PIN1 | .35-.5 mm2 (22-20 AWG) | 12124977 |
| MP280-PIN2 | .8-1.0 mm2 (18-16 AWG) | 12048159 |
| MP280-PIN3 | 2.0-3.0 mm2 (14-12 AWG) | 12129497 |
| MP280-PIN4 | 5.0 mm2 (10 AWG) | 12048254 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 5.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP630-PIN
Metri-Pack 630 Sealed Pin Contact
Mfr: Delphi
Series: Metri-Pack 630 series
Mfr: Delphi
Series: Metri-Pack 630 series
| Wire Size | P/N | |
|---|---|---|
| MP630-PIN1 | .5-.8 mm2 (20-18 AWG) | 12064734 |
| MP630-PIN2 | 1.0-2.0 mm2 (16-14 AWG) | 12064735 |
| MP630-PIN3 | 3.0 mm2 (12 AWG) | 12064737 |
| MP630-PIN4 | 5.0 mm2 (10 AWG) | 12064736 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 5.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:46A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP630-SKT
Metri-Pack 630 Sealed Socket Contact
Mfr: Delphi
Series: Metri-Pack 630 series
Mfr: Delphi
Series: Metri-Pack 630 series
| Wire Size | P/N | |
|---|---|---|
| MP630-SKT1 | .5-.8 mm2 (20-18 AWG) | 12052457 |
| MP630-SKT2 | 1.0-2.0 mm2 (16-14 AWG) | 12052455 |
| MP630-SKT3 | 3.0-5.0 mm2 (12-10 AWG) | 12052456 |
| MP630-SKT4 | 4.0-6.0 mm2 (10 AWG) | 15317331 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 6.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:46A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MQS.63SWS-PIN
MQS 0.63mm SWS Pin Contact
Mfr: Tyco/AMP
Series: Sealed MQS
Mfr: Tyco/AMP
Series: Sealed MQS
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| MQS.63SWS-PIN1 | .2-.35 mm2 (24-22 AWG) wire | Tin | 962886-1 | 963728-1 |
| - | Gold | 5-962886-2 | 963728-2 | |
| MQS.63SWS-PIN2 | .5-.75 mm2 (20 AWG) wire | Tin | 5-965908-1 | 965909-1 |
| - | Gold | 5-965908-2 | 965909-2 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:0.63mm (.025)
- Wire Size:0.20 - 0.75 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:7.5A
Environmental
- Temp Range[2]:-40 - 140 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MTW-PIN
MTW ''Hitachi'' Pin Contact
Mfr: Aftermarket Sumitomo
Series: MTW Series
Mfr: Aftermarket Sumitomo
Series: MTW Series
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| MTW-PIN1 | .3-.85 mm2 (22-18 AWG) | Plain | - |
| MTW-PIN1-Sn | Tin | - | |
| MTW-PIN2 | 1.25-2.0 mm2 (16-14 AWG) | Plain | - |
| MTW-PIN2-Sn | Tin | - | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-5
- Honda 07692-0010500
- Kowa Seiki T96000-017, KL-10-15
- Sumitomo p/n: 1800-2097 for .5-1.25 mm2 (20-16 AWG) wire (alt p/n: 1500-0071 tin plated)
- Suzuki 09900-28701-009 (brass)
MWT-PIN
MWT Pin Terminal
Mfr: OEM JST
Series: MWT Series
OEM P/N: SMWTWS-A021T-064
Mfr: OEM JST
Series: MWT Series
OEM P/N: SMWTWS-A021T-064
For 0.3-0.5 mm2 (22-20 AWG) wire, 1.4-1.7mm (.055-.067 in) insulation O.D.
General
- Sealing:Single Wire Sealed
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7.5A
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX093-PIN
Standard .093" Pin Contact
Mfr: Molex
Series: Standard .093" Series
Mfr: Molex
Series: Standard .093" Series
| Wire Size | Strip | Loose | |
|---|---|---|---|
| MX093-PIN1 | .3-.85 mm2 (22-18 AWG) | 02-09-2116 | 02-09-2118 |
| MX093-PIN2 | .5-2.0 mm2 (20-14 AWG) | 02-09-2101 | 02-09-2103 |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:2.36mm dia. (.093)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX150-PIN
MX150 Sealed Series Pin Contact
Mfr: Molex
Series: MX150 Sealed Series
Mfr: Molex
Series: MX150 Sealed Series
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| MX150-PIN1 | .3 mm2 (22 AWG) | Tin | 33000-1003 |
| - | Gold | 33011-0006 | |
| MX150-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 33000-1002 |
| - | Gold | 33011-0004 | |
| MX150-PIN3 | 2.0 mm2 (14 AWG) | Tin | 33000-1001 |
| - | Gold | 33011-0002 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Matte Sealed
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 72169-07
- Terminal used in Mopar 68364268AA (18 &14 awg Tin) terminal repair kit
N38-PIN
N38 Series Pin Contact
Mfr: OEM NT
Series: N38 Series
OEM P/N: 181021-M2
Mfr: OEM NT
Series: N38 Series
OEM P/N: 181021-M2
For .3-.5 mm2 (22-20 AWG) wire, with 1.6-2.0mm (.063-.079") insulation dia.
General
- Sealing:Unsealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:6A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-25 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
NH025-PIN1
NH Pin Contact
Mfr: Sumitomo
Series: NH Series
Mfr: Sumitomo
Series: NH Series
| Wire Size | Part Number | ||
|---|---|---|---|
| NH025-PIN1 | .22-.5 mm2 (24-20 AWG) | 8230-5379 (ss: 8230-4877) | |
| NH025-PIN2 | .75 mm2 (18 AWG) | 8230-5380 (ss: 8230-4876) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Nissan/Bosch J-48817-217 (PIN1) repair wire terminal
NMWP-PIN
NMWP Series Pin Contact
Mfr: Furukawa
Series: NMWP Series
Mfr: Furukawa
Series: NMWP Series
| Wire Size | Plating | P/N | |
|---|---|---|---|
| NMWP-PIN1 | 0.3-0.5 mm2 (22-20 AWG) | Tin | MT091-63080 NMWPM-0.3 |
| - | 0.3-0.5 mm2 (22-20 AWG) | Gold | MT091-63060 NMWPM-0.3-AU |
| NMWP-PIN2 | 0.85-2.0 mm2 (18-14 AWG) | Tin | MT091-63280 NMWPM-S |
| - | 0.85-2.0 mm2 (18-14 AWG) | Gold | MT091-63260 NMWPM-S-AU |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Cross-compatible to Yazaki 7114-1694, 7114-1695
NS-PIN
91 NS Series Pin Terminal
Mfr: Furukawa, Sumitomo, Yazaki
Series: CS NS-LC, 91 NS, 91 NS, 91 Hybrid Series
Mfr: Furukawa, Sumitomo, Yazaki
Series: CS NS-LC, 91 NS, 91 NS, 91 Hybrid Series
| Wire Size | Plating | Furukawa | Sumitomo | Yazaki | |
|---|---|---|---|---|---|
| NS-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | MT091-77080 | 1400-0743 | 7114-1535-02 |
| - | Gold | MT091-77060 | - | - | |
| - | 0.76 Gold | MT091-96070 | - | - | |
| NS-PIN2 | .85-2.0 mm2 (18-14 AWG) | Tin | MT091-77280 | 1400-0744 | 7114-1536-02 |
| - | Gold | MT091-77260 | - | - | |
| - | 0.76 Gold | MT091-96270 | - | - | |
| Available stock: Aftermarket OEM | |||||
General
- Sealing:Unsealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
PA-PIN
PA Series Pin Contact
Mfr: Yazaki
Series: PA Series, and used in BS Series
Mfr: Yazaki
Series: PA Series, and used in BS Series
| Wire Size | Part Number | |
|---|---|---|
| PA-PIN1 | 0.3-.5 mm2 (22-20 AWG) | 7114-1055 |
| PA-PIN2 | 0.85-2.0 mm2 (18-14 AWG) | 7114-1050 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Mixed
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-12080 (PIN2) repair wire
PP15/45-PIN
PP15/45 Power Contacts
Mfr: APP
Series: PP15/45
NOTE: PIN3 is an open barrel crimp, and for 10 AWG wire of class K stranding or smaller.
Mfr: APP
Series: PP15/45
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| PP15/45-PIN1 | .52-1.3 mm2 (20-16 AWG) | Silver Plated | 1332 |
| PP15/45-PIN2 | 1.3-3.3 mm2 (16-12 AWG) | Silver Plated | 1331 |
| PP15/45-PIN3 | 2.1-5.3 mm2 (14-10 K* AWG) | Silver Plated | 261G3 |
| Available stock: Aftermarket OEM | |||
Silver plated contacts offer up to 10,000 mating cycles and are recommended for circuit interrupt or hot plug applications. Closed barrel contacts are suitable for soldering.
General
- Sealing:Unsealed
- Contact Size:Mixed
- Wire Size:0.52 - 6.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Closed barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:55A
- Voltage Rating:600V
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
QLW-PIN
QLW Series Pin Contact
Mfr: Furukawa
Series: QLW Series
Mfr: Furukawa
Series: QLW Series
| Wire Size | P/N | |
|---|---|---|
| QLW-PIN1 | 2.0-3.0 mm2 (14-12 AWG) | QLW-M-300 (alt p/n: R010108) |
| QLW-PIN2 | 5.0-8.0 mm2 (10-8 AWG) | QLW-M-800 (alt p/n: R010109) |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:2.00 - 8.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:34A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
RCS25-PIN1
2.5mm Round Contact System Pin
Mfr: OEM Tyco/AMP
Mfr: OEM Tyco/AMP
| Wire Size | Plating | Part Number (BMW p/n) | |
|---|---|---|---|
| RCS25-PIN1 | .22-.35 mm2 (24-22 AWG) | Tin | 61-13-1-390-409 |
| RCS25-PIN2 | .5-1.0 mm2 (20-18 AWG) | Tin | 61-13-1-376-191 |
| RCS25-PIN3 | 1.0-2.5 mm2 (18-14 AWG) | Tin | 61-13-1-376-193 |
| RCS25-PIN3 | 2.5-4.0 mm2 (14-12 AWG) | Tin | 61-13-1-376-195 |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:2.5mm dia.
- Wire Size:0.22 - 4.00 mm2
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in BMW 61-13-0-007-452 (.5-1.0mm2) repair wire
- Terminal used in BMW 61-13-0-007-453 (1.0-2.5mm2) repair wire
RFW-PIN
RFW Series Pin Contact
Mfr: Furukawa
Series: RFW Sealed Series
Mfr: Furukawa
Series: RFW Sealed Series
| Wire Size | P/N | |
|---|---|---|
| RFW-PIN1 | .3-.5 mm2 (22-20 AWG) | RFW-M-050 (alt p/n: X010311) |
| RFW-PIN2 | .5-1.25 mm2 (20-16 AWG) | RFW-M-125 (alt p/n: X010313) |
| RFW-PIN3 | 2.0 mm2 (14 AWG) | RFW-M-200 (alt p/n: X010314) |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Suzuki 09900-28710-015 (Terminal from refill kit)
RH/HS-PIN
RH/HS Series Pin Contact
Mfr: Yazaki
Series: RH Series and HS 025 Series
Mfr: Yazaki
Series: RH Series and HS 025 Series
| Wire Size | P/N | |
|---|---|---|
| RH/HS-PIN1 | 0.3 mm2 (22 AWG) | 7114-4415-02 |
| RH/HS-PIN2 | 0.5 mm2 (20 AWG) | 7114-4416-02 |
| RH/HS-PIN3 | 0.85 mm2 (18 AWG) | 7114-4417-02 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:0.64mm (.025)
- Wire Size:0.30 - 0.85 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nissan/Bosch J-48817-248 repair wire terminal
RK-PIN
91 RK Series Pin Contact
Mfr: OEM Yazaki
Series: 91 RK Series
Mfr: OEM Yazaki
Series: 91 RK Series
| Wire Size | Plating | P/N | |
|---|---|---|---|
| RK-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 7114-1466-02 |
| - | Gold | 7114-1466-08 | |
| RK-PIN2 | .85 mm2 (18 AWG) | Tin | 7114-1469-02 |
| - | Gold | 7114-1469-08 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.85 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 110 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
RK.MS-PIN
RK Matte Seal Pin Terminal
Mfr: Yazaki
Series: RK/090II Hybrid
Mfr: Yazaki
Series: RK/090II Hybrid
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| RK.MS-PIN | .3-.5 mm2 (22-20 AWG) | Tin | 7114-1847-02 |
| - | Gold | 7114-1847-08 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Matte Sealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
RS-PIN
RS Series Pin Contact
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
Mfr: Furukawa, Sumitomo
Series: Furukawa: RS Series
Sumitomo: RS Series - Standard Type 1 (previously called 91 series), RS Series - Standard Type 2, RS Series - Type E-RS
| Wire Size | Plating | Furukawa | Sumitomo | |
|---|---|---|---|---|
| RS-PIN1 | 0.3-0.5 mm2 (22-20 AWG) | Tin | MT091-76050 | 8100-3803 |
| - | Gold | MT091-76060 | 8100-3805 | |
| RS-PIN2 | 0.85-1.25 mm2 (18-16 AWG) | Tin | MT091-76250 | 8100-3804 |
| - | Gold | MT091-76260 | 8100-3806 | |
| RS-PIN3 | 2.0 mm2 (14 AWG) | Tin | N/A | 8100-4172 |
| - | Gold | N/A | 8100-4173 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:19A
- Voltage Rating:14V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nissan/Bosch J-48817-209 repair wire terminal
SB50-PIN
SB 50 Spare Contacts
Mfr: OEM APP
Series: SB 50
OEM P/N: SB50-PIN1 for 3.3-5.3 mm² (12-10 AWG) wire, APP p/n: 5953
SB50-PIN2 for 8.4 mm² (8 AWG) wire, APP p/n: 5952
SB50-PIN3 for 13.3 mm² (6 AWG) wire, APP p/n: 1307
Mfr: OEM APP
Series: SB 50
OEM P/N: SB50-PIN1 for 3.3-5.3 mm² (12-10 AWG) wire, APP p/n: 5953
SB50-PIN2 for 8.4 mm² (8 AWG) wire, APP p/n: 5952
SB50-PIN3 for 13.3 mm² (6 AWG) wire, APP p/n: 1307
General
- Sealing:Unsealed
- Contact Size:7.1mm (.280)
- Wire Size:3.30 - 13.30 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Closed barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:120A
- Voltage Rating:600V
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SDL-PIN
SDL Series Pin Contact
Mfr: Yazaki
Series: SDL Series
Mfr: Yazaki
Series: SDL Series
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| SDL-PIN1 | 0.3-.85 mm2 (22-18 AWG) | Tin | 7114-1470 |
| - | Gold | 7114-1470-08 | |
| SDL-PIN2 | 1.25-2.0 mm2 (16-14 AWG) | Tin | 7114-1475 |
| - | Gold | 7114-1475-08 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:9A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SL060-PIN
SL 060 Sealed pin contact
Mfr: Sumitomo
Series: SL 060 Sealed Series
Mfr: Sumitomo
Series: SL 060 Sealed Series
| Wire Size | Finish | P/N: | |
|---|---|---|---|
| SL060-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 8100-3388 |
| - | Gold | 8100-3504 | |
| SL060-PIN2 | .75-.85 mm2 (18 AWG) | Tin | 8100-3389 |
| - | Gold | 8100-3403 | |
| SL060-PIN3 | 1.25-2.0 mm2 (16-14 AWG) | Tin | 8100-3390 |
| - | Gold | N/A | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
SS15-PIN
Superseal 1.5 Series Pin Contact
Mfr: Tyco/AMP
Series: Superseal 1.5 Series
Mfr: Tyco/AMP
Series: Superseal 1.5 Series
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| SS15-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 282404-1 | 183036-1 |
| - | Gold | 282404-3 | N/A | |
| SS15-PIN2 | .5-1.5 mm2 (20-16 AWG) | Tin | 282109-1 | 183024-1 |
| - | Gold | 282109-3 | N/A | |
| SS15-PIN3 | 1.5-2.5 mm2 (16-14 AWG) | Tin | 282465-1 | N/A |
| - | Gold | N/A | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 2.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:14A
- Voltage Rating:24V DC
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SSD-PIN
SSD Series Pin Contact
Mfr: Yazaki
Series: SSD Series
Mfr: Yazaki
Series: SSD Series
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| SSD-PIN | 0.3-.85 mm2 (22-18 AWG) | Tin | 7114-1680-02 |
| - | Gold | 7114-1680-08 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.2mm (.047)
- Wire Size:0.30 - 0.85 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SUMI.090U.A-PIN
DS, HD, HM, MT 090 Unsealed Series Pin Contact
Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed
Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed
| Wire Size | Finish | Sumitomo | Yazaki | |
|---|---|---|---|---|
| SUMI.090U.A-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 8230-4272 | 7114-1170 |
| - | Gold | 8230-4419 | 7114-1170-08 | |
| SUMI.090U.A-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 8230-4282 | 7114-1171 |
| - | Gold | N/A | 7114-1171-08 | |
| SUMI.090U.A-PIN3 | 2.0 mm2 (14 AWG) | Tin | 8230-4392 | N/A |
| - | Gold | N/A | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-12160, 82998-24050 (Gold plated) repair wire
- Terminal 90980-09071 (PIN1), 90980-09083 (PIN2)
SUMI.187-PIN
HX, DL, TS 187 Sealed Series Pin Contact
Mfr: Sumitomo
Series: HX Sealed Hybrid Series, TS 187 Sealed Series, TS 090+187 Hybrid
Mfr: Sumitomo
Series: HX Sealed Hybrid Series, TS 187 Sealed Series, TS 090+187 Hybrid
| Wire Size | P/N | |
|---|---|---|
| SUMI.187-PIN1 | .3-.5 mm2 (22-20 AWG) | 8100-0463 |
| SUMI.187-PIN2 | .5-1.25 mm2 (20-16 AWG) | 8100-0464 |
| SUMI.187-PIN3 | 2.0-3.0 mm2 (14-12 AWG) | 8100-0465 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-12470 repair wire (-PIN3)
SUMI.187U.A-PIN
HD, HE 187 Unsealed Series Pin Contact
Mfr: Sumitomo
Series: HD 090+187 Hybrid, HD 187, HE 187, HE 050+187 Hybrid, HE 090+187 Hybrid
Mfr: Sumitomo
Series: HD 090+187 Hybrid, HD 187, HE 187, HE 050+187 Hybrid, HE 090+187 Hybrid
| Wire Size | P/N | |
|---|---|---|
| SUMI.187U.A-PIN1 | .3-.5 mm2 (22-20 AWG) | 8100-1506 |
| SUMI.187U.A-PIN2 | .5-1.25 mm2 (20-16 AWG) | 8100-0664 |
| SUMI.187U.A-PIN3 | 2.0-3.0 mm2 (14-12 AWG) | 1500-0166 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Unsealed
Mechanical
SUMI.187U.B-PIN
DL, TS 187 Unsealed Series Pin Contact
Mfr: Sumitomo
Series: TS 187 Unsealed Series, TS 090+187 Hybrid
Mfr: Sumitomo
Series: TS 187 Unsealed Series, TS 090+187 Hybrid
| Wire Size | P/N | |
|---|---|---|
| SUMI.187U.B-PIN1 | .3-.5 mm2 (22-20 AWG) | 8230-4522 |
| SUMI.187U.B-PIN2 | .5-1.25 mm2 (20-16 AWG) | 8230-4532 |
| SUMI.187U.B-PIN3 | 2.0-3.0 mm2 (14-12 AWG) | 8230-4542 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Unsealed
- Contact Size:4.8mm (.187)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:28A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-12370 repair wire
SUMI.312U-PIN3
HE, SL, TS 312 Unsealed Series Pin Contact
Mfr: Sumitomo
Series: HE, SL, TS 312 Unsealed
Mfr: Sumitomo
Series: HE, SL, TS 312 Unsealed
| Wire Size | P/N | |
|---|---|---|
| SUMI.312U-PIN1 | 0.5-1.25 mm2 (20-16 AWG) | 8100-0520 |
| SUMI.312U-PIN2 | 2.0-3.0 mm2 (14-12 AWG) | 8100-0521 |
| SUMI.312U-PIN3 | 5.0-8.0 mm2 (10-8 AWG) | 8100-0522 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Unsealed
- Contact Size:8.0mm (.312)
- Wire Size:0.50 - 8.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:50A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SUMI.A-PIN
MT, HM, HW Sealed Pin Contact
Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series
Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series
| Wire Size | Finish | P/N: | |
|---|---|---|---|
| SUMI.A-PIN1 | .3-1.25 mm2 (22-16 AWG) | Tin | 1500-0105 |
| - | Gold | 1500-0134 | |
| SUMI.A-PIN2 | 2.0-2.7 mm2 (14 AWG) | Tin | 8230-4408 |
| - | Gold | N/A | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero FRS-101N (size 1)
- Honda 07JAZ-001080A
- Suzuki 09900-28710-003 (terminal from refill kit)
- Terminal used in Toyota 82998-12260, 82998-24070 (Gold plated) repair wire
SUMI.B-PIN
HX, DL, SL, TL Sealed Series pin contact
Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series
Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series
| Wire Size | Finish | P/N: | |
|---|---|---|---|
| SUMI.B-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 8230-4472 |
| - | Gold | 1500-0159 | |
| SUMI.B-PIN2 | .75-.85 mm2 (18 AWG) | Tin | 8230-4562 |
| - | Gold | 1500-0169 | |
| SUMI.B-PIN3 | 1.25-2.0 mm2 (16-14 AWG) | Tin | 8230-4552 |
| - | Gold | N/A | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
SWP-PIN
SWP Series Pin Contact
Mfr: Yazaki
Series: SWP Series
Mfr: Yazaki
Series: SWP Series
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| SWP-PIN1 | 0.3-.85 mm2 (22-18 AWG) | Tin | 7114-1471 |
| - | Gold | 7114-1471-08 | |
| SWP-PIN2 | 1.25-2.0 mm2 (16-14 AWG) | Tin | 7114-1472 |
| - | Gold | 7114-1472-08 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
TE070-PIN
TE 070 Pin Contact for ESJ, ES3.WW, SSC
Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
| Part Number | ||||
|---|---|---|---|---|
| Wire Size | Plating | Strip | Loose | |
| TE070-PIN1 | .2-.5 mm2 (24-20 AWG) | Tin | 171631-1 | 173600-1 |
| - | Gold | 171631-2 | N/A | |
| TE070-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 171661-1 | 173706-1 |
| - | Gold | 171661-2 | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
- Contact Size:1.8mm (.070)
- Wire Size:0.20 - 1.25 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero FRA-103N (size 2)
TK-PIN
91 TK Pin Contact
Mfr: Aftermarket Yazaki
Series: 91 TK Type
OEM P/N: 7114-4239-02
Mfr: Aftermarket Yazaki
Series: 91 TK Type
OEM P/N: 7114-4239-02
For 0.3-0.5 mm2 (22-20 AWG) wire
General
- Sealing:Unsealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TS025-PIN
TS 025 Sealed Series Pin Contact
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series, Yazaki 0.64mm Sealed Series
OEM P/N: 8100-3617 tin in-stock (alt pn 8100-3708, gold plated)
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series, Yazaki 0.64mm Sealed Series
OEM P/N: 8100-3617 tin in-stock (alt pn 8100-3708, gold plated)
For .22-.5 mm2 (24-20 AWG) wire
- Drawing, tin plated (S-51739_6.pdf)
- Drawing, gold plated (S-52963_5.pdf)
-
TE Crimp Data (C-2151961_D.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS025-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-24360, 82998-24370 (Gold plated) repair wire
TS090-PIN
TS 090 Sealed Series Pin Contact
Mfr: Sumitomo
Series: TS 090 Sealed Series, TS 090+187 Hybrid
Mfr: Sumitomo
Series: TS 090 Sealed Series, TS 090+187 Hybrid
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| TS090-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 8100-0457 |
| - | Gold | 8100-1340 | |
| TS090-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 8100-0458 |
| - | Gold | 8100-1007 | |
| TS090-PIN3 | 2.0 mm2 (14 AWG) | Tin | 8100-0459 |
| - | Gold | 8100-1008 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Cross-compatible with Yazaki 090II Sealed Series Pin
- Terminal used in Toyota 82998-12430, 82998-12450 (Gold plated) repair wire
TS312-PIN
TS 312 Sealed Series Pin Contact
Mfr: Sumitomo
Series: TS 312 Sealed Series
Mfr: Sumitomo
Series: TS 312 Sealed Series
| Wire Size | P/N | |
|---|---|---|
| TS312-PIN1 | 0.5-1.25 mm2 (20-16 AWG) | 8100-0506 |
| TS312-PIN2 | 2.0-3.0 mm2 (14-12 AWG) | 8100-0507 |
| TS312-PIN3 | 5.0-8.0 mm2 (10-8 AWG) | 8100-0508 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:8.0mm (.312)
- Wire Size:0.50 - 8.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:42A
- Voltage Rating:14V DC
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-12490 repair wire
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
